Ceiling Fan Stator Winding Machine for All Kinds of Motors
Ready to Ship
In stock Fast dispatch

Ceiling Fan Stator Winding Machine for All Kinds of Motors

  • 1 - 19 Sets
    $6,850
  • 20 - 49 Sets
    $6,580
  • >= 50 Sets
    $6,200

Customization:

Graphic customization（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Customized logo（Min.Order: 100 pieces）
View product details

Ceiling Fan Stator Winding Machine for All Kinds of Motors

Product overview

Core functionalities

Applicable scenarios

Unique advantages

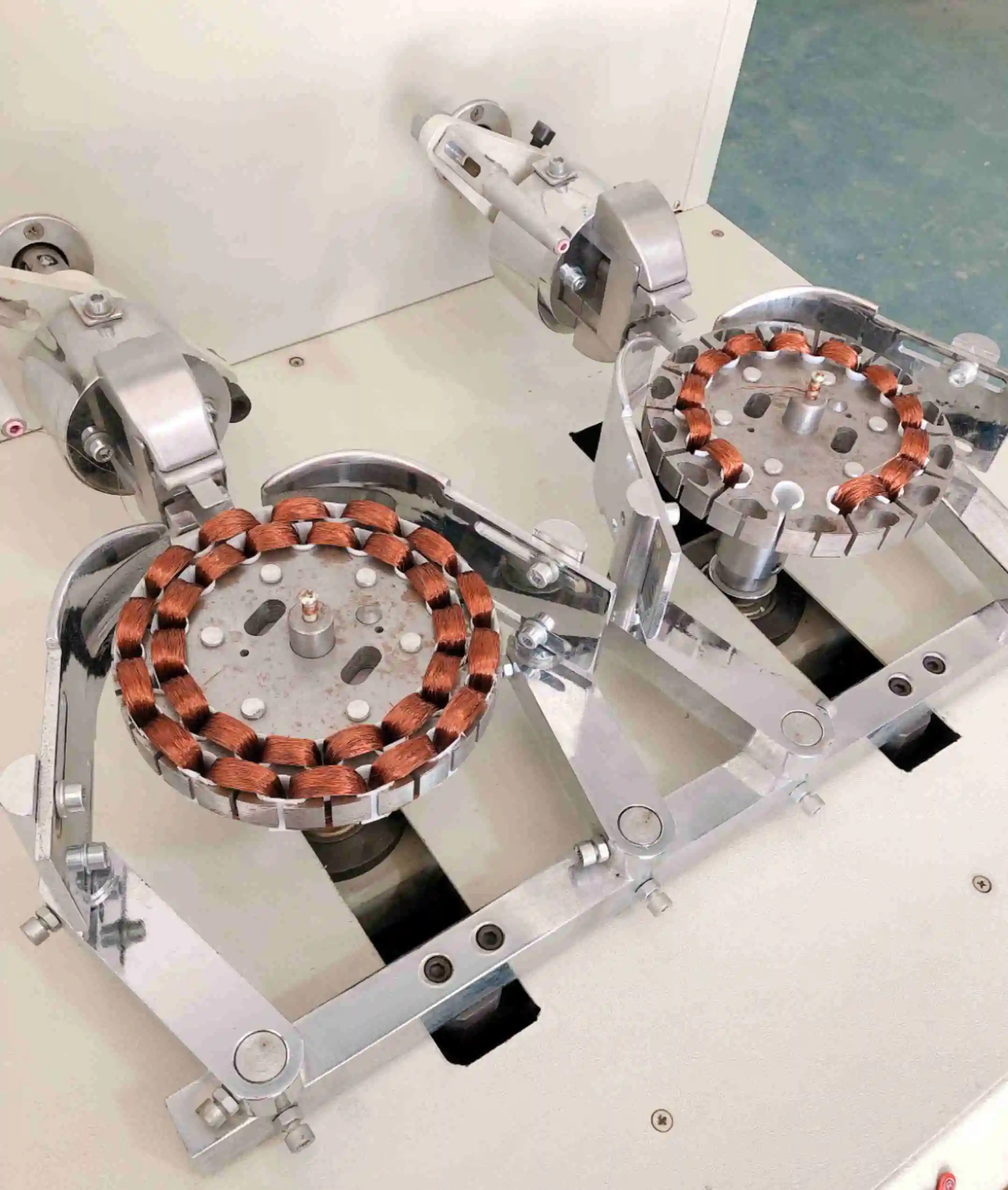

  • Precision Stator Winding: Automatically winds stators for ceiling fans and various motor types with CNC-driven accuracy, ensuring consistent coil alignment and tension.
  • Multi-Motor Compatibility: Designed to handle stators for ceiling fans, HVAC systems, and industrial motors, offering adjustable parameters for different specifications.

Key features

  • 1. Advanced CNC-Machined Material Technology

    • With a precision-engineered CNC aluminum alloy frame, ensure durable and consistent motor component production, reducing wear and tear during high-volume operations.

  • 2. User-Friendly Interactive Design

    • With an intuitive touchscreen interface, program winding parameters quickly and adjust settings effortlessly for seamless operation, even for complex motor designs.

  • 3. High-Performance Automation

    • With automatic winding capabilities, achieve up to 30% faster production speeds than manual methods*, increasing output efficiency for commercial and industrial use.

  • 4. Versatile Scenario Adaptability

    • With adaptable winding configurations, suit both small-batch prototyping and large-scale commercial production, meeting diverse manufacturing demands.

  • 5. Certified Quality Assurance

    • With ISO 9001-certified manufacturing standards, guarantee reliable performance and precision in every motor component produced.

Product details

Ceiling Fan Stator Winding Machine for All Kinds of Motors

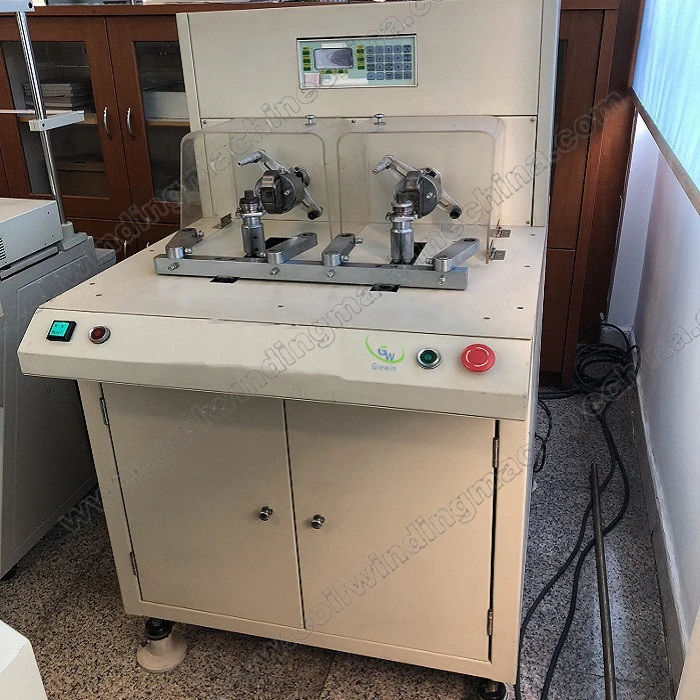

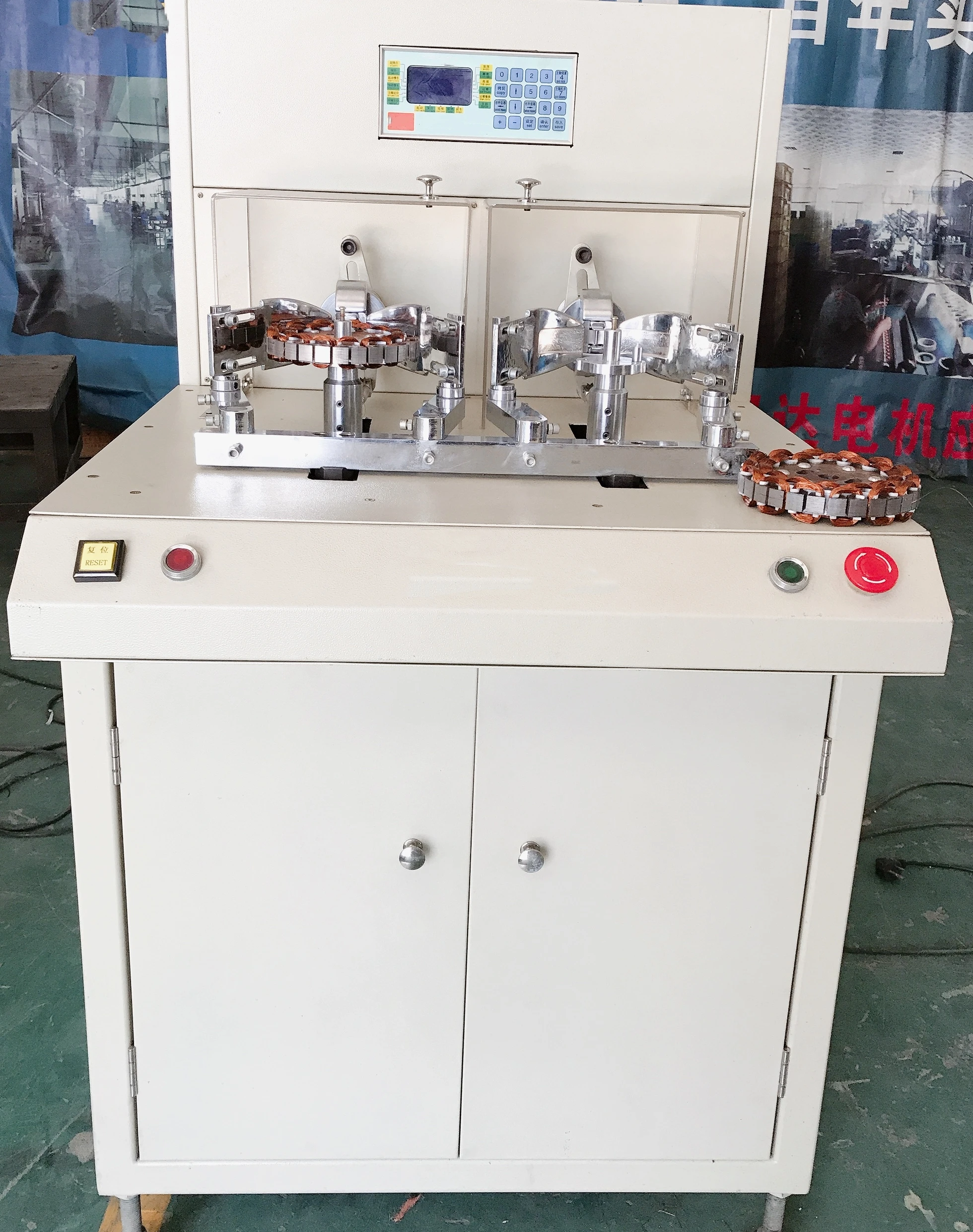

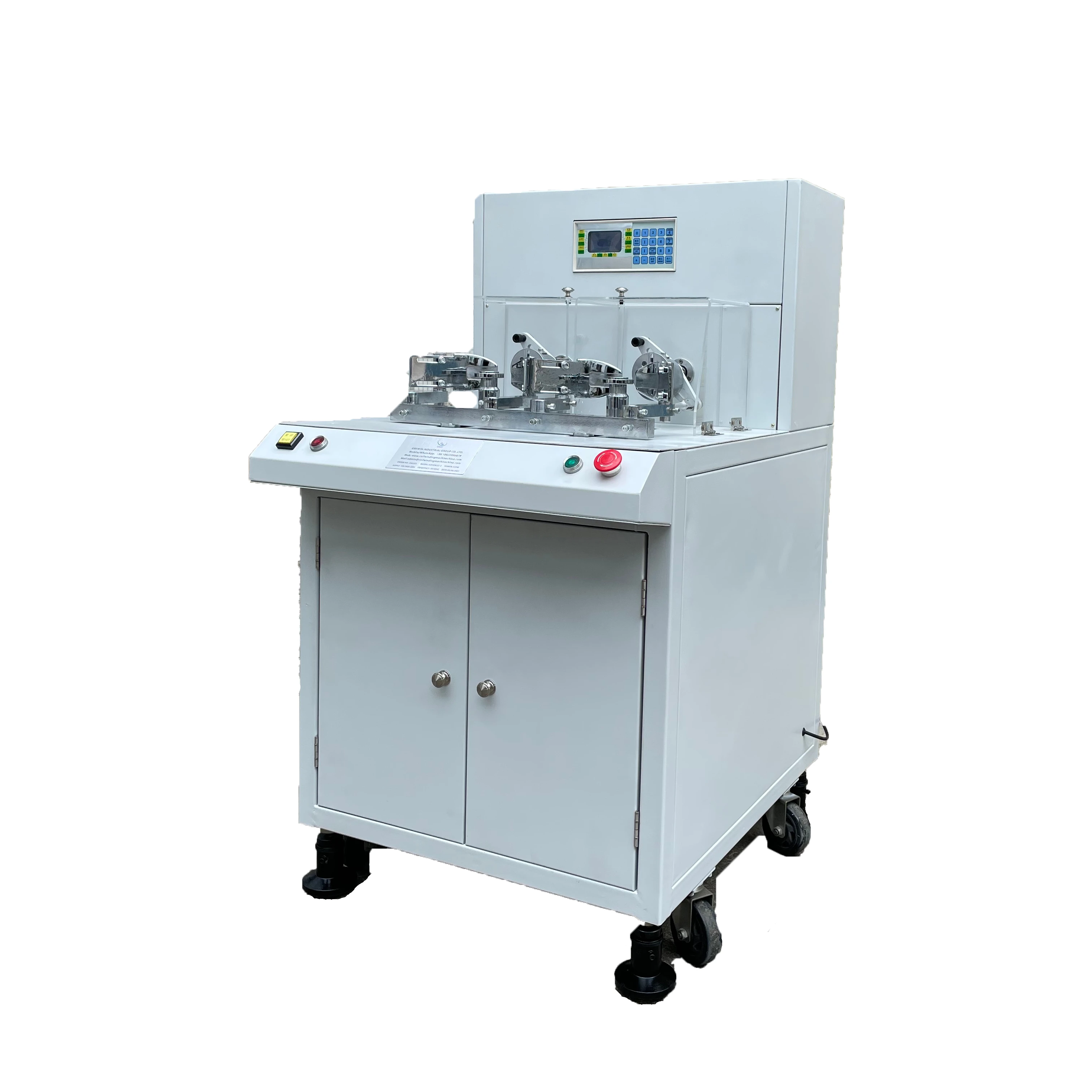

The Ceiling Fan Stator Winding Machine is a CNC-controlled, fully automatic solution designed for precise winding of stators in various motor types. Engineered for efficiency and adaptability, it supports high-volume production while maintaining consistent quality.

Technical specifications

FeatureSpecificationBenefit
Control TypeCNC-controlledEnsures precise winding alignment and repeatability
Automation LevelFully automaticReduces labor dependency and speeds up production
Material CompatibilityCopper/aluminum wires (0.1-3mm diameter)Versatile for different motor designs
CertificationCE, ISO 9001Meets global safety and quality standards

Customization guide

Adjustable parameters include winding tension, wire diameter range, and motor type presets to meet specific production needs. For example, fine-tuning tension settings ensures optimal performance for delicate or high-power motors.

Get inspired

Streamline your motor manufacturing process with this robust stator winding machine. Whether producing ceiling fans, HVAC systems, or industrial motors, its precision and adaptability deliver consistent results, reducing downtime and costs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision±0.1mm±0.05mm (+50%)±0.02mm (+80%)
Speed50 stators/hour60 stators/hour80 stators/hour
Wire Diameter Range0.5-2.5mm0.3-3mm0.1-3.5mm

Supplier's note

  1. Technical Breakthroughs:

    • CNC Precision: ±0.02mm accuracy in the Pro model ensures flawless stator alignment, critical for high-torque motors.
    • Expanded Material Range: The Advanced/Pro models handle wires as fine as 0.1mm, enabling use in compact electronics.
    • Speed Optimization: The Pro model’s 80 stators/hour output (40% faster than Base) reduces lead times for mass production.

  2. Version Selection Guidance:

    • Base Model: Ideal for small-to-medium workshops producing standard ceiling fans or HVAC motors.
    • Advanced Model: Suitable for manufacturers needing flexibility (e.g., custom wire gauges) without compromising speed.
    • Pro Model: Best for high-volume industrial applications requiring extreme precision (e.g., electric vehicle motors). With its tripled wire range compared to industry benchmarks, it handles both delicate and heavy-duty materials seamlessly.

Frequently asked questions

  • Which Ceiling Fan Stator Winding Machine model suits small workshops or home-based businesses?

  • How does the CNC technology in this stator winding machine ensure accuracy?

  • What types of motors can this stator winding machine handle?

  • How do I maintain the frothing nozzle of the CNC stator winding machine?

  • Can the machine be customized for specific motor winding requirements?

  • Is the material used in the machine’s construction FDA-approved?

  • What certifications does the automatic CNC stator winding machine have?

  • How does the automatic feature reduce labor costs compared to manual winding?
