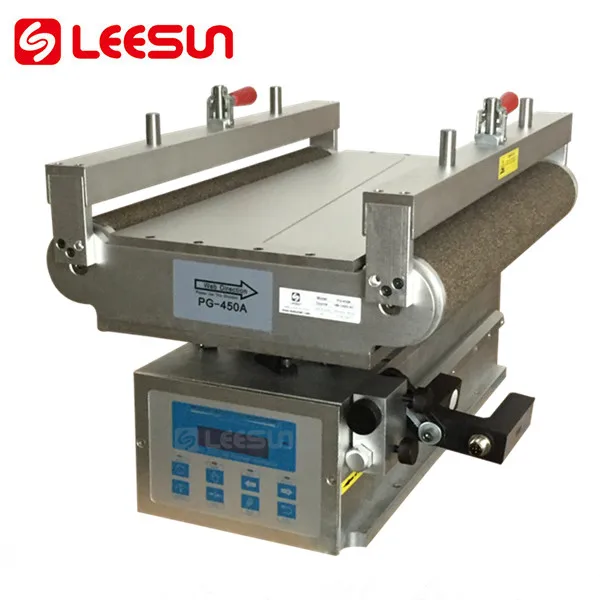

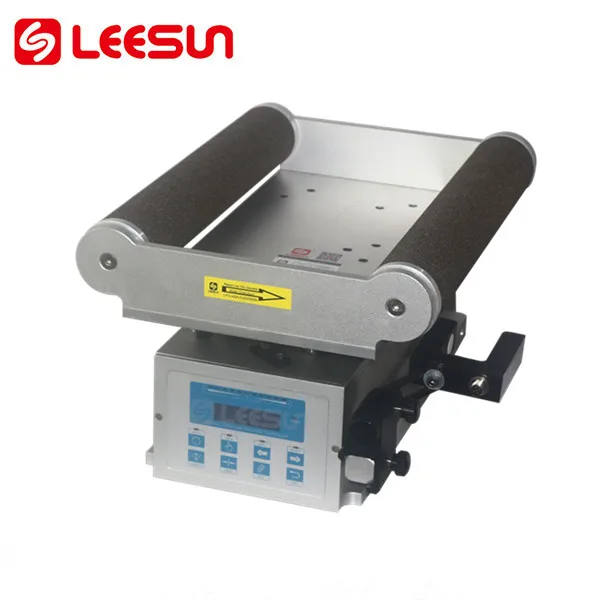

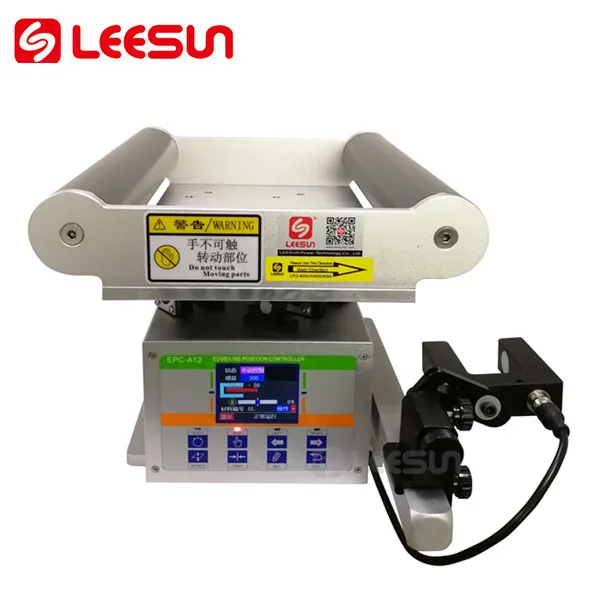

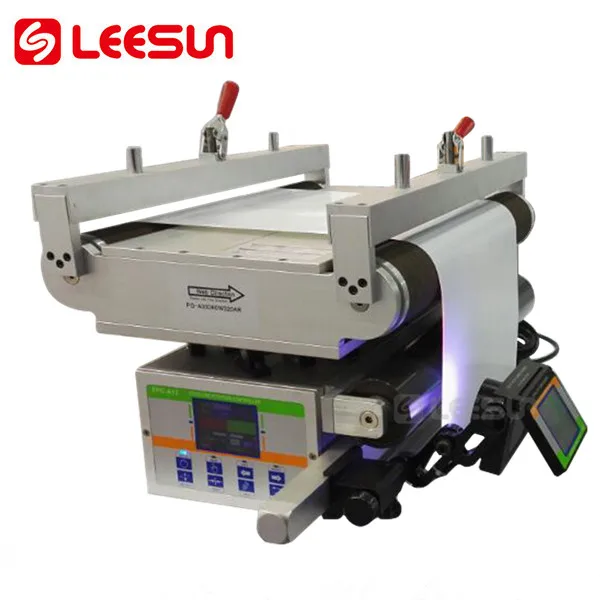

Center Position Control System for Web Rewinding and Unwinding

Technical specifications

Customization guide

Adjustable parameters include sensor sensitivity, roller spacing, and control presets to meet specific requirements such as:

• Material Thickness: Optimize roller pressure for thin films or heavy-duty fabrics.
• Speed Settings: Calibrate unwinding/rewinding rates for high-volume production lines.
• Alignment Tolerance: Fine-tune ultrasonic feedback for precision within ±0.1mm.

Get inspired

With ultrasonic sensors, you can achieve non-contact accuracy even in harsh conditions. The adjustable rollers let you handle materials from 50mm to 500mm widths, while the programmable control panel adapts to your workflow. This system ensures minimal waste and consistent quality in printing, labeling, or packaging applications.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Ultrasonic Sensors: Eliminate physical contact, reducing wear and enabling use in dusty environments.
   • Programmable Control: Custom presets cut setup time by 30% compared to manual systems.
   • Adjustable Rollers: Accommodate 50–600mm widths, outperforming fixed-roller systems.

2. Version Selection Guide:

   • Base Model: Ideal for SMEs needing reliable performance in standard printing tasks.
   • Advanced Model: Suitable for packaging lines requiring IP67 waterproofing and FDA compliance.
   • Pro Model: Best for high-speed manufacturing with heavy materials (e.g., automotive textiles), offering ATEX certification for explosive environments.

With the Pro Model’s ±0.1mm precision, you can achieve flawless alignment in high-resolution printing, while its 500kg load capacity handles industrial-grade materials. The Advanced Model’s FDA certification makes it a top choice for food packaging lines.
