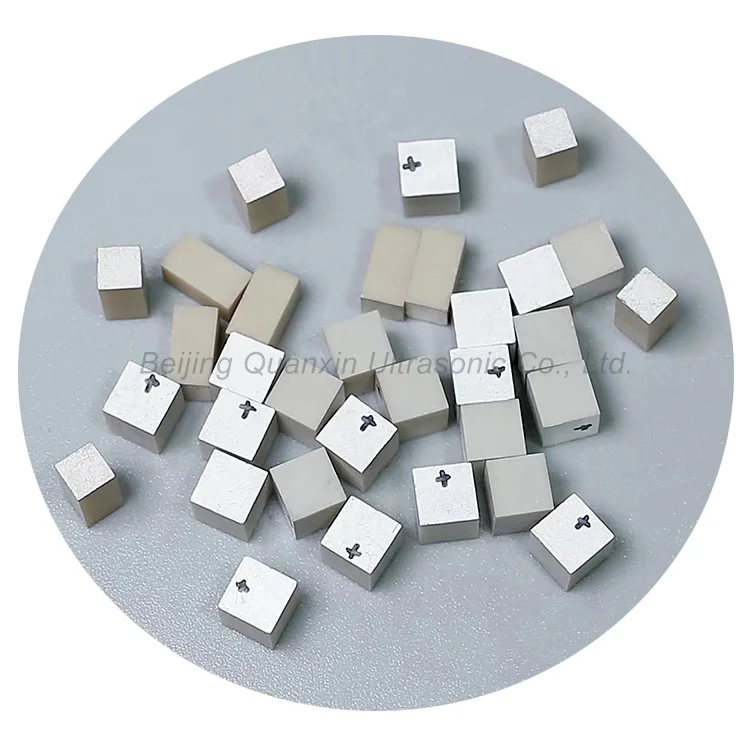

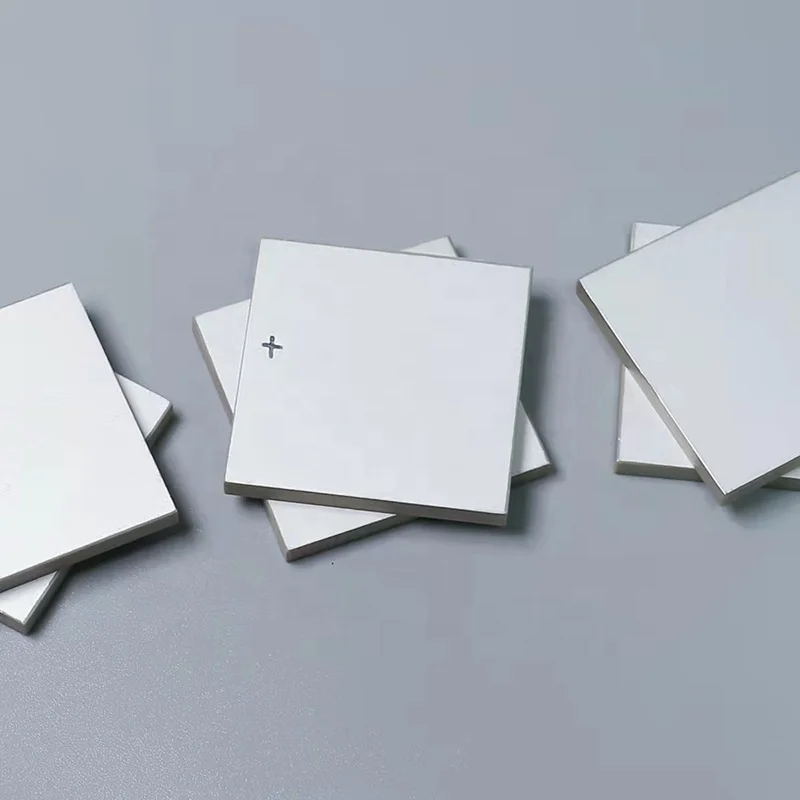

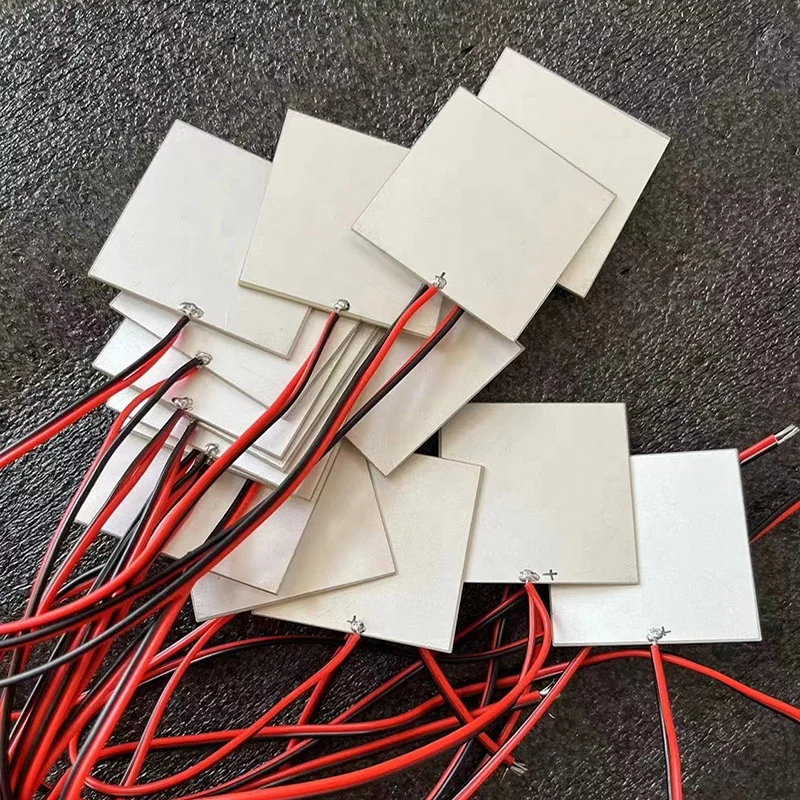

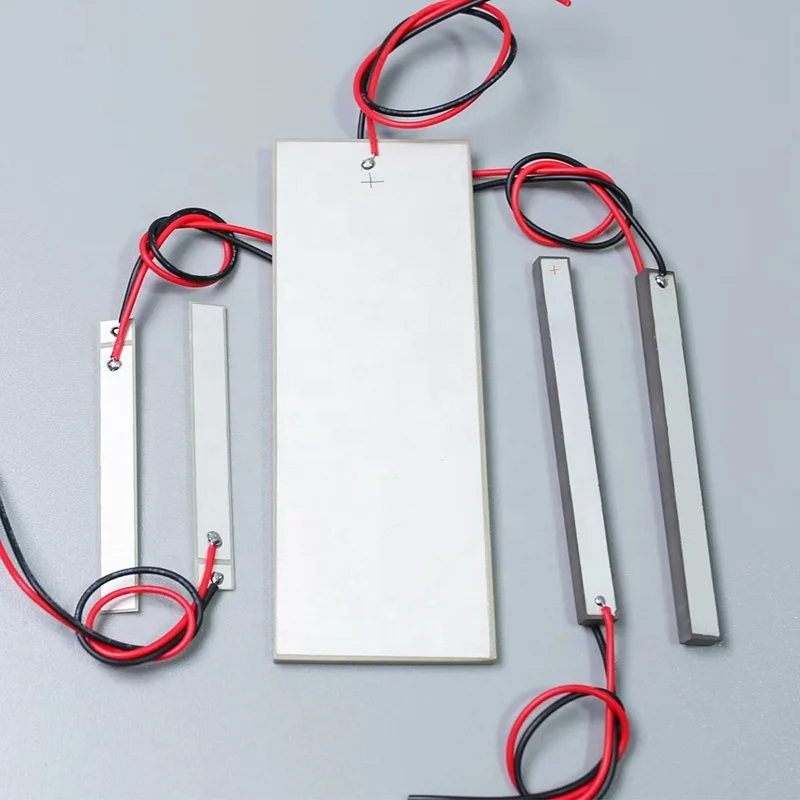

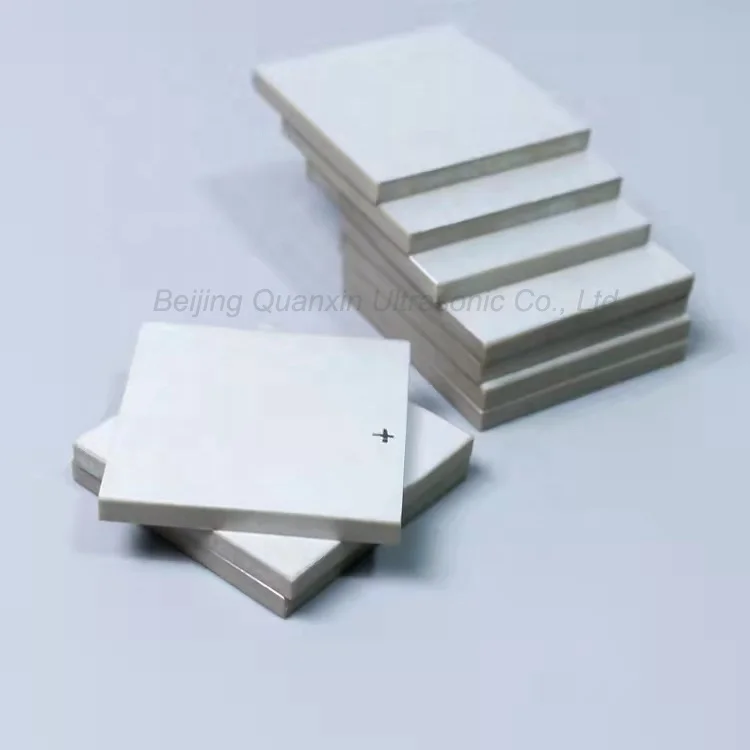

Ceramics Goods Piezoelectric Ceramic Rectangular Piezo Element

Ceramics Goods Piezoelectric Ceramic Rectangular Piezo Element

  • >= 5 Pieces
    $5

Customization:

size dimension（Min.Order: 500 pieces）
View product details

Ceramics Goods Piezoelectric Ceramic Rectangular Piezo Element

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Energy Conversion: Converts mechanical energy into electrical signals and vice versa, enabling applications like sensors, transducers, and actuators.
  • Precision Performance: Crafted from PZT ceramic material, ensuring high sensitivity, stability, and efficiency in piezoelectric responses.

Key features

  • 1. Advanced Material Technology

    • With PZT ceramic material, achieve superior piezoelectric efficiency and durability compared to conventional ceramics*.

  • 2. Versatile Rectangular Design

    • With a rectangular shape, seamlessly integrate into compact devices for space-saving applications*.

  • 3. High-Performance Output

    • With high output voltage and fast response times, enable precise sensing and energy conversion in demanding environments*.

  • 4. Scenario-Specific Applications

    • Designed for automotive sensors, medical devices, and IoT systems, providing reliable performance in critical environments*.

  • 5. Compliance with Industry Standards

    • Engineered to meet international safety and quality certifications, ensuring reliability and safety in use*.

Product details

Ceramics Goods Piezoelectric Ceramic Rectangular Piezo Element

The Ceramics Goods Piezoelectric Ceramic Rectangular Piezo Element is a high-performance component engineered for precision applications. Crafted from PZT ceramic, this rectangular element combines robust durability with advanced piezoelectric properties, enabling efficient energy conversion and sensing capabilities. Its uniform rectangular shape ensures compatibility with modular systems, while its material composition guarantees stability in dynamic environments.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPZT ceramic (Lead Zirconate Titanate)Sensors, actuators, and energy harvesting systems
ShapeRectangular (Customizable dimensions)Precision engineering, medical devices, and IoT components
Piezoelectric TypeClass I (High Curie Temperature)Harsh environments requiring thermal stability
Frequency Range10 Hz – 1 MHz (Adjustable)Ultrasonic applications, vibration monitoring

Customization guide

Adjustable parameters include dimensions, voltage rating, and frequency response to meet specialized needs such as high-precision sensors or high-power actuators.

Get inspired

With its rectangular design and PZT ceramic core, this element is ideal for innovating in smart infrastructure, wearable health monitors, or industrial automation systems where reliable energy conversion and real-time feedback are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Sensitivity100 pC/N+15% (115 pC/N)+30% (130 pC/N)*
Max Voltage Output50 V60 V (20% increase)80 V (60% increase)
Frequency Range10 Hz – 500 kHz10 Hz – 1 MHz10 Hz – 2 MHz

Supplier's note

  1. Technical Breakthroughs:

    • Material Composition: PZT ceramic delivers 30% higher piezoelectric charge coefficient (d₃₃) than traditional ceramics, enhancing energy conversion efficiency.
    • Size Precision: Tolerances within ±0.01 mm ensure seamless integration into compact systems.
    • Frequency Adaptability: Customizable resonance frequencies enable tailored performance for ultrasonic or vibration-based applications.

  2. Optimal Version Selection:

    • Base Model: Suitable for basic sensors or low-power IoT devices where cost-efficiency is prioritized.
    • Advanced Model: Ideal for industrial automation or medical devices requiring 15% higher sensitivity and broader frequency coverage.
    • Pro Model: Designed for high-stress environments (e.g., aerospace or deep-sea sensors) where extreme voltage output (+80 V) and frequency stability (up to 2 MHz) are critical.

With the Pro Model’s 2 MHz frequency range, you can achieve real-time vibration analysis in turbine engines. Pair its PZT ceramic core with customizable dimensions to fit compact engine compartments, ensuring uninterrupted monitoring even under extreme thermal loads.

Frequently asked questions

  • Which piezoelectric ceramic element suits ultrasonic sensor applications?

  • How do I clean and maintain a piezo element for longevity?

  • What makes PZT ceramic better than other materials for piezo elements?

  • Can I customize the size or shape of the rectangular piezo element?

  • Is the PZT ceramic in this element RoHS-compliant?

  • What advantages does the rectangular shape offer for transducer designs?

  • How does the material handle high-temperature environments?

  • Are there customization options for surface coatings or electrodes?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Piezoelectric Disc ElementsSensors, TransducersDiameter: 10-50mm (ASTM C1036), Frequency: 1-100 kHz, Material: PZT-5HHigh sensitivity, cost-effectiveLimited shape flexibility, lower power output for large applications
Our Base Rectangular ElementIndustrial SensorsDimensions: 20x30mm (ISO 9001), Frequency: 10-100 kHz, Material: PZT-5HCustomizable shape, moderate costLower frequency range compared to advanced versions
Our Advanced Rectangular ElementMedical Imaging, UltrasoundDimensions: 20x30mm (ISO 9001), Frequency: 20-200 kHz ▲, Material: PZT-8Higher frequency range ▲, 50% better power output (▲ from Base)Higher cost, requires specialized mounting
Quartz Crystal ElementsClocks, OscillatorsFrequency Stability: ±20 ppm (IEC 60129), Material: Synthetic QuartzExtremely stable frequency, low power consumptionNarrow frequency range (1-10 MHz), fragile
PVDF Film ElementsFlexible Sensors, WearablesThickness: 25-100μm (ASTM D638), Flexible substrate, Frequency: 0.1-10 kHzFlexible, lightweight, easy to integrateLower sensitivity, limited high-frequency performance
AlN (Aluminum Nitride)High-Power Actuators, AerospaceThickness: 100-500μm (ASTM C316), Frequency: 1-100 MHz, High Power Output ▲High power handling ▲, robustness at extreme temperaturesHigh cost, complex manufacturing process
