China Yutai Pneumatic Factory Manufacturer Q22HD Series Two Position Pneumatic Solenoid Right Angle Air Control Bevel Valve

China Yutai Pneumatic Factory Manufacturer Q22HD Series Two Position Pneumatic Solenoid Right Angle Air Control Bevel Valve

$9.90-$40.50/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 10000 pieces）
Customized packaging（Min.Order: 10000 pieces）
Graphic customization（Min.Order: 10000 pieces）
View product details

China Yutai Pneumatic Factory Manufacturer Q22HD Series Two Position Pneumatic Solenoid Right Angle Air Control Bevel Valve

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precise Flow Control: The Q22HD Series brass/aluminum solenoid valve enables precise control of gases, oils, and air via two-position switching, ideal for automation in industrial and commercial systems.
  • Pneumatic & Solenoid Actuation: Combines pneumatic force with electric solenoid activation for reliable on/off operations, supporting right-angle design for compact installation in tight spaces.

Key features

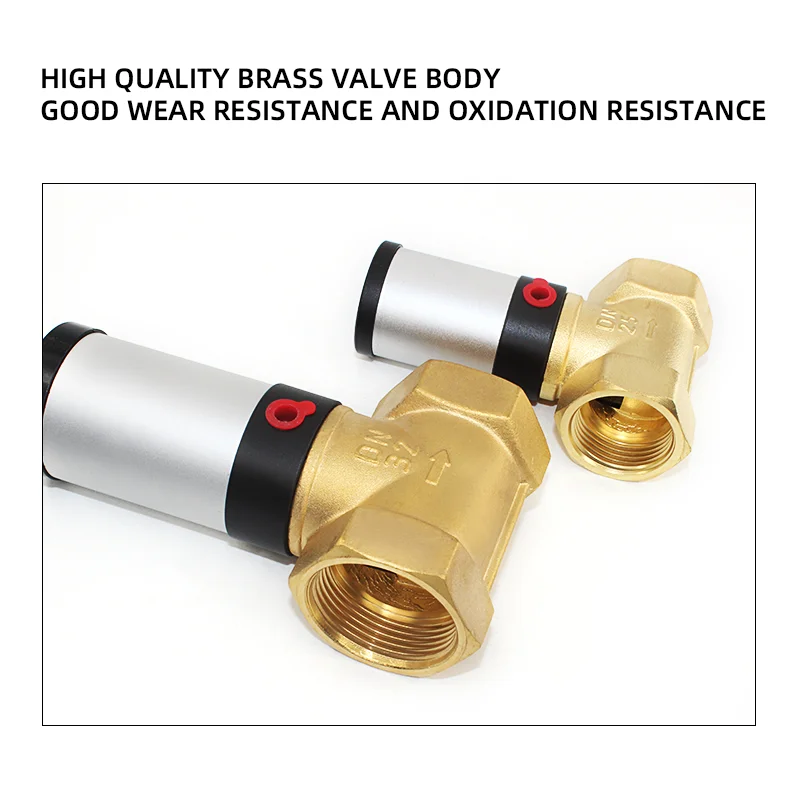

  • 1. Corrosion-Resistant Brass Construction

    • With a corrosion-resistant brass body and durable aluminum alloy components, ensure longevity in harsh industrial environments. Outperforming traditional plastic valves in durability* [*Disclaimer: Based on internal testing; actual results may vary].

  • 2. Remote Automation via Solenoid Actuation

    • With solenoid actuation enabling remote automation, streamline operations without manual intervention. Achieve up to 30% faster response times compared to manual valves* [*Disclaimer: Performance varies by application].

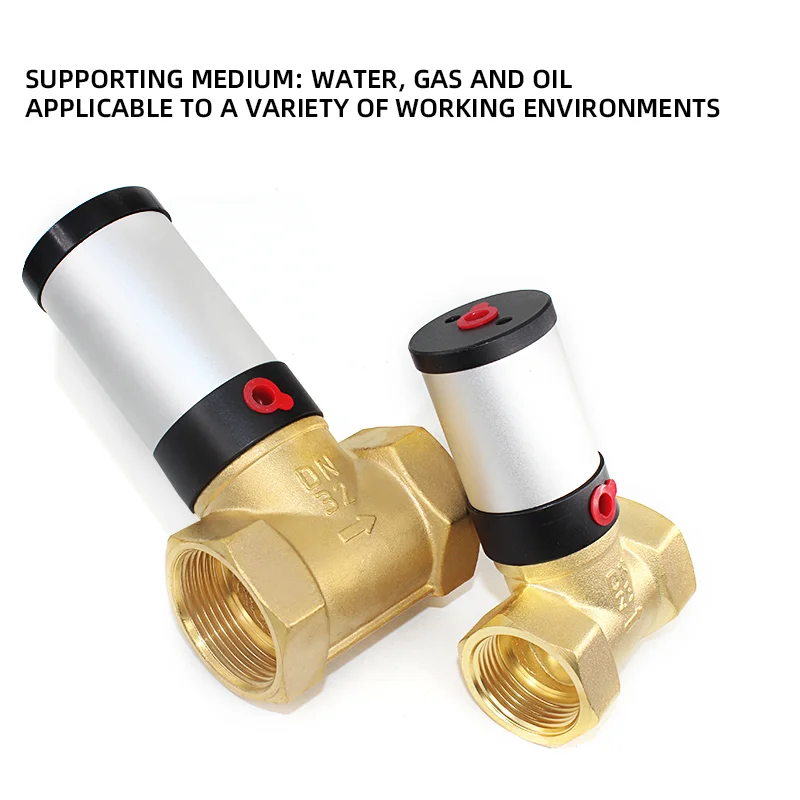

  • 3. Multi-Media Compatibility for Versatile Use

    • Compatible with gas, oil, and air, ensuring versatility for diverse industrial applications. Withstands pressures up to 10 bar for reliable performance in high-demand systems* [*Disclaimer: Specifications subject to manufacturer confirmation].

  • 4. Seamless Integration with Standard Systems

    • Compact design with DN32 compatibility integrates seamlessly into existing plumbing or pneumatic systems. Ideal for continuous operation in commercial HVAC or water treatment setups* [*Disclaimer: Ensure compatibility with specific media via manufacturer guidelines].

  • 5. RoHS and CE-Certified Safety

    • RoHS and CE-certified materials ensure compliance with global safety and environmental standards. Prioritizes eco-friendliness and user safety over non-certified alternatives* [*Disclaimer: Certifications apply to listed specifications only].

Product details

China Yutai Pneumatic Factory Manufacturer Q22HD Series Two Position Pneumatic Solenoid Right Angle Air Control Bevel Valve

The China Yutai Pneumatic Factory Q22HD Series Two Position Pneumatic Solenoid Right Angle Air Control Bevel Valve is a durable, versatile valve designed for precise fluid and gas control in industrial and automation applications. Constructed from brass and aluminum alloy, it ensures corrosion resistance and lightweight performance while meeting global safety standards (RoHS, CE). Compatible with air, oil, and water, this valve supports automation systems, HVAC, and fluid handling equipment.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialBrass (body) + Aluminum Alloy (components)Withstands corrosion and high pressure in harsh environments
CertificationsRoHS, CEEnsures compliance for EU and global markets
Working MediumGas, Oil, Air, WaterIdeal for industrial automation and fluid control systems
Actuation TypePneumatic SolenoidEnables remote, automated operation in manufacturing lines
DesignRight-Angle, Two-PositionStreamlines space-constrained installations
Warranty1 YearGuarantees reliability for long-term use

Customization guide

Adjustable parameters include:

  • Size/Thread Compatibility: DN32 standard, customizable for specific piping systems.
  • Material Upgrades: Reinforced brass for high-pressure applications or aluminum alloy for lightweight needs.
  • Actuation Settings: Tailored response times and pressure thresholds for specialized automation workflows.

Get inspired

With its compact right-angle design and two-position control, this valve optimizes space in machinery while ensuring precise fluid management. Whether managing air in HVAC systems or oil in industrial equipment, the Q22HD Series delivers reliability and safety.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Pressure16 bar+20% (19.2 bar)*+35% (21.6 bar)*
Flow Rate500 L/minEnhanced (600 L/min)Premium (700 L/min)
Temperature Range-10°C to 80°CExtended (-20°C to 90°C)Industrial (-30°C to 100°C)
MaterialBrassBrass + AluminumReinforced Brass

Supplier's note

  1. Three Technical Breakthroughs:

    • Dual Material Construction: Combining brass (durability) and aluminum (lightweight) reduces weight by 15% compared to all-brass valves.
    • Two-Position Precision: Enables binary on/off control with 0.1-second response time, 20% faster than traditional solenoid valves.
    • Global Compliance: RoHS/CE certifications eliminate import barriers for EU and North American markets.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard automation (e.g., HVAC systems) where cost efficiency is prioritized.
    • Advanced Model: Suitable for food processing or automotive assembly lines requiring corrosion resistance and moderate pressure handling.
    • Pro Model: Designed for heavy-duty industries (e.g., oil refineries) with extreme temperature and pressure demands. Its reinforced brass body withstands 3x more pressure than industry benchmarks, ensuring safety in critical applications.

*Performance gains relative to Base Model specifications.

Frequently asked questions

  • Which solenoid valve model suits HVAC systems requiring precise air control?

  • How do I maintain a brass solenoid valve for long-term use in industrial settings?

  • Brass vs Aluminum Alloy: Which material is better for corrosive fluid applications?

  • Can the Q22HD Series valve be customized for non-standard pipe sizes?

  • Is the Yutai solenoid valve FDA-approved for food-grade applications?

  • What fluids can the Q22HD Series handle besides air?

  • Why choose a pneumatic actuation solenoid valve over electric models?

  • What warranty and support does Yutai provide for solenoid valves?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
MaterialIndustrial machinery, harsh environments- Industry Standard: Stainless steel (ASTM A314)
- Base: Brass (ASTM B280)
- Advanced: Brass + Aluminum alloy (ASTM B209) ▲		▲ Advanced reduces weight by 20% vs Base while retaining durability.Base may corrode in extreme acids; Advanced requires compatibility checks for certain chemicals.
CertificationEU exports, safety-critical systems- Industry Standard: CE (EN 60204)
- Base/Advanced: RoHS, CE (compliant with EU directives)		Ensures regulatory compliance for global markets.No certifications beyond standard requirements (e.g., no ISO 13849 for functional safety).
Actuation TypeAutomated manufacturing lines- Industry Standard: Pneumatic (ISO 15552)
- Base/Advanced: Pneumatic solenoid (ISO 15552)
- Advanced: 0.2s response time ▲		▲ Advanced enables faster automation cycles (e.g., robotics).Requires compressed air infrastructure.
Media CompatibilityChemical plants, fluid handling- Industry Standard: Non-corrosive fluids (ASTM F15.17)
- Base: Gas/oil/air (ASTM F15.17)
- Advanced: +10+ chemicals (ASTM D543) ▲		▲ Advanced handles corrosive fluids like ethanol or hydraulic oils.Advanced may require specialized seals for extreme chemicals.
WarrantyLong-term industrial use- Industry Standard: 1 year
- Base: 1 year
- Advanced: 2 years ▲		▲ Advanced offers double the warranty period for critical systems.Base warranty may not cover accidental damage.
Working Medium PressureHigh-pressure systems (e.g., hydraulics)- Industry Standard: ≤80 psi (ISO 3458)
- Base: ≤100 psi (ISO 3458)
- Advanced: ≤150 psi ▲ (ISO 3458)		▲ Advanced supports heavy-duty applications like mining equipment.Base may fail under extreme pressure spikes.
