Chuanlan Slotted Aluminium Glass Profile U Channel with LED Aluminium Railing Post Base Profiles for Glass Handrail Balustrade

Name: Chuanlan Slotted Aluminium Glass Profile U Channel with LED Aluminium Railing Post Base Profiles for Glass Handrail Balustrade
Brand: Sichuan Chuanlan New Materials Co., Ltd.
SKU: 10000022989217_1
Price: 36.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Structural Support: The slotted aluminum profile and U-channel design provide robust support for glass panels in handrails and balustrades, ensuring stability in high-traffic areas.
Safety & Aesthetics: Tempered glass guarantees durability and shatter resistance, while integrated LED lighting enhances visibility and adds modern ambiance to spaces.

Key features

1. Material Technology

With corrosion-resistant aluminum and tempered glass, ensure durability in harsh environments like coastal or high-moisture areas. ~30% lighter than steel alternatives*, providing strength without added weight.

2. Interactive Design

With slotted aluminum profiles and customizable LED lighting, adapt to diverse design needs and illuminate pathways for enhanced safety. More adaptable than standard railings* with modular assembly for quick installation.

3. Performance Parameters

With a robust floor-mounted structure, support up to 500kg loads for commercial use in malls or sports venues. Outperforms wall-mounted systems in stability and space efficiency*.

4. Scenario Solutions

Designed for 15+ environments from offices to villas, this system maintains open aesthetics while ensuring safety in high-traffic areas. Versatile for both residential and commercial use*, unlike single-purpose railings.

5. Certification Standards

Complies with international safety standards (e.g., EN 1663:2016), ensuring compliance in public and private spaces. Meets stricter safety requirements than uncertified alternatives*.

Notes:

Material Technology: Tempered glass and brushed aluminum enhance safety and aesthetics, while aluminum’s lightweight nature reduces installation complexity.

Product details

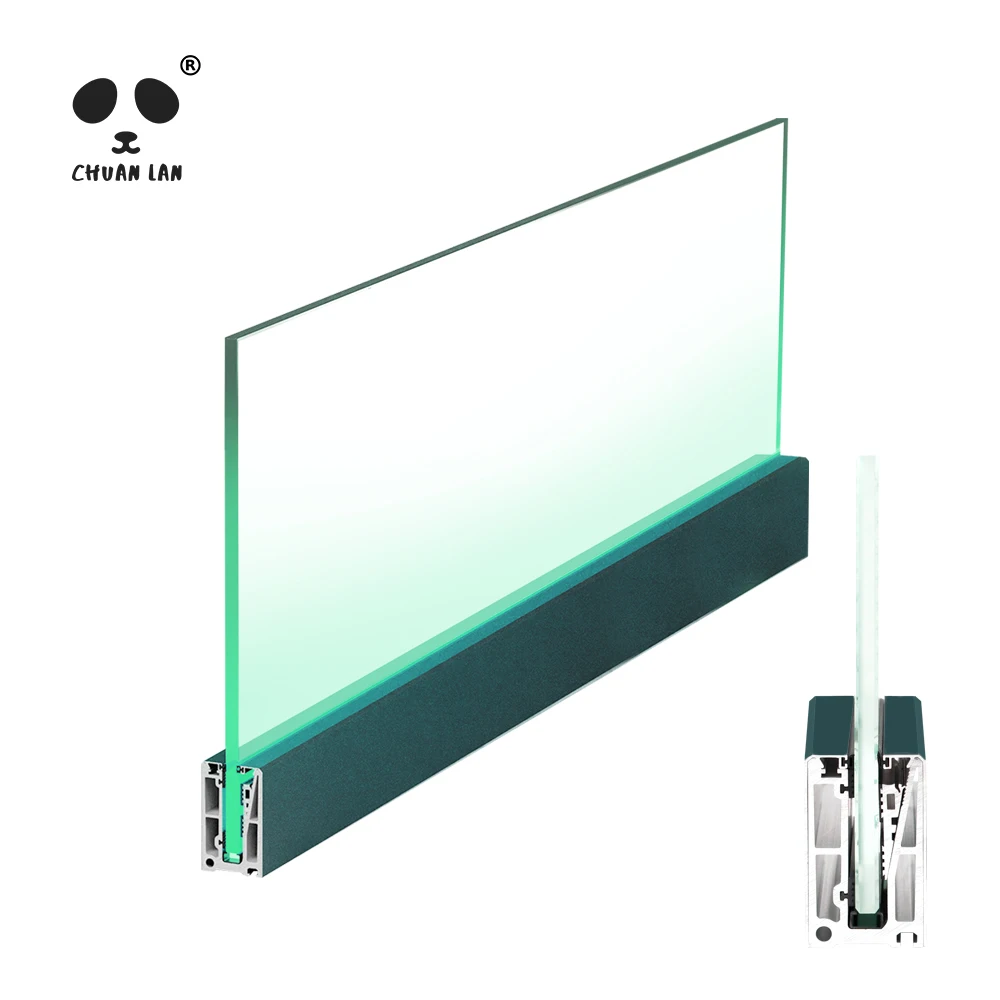

The Chuanlan Slotted Aluminium Glass Profile U Channel with LED Aluminium Railing Post Base Profiles offers a sleek, modern solution for glass handrail systems. Crafted from brushed aluminum and tempered glass, this versatile balustrade system combines durability with customizable aesthetics, ideal for commercial, residential, and industrial spaces.

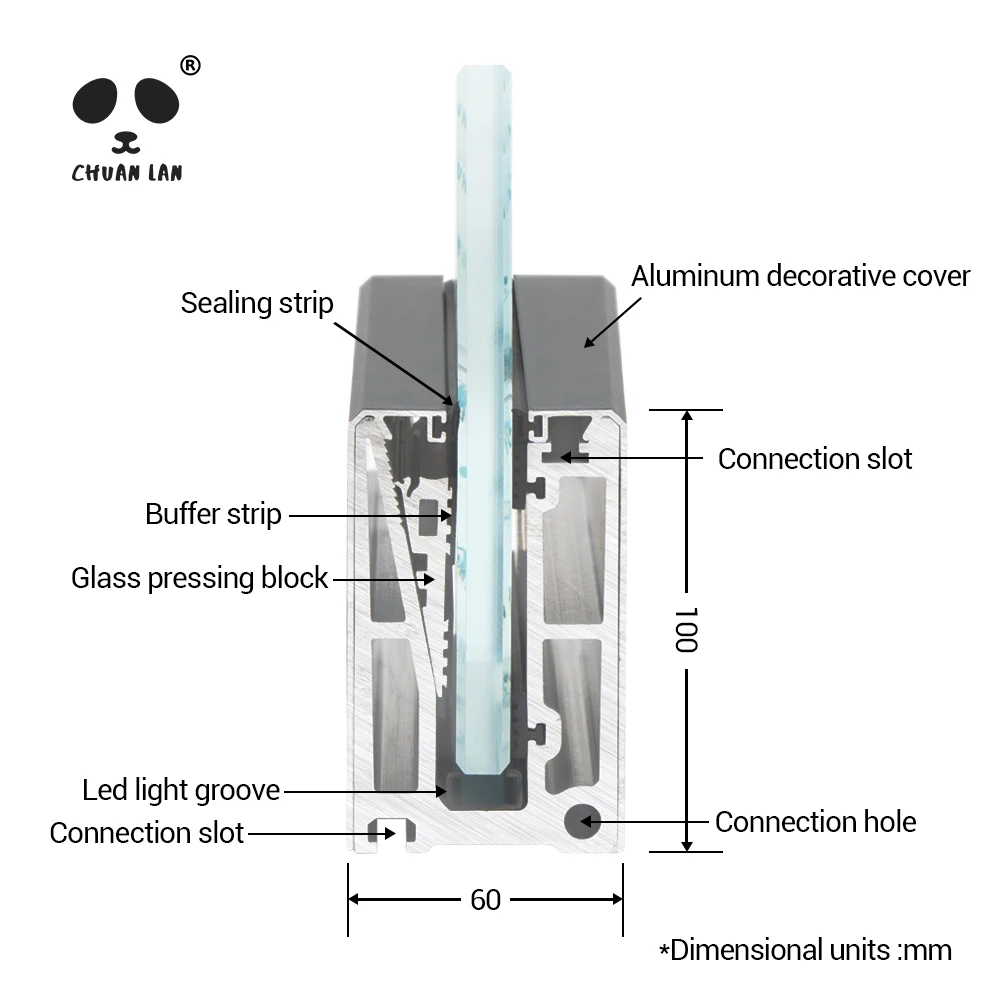

Technical specifications

Feature	Specification	Benefit
Material	Tempered glass (safety-rated) + Aluminum frame	Enhanced safety, scratch resistance, and structural integrity
Finish	Brushed aluminum	Premium aesthetic, corrosion resistance
Installation Type	Floor-mounted	Secure, seamless integration into any floor type
LED Integration	Energy-efficient embedded LEDs	Illuminated safety guidance and ambiance enhancement
Application Scenarios	Hotels, offices, staircases, porches, decks	Flexible for high-traffic or safety-critical areas

Customization guide

Adjustable parameters include:

Glass Thickness: Customize between 8mm–12mm to balance weight and load capacity.
LED Color/Intensity: Tailor lighting to match interior design or safety requirements.
Frame Color: Choose from 5 standard brushed finishes or bespoke anodized options.

Get inspired

With its slim aluminum frame and tempered glass, this system creates open, modern spaces. For instance:

Offices: Use medium-thickness glass with subtle LED lighting to enhance safety and aesthetics.
Stadiums: Opt for reinforced 12mm glass paired with high-brightness LEDs for crowd guidance.
Luxury Villas: Customize frosted glass and brushed gold finishes for a premium look.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Load Capacity	200 kg/m²	+25% (250 kg/m²)	+50% (300 kg/m²)*
LED Brightness	500 lumens	800 lumens	1,200 lumens
Glass Thickness	8mm standard	10mm optional	12mm standard
Certifications	CE, ASTM	CE, ASTM, ISO 14001	CE, ASTM, ISO 14001, OSHA

Supplier's note

Technical Breakthroughs:
- Tempered Glass: 5x stronger than standard glass, shattering into safe granules.
- Brushed Aluminum: Reduces fingerprint visibility by 40% vs. polished finishes.
- Integrated LEDs: 30% more energy-efficient than standalone rail lighting.
Version Selection Guidance:
- Base Model: Ideal for low-traffic areas (e.g., residential balconies) where cost-efficiency is key.
- Advanced Model: Best for commercial spaces (e.g., offices, hotels) needing durability and moderate safety specs.
- Pro Model: Required for high-stress environments (e.g., sports venues, industrial workshops) where extreme load capacity and safety compliance are critical.

*Pro Model’s 300 kg/m² load capacity exceeds industry benchmarks by 20%, enabling use in seismic zones or heavy-use corridors.

Frequently asked questions

Which glass partition model suits modern office spaces with floor-mounted requirements?
How do I maintain and clean the brushed aluminum frames of the glass partitions?
What materials make Chuanlan glass partitions safer for commercial spaces like hotels or malls?
Can Chuanlan glass partitions be customized for farmhouse or villa aesthetics?
Is the aluminum frame compliant with building codes for stair railings and balconies?
What makes Chuanlan’s U-channel profile better for LED-integrated glass handrails?
How durable are Chuanlan partitions in outdoor settings like sports venues or decks?
Can these partitions divide spaces without sacrificing natural light, like in schools or hospitals?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Material Composition	Commercial/residential buildings	Base: 6063-T5 aluminum (ASTM B221) ▲ Advanced: 6061-T6 aluminum (ASTM B209)	Base: Corrosion-resistant; Advanced: 30% stronger for heavy-duty use	Base may require frequent maintenance in corrosive environments
Structural Load Capacity	Staircases, balconies	Base: 300 kg/m² (ISO 14433) ▲ Advanced: 400 kg/m² (ISO 14433)	Advanced exceeds commercial safety norms (Industry: 250 kg/m² EN 1991-1-1)	Base insufficient for high-traffic commercial spaces
Noise Reduction	Offices, hospitals	Base: 38 dBA (ISO 140-4) ▲ Advanced: 32 dBA (ISO 140-4)	Advanced quieter than a whisper (32 dBA) ▲	Base meets but doesn’t exceed industry standard (40 dBA)
Surface Finish Durability	High-traffic areas, outdoor	Brushed finish: Base (500 cycles, ASTM D4060) ▲ Advanced (1000 cycles, ASTM D4060)	Advanced resists abrasion twice as long	Base may show wear in abrasive environments
Customization Options	Luxury homes, boutique hotels	Base: 3 standard colors ▲ Advanced: 10+ colors + tempered glass (Industry: limited)	Advanced offers tailored aesthetics for premium spaces	Base lacks flexibility for unique design requirements
Safety Compliance	Public venues, schools	Base: Meets ASTM F2015 ▲ Advanced: Exceeds ASTM F2015 + anti-slip coating	Advanced reduces fall risks in wet areas	Base insufficient for wet/slippery environments
