Clip Fast Screw Connector M12 2P 4P 10P Wiring 0.2m Coding Waterproof RJ45 Ethernet 8P PCB Cable

Clip Fast Screw Connector M12 2P 4P 10P Wiring 0.2m Coding Waterproof RJ45 Ethernet 8P PCB Cable

  • 100 - 499 Pieces
    $2.50
  • >= 500 Pieces
    $1.50

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

Clip Fast Screw Connector M12 2P 4P 10P Wiring 0.2m Coding Waterproof RJ45 Ethernet 8P PCB Cable

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Reliable Electrical/Data Transmission: Designed for secure connections in automotive, industrial, and electronic systems, supporting multi-pin configurations (2P to 30P) and Ethernet (RJ45) compatibility.
  • Waterproof Sealing: IP66-rated waterproofing ensures protection against dust, moisture, and harsh environmental conditions, ideal for outdoor or wet environments.
  • Versatile Termination: Offers screw, solder, and clip termination options for easy integration into PCB mounts, wiring harnesses, or direct cable connections.

Key features

  • 1. Corrosion-Resistant Stainless Steel Housing

    • With a corrosion-resistant stainless steel housing, ensure long-lasting durability in harsh environments such as automotive or industrial settings.*

  • 2. Clip-On Design for Tool-Free Installation

    • With a clip-fast screw mechanism and screw termination, achieve quick and secure connections without tools, streamlining assembly in tight spaces.*

  • 3. IP66 Waterproof Rating for Reliable Performance

    • With an IP66 rating, maintain seamless operation in wet or dusty conditions, outperforming standard non-waterproof connectors.*

  • 4. Customizable Pin Configurations for Versatile Applications

    • With adaptable pin options (2P to 30P), suit diverse needs from automotive systems to PCB mounting and Ethernet connectivity.*

  • 5. Dual Safety and Environmental Certifications

    • With UL safety certification and RoHS compliance, guarantee safe operation and eco-friendly material standards.*

Product details

Clip Fast Screw Connector M12 2P 4P 10P Wiring 0.2m Coding Waterproof RJ45 Ethernet 8P PCB Cable

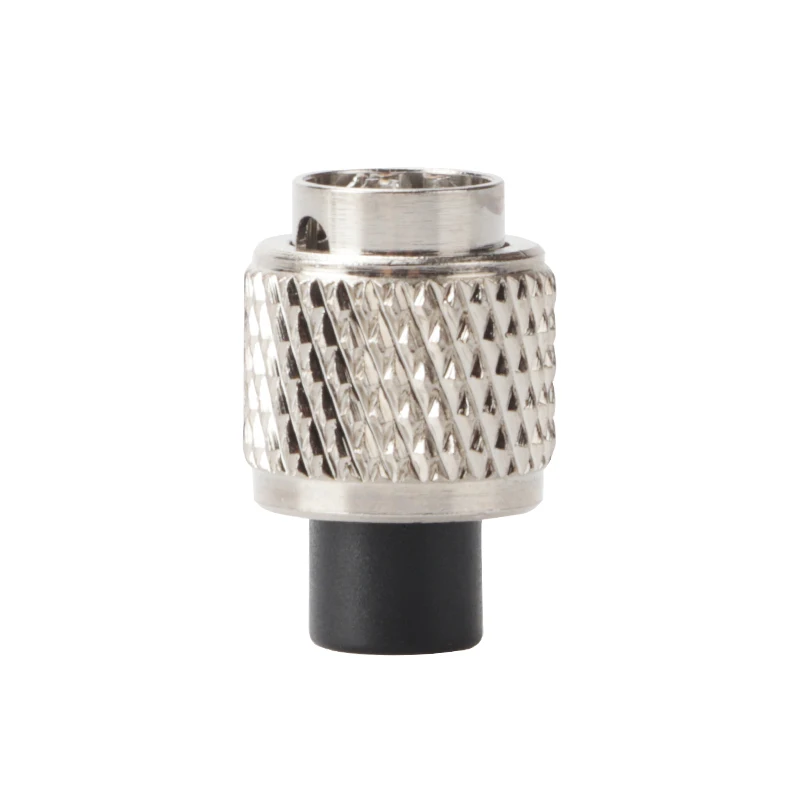

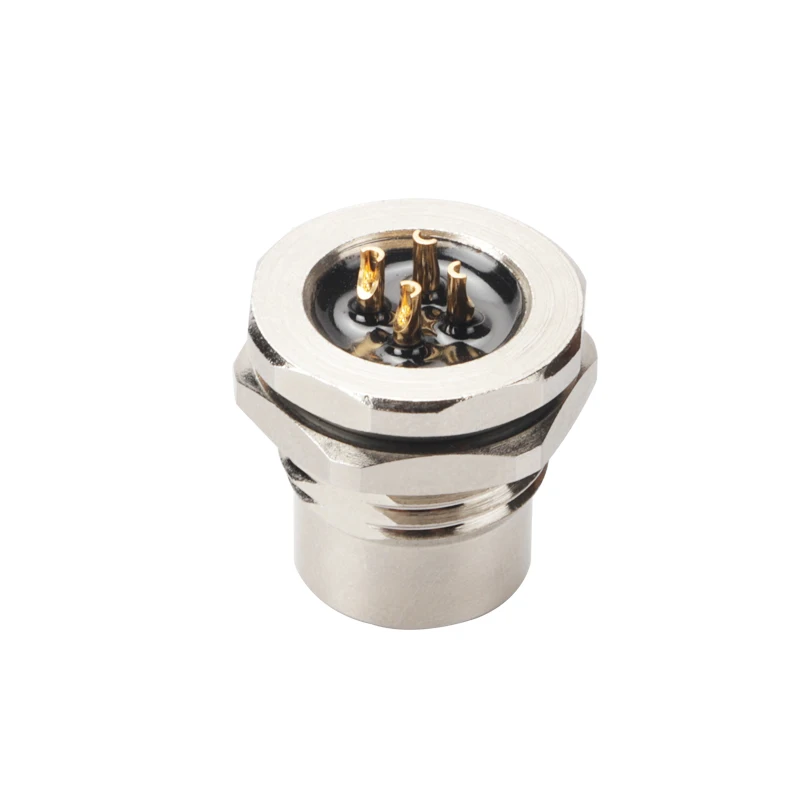

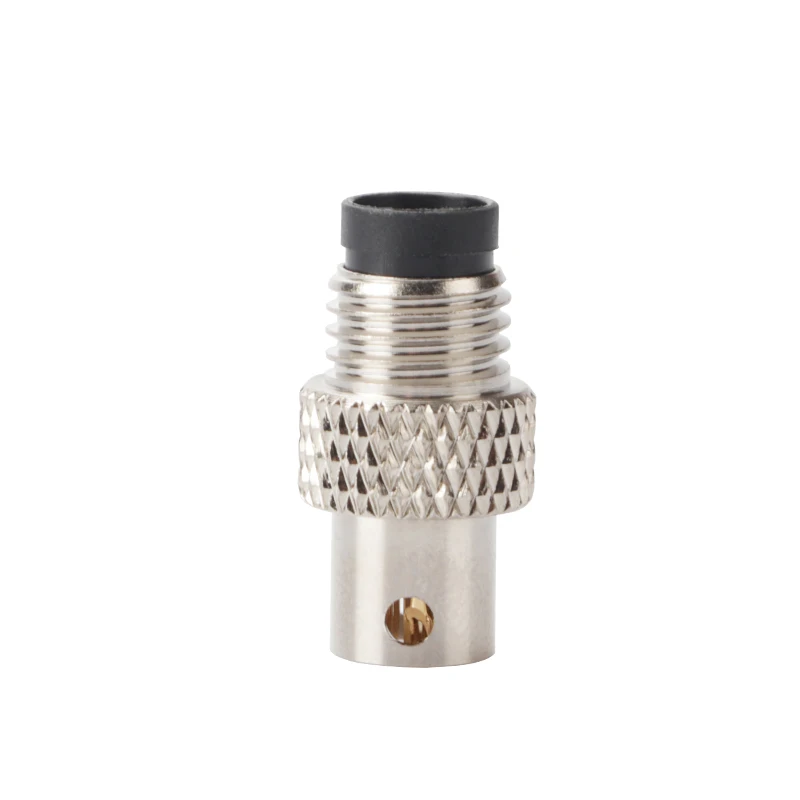

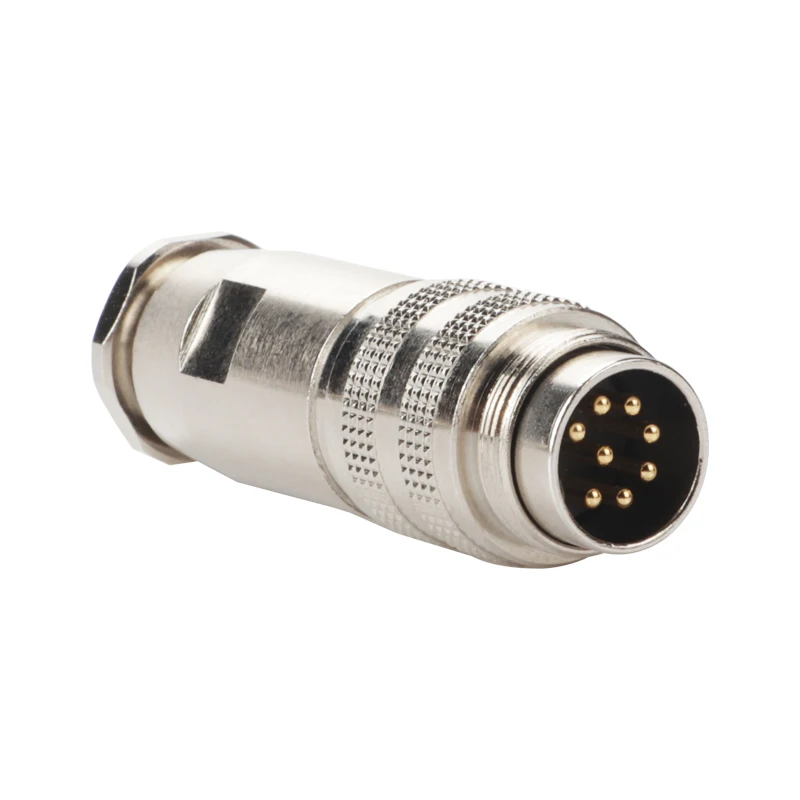

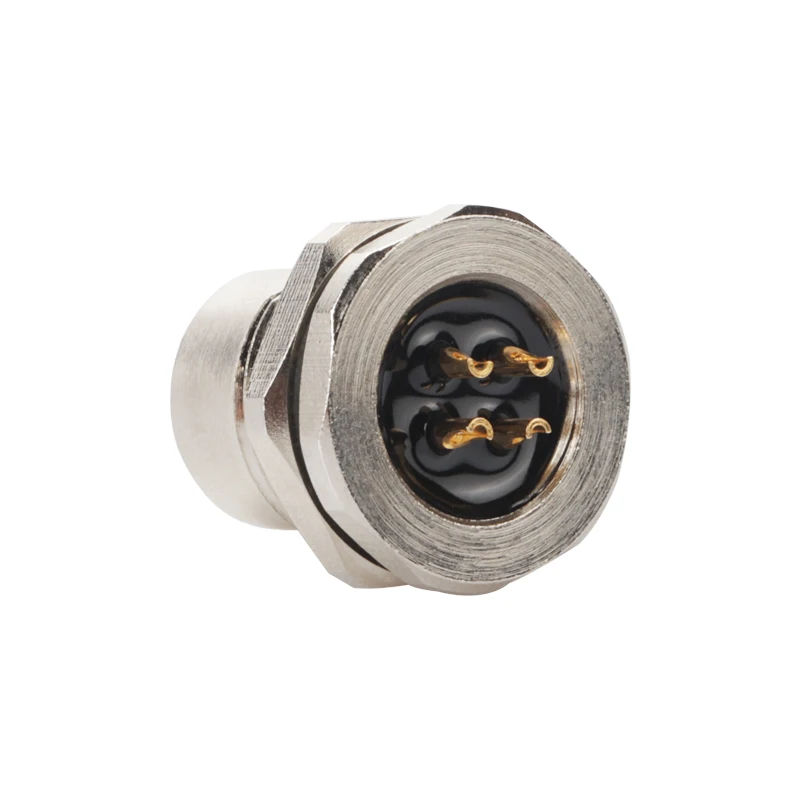

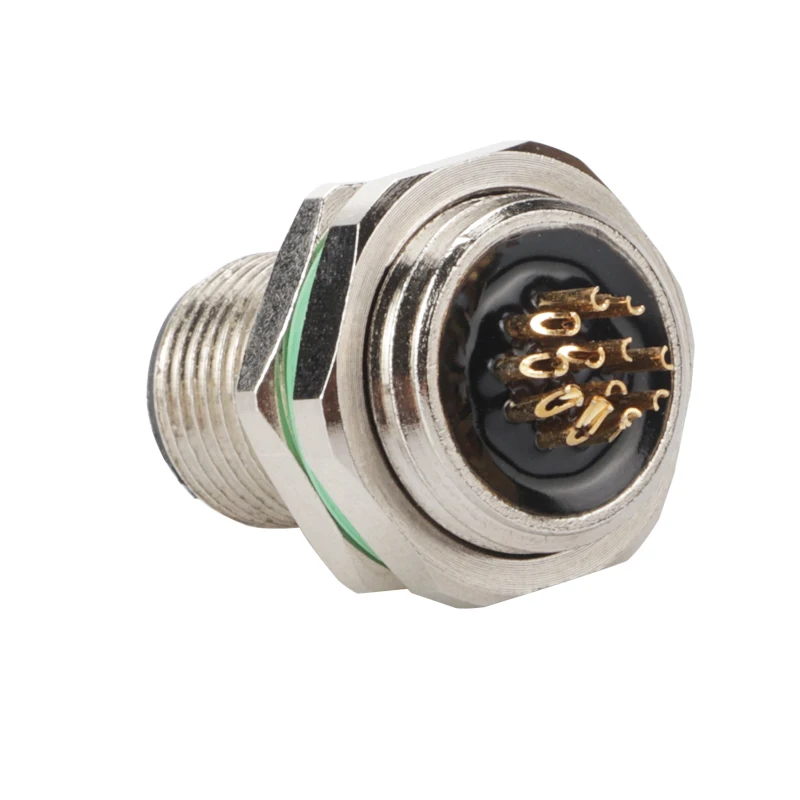

The Clip Fast Screw Connector is a rugged, waterproof connector designed for automotive, industrial, and electrical applications. Built with copper contacts and stainless steel housing, it offers corrosion resistance and reliability in harsh environments. Available in configurations from 2P to 30P, it supports diverse wiring needs, including PCB mounting and Ethernet connectivity.

Technical specifications

FeatureSpecificationBenefit
MaterialCopper Contacts, Stainless Steel HousingHigh conductivity and corrosion resistance
IP RatingIP66Waterproof, dustproof for outdoor use
Rated Current12ASupports heavy-duty electrical loads
Termination TypeSolder/ScrewSecure, adjustable connections
CertificationsUL, RoHSSafety-compliant and environmentally safe
Pin Configurations2P, 4P, 8P, 10P, 12P, 14P, ..., 30PFlexible for varied wiring requirements
DesignRound, Clip/Screw FasteningCompact and easy to install

Customization guide

Adjustable pin configuration (2P–30P) and pin spacing to meet specific wiring needs. Ideal for customizing automotive systems, industrial machinery, or high-density PCB layouts.

Get inspired

The Clip Fast Screw Connector’s waterproof design and stainless steel durability make it perfect for automotive sensors, outdoor electrical systems, or industrial robotics. Its modular pin options ensure compatibility with diverse applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
IP RatingIP66IP67IP68
Max Current12A15A20A
Max PinsUp to 10PUp to 20PUp to 30P
Temperature-25°C to 85°C-40°C to 105°C-55°C to 125°C

Supplier's note

  1. Three Technical Breakthroughs:

    • Copper Contacts: Ensure low resistance and high conductivity for reliable data/electrical transmission.
    • Stainless Steel Housing: Resists corrosion, ideal for automotive and marine environments.
    • IP66/IP68 Ratings: Waterproofing exceeds industry standards, enabling use in heavy rain or splashing.

  2. Optimal Version Selection:

    • Base Model: Suitable for standard automotive wiring (e.g., sensors, lighting) where 12A and 10P suffice.
    • Advanced Model: For industrial robotics or harsh outdoor settings requiring higher current (15A) and 20P configurations.
    • Pro Model: Best for extreme environments (e.g., mining, offshore equipment) with 20A capacity and 30P scalability.

With the Pro’s IP68 rating, you can safely deploy connectors underwater or in high-pressure washdown zones. Pair its stainless steel housing with 30P capacity to handle complex industrial systems, ensuring zero downtime.

Frequently asked questions

  • Which M12 connector model suits automotive applications with IP66 waterproofing?

  • How do I maintain the frothing nozzle of a waterproof RJ45 Ethernet connector?

  • Copper vs Stainless Steel: Which material is better for harsh electrical environments?

  • Can I customize pin spacing for a 12P Clip Fast Screw Connector?

  • Is the Clip Fast Screw Connector M12 compliant with UL and RoHS standards?

  • What’s the best waterproof connector for outdoor electrical appliances?

  • Does the RJ45 Ethernet 8P connector support high-current applications?

  • How does the PCB mount feature benefit electrical wiring projects?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionAutomotive, Industrial EquipmentContact Material: Copper (high conductivity, ASTM B117)
Housing: Stainless Steel (corrosion resistance, ISO 9227)		▲ Base: Durability in harsh environments
▲ Advanced: Enhanced conductivity for high-current systems		Higher material costs compared to plastic alternatives
WaterproofingOutdoor Automotive, Marine ElectronicsIP66 (protection against water jets, IEC 60529)▲ Base: Meets IP66 for automotive use
▲ Advanced: IP67 (immersion resistance, optional add-on)		Base version lacks immersion protection; Advanced requires custom assembly
Electrical RatingHeavy-Duty Electrical SystemsRated Current: 12A (supports 24V/12V systems, IEC 60204)▲ Base: 10A
▲ Advanced: 12A (handles industrial-grade loads)		Base may underperform in high-power setups
Connection TypeRobotics, IoT DevicesPin Configurations: 2P–30P (customizable via screw/solder, IEC 60603)▲ Base: Fixed 2P/4P/8P options
▲ Advanced: Full 2P–30P flexibility		Base limits scalability; Advanced requires engineering expertise
CertificationsGlobal Compliance MarketsUL Listed, RoHS Compliant (meets EU environmental standards)Industry Standard: UL only
▲ Base/Advanced: Dual compliance (UL + RoHS)		Compliance adds to production costs
CustomizationSpecialty Industrial ApplicationsTermination Options: Screw + Solder (ISO 8031)▲ Base: Screw-only termination
▲ Advanced: Dual termination (screw + solder)		Base lacks redundancy in connection methods
