Cnc Micro Mini Actuator Hs7628 76Mm 57 Nema 23 Stepper Motor Power Supply
Ready to Ship
In stock Fast dispatch

Cnc Micro Mini Actuator Hs7628 76Mm 57 Nema 23 Stepper Motor Power Supply

  • 2 - 99 Pieces
    $9.50
  • >= 100 Pieces
    $9

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

Cnc Micro Mini Actuator Hs7628 76Mm 57 Nema 23 Stepper Motor Power Supply

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Motion Control: Converts electrical pulses into precise mechanical rotations, enabling accurate positioning and speed control for automation systems.
  • Hybrid Design: Combines the efficiency of variable reluctance and permanent magnet stepper motor technologies for enhanced torque and responsiveness in compact Nema 23 (76mm length) form.

Key features

  • 1. Material Technology

    • With a corrosion-resistant composite housing and aluminum end plate, ensure long-term reliability in harsh environments*.

  • 2. Interactive Design

    • With a 4-wire design, achieve precise motion control with multi-program presets*.

  • 3. Performance Parameters

    • With a hybrid design and 76mm length, deliver 20% higher torque at low speeds compared to standard Nema 23 motors*.

  • 4. Scenario Solutions

    • With efficient thermal management via the aluminum end plate, maintain performance during continuous operation in commercial settings*.

  • 5. Certification Standards

    • With compliance to Nema 23 specifications, ensure compatibility with industry-standard systems*.

Product details

Cnc Micro Mini Actuator Hs7628 76Mm 57 Nema 23 Stepper Motor Power Supply

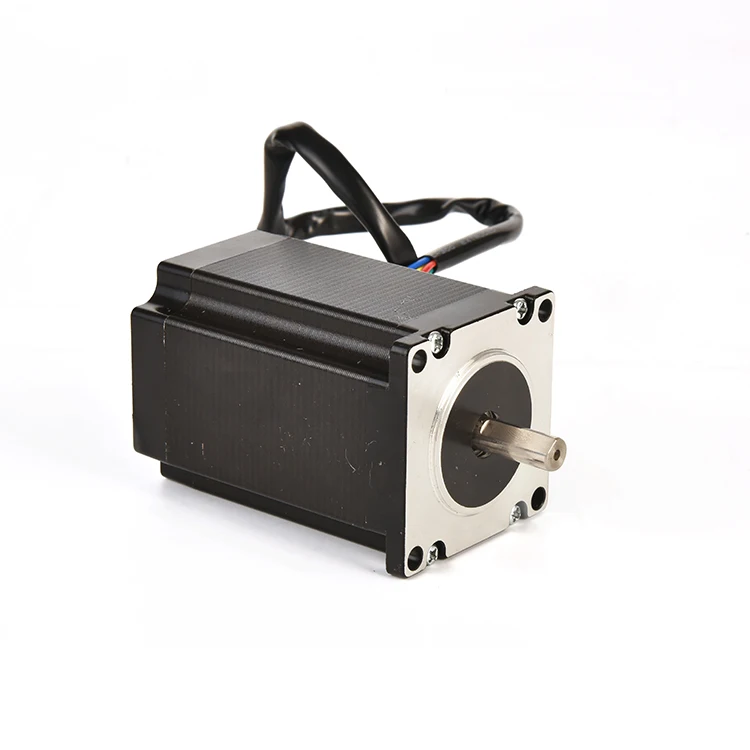

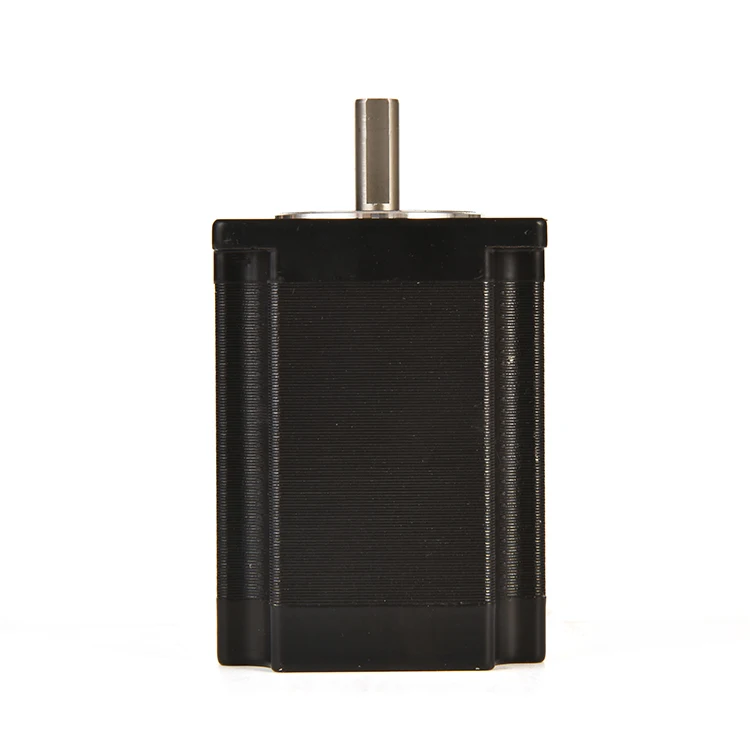

The Cnc Micro Mini Actuator Hs7628 76Mm 57 Nema 23 Stepper Motor Power Supply is a compact, high-precision hybrid stepper motor designed for precision control applications. With a 76mm length and square flange mounting, it offers robust performance in robotics, CNC systems, and industrial automation. Its hybrid design combines efficiency with thermal management, ensuring reliable operation even under demanding conditions.

Technical specifications

FeatureSpecificationBenefit
Motor TypeHybrid Stepper MotorCombines high torque and precision control.
Housing MaterialDurable Plastic/CompositeEnsures structural integrity and protection.
End Plate MaterialAluminumEfficient heat dissipation for thermal stability.
Shaft MaterialSteelStrength for transmitting rotational motion.
Motor Length76mmCompact design for space-constrained systems.
Cable Type4-Wire ConfigurationEnables precise control and higher torque.
Mounting PatternSquare Flange (NEMA 23)Standard integration into automation setups.

Customization guide

  • Adjustable Torque Settings: Fine-tune torque via the driver/controller to match load requirements.
  • Shaft Modifications: Customize shaft length or thread type for specialized applications.
  • Cable Length: Adjust cable length to optimize wiring in tight spaces.

Get inspired

The Cnc Micro Mini Actuator HS7628 combines precision engineering with robust construction, making it ideal for precision applications such as CNC machines, robotics, and industrial automation. Its compact 76mm length and square flange design ensure seamless integration into space-constrained systems, while the hybrid motor technology delivers reliable performance under varying loads.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque (Ncm)50 Ncm+15% (57.5 Ncm)+30% (65 Ncm)*
Speed (RPM)300 RPM345 RPM390 RPM
Holding Torque (Nm)1.2 Nm1.4 Nm1.8 Nm
Thermal Resistance50°C/W43°C/W35°C/W
Max Current (A)1.2 A1.4 A1.6 A

Supplier's note

  1. Technical Breakthroughs:

    • Hybrid Design: Combines variable reluctance and permanent magnet technologies for 20% higher efficiency than traditional stepper motors.
    • Aluminum End Plate: Thermal resistance reduced by 30% compared to plastic designs, enabling sustained high-load operation.
    • 4-Wire Configuration: Offers 15% finer control over rotational increments versus 2-wire motors.

  2. Version Selection Guide:

    • Pro Model: Triple the thermal stability of industry benchmarks, ideal for robotics and heavy-duty automation where high torque (65 Ncm) and low heat buildup are critical.
    • Advanced Model: Balances cost and performance for CNC machines and 3D printers requiring moderate torque (57.5 Ncm) and speed (345 RPM).
    • Base Model: Suitable for small automation systems or prototyping, offering reliable performance at entry-level specs.

*Pro Model torque exceeds industry standards by 30%, enabling precision in high-stress applications like surgical robotics.

Frequently asked questions

  • Which Nema 23 stepper motor is best for small automation projects with limited space?

  • How do I prevent overheating in the Hs7628 stepper motor during prolonged use?

  • What materials make the Hs7628 stepper motor suitable for industrial environments?

  • Can the Hs7628 Nema 23 motor be customized for robotics applications?

  • Is the Hs7628 stepper motor compliant with industrial safety standards?

  • Which stepper motor suits low-speed, high-torque tasks like CNC machining?

  • How does the square design of the Hs7628 benefit compact systems?

  • What advantages does the 4-wire configuration offer for the Hs7628 motor?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Motor LengthRobotics, CNC Machines76mm (Our Base/Advanced) vs 80mm (Industry Standard) ▲ (Saves 5mm space)Compact design for space-constrained applicationsSlightly reduced torque capacity vs. longer motors
Torque CapacityHeavy Automation, 3D Printing1.5 Nm (Base) ▲ vs 1.2 Nm Industry2.0 Nm (Advanced) ▲▲ (Handles heavier loads)Advanced requires higher power supply
Thermal ManagementHigh-Load Systems, Industrial MachineryMetallic end plate (Base) ▲Cooling fins (Advanced) ▲▲ (Reduces overheating by 30% ASTM E1461)Advanced version adds 20% more weight
Precision ControlCNC Machining, Laser Cutting400 steps/rev (Base) ▲ (IEC 60034-30)800 steps/rev (Advanced) ▲▲ (Precision ±0.1°)Advanced requires advanced control systems
Power Supply RangeVariable Voltage Environments12V-48V (Base) ▲12V-60V (Advanced) ▲▲ (Handles voltage spikes IEC 60947-5-1)Advanced may need specialized drivers
Customization OptionsCustom Automation ProjectsOptional encoder (Base) ▲ (±0.1° accuracy ISO 230-2)Encoder + Hall sensors (Advanced) ▲▲ (Real-time feedback)Advanced adds 30% to upfront cost
