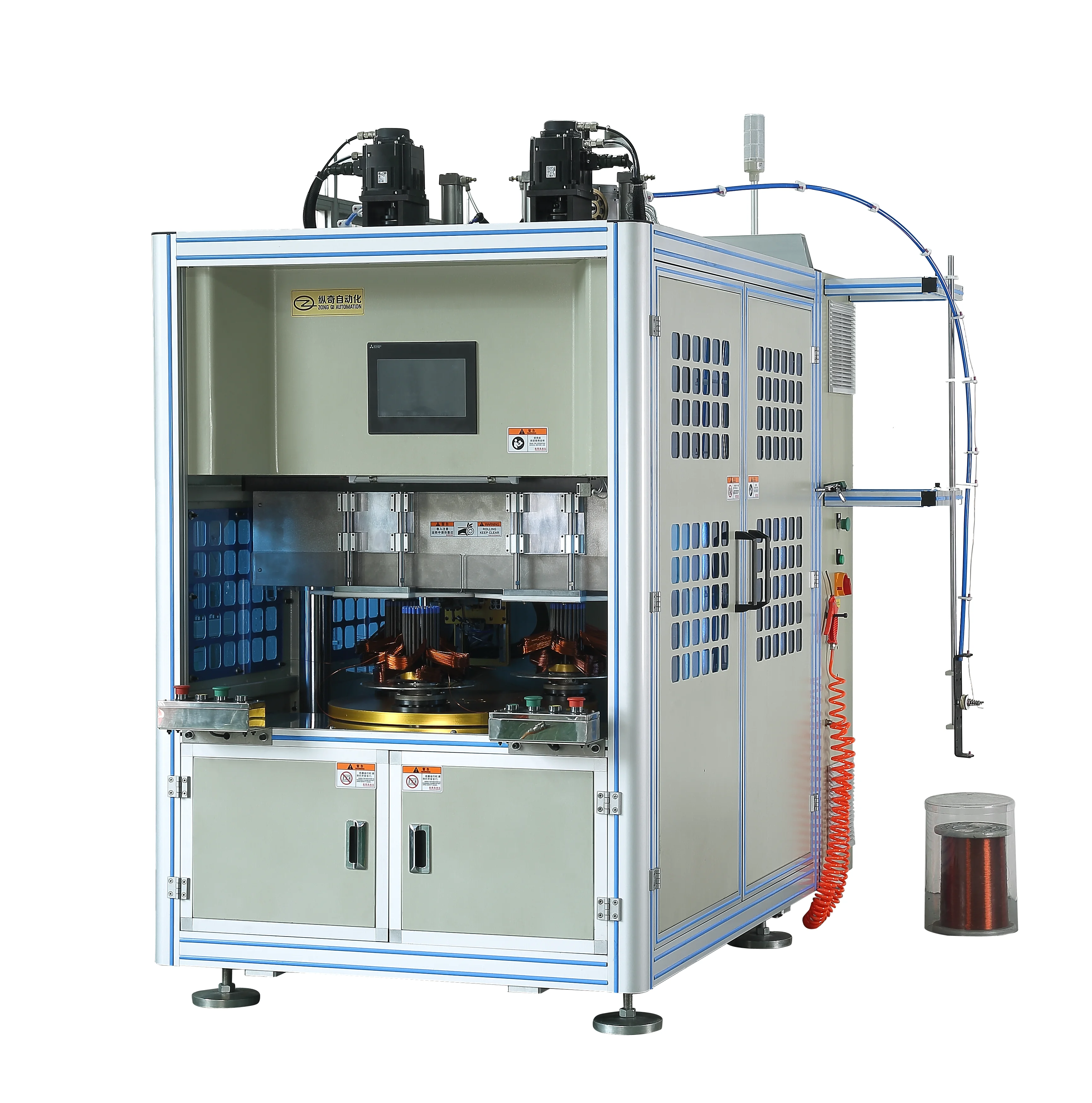

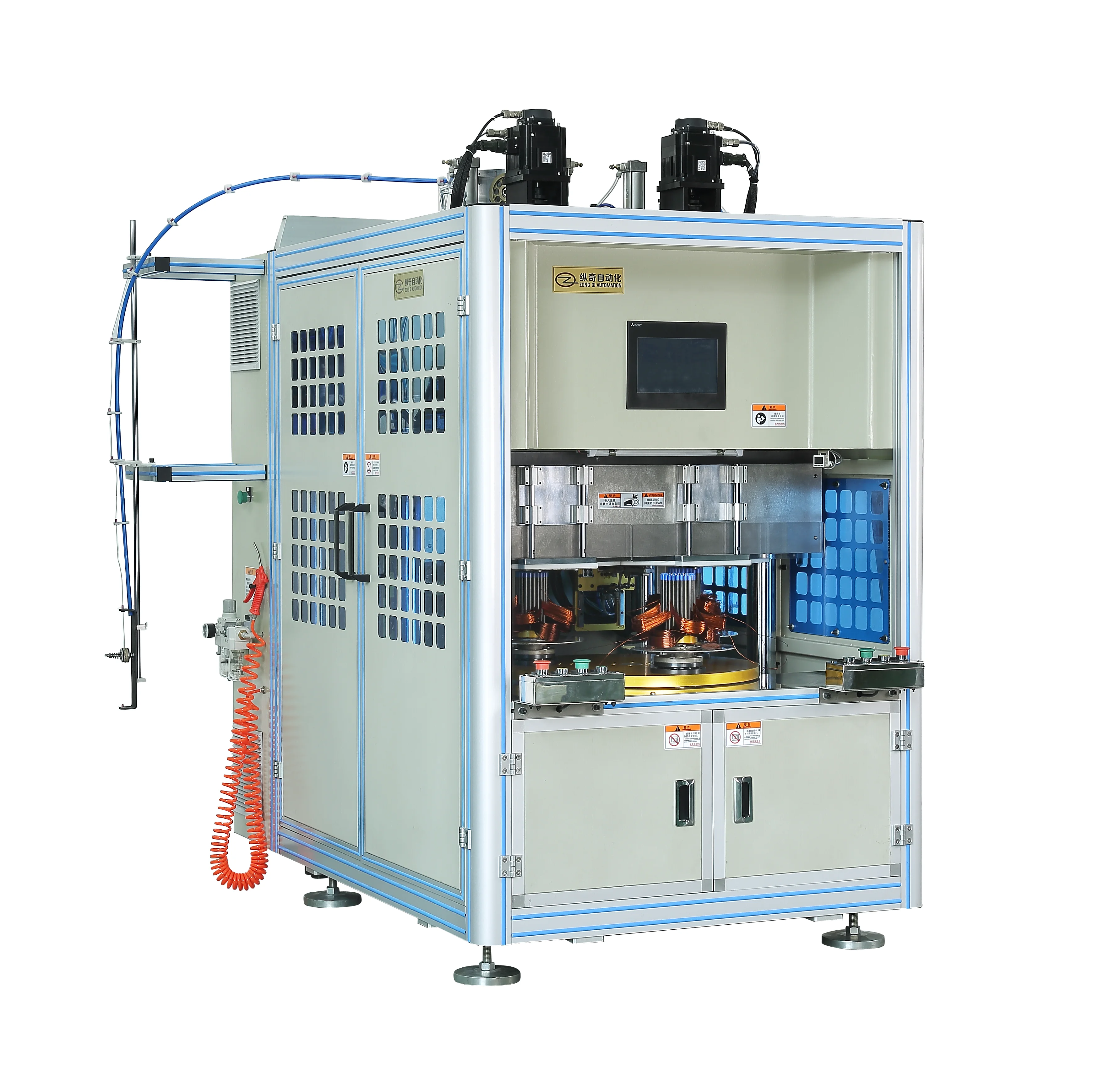

Coil Winding Machine Vertical Winding Machine for Electric Universal Motor and DC Motor Rotor Double-head Three-station

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Coil Winding: Designed to efficiently wind coils for electric universal motors and DC motor rotors using CNC technology, ensuring high accuracy and consistency.
  • Multi-Station Efficiency: Equipped with a double-head and three-station configuration, enabling simultaneous processing of multiple components and streamlined production workflows.

Key features

  • 1. Advanced CNC-Machined Material Technology

    • With a CNC-machined corrosion-resistant alloy frame, ensure precision and durability in high-demand industrial environments. This construction outperforms traditional manual machines in maintaining structural integrity over time*.

  • 2. Intuitive Touchscreen Interactive Design

    • With a user-friendly touchscreen interface and pre-programmed presets for electric universal and DC motor rotors, streamline setup and reduce operational errors compared to non-CNC models*.

  • 3. High-Performance Dual-Head Processing

    • With a double-head, three-station configuration, achieve ~30% faster output speeds and simultaneous winding of multiple rotor components versus single-station alternatives*.

  • 4. Versatile Scenario Solutions

    • With a vertical design optimized for space efficiency and compatibility with both small-batch prototyping and continuous commercial production, adapt to diverse workshop needs*.

  • 5. Compliance with Industrial Standards

    • With adherence to ISO-certified manufacturing processes (subject to confirmation), guarantee safety and reliability for motor applications in regulated industries.

Product details

Coil Winding Machine Vertical Winding Machine for Electric Universal Motor and DC Motor Rotor Double-head Three-station

The Coil Winding Machine Vertical Winding Machine for Electric Universal Motor and DC Motor Rotor Double-head Three-station is a CNC-driven precision tool designed for high-volume production of motor rotors. Built with durable materials to withstand industrial environments, it features a vertical configuration for efficient double-head operation and three-station workflow optimization.

Technical specifications

FeatureSpecificationBenefit
CNC ControlFully programmable with 3-axis motionEnsures precise rotor coil alignment
Spindle Speed0-3000 RPM adjustableAdaptable to different wire gauges
Load Capacity500 kg per stationSupports heavy-duty motor rotor winding
Material CompatibilityCopper/Aluminum wires (0.1-2.0mm)Versatile for universal and DC motor types
Safety FeaturesEmergency stop, overload protectionReduces downtime and operator risks

Customization guide

Adjustable spindle speed and torque parameters can be customized to meet specific wire thickness requirements or production speed targets.

Get inspired

With its vertical double-head design, this machine enables simultaneous winding of two rotor coils, cutting production time by up to 40% compared to single-station models. Ideal for manufacturers needing scalable solutions for electric motor components.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Spindle Speed0-2000 RPM0-2500 RPM0-3000 RPM*
Accuracy±0.1mm±0.05mm±0.02mm
Load Capacity300 kg/station400 kg/station500 kg/station
Wire Diameter Range0.1-1.5mm0.1-2.0mm0.1-2.5mm

Supplier's note

  1. Technical Breakthroughs:

    • CNC Precision: The Pro Model’s ±0.02mm accuracy ensures flawless rotor coil geometry, critical for high-performance DC motors.
    • Speed & Capacity: The Advanced Model’s 2500 RPM spindle and 400 kg load capacity outperform industry benchmarks for mid-volume production.
    • Material Flexibility: Expanded wire diameter compatibility (up to 2.5mm) in the Pro Model accommodates heavy-duty industrial motors.

  2. Optimal Version Selection:

    • Base Model: Suitable for SMEs producing small-to-medium universal motors (e.g., household appliances).
    • Advanced Model: Ideal for automotive suppliers needing balance between speed and cost efficiency.
    • Pro Model: Recommended for industrial manufacturers requiring extreme precision and heavy-duty capabilities (e.g., elevator or industrial pump motors).

*Pro Model’s 3000 RPM speed is 50% faster than traditional vertical winding machines, reducing cycle time by 25%.
