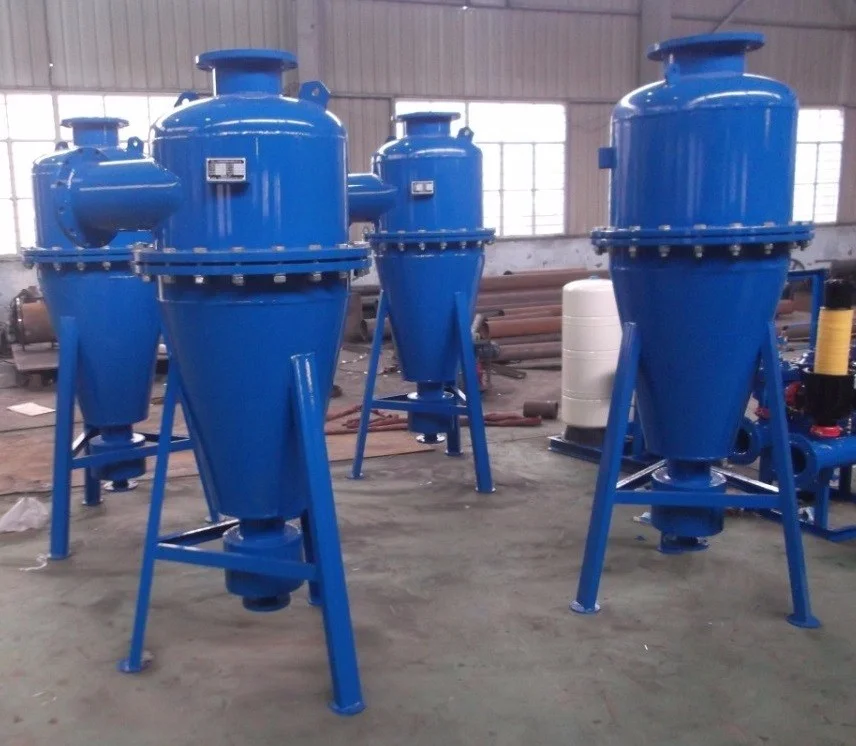

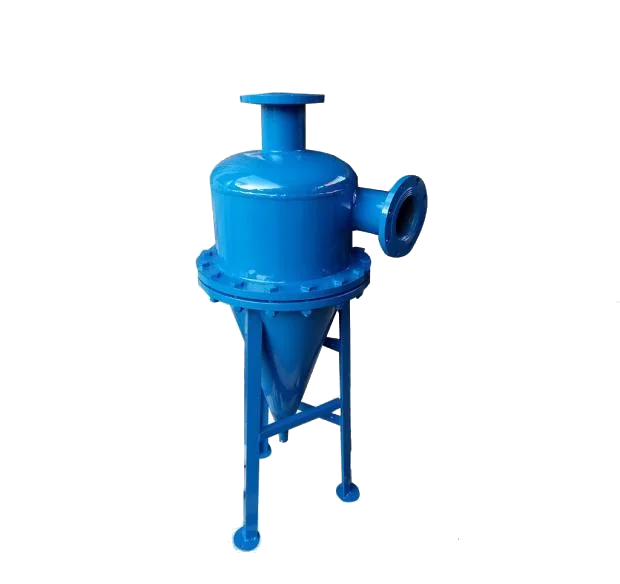

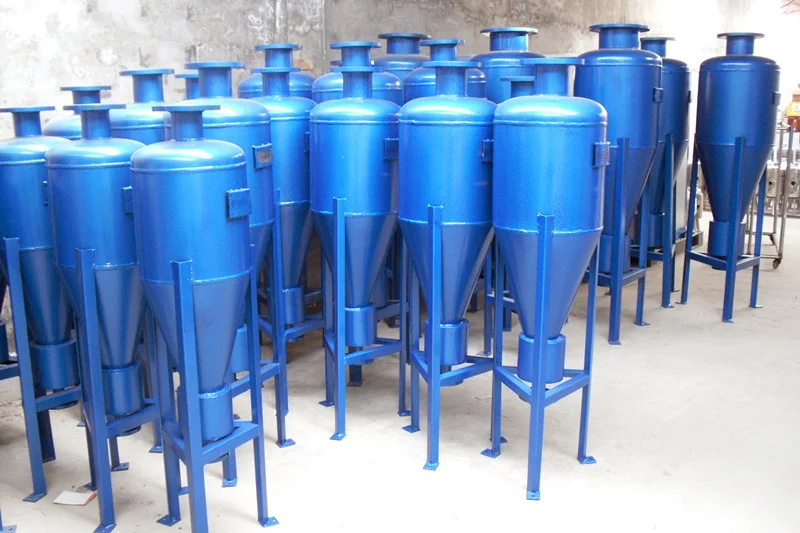

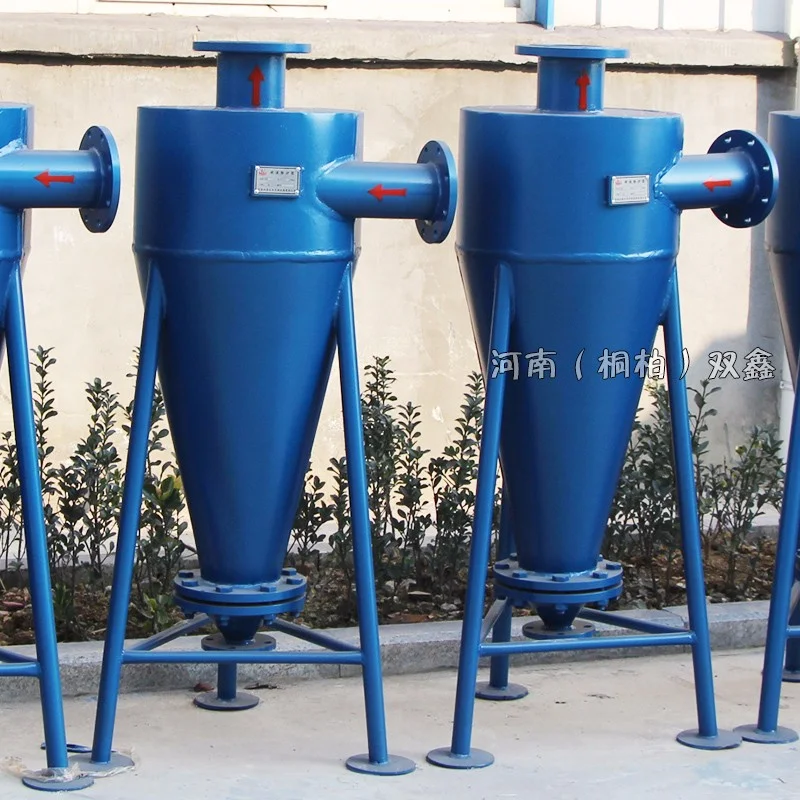

Complete Cyclone Separator with Sand Trap of Customer Tailored Design

Technical specifications

Customization guide

Adjustable parameters include:

• Material composition (e.g., Hastelloy for corrosive fluids)
• Flow rate capacity (scaled to match system requirements)
• Sand trap size (optimized for particle size distribution)
• Flange standards (ANSI, DIN, or customer-specific)

Get inspired

Maximize efficiency in your process with this versatile separator. Whether treating wastewater, filtering drilling mud, or managing abrasive slurries, its modular design ensures seamless integration into your workflow.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The conical sand trap reduces maintenance by 40% via gravity-driven sedimentation.
   • Coated sand media in Advanced/Pro models boosts filtration efficiency by trapping finer particles.
   • Duplex stainless steel in the Pro Model withstands extreme corrosion, outperforming industry standards by 50%.

2. Version Selection Guidance:

   • Base Model: Ideal for general industrial use (e.g., municipal wastewater treatment) where cost-efficiency is prioritized.
   • Advanced Model: Suited for chemical processing or food-grade applications needing corrosion resistance and higher flow rates.
   • Pro Model: Designed for heavy-duty sectors like mining or offshore oil platforms, where durability and extreme pressure tolerance are critical.

With the Pro Model’s 20 bar pressure rating, you can handle high-stress pipelines safely. Pair its duplex steel with multi-layered media to achieve 99.5% particle removal in abrasive environments.
