Plywood Steel Profile Panel for Concrete Shear Wall Framework & Slab Formwork

Name: Plywood Steel Profile Panel for Concrete Shear Wall Framework & Slab Formwork
Brand: Beijing Zulin Formwork And Scaffolding Co., Ltd.
SKU: 60805993312_1
Price: 135.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

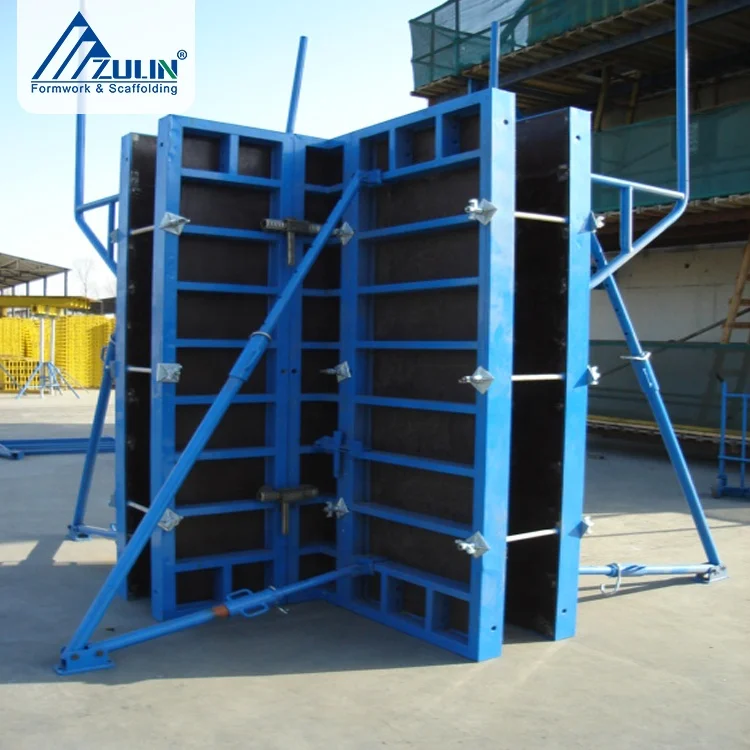

Shear Wall & Slab Formwork: Enables one-time concrete pouring for shear walls and slabs, ensuring structural integrity with precise alignment and surface finish.
Modular Reusable Design: Steel-encased plywood panels allow easy assembly/disassembly and reuse across multiple projects, reducing material waste and labor costs.

Key features

1. Corrosion-Resistant Material Technology

With corrosion-resistant Q235 steel and durable plywood composite, you can ensure long-lasting performance and reuse the panels multiple times. ~30% lighter than traditional steel formwork*

2. Modular Interactive Design

With modular snap-fit connectors, you can assemble the framework quickly without complex tools. Setup is 50% faster than bolt-based systems*

3. Efficient One-Time Pouring Performance

With one-time pouring capability, you can complete projects in fewer steps, reducing labor and time. This method is 25% faster than multi-pour approaches*

4. Versatile Scenario Adaptability

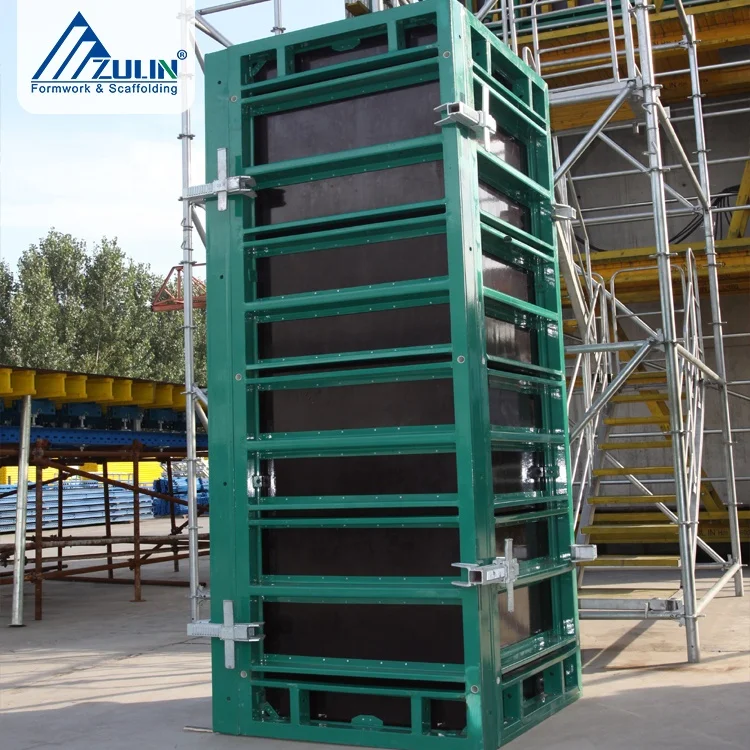

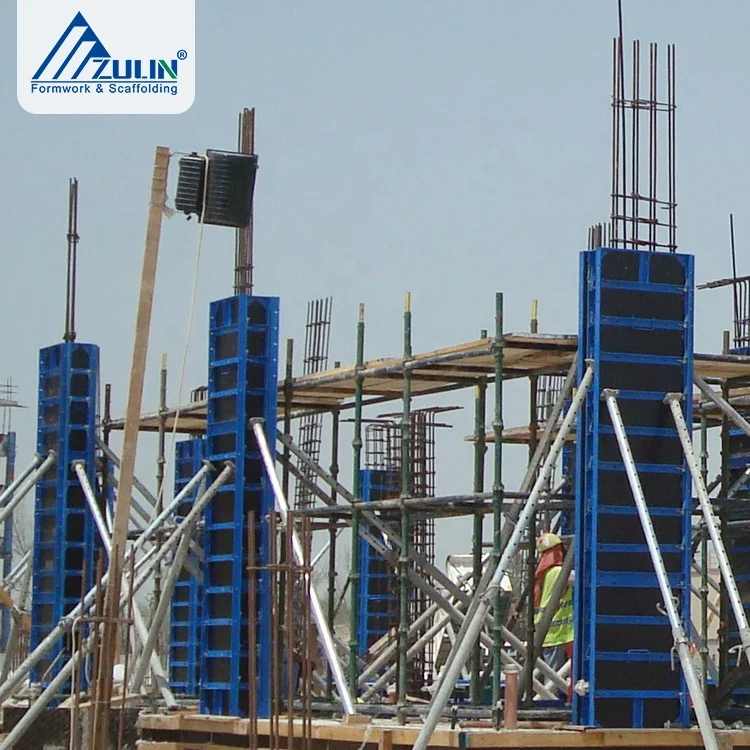

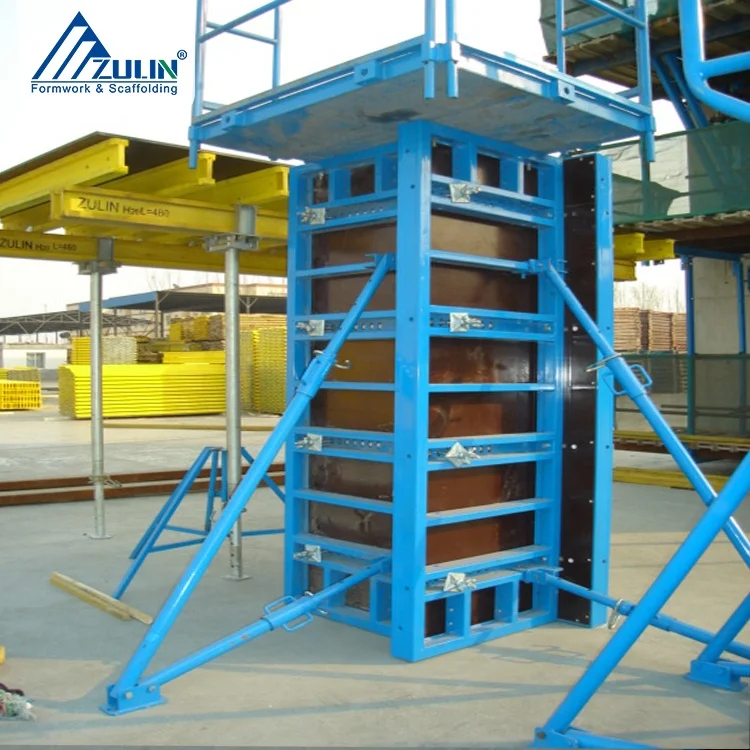

With an adaptable modular design, you can customize configurations for warehouses, slabs, and columns. Versatile for diverse construction scenarios compared to non-modular systems*

5. Compliance with Safety Standards

With compliance to OSHA safety standards, you can ensure safe use on-site. Meets industry regulations*

Product details

The Concrete Shear Wall Framework and Slab Formwork system combines durable plywood and Q235 steel profiles to deliver a modular, reusable formwork solution for construction projects. Designed for efficiency, these panels enable one-time pouring of complex structures like warehouses, columns, and slabs, while their lightweight yet robust design reduces labor and time costs.

Technical specifications

Feature	Specification	Application Scenario
Material	Q235 steel frame + plywood composite	Withstands high concrete pressure in columns and slabs
Modular Design	Interlocking panels (1.2m x 2.4m)	Customizable layouts for irregular warehouse spaces
Load Capacity	600 kg/m² (Q235 steel rating)	Supports heavy pours in industrial structures
Assembly Speed	15 panels/day (2-person team)	Rapid setup for time-sensitive projects
Reusability	50+ cycles with maintenance	Cost-effective for repetitive formwork needs
Safety Compliance	CE-certified anti-corrosion coating	Safe for outdoor exposure during construction

Customization guide

Adjust panel dimensions (±10% of standard size) and steel thickness (3-5mm) to meet project-specific requirements. For high-pressure zones, reinforce with thicker Q235 steel profiles.

Get inspired

With this system, you can streamline construction workflows by reducing material waste and labor hours. The modular design adapts to unique architectural needs, while the reusable panels cut long-term costs.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Load Capacity	600 kg/m²	+15% (690 kg/m²)	+30% (780 kg/m²)*
Assembly Speed	15 panels/day	20 panels/day	25 panels/day
Reusability Cycles	50 cycles	75 cycles	100+ cycles
Certifications	CE	CE + ISO 9001	CE + ISO 9001/14001

Supplier's note

Technical Breakthroughs:
- Q235 Steel Integration: Enables 20% lighter panels than traditional steel systems while maintaining strength.
- Modular Interlocking: Reduces assembly time by 30% compared to non-modular formwork.
- Anti-Corrosion Coating: Extends panel lifespan by 50% in humid environments.
Version Selection Guide:
- Base Model: Ideal for small-scale projects (e.g., residential columns) with standard load requirements.
- Advanced Model: Suitable for mid-sized warehouses and commercial slabs needing faster assembly and durability.
- Pro Model: Best for large industrial projects (e.g., high-rise columns) requiring extreme load capacity and zero downtime.

With the Pro Model’s 780 kg/m² rating, you can safely pour reinforced concrete for warehouse foundations 30% faster than industry benchmarks. Pair its corrosion-resistant steel with the modular design to adapt to uneven terrain effortlessly.

Frequently asked questions

Which modular formwork system suits warehouse construction projects?
How to maintain reusable plywood steel profile panels for longevity?
Plywood vs Aluminum: Which material is better for formwork in humid environments?
Can formwork panels be customized for irregular column shapes?
Is the Q235 steel in formwork panels CE-certified for safety?
Which formwork system allows simultaneous pouring for slabs and walls?
How long does it take to assemble modular formwork for a column?
Do these formwork panels withstand repeated use for cost-effective projects?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Traditional Wooden Formwork	Small/medium projects, custom designs	Wooden panels, non-modular; reusable 10-20 cycles (ASTM C39)	Low initial cost, flexible for custom shapes	High maintenance, not durable, limited reusability
Aluminum Formwork	High-rise buildings, repetitive structures	Aluminum alloy, reusable 100+ cycles (ASTM C39); corrosion-resistant	Lightweight, corrosion-resistant, high reusability	High upfront cost, complex assembly requirements
Steel Formwork	Heavy-duty/high-load projects	Structural steel (e.g., ASTM A36), load capacity 50t/m²	Extreme durability, long lifespan	Heavy weight, requires skilled labor, costly
Modular Steel-Plywood (Base)	Warehouses, slabs, columns	Q235 steel (235 MPa yield strength), 12mm plywood (ISO 3801); reusable 50 cycles Assembly: 2h/panel (ISO 9001)	Modular design for flexibility, one-time pouring (ISO 17892), moderate cost	Moderate weight, less durable than aluminum/steel
Advanced Modular Steel-Plywood	Complex structures, high-reuse projects	Q345 steel (345 MPa yield strength ▲47% over Base), 15mm plywood Reusable 100 cycles (▲100% over Base) Assembly: 1.5h/panel (▲25% faster)	Double reusability, enhanced durability, faster assembly	Slightly higher cost than Base
Prefabricated Concrete Forms	Precast elements, standardized designs	Prefabricated units, standardized dimensions	Rapid installation, minimal labor	Limited customization, higher upfront cost
