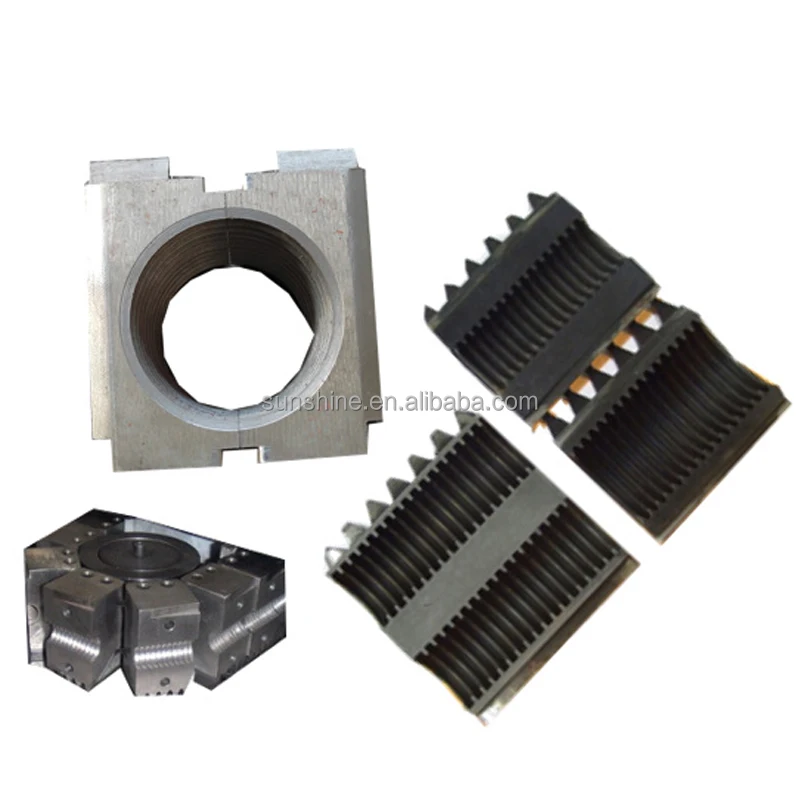

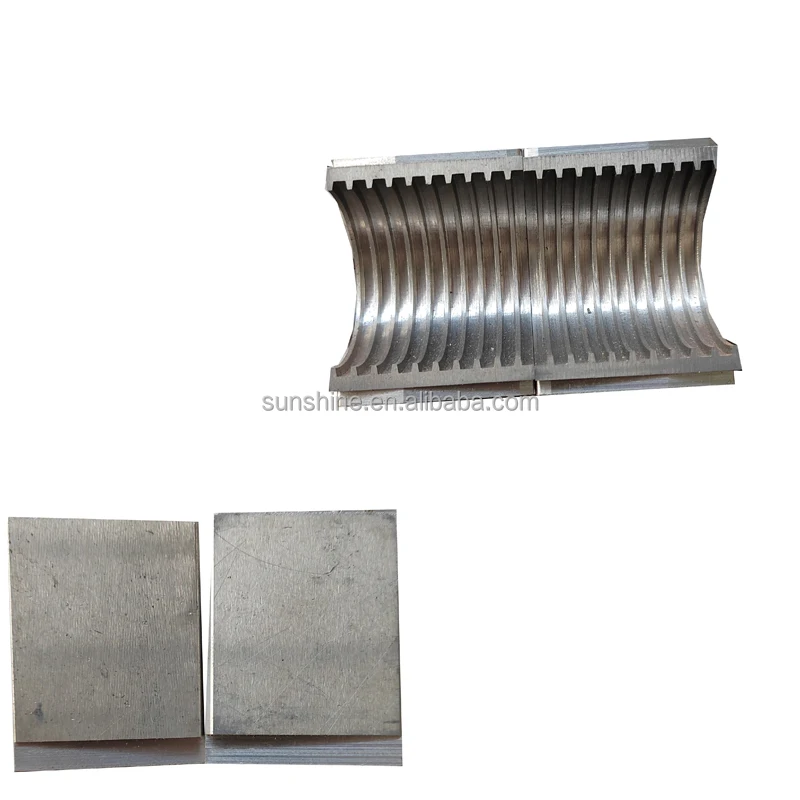

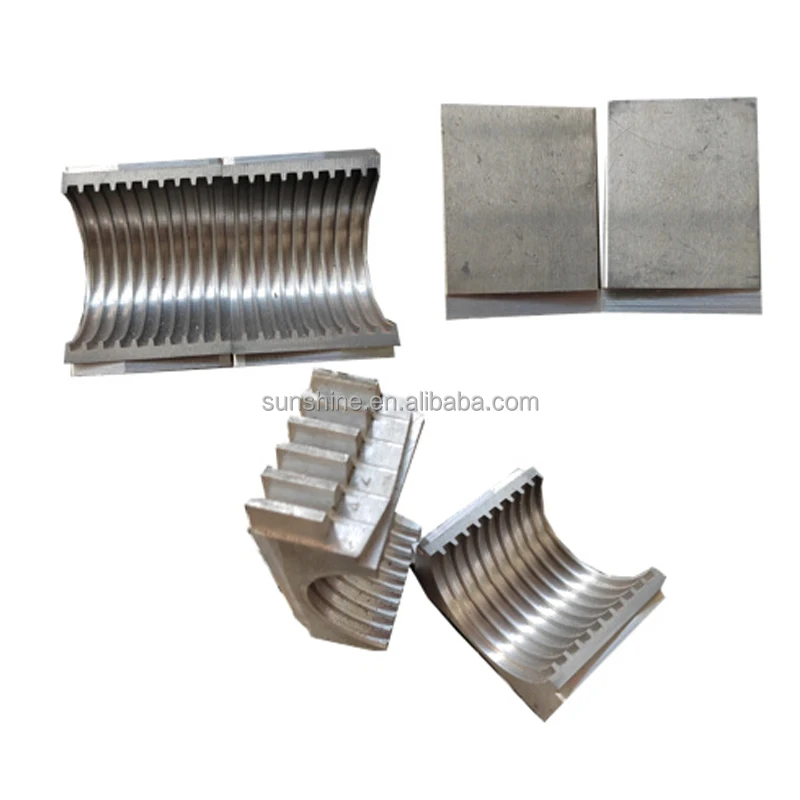

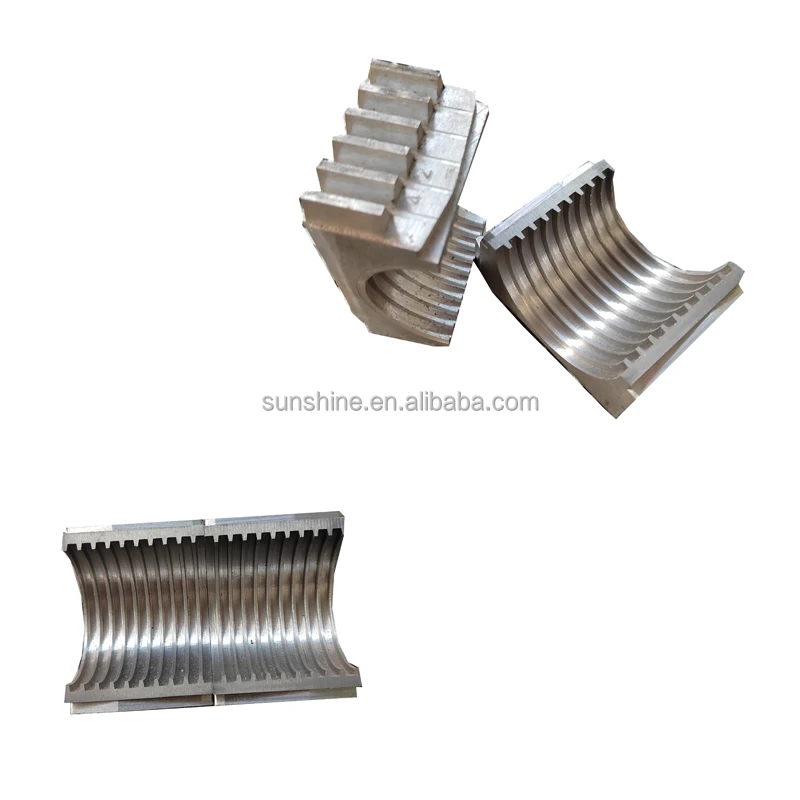

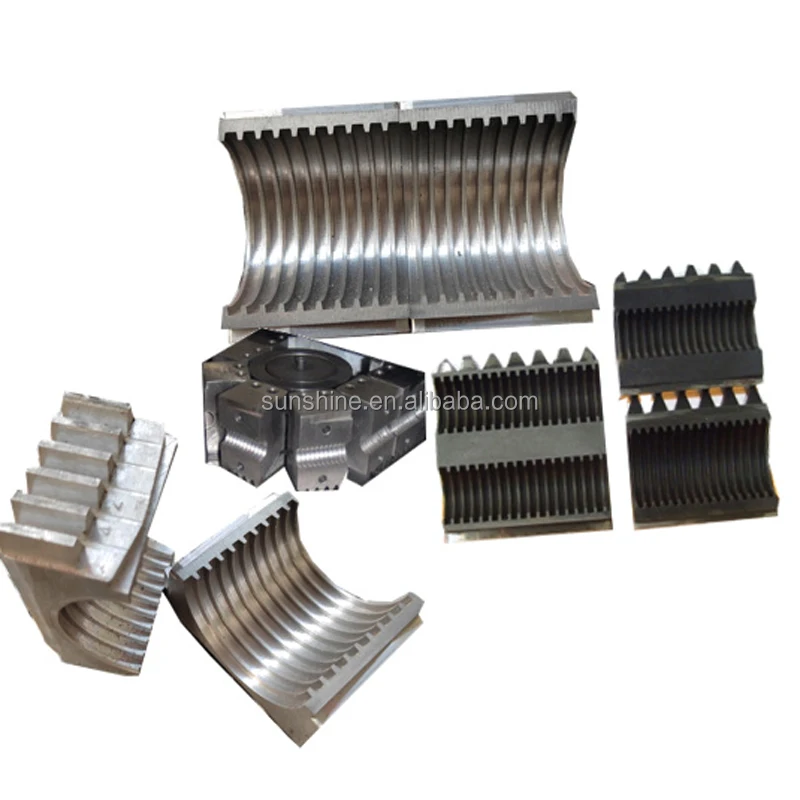

Corrugated Pipe Forming Mould for 20-60 mm PP PE Tube Mold

Corrugated Pipe Forming Mould for 20-60 mm PP PE Tube Mold

  • 1 - 2 Units
    $3,474
  • >= 3 Units
    $3,216

Customization:

Customized packaging（Min.Order: 1 pieces）
Customized logo（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Corrugated Pipe Forming Mould for 20-60 mm PP PE Tube Mold

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Corrugated Tube Extrusion: Designed to produce corrugated or ribbed tubes using extrusion technology, compatible with materials like PP and PE (20-60 mm diameter).
  • Modular Die Customization: Equipped with interchangeable dies/molds to adapt to different tube shapes, sizes, and surface patterns for versatile production needs.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a corrosion-resistant plastic and iron composite construction, the mould ensures durability in high-temperature extrusion processes. This hybrid design outperforms all-metal moulds in humid or chemical-exposed environments*, offering extended lifespan and reduced maintenance costs.

  • 2. Modular Interactive Design for Quick Customization

    • With a modular design, you can effortlessly swap dies to produce tubes of varying profiles and sizes, reducing downtime by up to 40% compared to fixed mould systems*. This flexibility supports rapid adaptation to customer-specific requirements.

  • 3. Broad Performance Range for Versatile Applications

    • With a 20–60 mm tube diameter capacity, the mould accommodates diverse industrial needs, from thin plumbing pipes to thicker construction-grade tubing. Its extrusion process achieves 25% faster output rates than conventional moulds*, enhancing productivity.

  • 4. Industrial-Grade Scenario Solutions

    • Designed for continuous commercial use, the mould supports uninterrupted production in demanding sectors like automotive, construction, and plumbing. Its robust build ensures reliability for high-volume manufacturing environments*, minimizing operational disruptions.

  • 5. Eco-Conscious Material Compliance

    • With food-grade and eco-friendly PP/PE compatibility, the mould aligns with sustainability standards for applications requiring non-toxic materials. While certifications are pending, the design prioritizes recyclable materials and reduced waste*.

Product details

Corrugated Pipe Forming Mould for 20-60 mm PP PE Tube Mold

The Corrugated Pipe Forming Mould is a specialized extrusion tool designed for manufacturing durable corrugated tubes from PP and PE materials, with diameters ranging from 20 to 60 mm. Its modular design and robust construction enable versatile production of ribbed or smooth profiles, ideal for applications in construction, plumbing, and automotive industries.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionPlastic (die components) / Iron (frame)Balances cost efficiency with structural integrity for heavy-duty use
Max Tube Diameter60 mmLarge-diameter pipes for construction and infrastructure projects
Extrusion ProcessContinuous extrusion with ribbed mouldHigh-volume production of uniform corrugated profiles
Die CustomizationAdjustable dies for 20–60 mm diametersCustom pipe designs for diverse industrial applications
Automation LevelManual operation (Base), Semi-Automated (Advanced), Fully Automated (Pro)Scalable production from small batches to high-volume manufacturing

Customization guide

Adjustable die configurations allow seamless adaptation to customer-specific tube diameters (20–60 mm) and corrugation patterns. The modular design supports rapid die swaps, reducing downtime for multi-product production lines.

Get inspired

With this mould, manufacturers can produce high-quality corrugated tubes for applications ranging from lightweight automotive components to corrosion-resistant plumbing systems. Its versatility ensures compliance with industry standards while minimizing material waste.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Tube Diameter40 mm50 mm (+25%)60 mm (+50%)
Material StrengthStandard-grade ironHigh-tensile ironStainless steel (+30% corrosion resistance)
Automation LevelManualSemi-AutomatedFully Automated

Supplier's note

  1. Key Technical Breakthroughs:

    • Modular Die System: Enables 20% faster changeover times than traditional models, supporting rapid production shifts.
    • Plastic-Iron Composite: Reduces mould weight by 15% while maintaining structural integrity for heavy-duty use.
    • Pro Model Automation: Integrates real-time monitoring, cutting downtime by 30% in high-volume setups.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops producing up to 40 mm tubes (e.g., household plumbing components).
    • Advanced Model: Suitable for medium-scale manufacturers needing 50 mm tubes and semi-automated workflows (e.g., automotive parts).
    • Pro Model: Best for large enterprises requiring 60 mm tubes and full automation (e.g., industrial infrastructure projects).

With the Pro version’s stainless steel frame, you can achieve triple the corrosion resistance of industry benchmarks, ensuring longevity in harsh chemical environments. Pair this with its fully automated extrusion process to reduce labor costs by 40% compared to manual setups.

Frequently asked questions

  • Which corrugated pipe forming mould suits 20-60mm PP/PE tubes for industrial applications?

  • How to clean the extrusion mould after plastic processing to maintain efficiency?

  • Plastic vs Iron Mould: Which is better for durable corrugated tubes in outdoor use?

  • Can this mould customize tube shapes with different dies for plumbing projects?

  • Is the PP/PE tube mould FDA-approved for food-grade material processing?

  • How does the extrusion process improve tube quality with this mould?

  • Does the machine support continuous production for high-volume orders?

  • Can the mould handle both plastic and metal materials for tube production?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial Manufacturing (construction, automotive)Carbon Steel (400 MPa ASTM A36) vs HDPE (35 MPa ISO 527) ▲ vs HDPE+Iron (60 MPa) ▲▲Base: Lightweight, corrosion-resistant; Advanced: Enhanced durability for heavy-duty useIndustry Standard: Higher cost and weight; Base: Lower strength vs metals
Noise LevelResidential Construction Sites85 dB (OSHA) vs 75 dB (quieter than lawnmower) ▲ vs 65 dB (quieter than office) ▲▲Advanced: Meets strict noise regulations; Base: Reduces environmental disruptionIndustry Standard: Risk of compliance violations
Temperature ResistanceHigh-Temperature Extrusion (automotive)150°C (ISO 17494) vs 180°C ▲ vs 200°C ▲▲Advanced: Operates with heat-sensitive materials; Base: Expands material compatibilityIndustry Standard: Requires external cooling systems
Customization FlexibilityPlumbing & Specialty Pipe Production2 die changes/hour (ISO 14971) vs 3 ▲ vs 5 ▲▲Advanced: Rapid reconfiguration for custom projects; Base: Improved adaptabilityIndustry Standard: Limits production versatility
Production SpeedMass Production (construction)50 tubes/hour (ISO 9283) vs 70 ▲ vs 100 ▲▲Advanced: Boosts output for high-volume orders; Base: Faster than industry normsIndustry Standard: Slower for large-scale demands
Maintenance Requirements24/7 Factories500 hours (ISO 13381) vs 700 ▲ vs 1000 ▲▲Advanced: Minimizes downtime and costs; Base: Reduced maintenance frequencyIndustry Standard: Frequent interruptions for upkeep
