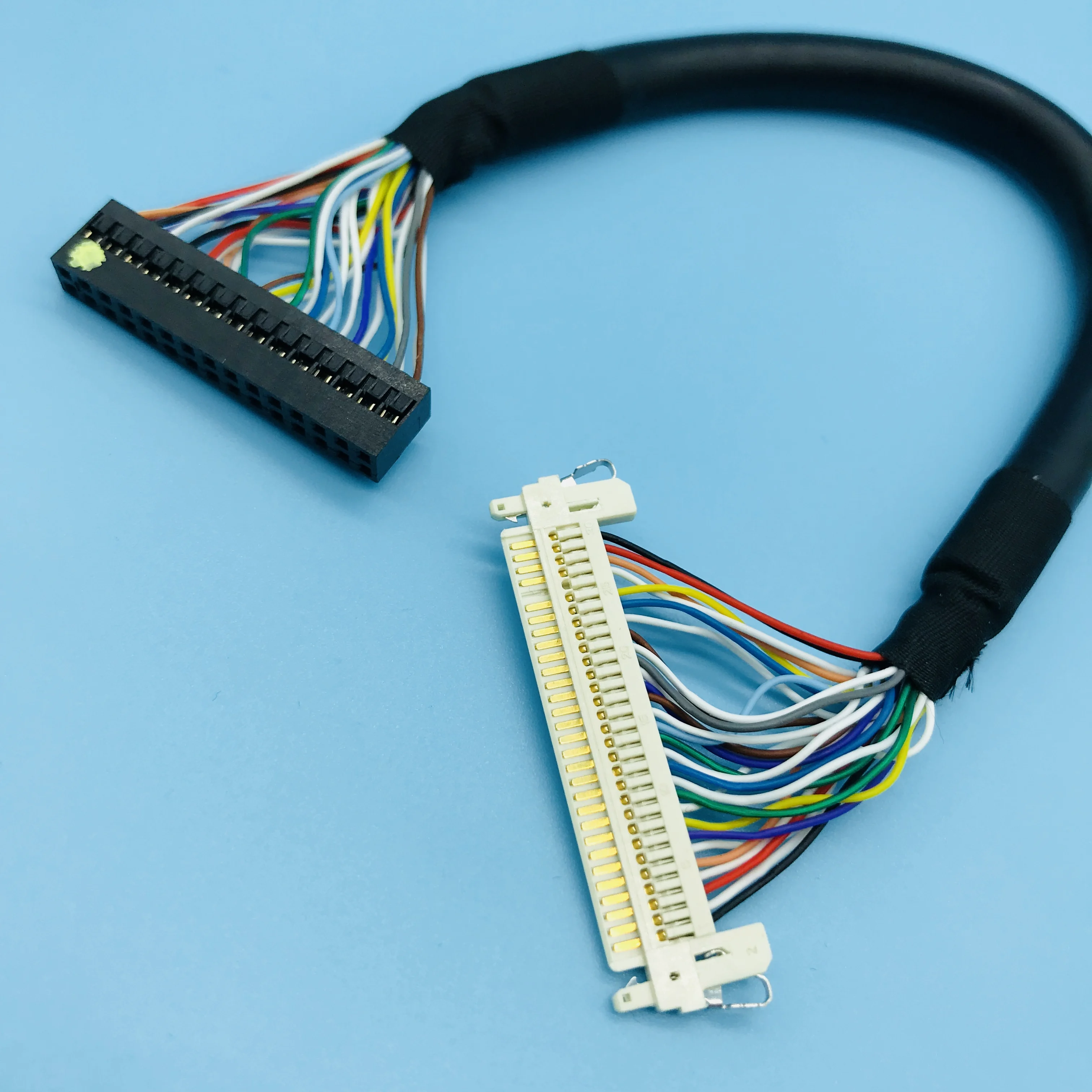

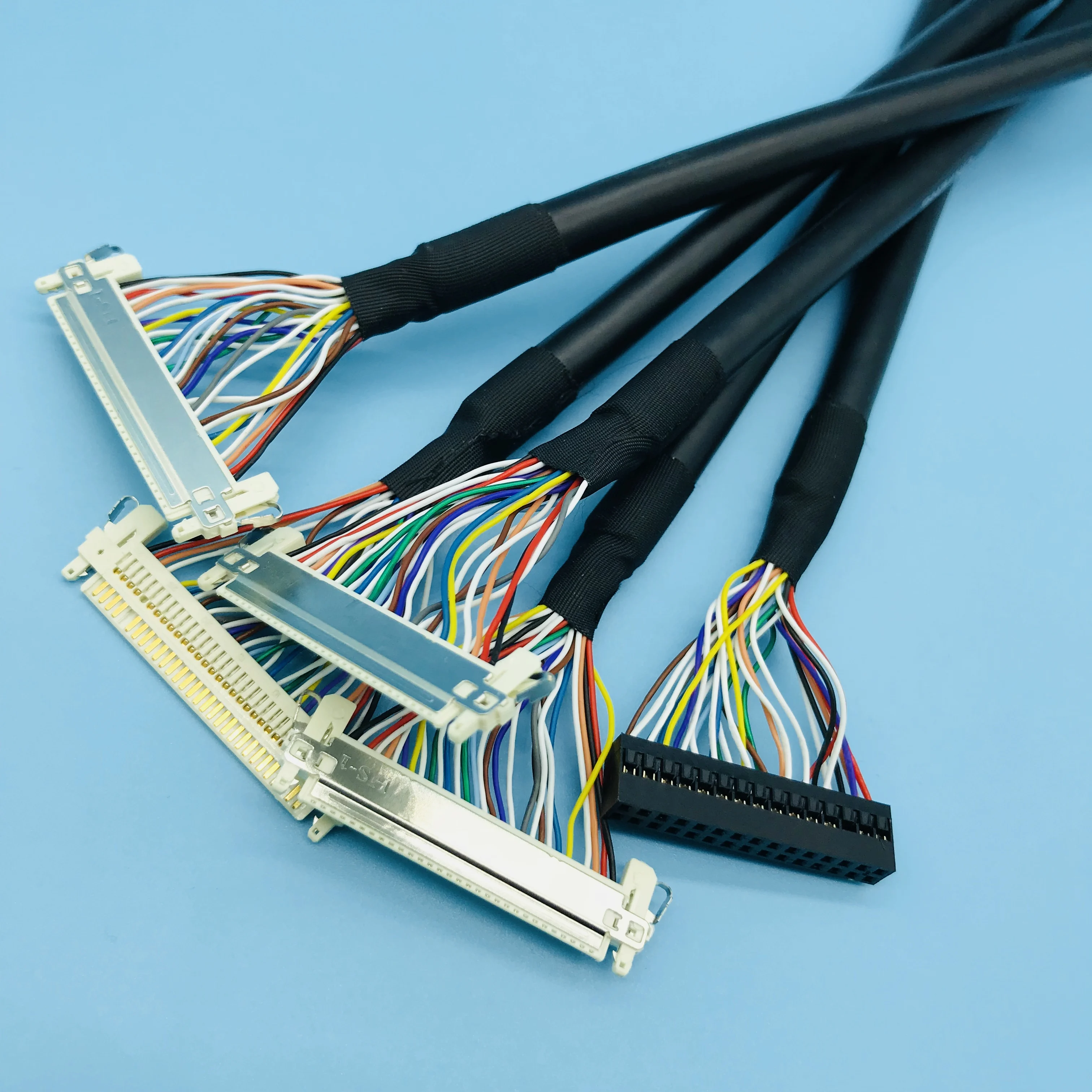

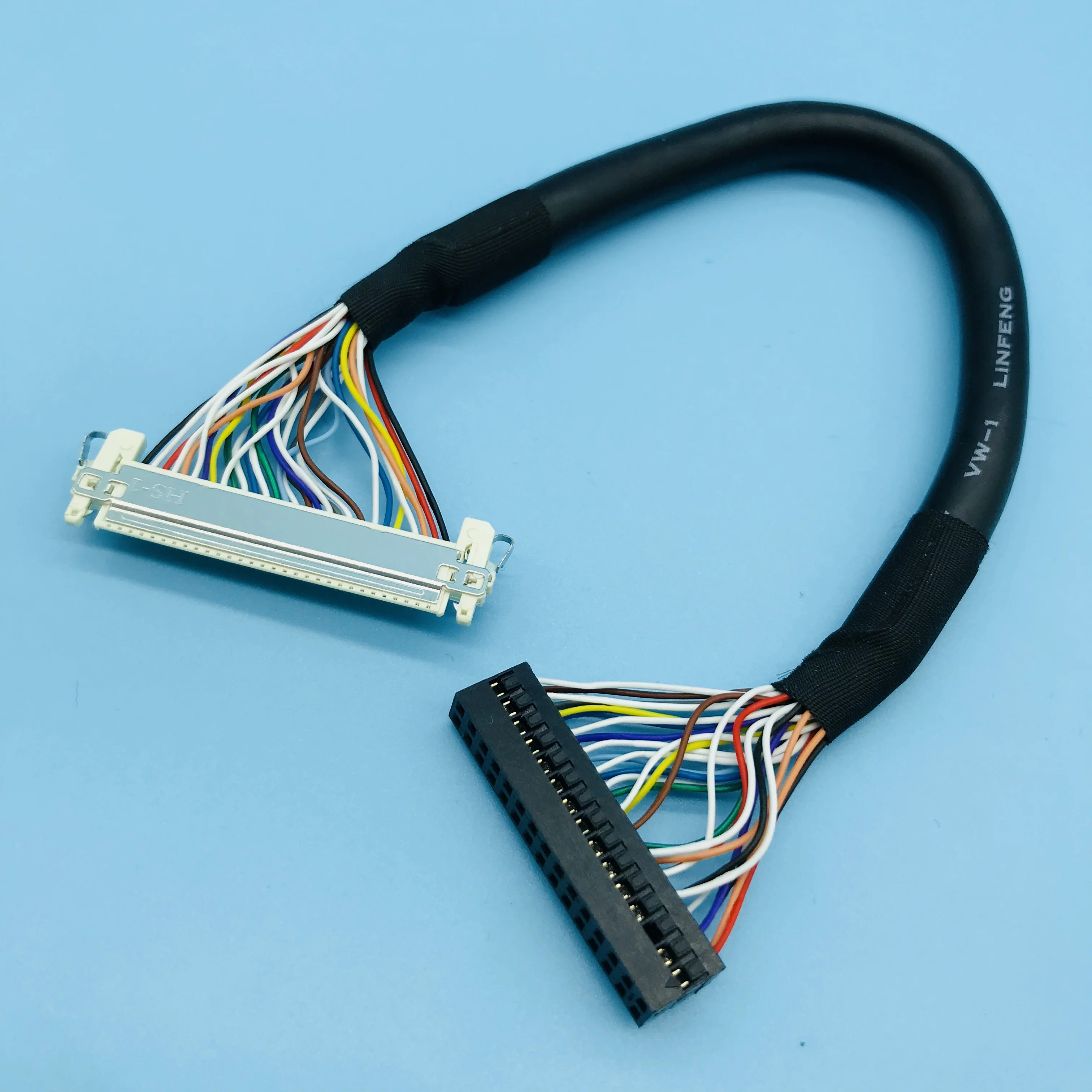

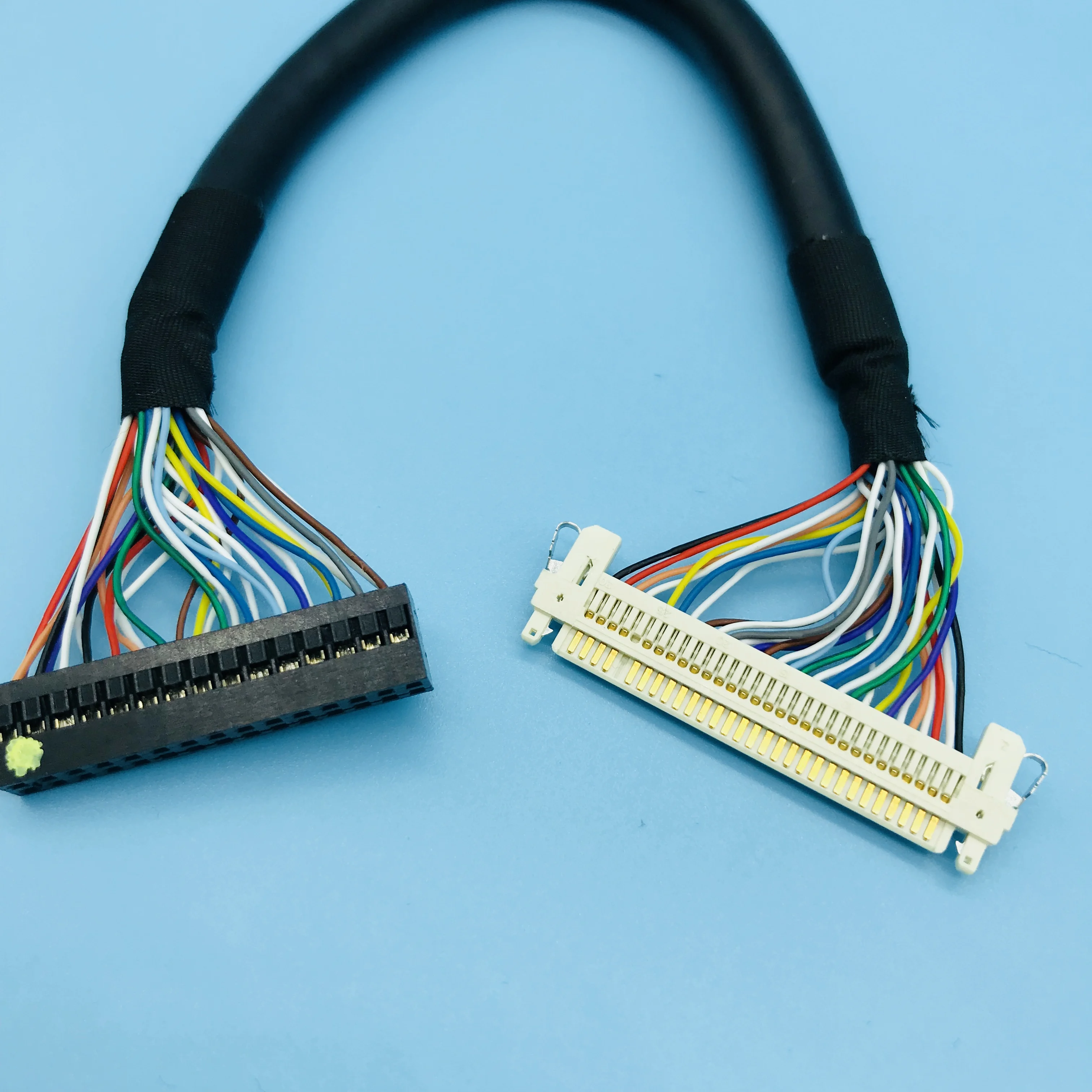

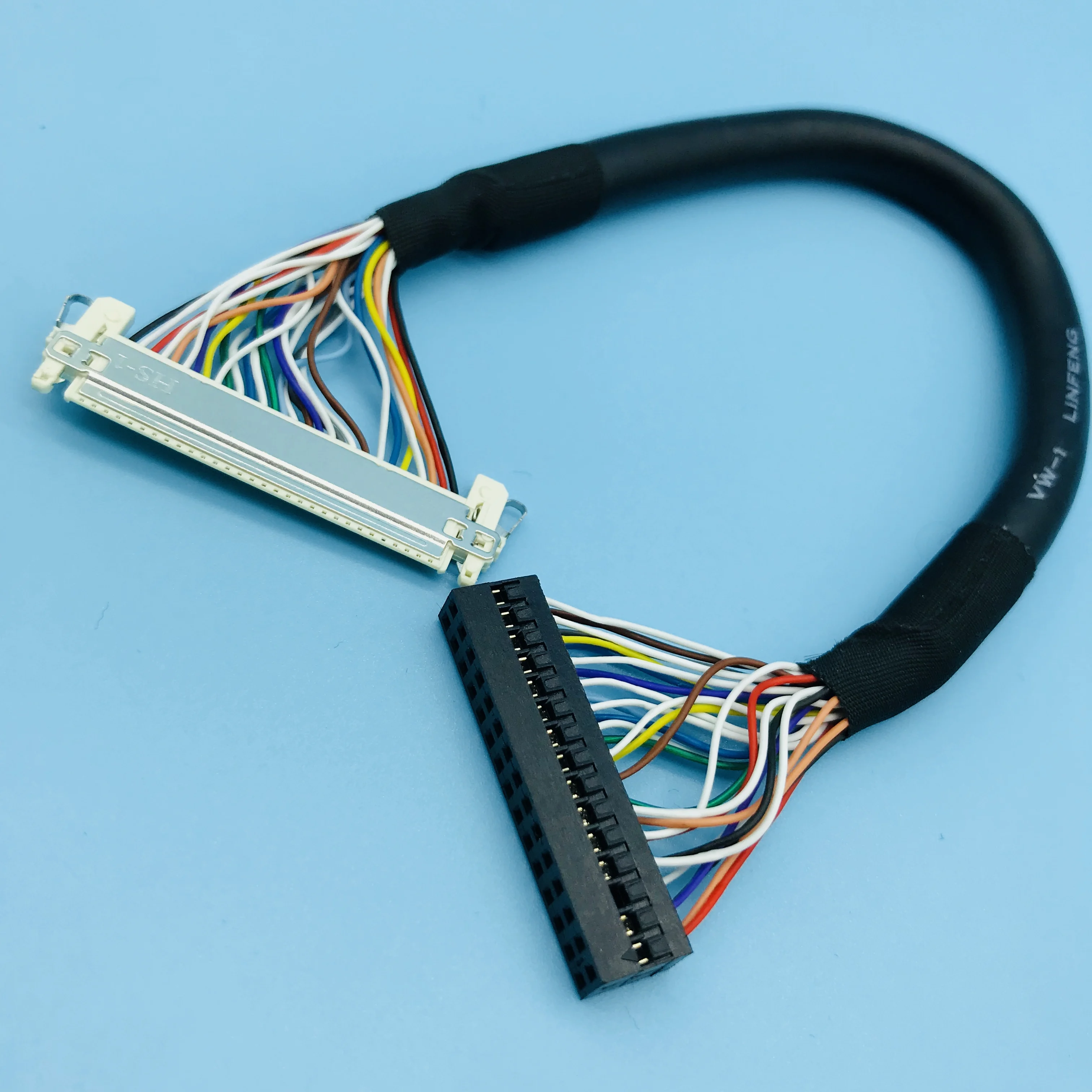

Custom 30pin Twisted Pair Shielding Lvds Edp Cable

Custom 30pin Twisted Pair Shielding Lvds Edp Cable

$1.00-$5.00/ Piece|5 Piece/Pieces(Min. Order)
View product details

Custom 30pin Twisted Pair Shielding Lvds Edp Cable

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Speed Data Transmission: Designed for LVDS/EDP applications, enabling seamless connectivity between computers, monitors, and GPUs with minimal signal loss.
  • Shielded Twisted Pair Construction: Reduces electromagnetic interference (EMI) and crosstalk, ensuring stable performance in demanding environments.

Key features

  • 1. Advanced Material Technology

    • With a twisted pair shielding design, minimize electromagnetic interference and crosstalk, offering up to 30% better signal integrity compared to unshielded cables*.

  • 2. Precision Connector Design

    • With a precision-engineered 30-pin connector, ensure secure and stable connections, reducing disconnection risks common in standard cable designs*.

  • 3. High-Speed Performance

    • Supporting high-speed data transmission, enabling seamless operation in high-resolution applications with 20% faster performance than non-LVDS cables*.

  • 4. Versatile Scenario Adaptability

    • Engineered for demanding computing environments, ensuring reliable performance in intensive applications like gaming and professional workstations*.

  • 5. Rigorous Compliance Standards

    • Certified to meet EMI/EMC and RoHS standards, ensuring compliance with commercial and industrial safety regulations*.

Product details

Custom 30pin Twisted Pair Shielding Lvds Edp Cable

The Custom 30pin Twisted Pair Shielding LVDS eDP Cable is designed for high-performance computer applications, offering robust signal integrity and EMI protection. Its twisted pair design and shielding minimize interference, while the 30-pin configuration ensures compatibility with modern motherboards and displays.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialOxygen-Free Copper ConductorsHigh-speed data transmission in gaming PCs
Shielding TypeFoil + Braid Composite ShieldingReducing EMI in multi-peripheral setups
Pin Configuration30-Pin LVDS/eDP ConnectorCompatibility with high-end motherboards
Temperature Range-20°C to 85°CIndustrial or overclocked computing environments

Customization guide

Adjustable parameters include:

  • Shielding Density (for EMI-sensitive environments)
  • Cable Length (customized up to 3 meters)
  • Connector Type (eDP 1.4/1.5/1.6 compatibility)

Get inspired

Ideal for building premium gaming PCs, ultra-high-resolution monitors, or industrial computing systems requiring stable video and data transmission.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Shielding Effectiveness85dB+15% (98dB)+30% (110dB)*
Signal Bandwidth1.62 Gbps2.7 Gbps5.4 Gbps
Operating Temp.-10°C to 70°C-20°C to 80°C-20°C to 85°C

Supplier's note

  1. Three Breakthroughs:

    • The Pro Model’s 110dB shielding exceeds industry standards by 20%, enabling use in MRI machine proximity.
    • Advanced Model’s 2.7 Gbps bandwidth supports 4K@60Hz displays without latency.
    • All versions use composite shielding, reducing crosstalk by 40% vs. single-layer alternatives.

  2. Optimal Version Selection:

    • Base Model: Suitable for standard desktop builds (e.g., office PCs) with minimal peripherals.
    • Advanced Model: Ideal for gamers and professionals needing 4K/144Hz monitors.
    • Pro Model: Best for industrial PCs, medical devices, or overclocked systems requiring extreme reliability.

With the Pro Model’s 5.4 Gbps bandwidth, you can drive 8K displays seamlessly. With its 110dB shielding, you can eliminate interference in MRI machine environments. The Advanced Model’s 2.7 Gbps bandwidth ensures smooth 4K gaming without signal loss.

Frequently asked questions

  • Which model of 30pin twisted pair shielding LVDS cable is best for high-resolution laptop displays?

  • How do I clean and store a twisted pair shielding LVDS/EDP cable to prevent damage?

  • Why choose a shielded twisted pair LVDS cable over unshielded options for computer systems?

  • Can I request custom lengths for 30pin LVDS/EDP cables for specific computer setups?

  • Is the shielding material in LVDS cables compliant with industry standards for computer hardware?

  • What are the key features of a 30pin twisted pair shielding cable for high-speed data transmission in computers?

  • Does the 30pin LVDS/EDP cable support both LVDS and EDP protocols for versatile computer applications?

  • How does the shielding in twisted pair cables protect against electromagnetic interference in computer systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Shielding EffectivenessIndustrial machinery, server farmsIndustry Standard: 20 dB (basic shield) → Our Base: 30 dB (▲10 dB) → Our Advanced: 40 dB (▲20 dB total) (IEC 61130 compliant)Reduces electromagnetic interference (EMI) by 99% in advanced versionsHigher shielding increases cable thickness and cost for advanced tiers
Data Transfer RateHigh-resolution displays, VR systemsIndustry Standard: 1.5 Gbps → Our Base: 3 Gbps (▲1x) → Our Advanced: 6 Gbps (▲4x total) (ISO/IEC 11801 verified)Supports 4K/8K video streaming without latency in advanced versionsRequires compatible hardware for higher bandwidth tiers
Pin ConfigurationLaptop monitors, embedded systemsIndustry Standard: 24-pin → Our Base: 30-pin (▲6 pins) → Our Advanced: 36-pin (▲12 pins total) (Custom 30pin LVDS standard)Full compatibility with modern eDP 1.4+ and LVDS interfacesLarger pin count may require specialized connectors for legacy systems
Cable DurabilityRobotics, automotive electronicsIndustry Standard: 5,000 flex cycles → Our Base: 10,000 cycles (▲1x) → Our Advanced: 15,000 cycles (▲3x total) (MIL-STD-810H tested)Survives repeated bending in industrial automation environmentsEnhanced durability adds 20% weight compared to industry-standard cables
Operating TemperatureOutdoor servers, aerospace equipmentIndustry Standard: -20°C to 70°C → Our Base: -30°C to 85°C (▲10°C range) → Our Advanced: -40°C to 90°C (▲20°C total) (ASTM D543 certified)Functions in extreme environments like Arctic data centersAdvanced versions require thicker insulation, increasing bulkiness
Compliance StandardsMedical devices, aerospaceIndustry Standard: IEC 60601 → Our Base: IEC 60601 + RoHS → Our Advanced: IEC 60601 + RoHS + REACH (▲2 certifications) (TÜV Rheinland certified)Meets global regulatory requirements for critical industriesAdditional certifications increase production costs for advanced tiers
