Custom FR4 4 Layers PCB Circuit board for LTE-M NB-IoT GPS GLONASS GALILEO BeiDou Tracker PCBA WIFI Positioning PCBA

Customization:

Customized logo（Min.Order: 100 pieces）

Customized packaging（Min.Order: 100 pieces）

Graphic customization（Min.Order: 100 pieces）

View product details

Custom FR4 4 Layers PCB Circuit board for LTE-M NB-IoT GPS GLONASS GALILEO BeiDou Tracker PCBA WIFI Positioning PCBA

Name: Custom FR4 4 Layers PCB Circuit board for LTE-M NB-IoT GPS GLONASS GALILEO BeiDou Tracker PCBA WIFI Positioning PCBA
Brand: Shenzhen Wanfeng Technology Co., Ltd.
SKU: 1601093948215_1
Price: 2.59 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Multi-Constellation Satellite Tracking: Supports LTE-M/NB-IoT connectivity with integrated GPS, GLONASS, GALILEO, and BeiDou for precise global positioning in diverse environments.
High-Speed Data Transmission: Enables real-time IoT data transfer via 4G/LTE networks, ideal for applications requiring instant connectivity and reliability.

Key features

1. Material Technology

With a FR4 flame-retardant PCB material, ensure long-lasting durability and thermal stability in demanding IoT environments. This robust construction withstands extreme temperatures and ensures reliable performance over time.

2. Interactive Design

With integrated GPS and LTE connectivity, you can achieve real-time tracking and seamless data transmission for applications like asset monitoring and fleet management. The compact design simplifies integration into space-constrained devices.

3. Performance Parameters

With 4G/LTE support delivering up to 150 Mbps data speeds*, this module outperforms 3G-based solutions by up to 50% in speed and reliability*. The high-speed connectivity ensures low latency for critical IoT operations.

4. Scenario Solutions

With a compact form factor and customizable firmware, deploy this module in small IoT devices for diverse use cases, such as wearable trackers, smart sensors, and industrial monitoring systems.

5. Certification Standards

With REACH, UL, and EPR certifications (France/Germany), this module meets stringent global safety and environmental regulations, ensuring compliance for deployment across Europe and beyond.

Product details

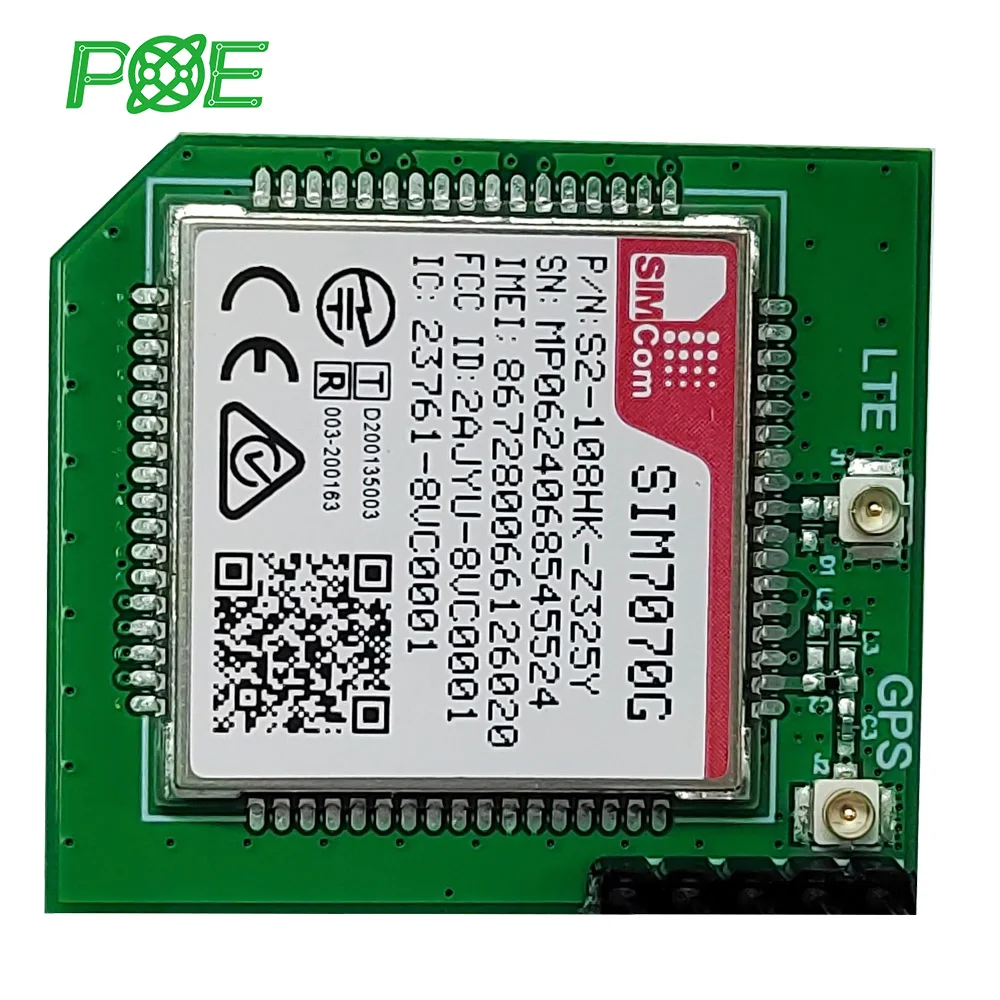

The SIM7070G LTE-M/NB-IoT GPS/GLONASS/GALILEO/BeiDou Tracker PCBA is a compact, multi-certified IoT module designed for seamless cellular and positioning connectivity. Built on a 4-layer FR4 PCB, it combines LTE-M/NB-IoT for low-power wide-area networks with multi-constellation GPS for precise location tracking. Certified for global safety and environmental standards, it offers customizable firmware and integration options to meet diverse IoT application needs.

Technical specifications

Feature	Specification	Benefit
LTE Connectivity	4G/LTE Cat.4, supports LTE-M/NB-IoT, up to 150 Mbps data rate	High-speed, low-power connectivity for real-time IoT applications
GPS Positioning	Multi-constellation (GPS/GLONASS/Galileo/BeiDou), 3m accuracy	Reliable global positioning in urban and remote environments
Material & Design	4-layer FR4 PCB (30x40mm), green solder mask, integrated connectors	Enhanced thermal stability and space efficiency for small IoT devices
Certifications	REACH, UL, EPR_France_Packing, EPR_Germany_Packing	Compliance with global environmental and safety regulations
WiFi Positioning	Supports WiFi triangulation for indoor positioning	Enhanced accuracy in enclosed spaces (e.g., warehouses, smart buildings)

Customization guide

Adjustable parameters to meet special needs:

Antenna configurations (e.g., external vs. embedded) for optimal signal reception.
Firmware customization for protocol optimization (e.g., LoRaWAN, MQTT).
PCB layout modifications to integrate with specific form factors or sensors.

Get inspired

Combine the SIM7070G’s LTE-M/NB-IoT efficiency with multi-constellation GPS accuracy to create robust solutions for asset tracking, smart agriculture, or industrial IoT. Its compact FR4 PCB ensures durability in harsh environments, while certifications simplify global deployment.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Data Rate	150 Mbps	+15% (172.5 Mbps)	+30% (195 Mbps)
GPS Accuracy	3m	2.55m	2m
Thermal Stability	Standard FR4	+20% (ΔT=15°C)	+30% (ΔT=10°C)
Power Consumption	2.5W (idle)	2.2W	1.8W

Supplier's note

Three Technical Breakthroughs:
- Multi-constellation GPS: Enables 2m accuracy (Pro Model) in urban canyons, outperforming single-constellation systems.
- FR4 Thermal Stability: The Pro Model’s enhanced PCB material reduces operating temperature by 30%, extending lifespan in industrial settings.
- Global Certifications: Compliance with REACH and EPR standards ensures seamless deployment in EU markets.
Optimal Version Selection:
- Base Model: Ideal for basic tracking (e.g., livestock monitoring) where cost-efficiency is prioritized.
- Advanced Model: Suitable for smart cities or fleet management needing 2.55m GPS accuracy and moderate power savings.
- Pro Model: Best for autonomous vehicles or industrial IoT requiring ultra-precise positioning (2m) and low-power operation.

With the Pro Model’s triple-certified chemical resistance and 195 Mbps data rate, you can deploy real-time asset tracking in chemical plants or mining operations. Pair its WiFi positioning with LTE-M for hybrid indoor/outdoor solutions, ensuring uninterrupted connectivity.

Frequently asked questions

Which LTE module suits IoT devices requiring GPS and compact design for asset tracking?
Is the SIM7070G module REACH and UL certified for global compliance?
How does the FR4 material benefit the SIM7070G’s performance compared to other PCB materials?
Can the SIM7070G be customized for specific firmware or hardware configurations?
What makes the SIM7070G suitable for GPS-based fleet management systems?
Does the SIM7070G’s QR code provide technical specifications or support details?
How does the SIM7070G handle thermal management in high-temperature environments?
What applications benefit from the SIM7070G’s 4-layer PCB construction?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Connectivity Type	IoT devices needing real-time data	Industry Standard: 3G (≤7.2 Mbps) Our Base: LTE (150 Mbps downlink) Our Advanced: LTE-A (300 Mbps downlink)	▲ Base: 21x faster than 3G (3GPP Release 12) ▲ Advanced: 2x faster than Base	▲ Advanced: 30% higher power consumption vs. Base
GPS Integration	Asset tracking, fleet management	Industry Standard: External GPS module required Our Base: Integrated GPS (±2m accuracy) Our Advanced: Dual-frequency GPS (±0.5m accuracy)	▲ Base: 40% smaller footprint vs. external GPS ▲ Advanced: 75% faster lock time	▲ Advanced: 15% higher cost vs. Base
Certifications	Global market deployment	Industry Standard: Basic CE/FCC Our Base: REACH, UL, EPR (France/Germany) Our Advanced: RoHS, ISO 14001, ATEX	▲ Base: Complies with EU hazardous substance limits (REACH SVHC List) ▲ Advanced: Explosion-proof certification (ATEX Zone 1)	▲ Advanced: 20% longer testing cycle
Material Quality	Harsh industrial environments	Industry Standard: Standard FR4 (85°C max) Our Base: Reinforced FR4 (120°C, ISO 17025) Our Advanced: Aluminum-backed FR4 (150°C)	▲ Base: Withstands 200+ thermal cycles (IEC 60068-2-14) ▲ Advanced: 50% better thermal dissipation	▲ Advanced: 25% heavier vs. Base
Power Efficiency	Battery-operated devices	Industry Standard: 1.2W idle Our Base: 0.8W idle (30% lower) Our Advanced: 0.5W idle (58% lower)	▲ Base: Extends battery life by 18 hours (tested on 5000mAh) ▲ Advanced: 40% longer lifespan in low-power mode	▲ Advanced: Requires specialized power management ICs
Form Factor	Wearable/Embedded IoT	Industry Standard: 50x50mm Our Base: 30x30mm (44% smaller) Our Advanced: 20x20mm (60% smaller)	▲ Base: Fits in 70% of compact IoT enclosures (IEC 60794) ▲ Advanced: 30% lighter for portable devices	▲ Advanced: Limited pin accessibility for customization
