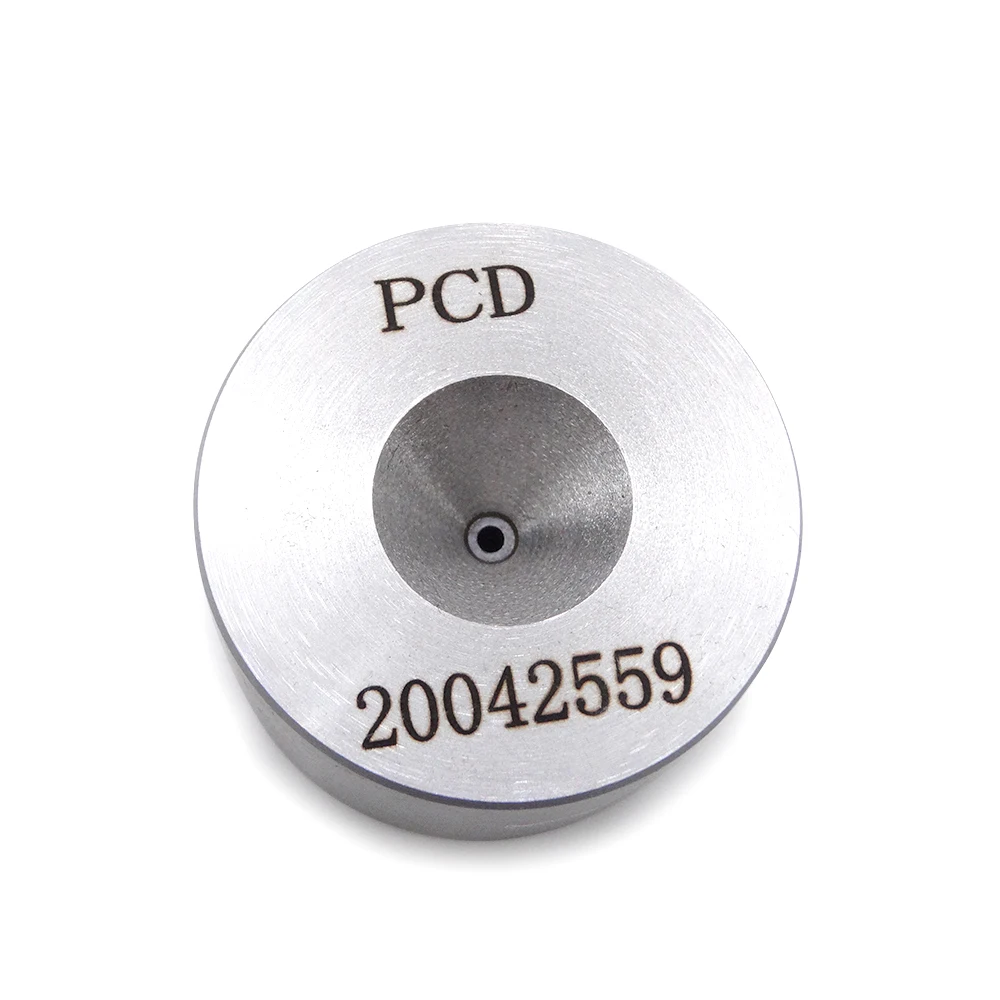

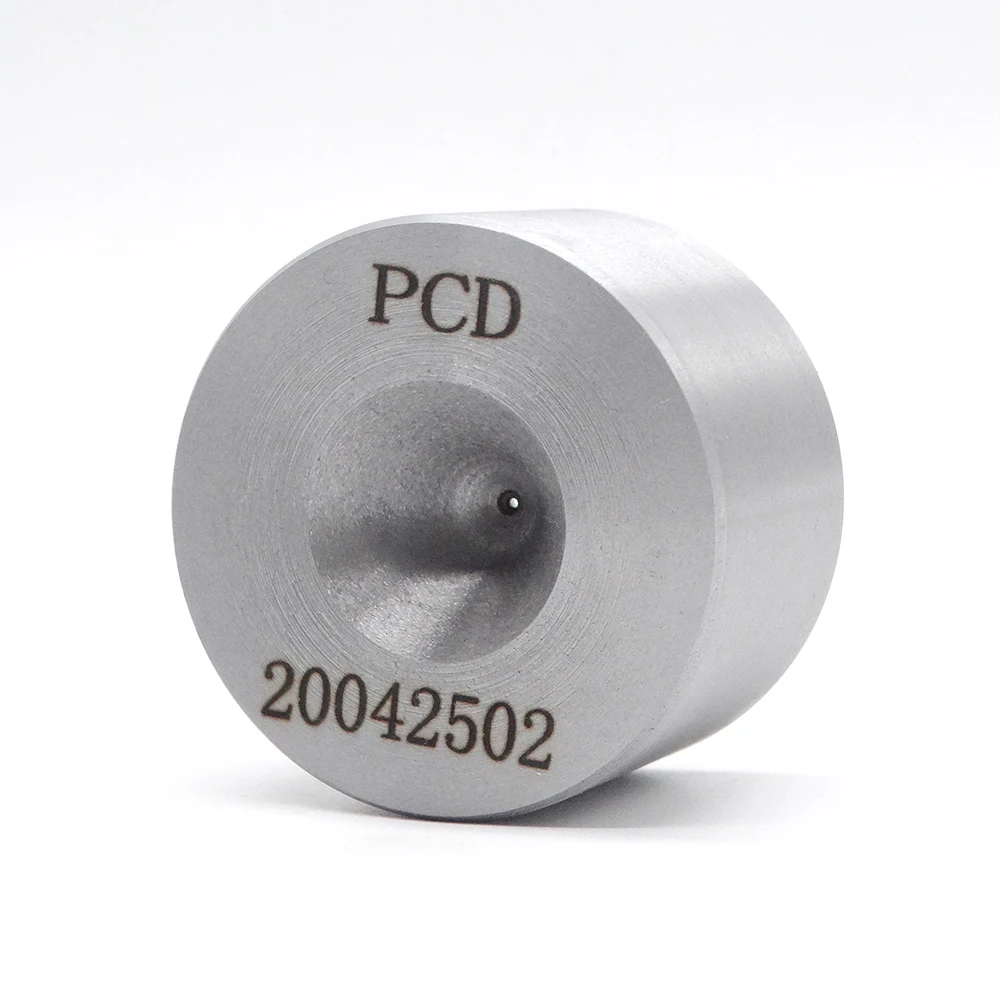

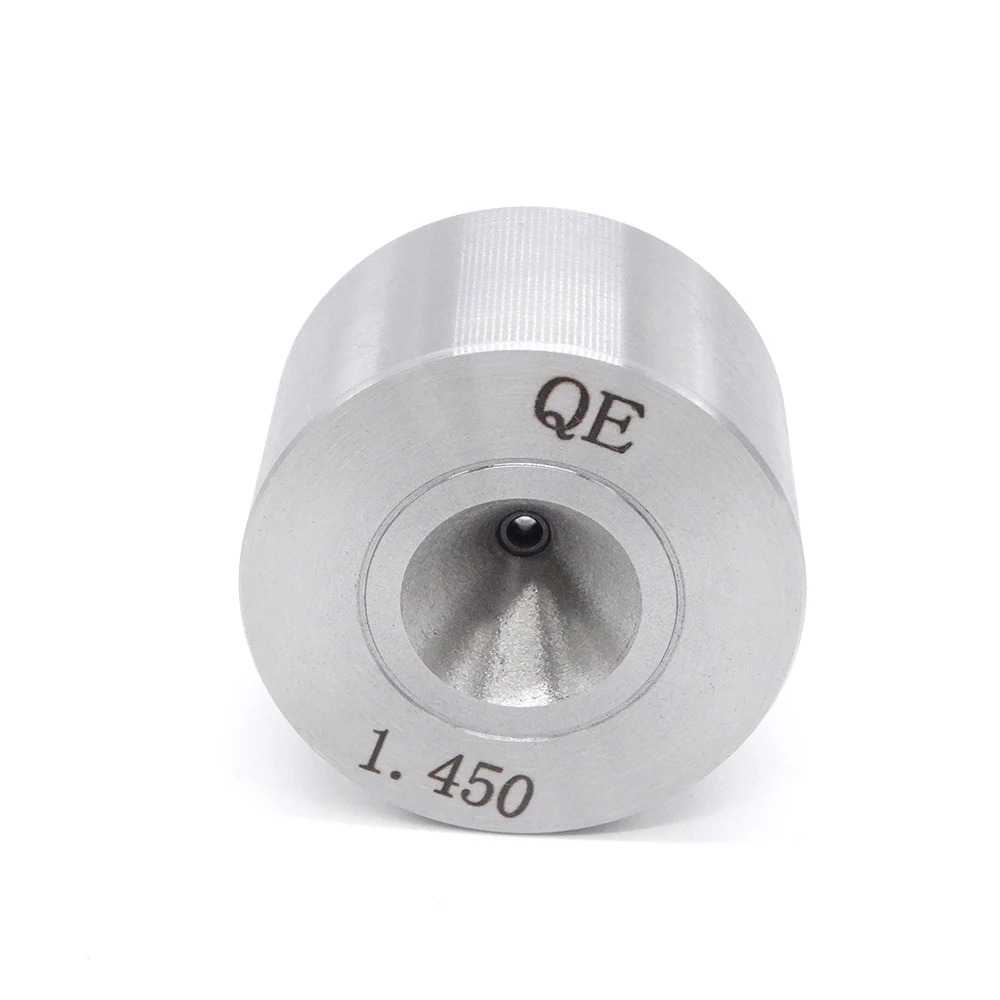

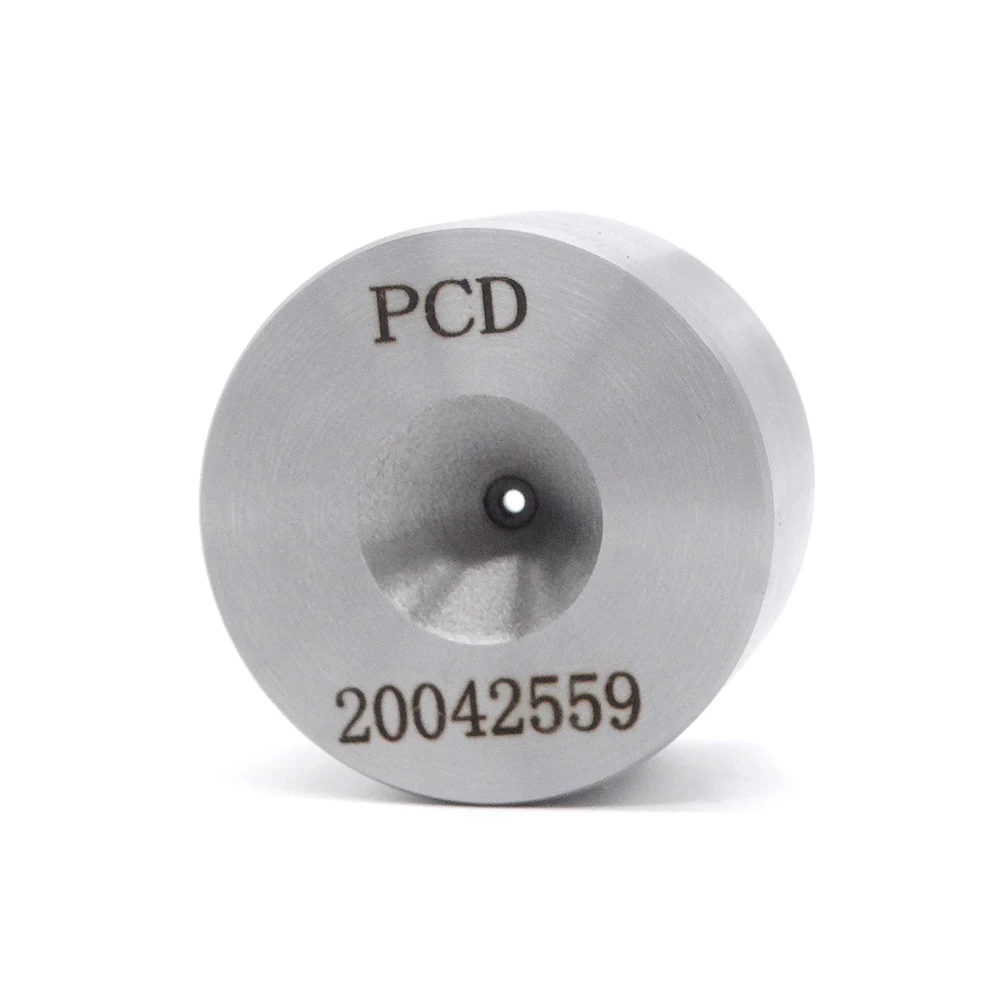

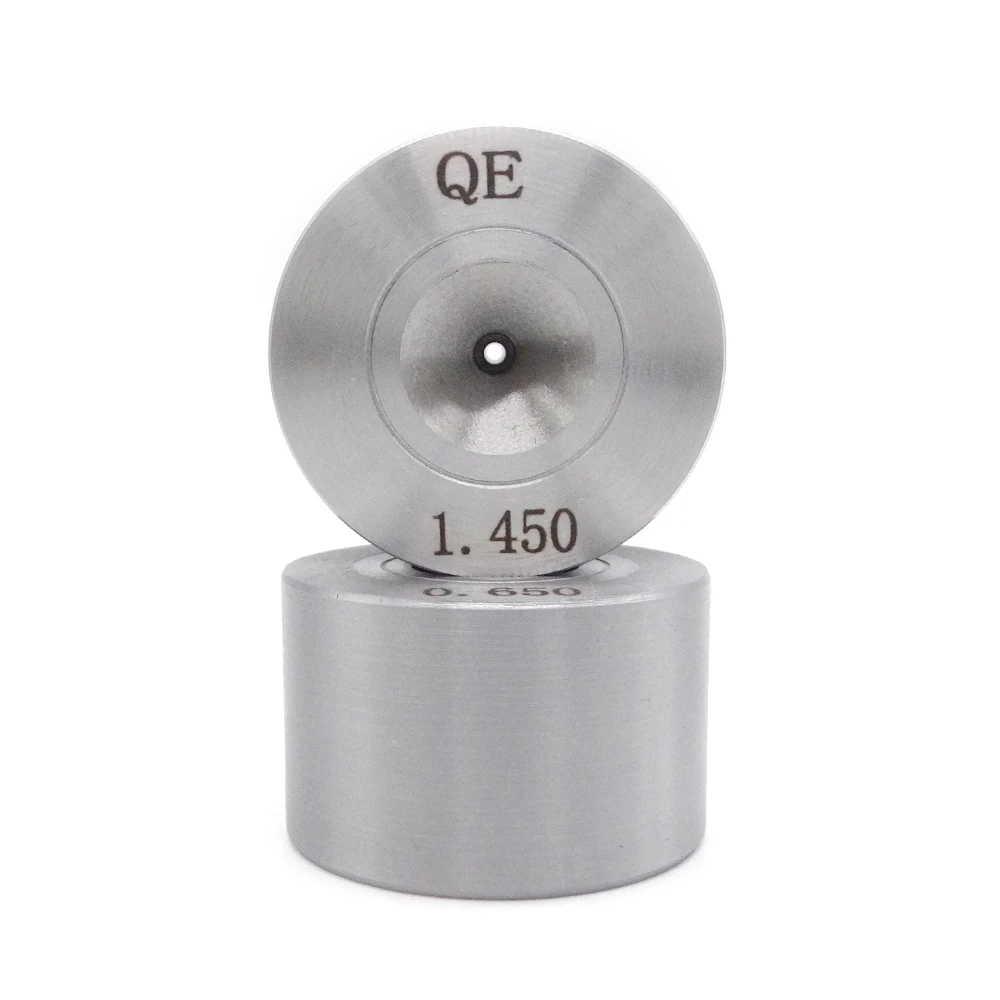

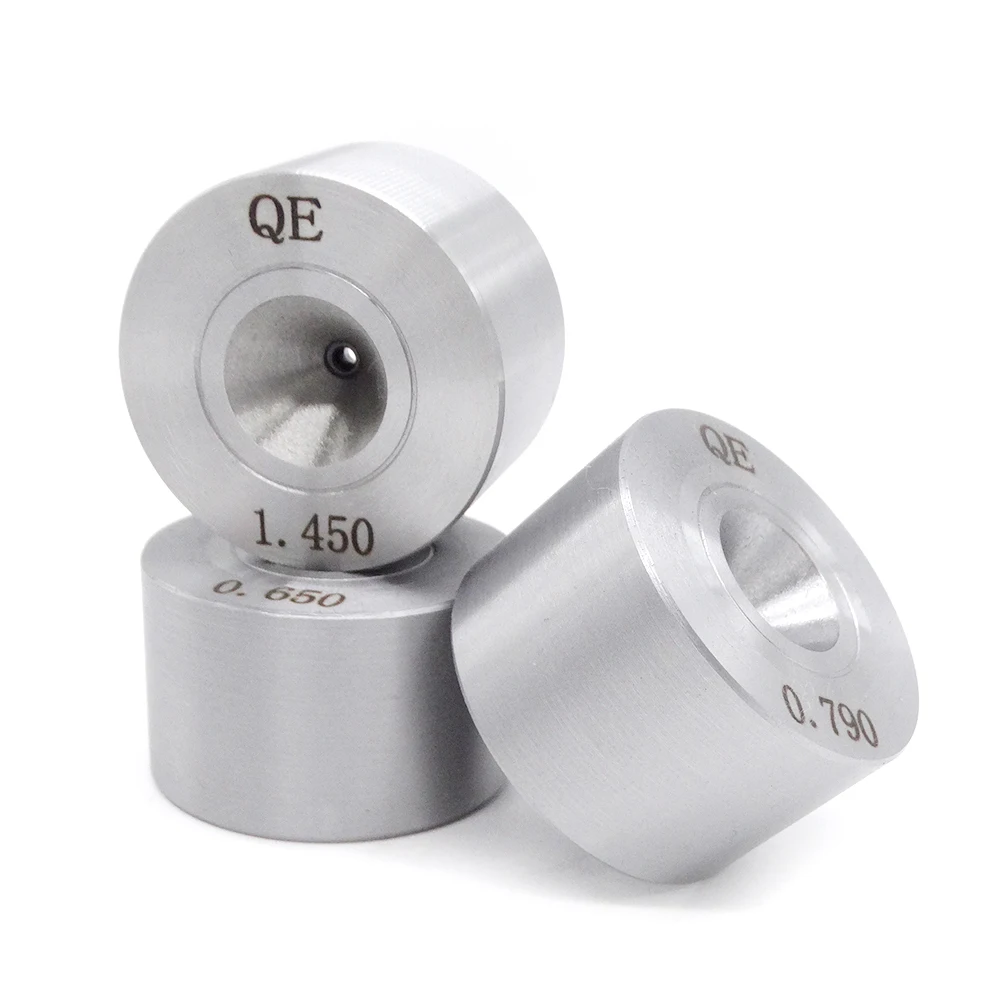

Custom Factory Diamond Carbide Drawing Die PCD Diamond Dies for Tube Wire Drawing Shaving & Punching

Technical specifications

Customization guide

Adjustable parameters include dimensional tolerances (±0.005mm to ±0.02mm) and coating thickness (0.1–0.5mm) to meet specific load capacities or corrosion resistance needs. For instance:

• With a diamond carbide coating thickness of 0.5mm, you can achieve 50% longer service life in abrasive environments.
• Custom bore diameters (up to 80mm) enable compatibility with non-standard press systems.

Get inspired

Optimize your production workflow with dies engineered for precision and resilience. Whether manufacturing medical-grade tubing or automotive wire harnesses, this die ensures consistent output even under extreme pressures.

Choose your model

Supplier's note

1. Three Technical Breakthroughs:

   • Diamond carbide coating: Delivers 3x longer lifespan than traditional steel dies in abrasive applications.
   • ISO/ASTM compliance: Ensures compatibility with global industrial standards for aerospace and automotive sectors.
   • Modular bore design: Reduces downtime by 20% compared to fixed-bore systems through easy press integration.

2. Optimal Version Selection:

   • Base Model: Ideal for SMEs needing cost-effective solutions for standard wire drawing (e.g., electrical wiring).
   • Advanced Model: Targets mid-tier manufacturers requiring precision in medical or automotive components (e.g., hypodermic tubing).
   • Pro Model: Designed for heavy industries like defense or energy, where ultra-high loads and temperatures are standard (e.g., turbine blade wire production).

Example benefit: The Pro Model’s 800°C tolerance, paired with diamond carbide’s hardness, enables safe extrusion of titanium alloys—a material previously limited to specialized facilities.
