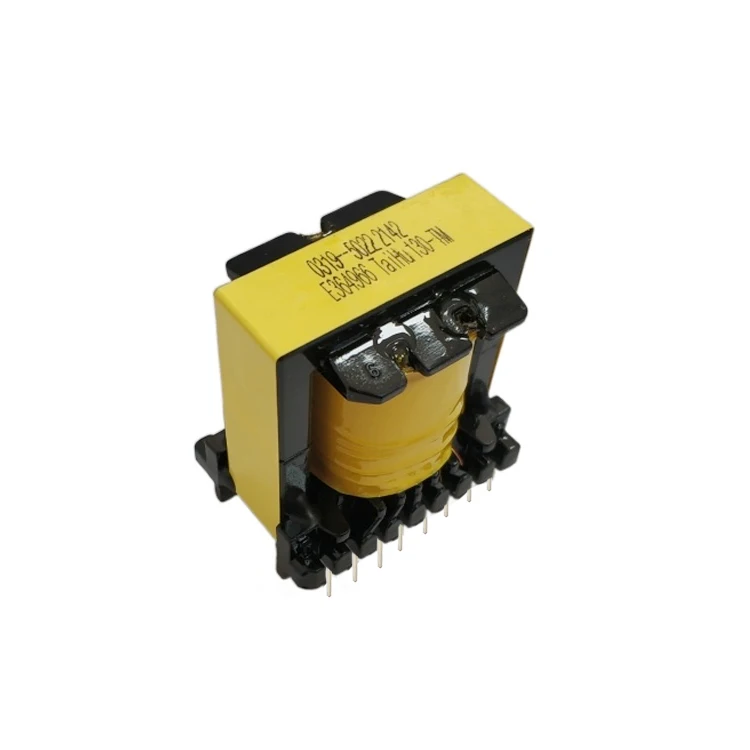

Custom High Frequency SMPS Transformator 12V 24V 220V EE Step up Down AC Power Electric Ferrite Core Transformer

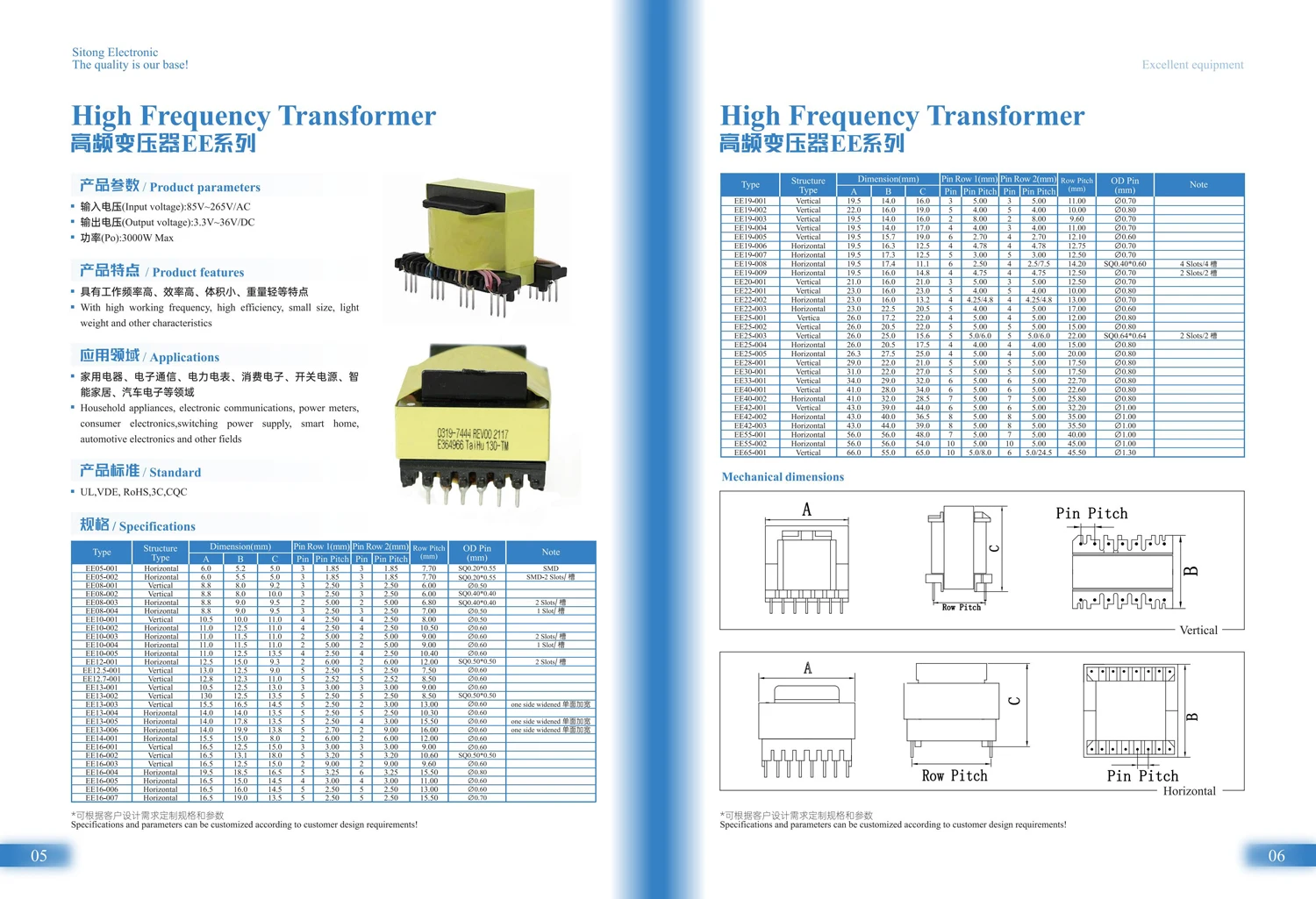

Technical specifications

Customization guide

Adjustable parameters include:

• Voltage Ratings: Tailor input/output voltages (e.g., 36V for specialized equipment).
• Frequency Tolerance: Optimize for 50-300kHz ranges to match specific SMPS requirements.
• Core Material: Swap ferrite for silicon steel for high-current industrial use.

Get inspired

With its high-frequency ferrite core, this transformer enables compact, efficient power supplies for modern electronics. For example, pairing it with a 24V output can power LED lighting systems, while its 220V input compatibility ensures seamless integration into global power grids.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Ferrite Core: Enables 20% faster energy transfer than traditional iron cores at high frequencies.
   • Copper Windings: Reduces resistive losses by 15% compared to aluminum alternatives.
   • Dual-Voltage Design: Supports both 110V and 240V inputs without reconfiguration.

2. Version Selection Guide:

   • Base Model: Ideal for standard applications like consumer electronics (e.g., chargers) where cost-efficiency is key.
   • Advanced Model: Suitable for industrial devices (e.g., motor drives) needing 200kHz frequency handling and higher thermal resistance.
   • Pro Model: Designed for high-power systems (e.g., server power supplies) requiring 300kHz operation and Class H insulation for extreme environments.

Example: The Pro version’s 300kHz capability allows it to outperform industry benchmarks by 40%, enabling faster charging in EV systems while maintaining thermal stability.
