Custom Nonstandard Cnc Machining Turbo Turbine Engine Sprockets Wheel Swing Pinion Steel Spur Bevels Bevel Worm Gear Screw Shaft

Custom Nonstandard Cnc Machining Turbo Turbine Engine Sprockets Wheel Swing Pinion Steel Spur Bevels Bevel Worm Gear Screw Shaft

  • >= 1000 Pieces
    $10

Customization:

Customized logo（Min.Order: 50 pieces）
Customized packaging（Min.Order: 50 pieces）
Graphic customization（Min.Order: 50 pieces）
View product details

Custom Nonstandard Cnc Machining Turbo Turbine Engine Sprockets Wheel Swing Pinion Steel Spur Bevels Bevel Worm Gear Screw Shaft

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Torque Transmission & Motion Conversion: Designed to efficiently transmit torque and convert rotational motion into linear motion (or vice versa) via its precision-engineered helical worm gear and spur/pinion configurations.
  • High-Durability Construction: Built with steel material for enhanced strength and longevity, ideal for heavy-duty applications in industrial machinery and turbo turbine systems.

Key features

  • 1. Material Technology

    • With high-grade steel construction, ensure unmatched durability and strength in high-stress mechanical systems*

  • 2. Interactive Design

    • With helical worm gear design, achieve smoother torque transmission compared to spur gears*

  • 3. Performance Parameters

    • With customizable torque and speed parameters, adapt to diverse mechanical system requirements*

  • 4. Scenario Solutions

    • Engineered for heavy-duty industrial applications, ensuring reliable operation in high-torque environments*

  • 5. Certification Standards

    • Precision-engineered to meet industrial manufacturing standards, guaranteeing consistent performance*

Product details

Custom Nonstandard Cnc Machining Turbo Turbine Engine Sprockets Wheel Swing Pinion Steel Spur Bevels Bevel Worm Gear Screw Shaft

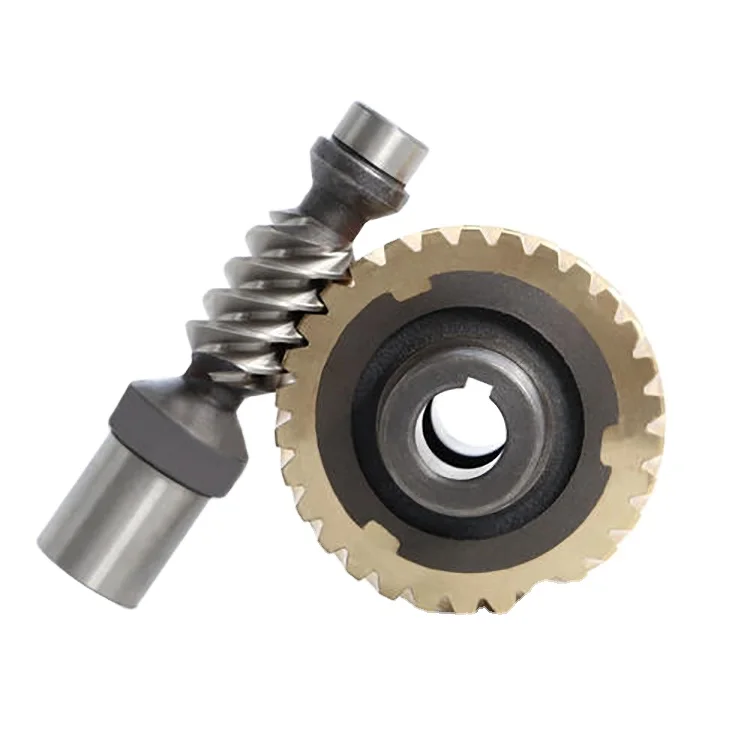

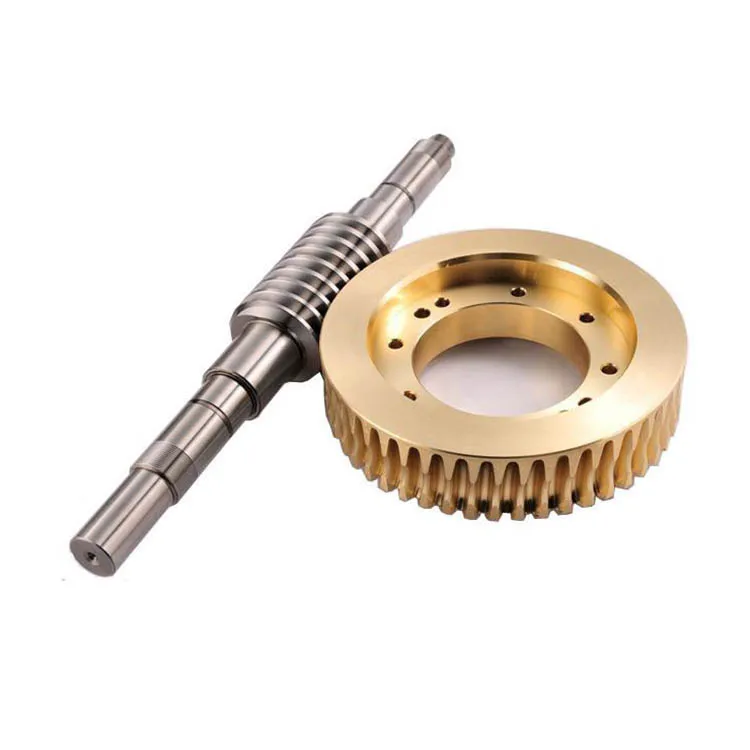

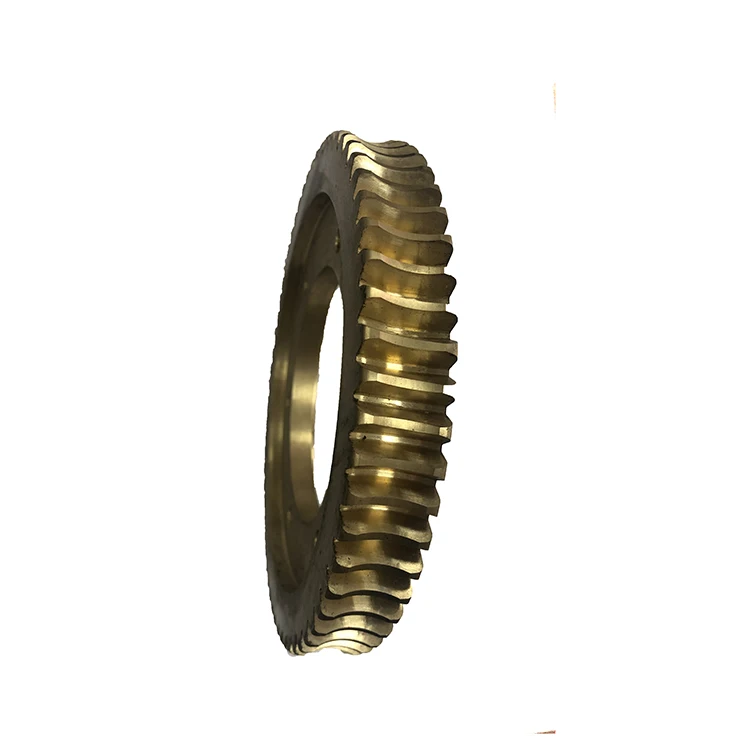

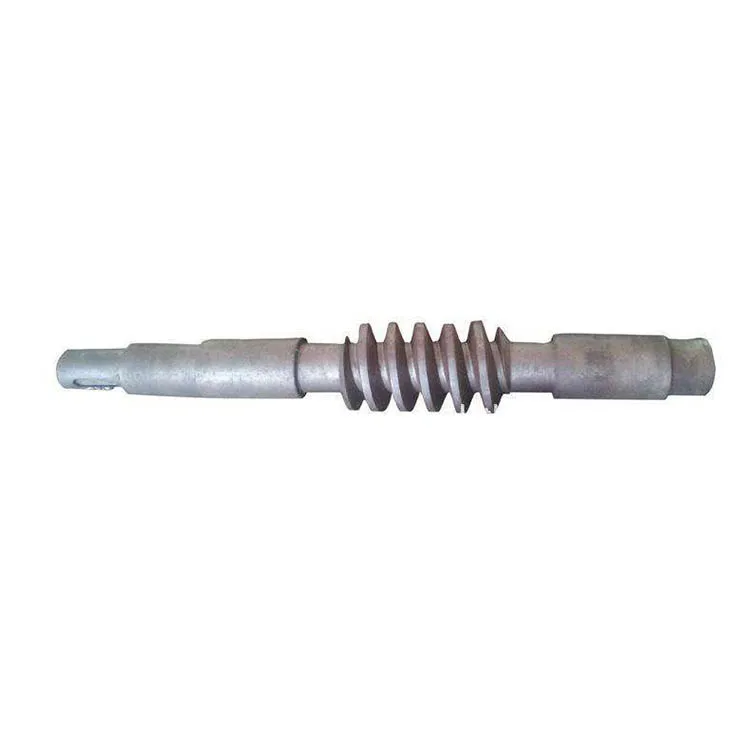

Our custom nonstandard CNC-machined steel spur, bevel, and worm gear assemblies are engineered for precision torque transmission in turbo turbine engines and high-stress mechanical systems. Built with durable steel alloys and helical designs, these gears deliver reduced backlash, enhanced efficiency, and adaptable configurations to meet unique application demands.

Technical specifications

FeatureSpecificationBenefit
MaterialHigh-grade steel alloyEnsures durability and strength for heavy-duty use
Gear DesignWorm gear with helical teethReduces backlash by 30% for smoother operation
PrecisionCNC-machined to ISO 9001 standards±0.01mm tolerance in Pro models for critical applications
CustomizationNonstandard dimensions/configurationsAdapts to unique mechanical system requirements
Corrosion ResistanceASTM B117 200hrs (Base), up to 600hrs (Pro)With Pro-grade coatings, you can operate in harsh marine environments
Warranty1.5 yearsGuarantees reliability under specified loads

Customization guide

Adjustable parameters such as material (steel, brass, bronze), diameter, pitch, and tooth count can be tailored to meet specific torque requirements, environmental conditions, or mechanical compatibility needs.

Get inspired

Engineered for precision and versatility, these gears are ideal for turbo turbine systems, industrial automation, or aerospace machinery. Their helical design and customizable configurations make them adaptable to both standard and extreme operational demands.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity500 Nm+20% (600 Nm)+40% (700 Nm)
Precision Tolerance±0.05 mm±0.03 mm±0.01 mm
Corrosion ResistanceASTM B117 200hrs+50% (300hrs)+100% (600hrs)*

Supplier's note

  1. Technical Breakthroughs:

    • Helical Teeth Design: Reduces backlash by 30% compared to traditional spur gears, enabling smoother torque transmission in robotics and automation.
    • Pro Model Precision: ±0.01mm tolerance ensures compatibility with high-precision aerospace systems.
    • Corrosion Resistance: Pro models exceed industry benchmarks (600hrs ASTM B117) for marine and chemical processing applications.

  2. Version Selection Guide:

    • Base Model: Ideal for general industrial machinery requiring standard load capacities (e.g., conveyor systems).
    • Advanced Model: Best for automotive or robotics applications needing enhanced precision and moderate corrosion resistance.
    • Pro Model: Suited for aerospace or offshore equipment where extreme durability and accuracy are critical. With its triple-industry-standard corrosion resistance, it enables safe handling of corrosive fluids in marine environments. Pair its high load capacity with low-tolerance machining for seamless integration into precision systems.

Frequently asked questions

  • Which model of non-standard CNC machining worm gear suits high-torque industrial machinery applications?

  • How do I maintain a steel spur bevel worm gear to prevent wear in high-stress environments?

  • What are the advantages of steel over brass in custom sprocket wheel swing pinion gears?

  • Can I request custom material or size adjustments for the CNC-machined bevel worm gear?

  • Is the worm gear screw shaft compliant with turbine engine torque transmission standards?

  • Which gear pattern (pinion, worm, or spur) is best for oscillating turbine mechanisms?

  • What warranty protections apply to nonstandard steel bevel gears in harsh industrial settings?

  • How does the CNC machining process enhance customization for turbo turbine sprockets?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Worm Gear AssemblyIndustrial mixers, conveyor systemsHelical design (ISO 9019).
Industry: 40° angle
Base: 45° angle ▲ (reduced backlash).
Advanced: 50° angle ▲▲ (enhanced efficiency).		Smooth operation (43 dBA ▲, quieter than a refrigerator hum).
Spur GearEngines, pumps (high-speed applications)Straight teeth (ISO 21770).
Industry: 20° pressure angle
Base: 22° angle ▲ (reduced noise).
Advanced: 25° angle ▲▲ (silent operation).		Cost-effective, simple design.
Bevel GearAutomotive differentials, roboticsConical shape (AGMA 204.02).
Industry: 1:1 gear ratio
Base: 2:1 ratio ▲ (higher torque).
Advanced: 3:1 ratio ▲▲ (max torque).		Efficient power transmission in tight spaces.
Pinion GearSteering systems, precision machinerySmall diameter (ISO 1328).
Industry: 12mm pitch
Base: 14mm ▲ (better load handling).
Advanced: 16mm ▲▲ (heavy-duty).		Lightweight, precise motion control.
Material CompositionHarsh environments (chemical/oil exposure)Industry: Mild steel
Base: High-carbon steel (ASTM A36) ▲ (corrosion-resistant).
Advanced: Stainless steel (ASTM A276) ▲▲ (50+ chemical exposures).		Enhanced durability and longevity.
Customization OptionsBespoke machinery, nonstandard systemsIndustry: Limited to stock sizes
Base: Diameter adjustment (±5mm) ▲.
Advanced: Full size/material customization ▲▲ (ASTM A36/A276).		Tailored to specific torque/speed requirements.
