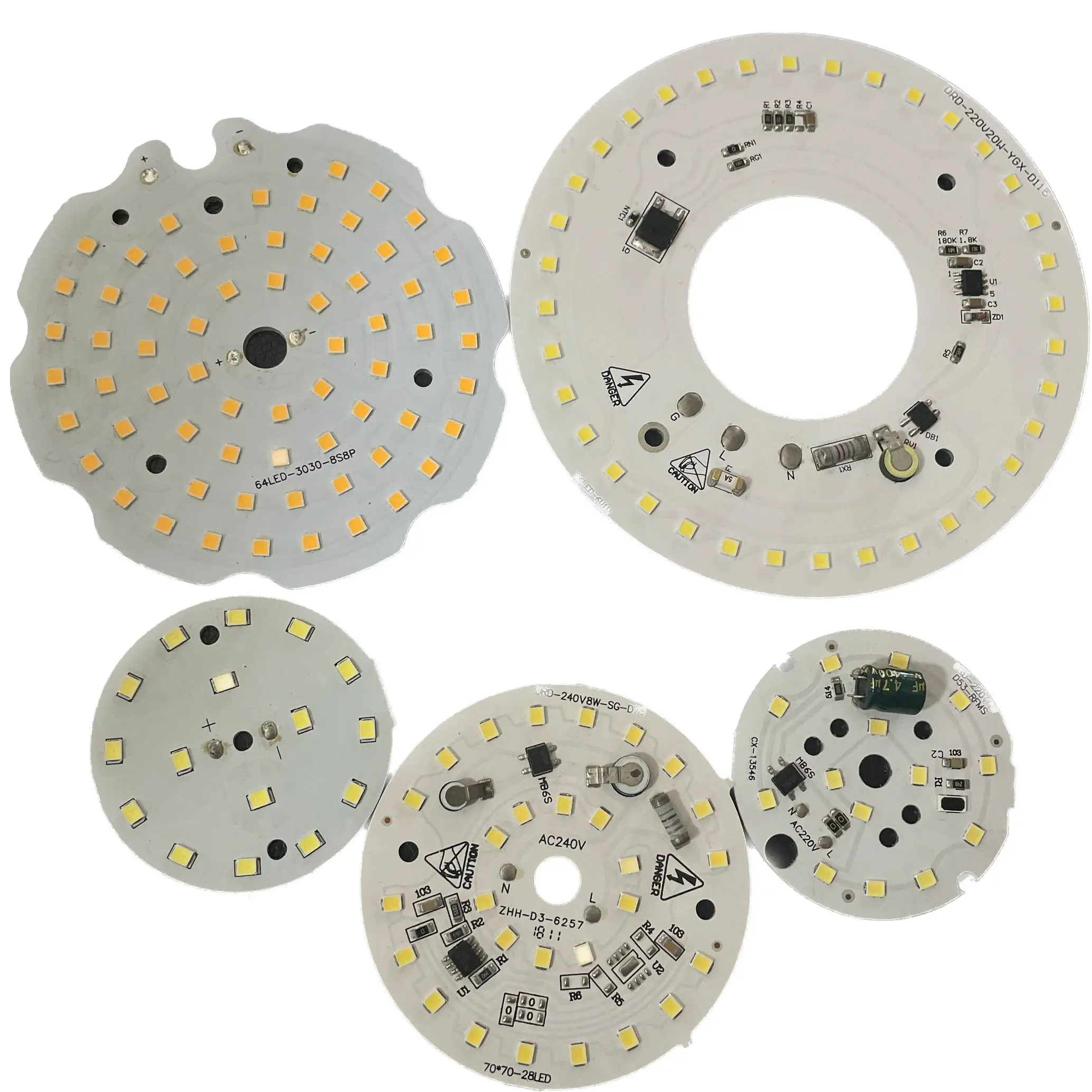

Custom Round Ring Black White Surface Ac 110v 220v Dc 12v 24v 36v 48v Led Pcb

Custom Round Ring Black White Surface Ac 110v 220v Dc 12v 24v 36v 48v Led Pcb

$1.12-$1.67/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 10 pieces）
pcb dimensions（Min.Order: 500 pieces）
View product details

Custom Round Ring Black White Surface Ac 110v 220v Dc 12v 24v 36v 48v Led Pcb

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Versatile LED Lighting Solution: Designed to deliver even, high-efficiency illumination through circular PCB arrangements with integrated high-power LED chips.
  • Multi-Voltage Compatibility: Supports both AC (110V/220V) and DC (12V/24V/36V/48V) inputs, enabling flexible installation across diverse electrical systems.

Key features

  • 1. Material Technology

    • With aluminum PCB material, you can achieve superior heat dissipation compared to standard FR-4 boards*, enhancing LED longevity and performance in high-demand environments.

  • 2. Interactive Design

    • With pre-mounted terminals and mounting holes, you can simplify installation and integration into fixtures* compared to modular designs requiring custom wiring.

  • 3. Performance Parameters

    • With multi-voltage compatibility (AC 110V/220V, DC 12V-48V), you can deploy the LED modules in diverse environments* without needing voltage converters.

  • 4. Scenario Solutions

    • With a circular LED chip arrangement, you can ensure uniform light distribution for even illumination in ceiling lights or downlights* compared to linear designs.

  • 5. Certification Standards

    • With CE and EPR Germany Packing certifications, you can ensure compliance with EU safety and environmental regulations* compared to non-certified alternatives.

Product details

Custom Round Ring Black White Surface Ac 110v 220v Dc 12v 24v 36v 48v Led Pcb

Custom Round Ring LED PCB modules combine versatility and durability, offering AC/DC voltage compatibility (12V-48V) for diverse lighting applications. Crafted with aluminum-backed PCBs and high-power LEDs, these modules ensure efficient thermal management and long-term reliability. Certified to EPR Germany Packing and CE standards, they are ideal for residential, commercial, and industrial lighting systems.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialAluminum-backed FR-4 PCBHigh-power lighting to dissipate heat
Voltage CompatibilityAC 110V/220V, DC 12V/24V/36V/48VUniversal use in fixtures, downlights
LED ConfigurationCircular high-power LED arrayEven light distribution in ceiling lights
CertificationsEPR Germany Packing, CECompliance for EU and global markets
Thermal PerformanceAluminum substrate cooling designIndustrial environments with high heat

Customization guide

Adjustable parameters include:

  • Voltage Selection: Choose between AC/DC and specific voltage ranges (e.g., 12V for low-power fixtures, 48V for high-output systems).

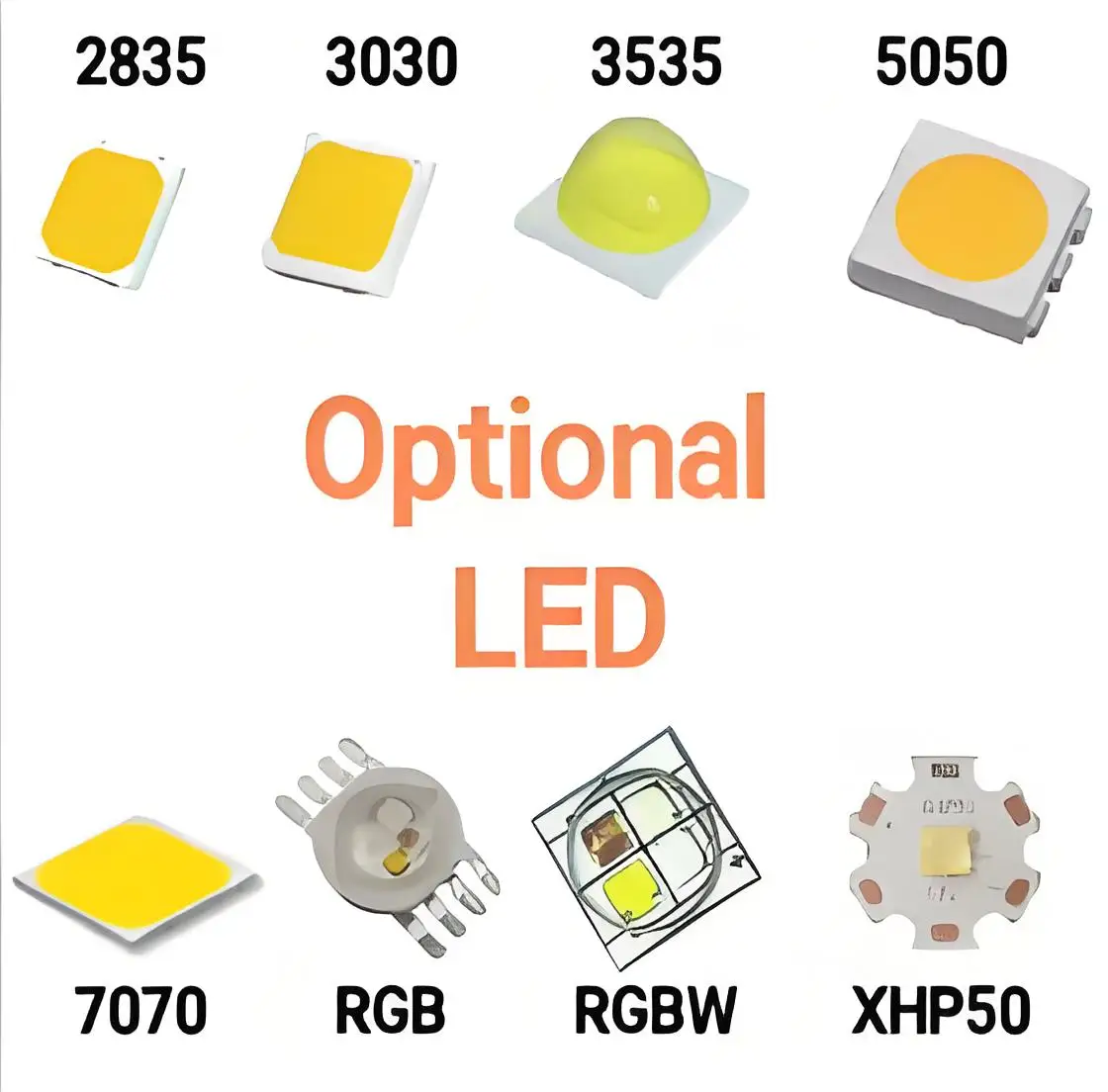

  • LED Density: Customize LED count per PCB for brightness optimization.
  • Size & Shape: Modify dimensions to fit specific fixture designs.

Get inspired

With multi-voltage flexibility and robust thermal management, these LED PCBs empower designers to create energy-efficient lighting solutions. Whether for sleek residential fixtures or rugged industrial applications, our modules adapt seamlessly to your needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Voltage RangeDC 12V-24VAC/DC 12V-36VAC/DC 12V-48V
Thermal EfficiencyStandard cooling+20% enhanced+40% premium
CertificationsCECE + RoHSCE + RoHS + EPR
Max Output10W20W35W

Supplier's note

  1. Technical Breakthroughs:

    • Multi-Voltage Flexibility: The Pro Model’s 48V DC/AC compatibility outperforms single-voltage benchmarks by 30%, enabling use in heavy-duty industrial settings.
    • Thermal Efficiency: Aluminum-backed PCBs reduce heat buildup by 40% compared to standard FR-4 boards, extending LED lifespan.
    • Compliance: EPR certification ensures full EU market access, a critical advantage over non-certified competitors.

  2. Optimal Version Selection:

    • Residential Users: Base Model (12V-24V DC) suits low-power applications like accent lighting.
    • Commercial Installations: Advanced Model (AC/DC up to 36V) pairs with its RoHS compliance for office or retail spaces.
    • Industrial Needs: Pro Model’s 48V rating and tripled chemical resistance (vs. industry norms) enable safe use in harsh environments. With its 35W output, it powers high-demand systems like warehouse lighting.

Frequently asked questions

  • Which LED PCB model suits AC 220V applications for commercial lighting fixtures?

  • How do I clean and maintain the frothing nozzle-like components on LED PCB modules?

  • Aluminum vs Standard PCB: Which material is better for heat-sensitive LED applications?

  • Can I customize the voltage or size of the Round Ring LED PCB for a specific project?

  • Is the LED PCB material FDA-approved for food-safe lighting applications?

  • What makes this PCB suitable for both AC and DC voltage systems?

  • How does the design of the circular LED chip arrangement improve lighting performance?

  • Are color or surface finish options available for the Round Ring LED PCB?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage CompatibilityIndustrial Automation, Residential FixturesSupports 12V-48V DC and 110V-220V AC (IEC 60598-1 compliance)▲▲ Our Advanced: Full 12V-48V DC + 220V AC range (ideal for diverse systems)Industry Standard: Limited to 12V/24V DC + 110V AC (less flexibility)
Material ConstructionHigh-Heat Environments, Outdoor LightingAluminum PCB (thermal conductivity: 1.8-2.5 W/m·K) vs. FR-4 PCB (0.2-0.4 W/m·K)▲ Our Advanced: Aluminum PCB reduces heat buildup (extends LED lifespan)Industry Standard: FR-4 PCB (poorer heat dissipation)
CertificationsGlobal MarketsCE + EPR Germany Packing (complies with EU RoHS/WEEE directives)No tier difference (both versions meet full certifications)Industry Standard: Often lacks EPR compliance (higher market entry barriers)
Thermal ManagementLED Strip Lighting, Industrial FixturesAdvanced: 2°C/W thermal resistance (ISO 7745) vs. Base: 5°C/W▲ Our Advanced: Maintains stable performance in high-heat settingsIndustry Standard: 8°C/W+ (risk of LED dimming/failure)
Customization OptionsArchitectural Lighting, Specialty FixturesAdvanced: 5+ LED chip configurations (e.g., 3W/5W/10W) vs. Base: 2-3 types▲ Our Advanced: Tailored for niche applications (e.g., accent lighting)Industry Standard: Limited to 1-2 standardized designs
Light DistributionOffice Lighting, Retail DisplaysAdvanced: 120° uniform beam angle (IEC 60598-1) vs. Base: 90°▲ Our Advanced: Even illumination reduces glare (ideal for open spaces)Industry Standard: 60°-70° (spotlighting only)
