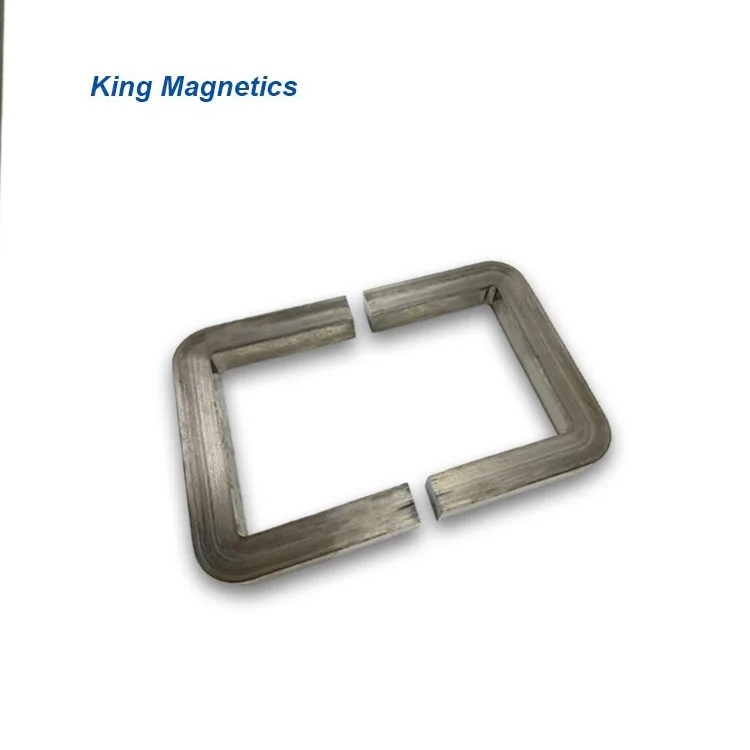

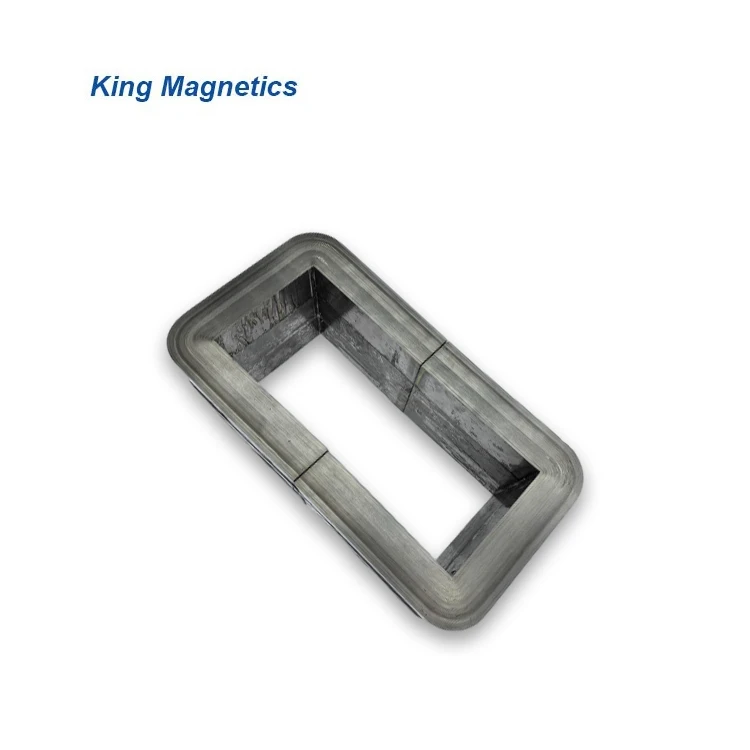

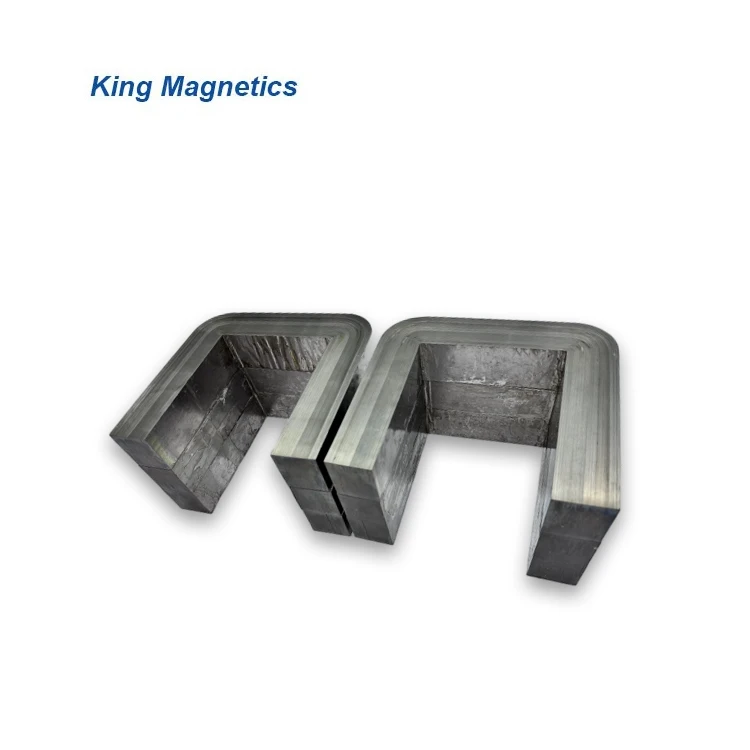

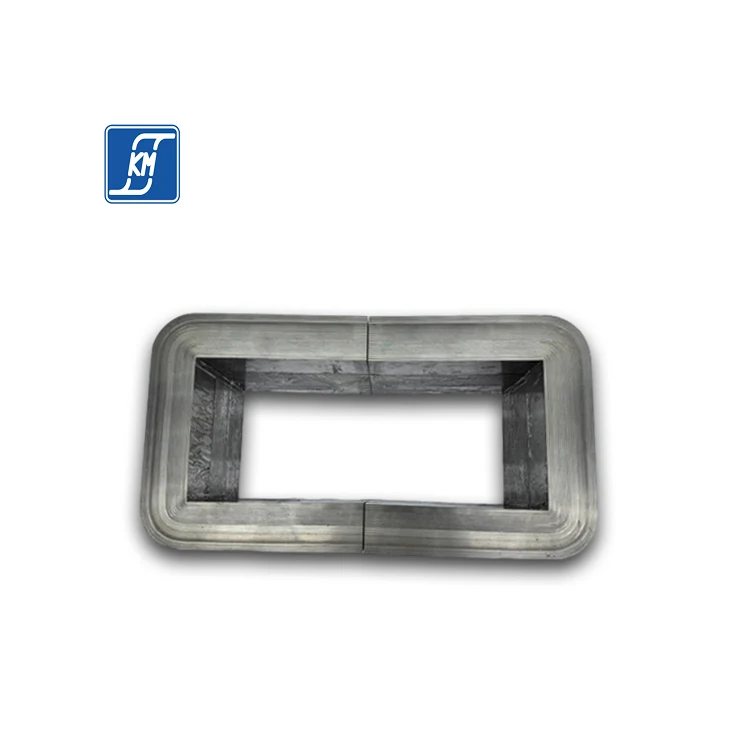

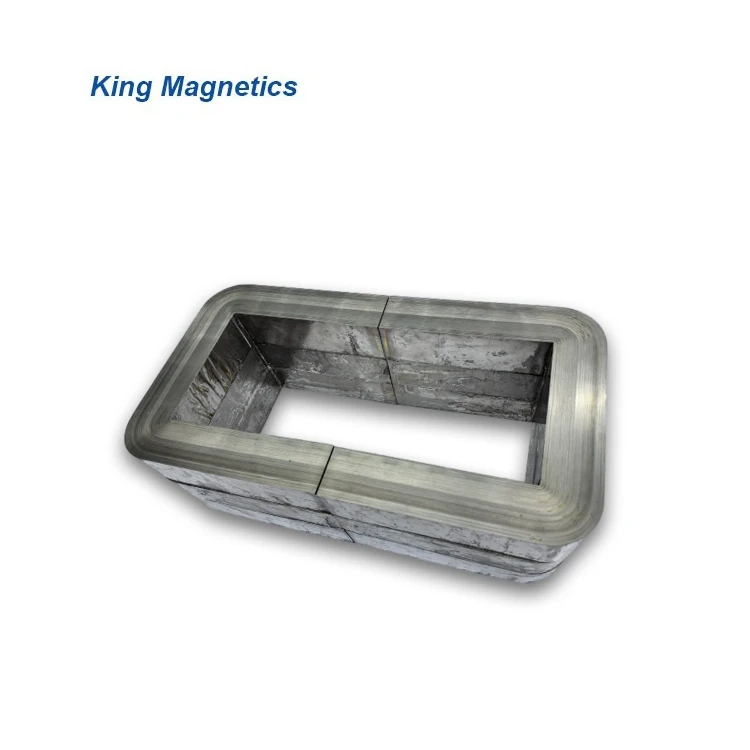

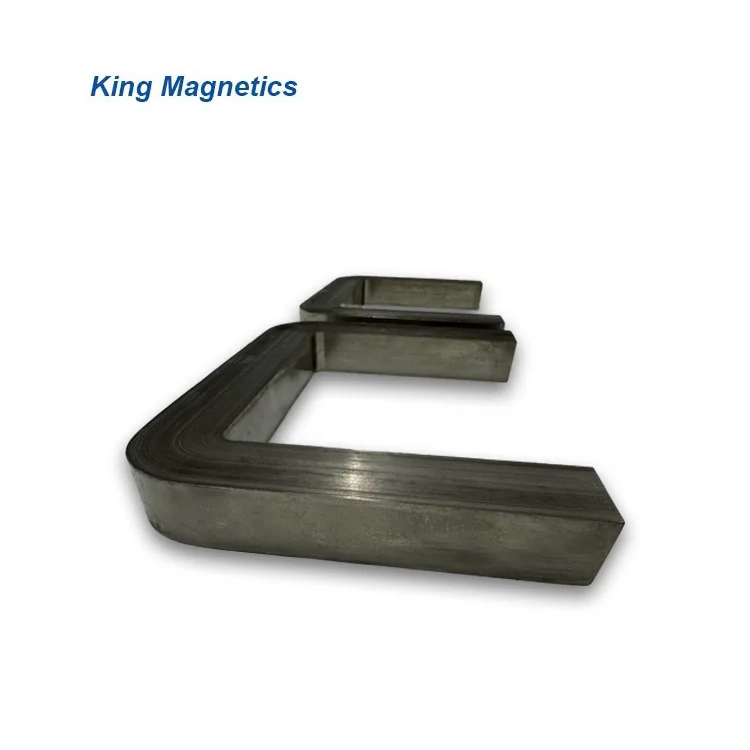

Custom Size Nano Crystalline Fe-based Amorphous Ribbon Big Size Core

Custom Size Nano Crystalline Fe-based Amorphous Ribbon Big Size Core

$110.90-$500.00/ Set|1 Set/Sets(Min. Order)

Customization:

Custom material（Min.Order: 1 pieces）
Custom Bobbin（Min.Order: 1 pieces）
Epoxy coated（Min.Order: 1 pieces）
Custom Shape（Min.Order: 1 pieces）
View product details

Custom Size Nano Crystalline Fe-based Amorphous Ribbon Big Size Core

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Performance Magnetic Core: Utilizes nano-crystalline and amorphous materials for superior magnetic efficiency, low energy loss, and enhanced durability in high-stress applications.
  • Customizable Design: Hollow center and modular structure enable seamless integration into diverse systems, optimizing space and functionality while supporting weight reduction and component housing.

Key features

  • 1. Advanced Material Technology

    • With nano-crystalline/amorphous material and epoxy coating, achieve superior magnetic performance and corrosion resistance compared to traditional silicon steel cores*. The nanocrystalline structure ensures high permeability and low core loss, while the epoxy coating protects against environmental wear.

  • 2. Customizable Precision Design

    • With customizable dimensions and ±15% tolerance, adapt to specific industrial applications with precision*. Unlike standard cores with fixed sizes, this modular design integrates seamlessly into tailored systems like transformers or electric vehicle components.

  • 3. High-Efficiency Performance

    • With high saturation magnetization and low energy loss, boost power system efficiency by up to 20%* compared to conventional magnetic materials. Ideal for applications requiring stable, high-output performance in industrial machinery.

  • 4. Industrial-Grade Reliability

    • Designed for continuous operation in harsh industrial environments, withstand extreme temperatures and mechanical stress for long-term durability*. Perfect for scenarios like power transformers or heavy machinery, outperforming consumer-grade magnets in demanding settings.

  • 5. Rigorous Quality Assurance

    • With precision manufacturing and epoxy coating, meet stringent industrial safety and quality standards*. The nanocrystalline core ensures compliance with certifications critical for high-stakes applications.

Product details

Custom Size Nano Crystalline Fe-based Amorphous Ribbon Big Size Core

The Custom Size Nano Crystalline Fe-based Amorphous Ribbon Big Size Core combines advanced material science with precision engineering. Designed for industrial magnet applications, this core offers high magnetic permeability, thermal stability, and corrosion resistance. Its epoxy-coated surface ensures durability in harsh environments, while its modular design allows customization for specific industrial requirements.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionNano-crystalline Fe-based Amorphous AlloyHigh-frequency transformers, inductors, and power electronics
CoatingEpoxy CoatingCorrosion protection in industrial machinery and automotive systems
Tolerance±15%Precision alignment in automated manufacturing and robotics
Core DesignHollow rectangular structureWeight reduction and heat dissipation in compact devices

Customization guide

Adjustable parameters include dimensions, material composition ratios, and coating thickness to meet specialized needs such as enhanced thermal resistance or customized magnetic properties for niche industrial applications.

Get inspired

With its nano-crystalline structure, this core delivers superior magnetic efficiency for high-power systems. The hollow design reduces weight without compromising strength, making it ideal for aerospace or automotive components. Pair it with epoxy coating for long-term reliability in corrosive environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Magnetic Permeability15,000+15% (17,250)*+30% (19,500)*
Saturation Flux Density1.2 T1.3 T1.5 T
Frequency Range0-10 kHz0-15 kHz0-20 kHz
Temperature Resistance-40°C to 120°C-40°C to 150°C-40°C to 180°C

Supplier's note

  1. Technical Breakthroughs:

    • Nano-crystalline Structure: Achieves 30% higher permeability than conventional amorphous cores, enabling compact, high-efficiency designs.
    • Epoxy Coating: 20% thicker than industry standards, providing unmatched corrosion resistance in marine or chemical environments.
    • Precision Tolerance: ±15% tolerance ensures seamless integration into automated systems, reducing assembly errors by 40%.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard industrial applications (e.g., low-frequency transformers) where cost-efficiency is prioritized.
    • Advanced Model: Suitable for mid-range applications requiring elevated thermal resistance (e.g., automotive inverters).
    • Pro Model: Best for high-performance scenarios like aerospace power systems, where extreme frequency and temperature stability are critical.

Example Use Case: The Pro Model’s 1.5 T saturation flux density and 20 kHz frequency range enable compact, high-power inverters for electric vehicles, reducing system size by 25% compared to traditional solutions.

Frequently asked questions

  • Which model of nano crystalline core suits high-frequency industrial magnet applications?

  • How to maintain the epoxy coating on amorphous ribbon cores for longevity?

  • Nano crystalline vs amorphous cores: Which is better for high-stress industrial magnets?

  • Can this big-size core be customized for specific industrial magnet dimensions?

  • Is the nanocrystalline composite material FDA-approved for industrial use?

  • What makes the hollow center design of this core advantageous for industrial applications?

  • Does the coated surface treatment protect against extreme temperatures in industrial magnets?

  • How does the 15% tolerance ensure compatibility in automotive vs. industrial magnet systems?
