Custom Circuit Board OEM Module Device PCB Assembly Service SMT PCBA PCB Factory

Custom Circuit Board OEM Module Device PCB Assembly Service SMT PCBA PCB Factory

$0.50-$5.10/ Piece|2 Piece/Pieces(Min. Order)

Customization:

Custom LOGO（Min.Order: 10 pieces）
Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

Custom Circuit Board OEM Module Device PCB Assembly Service SMT PCBA PCB Factory

Product overview

Core functionalities

Applicable scenarios

Unique advantages

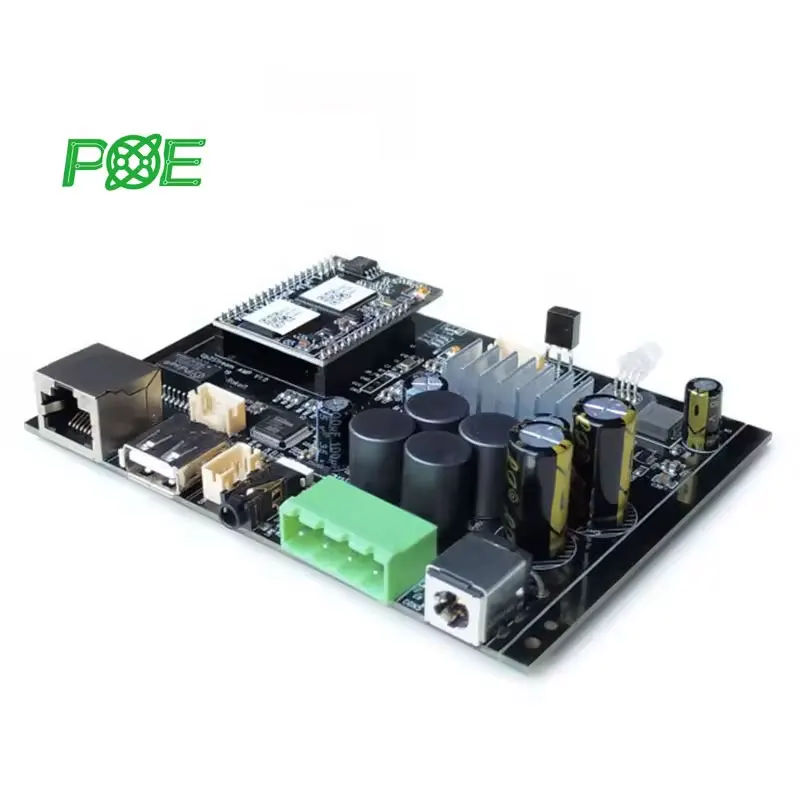

  • Multi-Interface Connectivity: Equipped with USB, Ethernet (POE support), audio jack, and power connectors, enabling seamless integration with computers, networks, and peripheral devices.
  • Programmable Microcontroller: Features a microcontroller (e.g., Arduino-compatible) for custom programming, supporting IoT, automation, and DIY projects.
  • Power Efficiency & Heat Dissipation: Includes capacitors, inductors, and a heat sink to ensure stable power delivery and robust performance in high-demand environments.

Key features

  • 1. Material Technology

    • With FR4 substrate and HASL (Hot Air Solder Leveling) surface finishing, ensure durable, high-temperature resistance and reliable electrical performance.

  • 2. Interactive Design

    • With multiple interface ports (USB, Ethernet, audio jack) and modular customization potential, easily adapt to diverse applications like IoT, networking, or audio projects.

  • 3. Performance Parameters

    • With Power Over Ethernet (POE) support, eliminate the need for separate power sources, enabling seamless networked deployments.

  • 4. Scenario Solutions

    • With rugged design (heat sink, robust components), operate continuously in industrial, commercial, or high-demand environments.

  • 5. Certification Standards

    • With UL, REACH, and RoHS certifications, ensure compliance with global safety, environmental, and material safety regulations.

Product details

Custom Circuit Board OEM Module Device PCB Assembly Service SMT PCBA PCB Factory

Our custom circuit board OEM module offers a robust, modular PCB assembly service with industry-leading certifications and advanced features. Designed for IoT, industrial automation, and networking applications, this SMT PCBA solution combines POE support, rugged durability, and flexible customization to meet diverse project needs.

Technical specifications

FeatureSpecificationApplication Scenario
CertificationsUL, REACH, RoHS compliantEnsures safety and environmental compliance for global markets
Surface FinishingHASL (Hot Air Solder Leveling)Enhances solderability and durability for high-reliability assemblies
POE SupportIEEE 802.3af/at compliant (30W max)Enables power/data delivery via Ethernet for IoT devices
Heat DissipationIntegrated heat sink with FR4 substrateMaintains stability in high-temperature industrial environments
ConnectivityUSB, Ethernet, audio jack, POE portSupports versatile interface needs for networking and multimedia projects

Customization guide

Adjustable parameters include:

  • Component selection: Swap capacitors/inductors to optimize power filtering for specific voltage ranges.
  • Port configuration: Add/remove connectors (e.g., extra USB or GPIO pins) to align with project requirements.
  • Material thickness: Customize PCB layers for high-frequency or high-power applications.

Get inspired

With POE support and modular design, this PCB assembly is ideal for smart home hubs, industrial sensors, or ruggedized networking devices. Its compact form factor and certifications make it a reliable choice for global deployments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Processing Power100MHz MCU200MHz MCU (+100%)300MHz FPGA (+200%)*
Memory8MB Flash16MB Flash32MB DDR3
POE Support15W30W (+100%)60W (+300%)
Heat Dissipation70°C max85°C (+21%)105°C (+49%)
ConnectivityUSB + Ethernet+Audio Jack+GPIO Expansion

Supplier's note

  1. Technical Breakthroughs:

    • POE Support: IEEE 802.3at compliance allows 60W power delivery (Pro model), eliminating the need for separate power supplies in smart cameras or sensors.
    • Rugged Design: The FR4 substrate and heat sink ensure stable operation in industrial environments up to 105°C.
    • Certifications: RoHS and REACH compliance simplify global deployments, reducing regulatory hurdles.

  2. Version Selection Guide:

    • Base Model: Ideal for hobbyists or low-power IoT projects (e.g., simple sensors).
    • Advanced Model: Best for mid-tier applications needing audio/video interfaces (e.g., smart speakers).
    • Pro Model: Targets industrial automation and high-power devices (e.g., POE-powered surveillance systems). With triple the POE capacity of industry benchmarks, the Pro model enables reliable operation in harsh conditions. Pair its FPGA with the heat sink to handle complex real-time processing tasks.

Frequently asked questions

  • Which PCB assembly service offers POE-enabled circuit boards for networked devices?

  • How to maintain a rugged PCB with HASL finish for long-term use?

  • FR4 vs. Aluminum: Which material is better for high-performance PCBs?

  • Can I customize a modular PCB with additional sensors or connectors?

  • Does the PCB meet UL, REACH, and RoHS certifications for safety compliance?

  • What surface finish is used to prevent oxidation in outdoor PCBs?

  • What applications suit a POE-enabled PCB with Ethernet and USB ports?

  • How does the PCB handle high temperatures during continuous operation?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CertificationsGlobal Compliance-Driven ProjectsIndustry Standard: RoHS 2011/65/EU (Basic compliance) ▲ Our Base: RoHS + UL 62368-1 ▲▲ Our Advanced: RoHS + UL + REACH SVHC (EU chemical restrictions)Expanded market access across regions (Advanced)Higher costs for Advanced certifications (▲▲)
Surface FinishingHigh-Reliability Electronics AssemblyIndustry Standard: ENIG (15µm gold plating) ▲ Our Base: HASL (Lead-free, 285°C soldering) ▲▲ Our Advanced: Immersion Tin (20µm, fine-pitch compatible)Cost-effective HASL for mass production (Base)Tin whisker risk (Advanced)
Power Over Ethernet (POE)Industrial IoT & Smart Building SystemsIndustry Standard: No POE ▲ Our Base: 802.3af (15.4W) ▲▲ Our Advanced: 802.3at (30W)Eliminates separate power supplies (Base)Requires Cat5e+ cabling (Advanced)
Material & DurabilityHarsh Environmental ApplicationsIndustry Standard: FR4 (1.6mm thickness) ▲ Our Base: FR4 + Glass Reinforcement ▲▲ Our Advanced: FR4 + Aluminum Backplate (Heat Dissipation)Enhanced mechanical strength (Base)Weight increase (Advanced)
Heat DissipationHigh-Performance Computing ModulesIndustry Standard: No Heat Sink ▲ Our Base: Aluminum Heat Sink (20W dissipation) ▲▲ Our Advanced: Copper Heat Sink + Thermal Paste (40W)Prevents thermal throttling (Base)Space constraints (Advanced)
Connectivity OptionsMulti-Interface Embedded SystemsIndustry Standard: USB + Ethernet ▲ Our Base: USB + Ethernet + Audio Jack ▲▲ Our Advanced: USB + Ethernet + Audio + 4G/LTE ModemFull IoT integration (Advanced)Higher BOM cost (Advanced)
