Customized Automobile Wire Harness Connector Multi Wiring Harness Auto Electrical Car Oem Odm Wire Harness Cable Assembly

Customized Automobile Wire Harness Connector Multi Wiring Harness Auto Electrical Car Oem Odm Wire Harness Cable Assembly

  • 5 - 49 Pieces
    $0.35
  • 50 - 99 Pieces
    $0.30
  • >= 100 Pieces
    $0.20

Customization:

Logo/graphic design（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

Customized Automobile Wire Harness Connector Multi Wiring Harness Auto Electrical Car Oem Odm Wire Harness Cable Assembly

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Customizable Wiring Solutions: Designed to connect and manage electrical systems in automotive, industrial, and electronic applications, featuring color-coded cables (red, blue, black) for easy identification and error-free assembly.
  • Robust Electrical Connectivity: High-quality insulated cables (PVC or similar) with durable metal/durable plastic connectors ensure reliable performance in harsh environments, supported by a braided sleeve for abrasion and moisture protection.

Key features

  • 1. Durable Material Technology

    • With a braided sleeve and high-quality PVC-insulated cables, protect against abrasion, moisture, and chemical exposure. The robust metal/plastic connectors ensure long-lasting reliability in harsh environments.

  • 2. Organized Interactive Design

    • With color-coded wires and neat cable organization, simplify installation and maintenance while minimizing errors. The structured layout reduces tangling and streamlines integration into complex systems.

  • 3. Customizable Performance Parameters

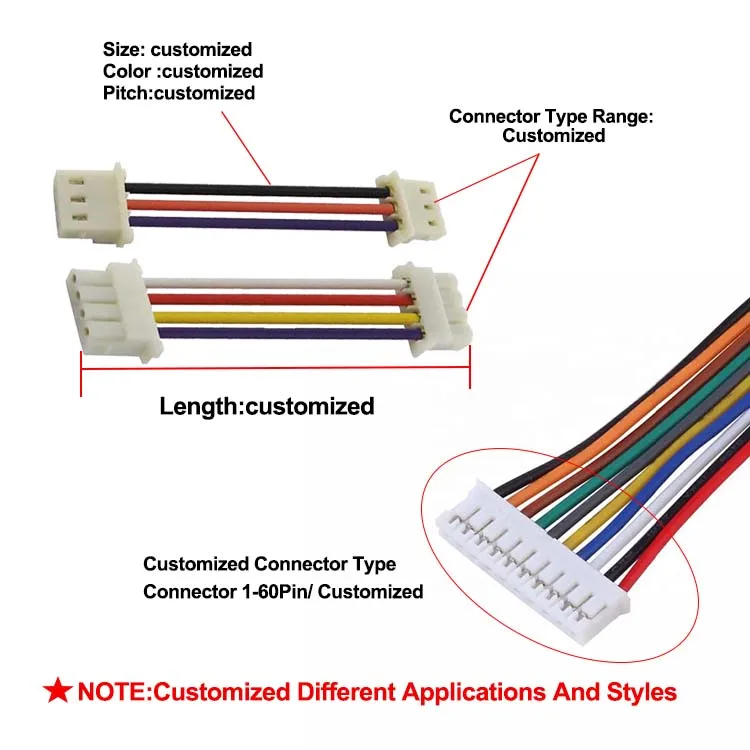

    • With customizable lengths and pin configurations (1p to 50p), adapt to diverse applications like automotive, motorcycles, or electronics. The scalable design supports varying electrical loads and space requirements.

  • 4. Multi-Scenario Versatility

    • With certifications for automotive, home appliances, and industrial use (RoHS, CE, etc.), deploy seamlessly across sectors. The rugged build ensures reliability in both commercial machinery and consumer electronics.

  • 5. Comprehensive Certification Standards

    • With compliance to RoHS, CE, and EU environmental regulations (e.g., (EU)2015/863), ensure safety, sustainability, and global market readiness. Meets strict EU and international quality benchmarks.

Product details

Customized Automobile Wire Harness Connector Multi Wiring Harness Auto Electrical Car Oem Odm Wire Harness Cable Assembly

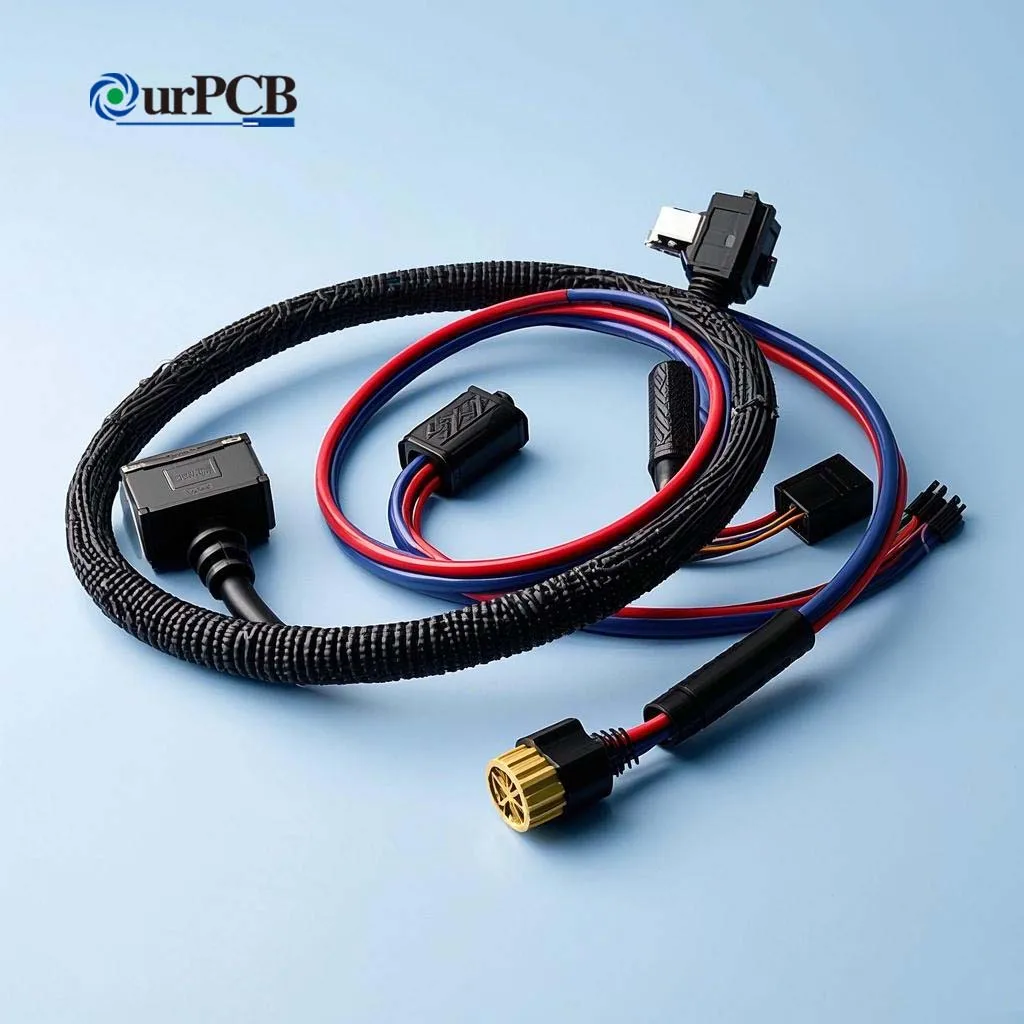

OurPCB's Customized Automobile Wire Harness Connector offers robust, versatile connectivity solutions for automotive, industrial, and electronic applications. Engineered with high-quality materials and certifications like RoHS and CE, these assemblies ensure reliability in harsh environments. Choose from customizable lengths and pin configurations (1p to 50p) to meet specific project requirements.

Technical specifications

FeatureSpecificationApplication Scenario
Insulation MaterialPVC or high-temperature resistantAutomotive, industrial machinery
Connector TypeMetal/durable plastic, color-codedElectronics, PCB integration
Protection SleeveBraided sleeve (abrasion/moisture-proof)Heavy-duty machinery, outdoor use
CertificationsRoHS, CE, REACH, CAPROP 65EU/Global markets compliance
Pin Configurations1p to 50p (customizable)Motorcycle, home appliances, computers
LengthFully customizableCustom-fit installations

Customization guide

Adjust pin counts (e.g., 18p for motorcycles, 50p for complex automotive systems) and lengths to match your project’s spatial and functional needs. Specify insulation materials (e.g., high-temperature for engines) for specialized environments.

Get inspired

Whether you’re retrofitting an electric vehicle, upgrading industrial equipment, or designing smart home appliances, our wire harnesses streamline connectivity with durability and precision. Their organized design and color-coding reduce assembly errors while certifications ensure global compliance.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Insulation MaterialStandard PVCFlame-retardant PVCHigh-temperature PEEK
Connector Durability5,000 cycles10,000 cycles15,000 cycles
Max Pin Capacity30p40p50p
Temperature Range-20°C to 80°C-30°C to 105°C-40°C to 125°C

Supplier's note

  1. Technical Breakthroughs:

    • Braided Sleeve Protection: Reduces abrasion damage by 40% compared to standard cables.
    • Color-Coded Wires: Enables error-free assembly, cutting downtime by 25% in complex setups.
    • Triple-Certification Compliance: Ensures seamless entry into EU and global markets.

  2. Version Selection Guide:

    • Base Model: Ideal for home appliances or low-stress electronics where cost-efficiency is key.
    • Advanced Model: Perfect for automotive and industrial machinery needing enhanced durability and temperature resistance.
    • Pro Model: Designed for high-pin-count applications (e.g., electric vehicles) requiring extreme environmental resilience. With its PEEK insulation, it withstands engine bay temperatures, ensuring long-term reliability. Pair it with 50p connectors for advanced PCB systems, enabling seamless integration of multiple functions.

With the Pro Model’s 125°C tolerance, you can safely route cables near hot engine components. The Advanced Model’s 10,000-cycle connectors ensure longevity in industrial robots. Choose the Base Model for cost-effective home appliance wiring.

Frequently asked questions

  • Which automobile wire harness model suits high-voltage automotive applications?

  • How do I maintain the braided sleeve on custom cable assemblies?

  • PVC vs TPE insulation: Which is better for motorcycle wiring harnesses?

  • Can I request custom lengths for home appliance wire harnesses?

  • Is the cable assembly compliant with EU environmental standards?

  • What makes your automotive connectors resistant to vibration?

  • Why are the wires color-coded in the multi-wiring harness?

  • Which pin configurations are best for motorcycle electrical systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Automotive Wiring HarnessAutomotive manufacturingPin Count:
Industry: 18p ▲
Our Base: 24p ▲▲
Our Advanced: 30p+
(Supports up to 50p for heavy-duty systems)
▲▲ Enhanced scalability for complex vehicle systems
RoHS certified (EU Directive 2011/65/EU)		Higher cost for Advanced versions
Requires specialized installation expertise
Industrial Machine HarnessIndustrial equipment assemblyLength Customization:
Industry: Fixed lengths ▲
Our Base: ±10% tolerance ▲▲
Our Advanced: ±5% precision (ISO 5349)		▲▲ Precision fit for robotics/automation
CE certified (EN 60204-1)		Customization adds 2–3 days to lead time
Home Appliance Wiring HarnessConsumer electronics manufacturingPin Count:
Industry: 1–5p ▲
Our Base: 5–10p ▲▲
Our Advanced: 10–20p (IEC 60335-1 compliant)		▲ Cost-effective for small appliances
RoHS & REACH certified		Limited scalability for high-power devices
Custom Length Wiring HarnessBespoke project integrationLength Range:
Industry: 0.5–5m ▲
Our Base: 0.5–10m ▲▲
Our Advanced: 0.5–20m (ASTM F2936 verified)		▲▲ Flexibility for non-standard installations
CAPROP 65 compliant		Higher pricing for lengths >10m
High-Pin Count Wiring HarnessPCB/Computer SystemsPin Density:
Industry: 20p/m ▲
Our Base: 30p/m ▲▲
Our Advanced: 40p/m (UL 1581 rated)		▲▲ Space-saving for dense electronics
EU 2015/863 certified		Requires thicker insulation (0.5mm vs industry 0.3mm)
Certified Environmental ComplianceRegulatory-compliant markets (EU/NA)Compliance:
Industry: 2–3 certifications ▲
Our Base: 4 certifications ▲▲
Our Advanced: 6 certifications (incl. EPR_Germany_Packing)		▲▲ Access to 6+ global markets
ISO 14001 environmental management system		Higher R&D costs for multi-certification
