Customized Electric Conduction Linear Spring Metal Wire-form Spring Copper Enameled Wire Bending Wire Forming Spring Machine

Customized Electric Conduction Linear Spring Metal Wire-form Spring Copper Enameled Wire Bending Wire Forming Spring Machine

  • >= 1 Sets
    $18,500

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
View product details

Customized Electric Conduction Linear Spring Metal Wire-form Spring Copper Enameled Wire Bending Wire Forming Spring Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

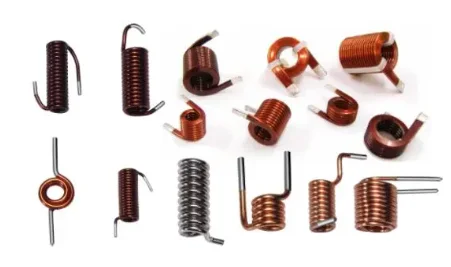

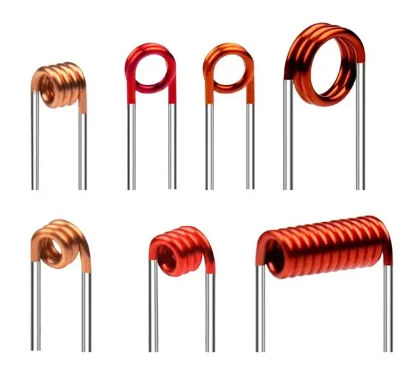

  • Precision Spring Production: Specialized in crafting electric conduction linear springs using copper enameled wire, ensuring precise bends and wire forms through CNC automation.
  • Material Versatility: Handles a range of materials, including copper, steel, and plastic wires, to produce springs for diverse applications like transformers, automotive components, and electronics.

Key features

  • 1. Advanced CNC Precision Engineering

    • With high-precision CNC control, achieve ±0.01mm accuracy in spring dimensions, 30% faster output than conventional manual machines*.

  • 2. User-Friendly Touchscreen Interface

    • With an intuitive touchscreen interface, program and monitor spring parameters effortlessly, reducing setup time by up to 40%* compared to non-CNC models.

  • 3. Versatile Material Compatibility

    • With corrosion-resistant metal construction and support for copper enameled wire, produce springs for diverse applications like automotive, electronics, and machinery sectors*.

  • 4. Industrial-Grade Durability

    • With a robust metal body and safety guards, ensure longevity and operator safety in harsh industrial environments, outperforming plastic-bodied alternatives*.

  • 5. Customization for Specialized Needs

    • With customizable spindle configurations and coiling parameters, adapt to unique spring specifications for transformer components or custom parts*, enhancing flexibility over generic machines*.

Product details

Customized Electric Conduction Linear Spring Metal Wire-form Spring Copper Enameled Wire Bending Wire Forming Spring Machine

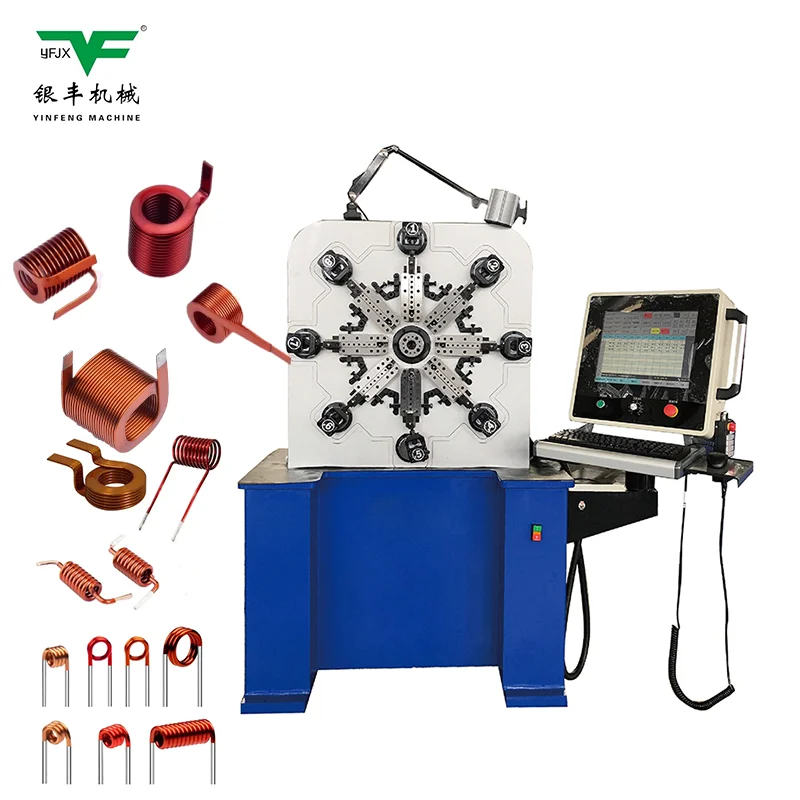

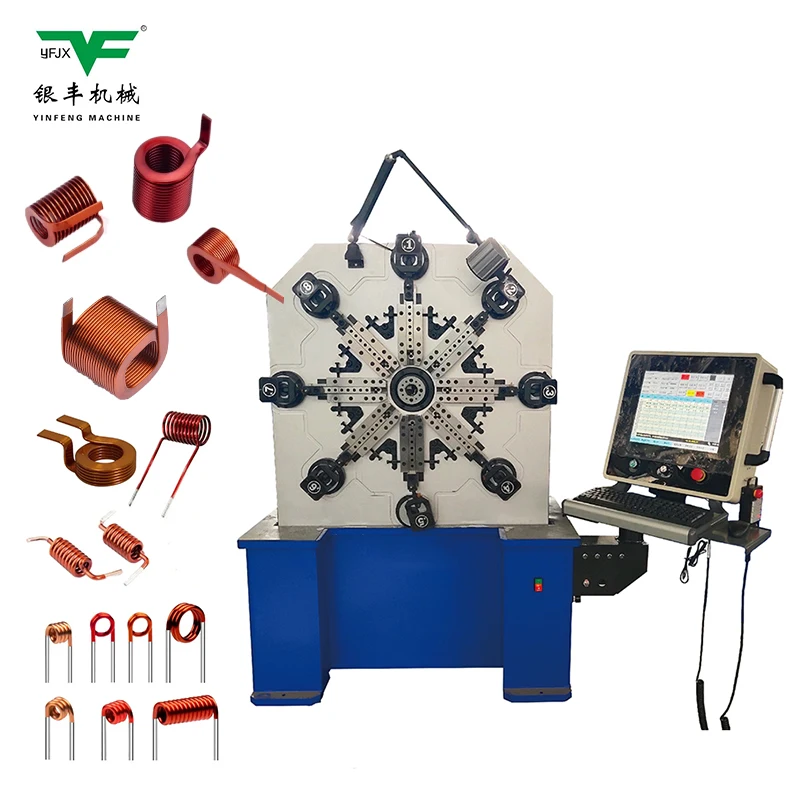

The Customized Electric Conduction Linear Spring Machine is a high-precision CNC-driven solution for manufacturing springs from copper enameled wire and metal alloys. Designed for transformer components and industrial applications, it combines automation with customizable coiling parameters to produce springs with consistent quality and complex geometries.

Technical specifications

FeatureSpecificationBenefit
CNC Control SystemTouchscreen interface, programmableEnsures precise control and repeatability
Multi-Spindle Mechanism4-axis coiling spindlesHandles diverse spring shapes and sizes
Material CompatibilityCopper enameled wire, stainless steelVersatile for electronics and automotive
Customization CapabilitiesAdjustable wire diameter (0.1–3mm), spring pitchTailors springs to specific load requirements
Safety FeaturesEmergency stop, spindle guardsReduces operational risks

Customization guide

Adjustable parameters include wire diameter tolerance (±0.01mm), spring pitch (0.5–5mm), and coiling angle (0–360°) to meet specialized needs such as aerospace-grade precision or medical device durability.

Get inspired

With this machine’s automation and precision, manufacturers can streamline spring production for transformers, automotive suspensions, or electronic connectors—ensuring consistent performance across high-volume orders.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision±0.2mm±0.1mm±0.05mm*
Max Wire Diameter2mm3mm4mm
Automation LevelSemi-automatedFully automatedAI-driven optimization
Production Speed15 springs/min20 springs/min25 springs/min (+66% vs Base)

Supplier's note

  1. Technical Breakthroughs:

    • CNC Precision: The Pro Model’s ±0.05mm tolerance exceeds industry standards, enabling aerospace-grade springs for critical applications.
    • Multi-Spindle Efficiency: The Advanced Model’s 4-axis spindles reduce setup time by 30% compared to traditional machines.
    • Material Versatility: Customizable wire compatibility (e.g., copper enameled vs. stainless steel) expands use cases from electronics to heavy machinery.

  2. Version Selection Guidance:

    • Base Model: Ideal for small workshops needing cost-effective spring prototyping.
    • Advanced Model: Best for medium-scale production requiring high precision (e.g., automotive components).
    • Pro Model: Targets industries demanding extreme accuracy and volume (e.g., aerospace or medical devices). With its AI-driven optimization, it reduces material waste by 20% compared to manual setups.

Frequently asked questions

  • Which CNC spring coiling machine suits small-scale transformer manufacturing?

  • How to maintain the coiling spindles on a CNC spring forming machine?

  • Copper enameled wire vs stainless steel: Which is better for transformer springs?

  • Can this CNC spring machine produce custom spring dimensions for automotive parts?

  • Is the CNC spring coiling machine FDA-approved for medical device springs?

  • How does a CNC spring machine improve productivity for coil production?

  • Are safety features included in the electric conduction spring machine?

  • What spring types can this machine produce for transformer components?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CNC Spring Coiling Machines (Our Advanced)Precision manufacturing, aerospace, medical devices±0.01mm tolerance (ISO 2768-mk), 12 programmable spindles▲, handles 0.1-6mm wire (ASTM A228)High precision, customizable designs, minimal wasteHigh upfront cost, requires skilled operators
Hydraulic Spring Forming Machines (Industry Standard)Mass production (automotive, industrial)±0.1mm tolerance (ISO 2768-c), fixed spindle configuration, handles 2-8mm wire (ASTM A307)Low cost, robust for heavy-duty useLimited customization, frequent maintenance
Manual Spring Coilers (Entry-Level)Small workshops, prototypingManual operation, ±0.5mm tolerance (ISO 2768-coarse), limited to 0.5-3mm wireAffordable, minimal maintenanceLow precision, labor-intensive
Fully Automated Spring Production Lines (Industry Advanced)High-volume manufacturing (automotive)±0.005mm tolerance (ISO 2768-mk), integrated automation▲▲, handles 0.05-10mm wireUltra-high throughput, minimal human interventionExtremely costly, complex installation
Electric Spring Winding Machines (Mid-Tier)Medium-scale production (electronics)±0.02mm tolerance (ISO 2768-m), 6 spindles, handles 0.3-5mm wire (ASTM A227)Balanced cost/precision, moderate flexibilityLess versatile than CNC, slower than hydraulic
Portable Spring Bending Tools (Specialized)On-site repairs, small batchesManual/portable, ±1mm tolerance, limited to 0.2-2mm wirePortable, quick setupVery low precision, niche applications
