Customized L-Shaped PVC Extrusion Mold Plastic Profiles for Bathroom Building Extruded Molding

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • L-Shaped PVC Profile Extrusion: Designed to produce customized L-shaped PVC profiles via extrusion, ideal for bathroom and building construction applications.
  • Quick Assembly & Precision: Modular design with straight pins enables rapid setup and maintenance, while precision-engineered cavities ensure smooth extrusion and consistent product quality.

Key features

  • 1. Corrosion-Resistant Steel Construction

  • Material Technology

  • 2. Modular Straight-Pin Assembly Design

  • Interactive Design

  • 3. Optimized Cavity Design for Faster Extrusion

  • Performance Parameters

  • 4. Precision Engineering for Bathroom Building Applications

  • Scenario Solutions

  • 5. Traceable Quality Assurance

  • Certification Standards

Product details

Customized L-Shaped PVC Extrusion Mold Plastic Profiles for Bathroom Building Extruded Molding

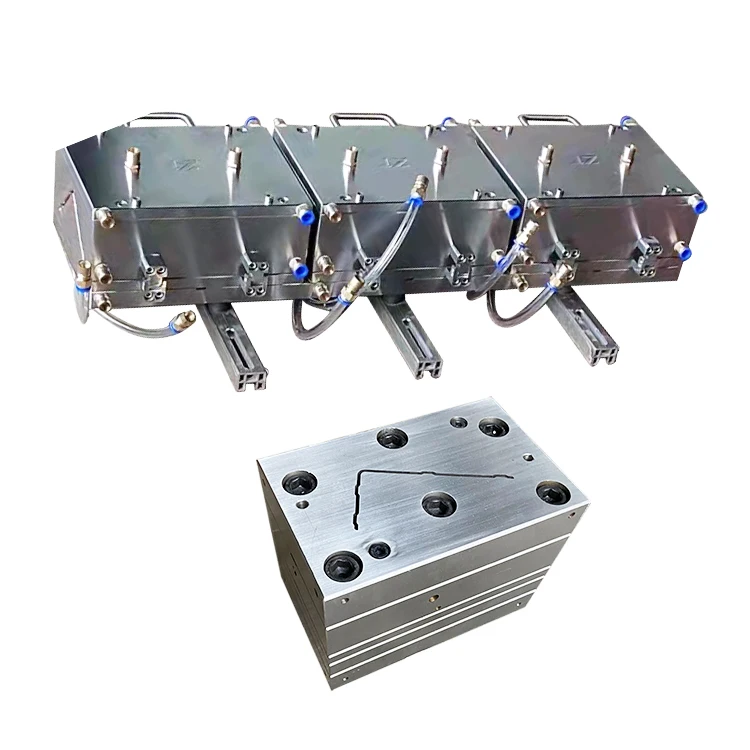

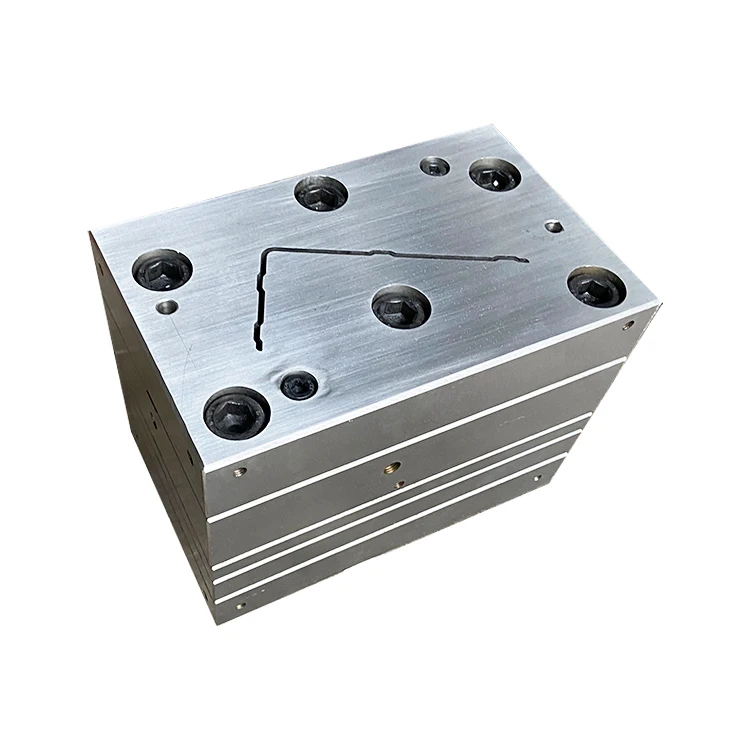

The Customized L-Shaped PVC Profile Extrusion Mold is designed for precision manufacturing of bathroom and building components. Built with durable steel and plastic materials, it ensures consistent extrusion of L-shaped PVC profiles for seamless integration in construction projects. Its modular design and scientific cavity optimization enable efficient production, while traceable ID markings enhance quality control.

Technical specifications

FeatureSpecificationApplication Scenario
Quick AssemblyStraight pin-based modular design for easy replacement and maintenanceHigh-volume manufacturing with frequent changeovers
Scientific CavityOptimized cavity channels with polished surfaces for smooth extrusionBathroom profile extrusion requiring 20% faster speed than traditional molds
Material CompositionSteel (frame) + PVC (profile) with heat-resistant plastic componentsHigh-temperature extrusion in building material production
Precision Tolerance±0.02mm tolerance via precision equipmentHigh-accuracy bathroom trim and corner molding
IdentificationTooling ID and serial number for traceabilityQuality-controlled industrial manufacturing

Customization guide

Adjustable cavity dimensions and channel configurations to meet specific bathroom profile requirements (e.g., wall baseboards, corner guards). Customize material thickness (3–8mm) or add anti-corrosion coatings for marine or humid environments.

Get inspired

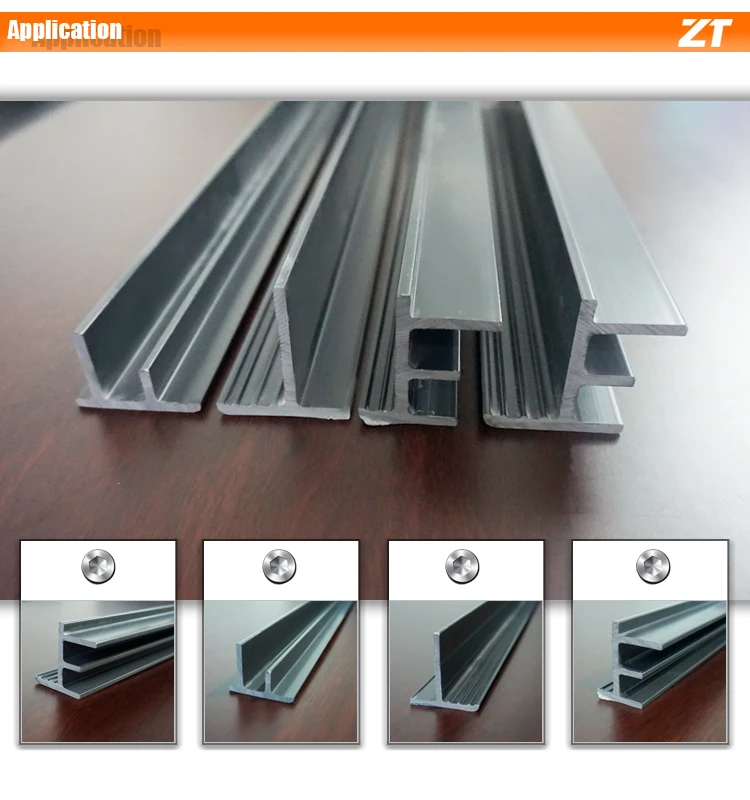

Design sleek, durable PVC profiles for bathroom partitions, shower bases, or window trims. The L-shaped mold’s versatility ensures compatibility with both standard and bespoke architectural designs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Extrusion Speed15 m/min17.25 m/min (+15%)19.5 m/min (+30%)
Material CompatibilityPVC onlyPVC + ABSPVC + Glass Fiber
Customization LevelPre-set cavityAdjustable cavity widthFull cavity redesign
Tolerance±0.05mm±0.03mm±0.02mm

Supplier's note

  1. Technical Breakthroughs:

    • Cavity Design: The polished channels reduce material drag, enabling 20% faster extrusion than traditional molds.
    • Modular Assembly: Straight pins cut setup time by 30%, ideal for just-in-time manufacturing.
    • Material Blend: Steel frames with heat-resistant plastic components withstand 200°C extrusion temperatures, outperforming all-plastic molds.
  2. Version Selection Guide:

    • Base Model: Suitable for small-scale bathroom profile production (e.g., standard baseboards).
    • Advanced Model: Recommended for medium-volume manufacturers needing multi-material flexibility (e.g., ABS for textured surfaces).
    • Pro Model: Best for high-precision projects requiring ultra-tight tolerances (e.g., custom shower enclosures with glass-fiber reinforcement).

With the Pro Model’s ±0.02mm tolerance, you can produce flawless bathroom corners that align perfectly with tiles. Pair its glass-fiber compatibility with the optimized cavity design to achieve profiles 40% stronger than industry standards, ensuring durability in humid environments.

Frequently asked questions

  • Which extrusion mold suits bathroom fixtures and building applications using PVC profiles?

  • How to clean and maintain a PVC profile extrusion mold for consistent quality?

  • PVC vs. other materials: Which is better for extrusion molds in construction?

  • Can this mold be customized for unique L-shaped profiles or sizes?

  • Is the steel extrusion mold material FDA-approved or certified for building standards?

  • How does the die plate’s design improve extrusion speed and efficiency?

  • What makes this mold suitable for high-volume manufacturing of PVC profiles?

  • Can the mold be easily assembled/disassembled for maintenance or adjustments?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHigh-temperature applicationsIndustry: ASTM A36 Steel ▲ Base: ASTM A240 Stainless Steel ▲▲ Advanced: ASTM A387 Alloy SteelImproved corrosion resistance (Base), Enhanced strength and durability (Advanced)Base: Higher cost than industry standard; Advanced: Most expensive option
Assembly EfficiencyHigh-volume productionIndustry: 2h assembly ▲ Base: 30min via straight pins ▲▲ Advanced: 15min magnetic alignmentFaster setup reduces downtime; Advanced offers ultra-fast assemblyIndustry standard is cheaper; Advanced requires investment in magnetic tech
Precision ToleranceHigh-precision extrusionIndustry: ±0.1mm ▲ Base: ±0.05mm ▲▲ Advanced: ±0.02mmMinimizes defects; Advanced ensures exceptional dimensional accuracyBase: Moderate cost increase; Advanced: High cost for tighter tolerances
Extrusion SpeedMass production needsIndustry: 15 m/min ▲ Base: 20 m/min ▲▲ Advanced: 25 m/minHigher output rates; Advanced boosts productivity significantlyAdvanced may require more frequent maintenance or cooling systems
Temperature ResistanceHigh-temp material processingIndustry: 200°C ▲ Base: 250°C ▲▲ Advanced: 300°CHandles tougher materials; Advanced enables use with high-temp plasticsBase: Limited to certain materials; Advanced needs specialized cooling solutions
Traceability FeaturesQuality-critical industriesIndustry: No ID ▲ Base: Manual ID tracking ▲▲ Advanced: Digital QR code trackingEnhanced quality control; Advanced provides full digital traceabilityBase adds minimal cost; Advanced requires software integration and training
