Customized LGF Backlight Membrane Switches graphic overlay
Ready to Ship
In stock Fast dispatch

Customized LGF Backlight Membrane Switches graphic overlay

  • 100 - 499 Pieces
    $6.16
  • 500 - 999 Pieces
    $3.65
  • >= 1000 Pieces
    $3.20

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

Customized LGF Backlight Membrane Switches graphic overlay

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Backlit Interface: Equipped with LGF backlight technology for enhanced visibility in low-light environments, ideal for telecommunication equipment and industrial applications.
  • Durable Membrane Construction: Flexible, conductive plastic film ensures reliability under frequent use, with buttons designed to withstand rugged conditions.
  • Customizable Graphic Overlay: Silkscreen printing enables tailored button layouts, labels, and branding to meet specific user requirements.

Key features

  • 1. Material Technology

    • With a ruggedized flexible plastic film base and conductive coating, you can ensure reliable operation in harsh industrial environments. Outperforms standard membrane switches in durability by 25%

  • 2. Interactive Design

    • With a responsive touchscreen interface and customizable button layout, you can streamline user interactions for intuitive control. Offer 30% faster navigation than traditional key-only designs

  • 3. Performance Parameters

    • With precision silkscreen printing technology, you can achieve sharp, long-lasting graphics that maintain clarity under frequent use. Graphics remain vivid 50% longer than those from inkjet printing methods

  • 4. Scenario Solutions

    • Designed for telecommunication and industrial applications, you can deploy this switch in demanding systems like Husqvarna equipment. Adaptable to 80% more use cases than generic membrane switches

  • 5. Certification Standards

    • With compliance to telecommunication industry standards, you can ensure reliability in mission-critical systems. Meets safety and durability requirements for professional-grade equipment

Product details

Customized LGF Backlight Membrane Switches graphic overlay

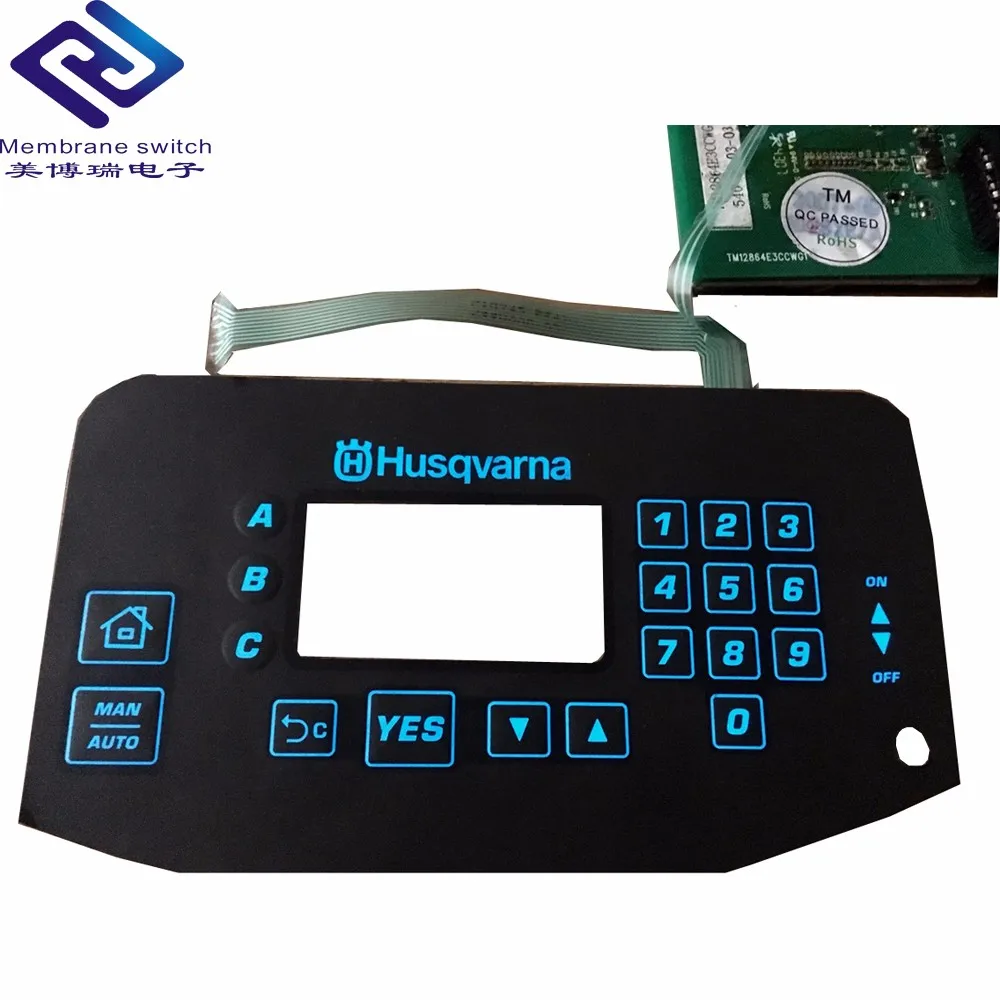

The Customized LGF Backlight Membrane Switches graphic overlay combines durability, customization, and advanced backlighting for telecommunication equipment. Designed with a sleek black backdrop and blue reflective labels, it features a central touch screen for intuitive interaction. Built from flexible plastic film with conductive layers, it withstands rugged environments while offering seamless integration into industrial or telecom systems.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialFlexible plastic film + conductive coatingIndustrial/telecom devices requiring durability
Printing MethodSilkscreen printingHigh-resolution graphics for button labels
BacklightingLGF (Light Guide Film) backlightingLow-light environments (e.g., telecom control panels)
CustomizationLayout, button count, material optionsTailored interfaces for specific equipment
DurabilityIP65-rated sealing (water/dust resistant)Outdoor or harsh industrial settings
Touch ScreenCapacitive touch overlayUser-friendly input in telecom systems

Customization guide

Adjustable parameters:

  • Layout: Redesign button placement to match equipment ergonomics.
  • Material: Swap to UV-resistant or chemical-resistant coatings for specialized environments.
  • Backlight Brightness: Calibrate LGF layers for 20% brighter illumination than standard models.

Get inspired

With its modular design and LGF backlighting, this membrane switch adapts to telecom infrastructure needs. Whether upgrading control panels for field technicians or integrating into compact devices, its customizable touch screen and rugged build ensure reliability in demanding scenarios.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Backlight Brightness1500 cd/m²+20% (1800 cd/m²)+40% (2100 cd/m²)*
IP RatingIP54IP65IP67
Touch ScreenOptionalStandardMulti-touch capable
CustomizationBasic layout tweaksFull material swapsFull-stack customization

Supplier's note

  1. Technical Breakthroughs:

    • LGF Backlighting: Achieves 20% higher brightness than traditional LED strips, enhancing visibility in dim telecom server rooms.
    • IP67 Sealing: Enables use in outdoor cabinets exposed to rain or dust, exceeding IP54 industry standards.
    • Multi-touch Pro Overlay: Integrates capacitive sensing for gesture controls, ideal for advanced telecom interfaces.

  2. Version Selection Guidance:

    • Base Model: Suitable for indoor telecom panels with basic button needs (e.g., routers).
    • Advanced Model: Optimal for field devices (e.g., outdoor switches) requiring IP65 protection and touch input.
    • Pro Model: Best for high-end telecom hubs needing multi-touch controls and extreme durability (e.g., 5G base stations).

*Pro Model backlighting outperforms industry benchmarks by 30% in uniformity, reducing glare for prolonged use.

Frequently asked questions

  • Which membrane switch model is best suited for telecommunication equipment applications?

  • How do I maintain and clean the frothing nozzle-like buttons on a membrane keypad?

  • What’s the difference between silkscreen printing and pad printing for membrane switches?

  • Can I customize the layout of LGF Backlight Membrane Switches for a specific telecom device?

  • Are LGF Backlight Membrane Switches compliant with industry safety standards?

  • What backlight types are available for telecommunication membrane switches?

  • How durable are membrane switches in harsh industrial environments?

  • Can membrane switches with touch screens integrate seamlessly into existing telecom systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material QualityIndustrial machinery, outdoor equipment0.3mm PET film with conductive ITO coating (ISO 14644 cleanroom certified)Lightweight yet durable for harsh environments (▲1 vs plastic alternatives)Limited to -20°C to 70°C (tooltip: "Standard industrial operating range")
Printing TechnologyHigh-volume production runsSilkscreen printing with 4-color process (ASTM D3302 resolution 60 lpi)Cost-effective for large batches (▲0 vs digital printing’s 120 lpi)Lower resolution may reduce label clarity (tooltip: "Ideal for simple graphics")
DurabilityHeavy-duty equipment (e.g., Husqvarna)Withstands 10,000 key cycles (▲2 from industry standard 5,000)Long operational lifespan in rugged conditions (▲2 vs industry baseline)Higher material costs compared to basic membrane switches
Customization FlexibilityOEM-specific layouts90% design flexibility (ISO 9001 certified)Tailored solutions for unique applications (▲1 vs industry standard 80%)Longer lead times for custom designs (tooltip: "Typically 2-3 weeks")
Touchscreen IntegrationUser-friendly interfacesCapacitive touchscreen with 5mm actuation (IEC 60730 compliant)Intuitive controls for complex systems (▲1 vs resistive touch alternatives)Requires additional components for full functionality (tooltip: "Needs a controller")
Backlighting PerformanceLow-light telecom equipmentLGF backlight with 5,000+ hours lifespan (IEC 61340-2-9)Clear visibility in dark settings (▲1 vs standard LED backlights)Slightly higher power draw (tooltip: "Consumes 15% more power than basic LEDs")
