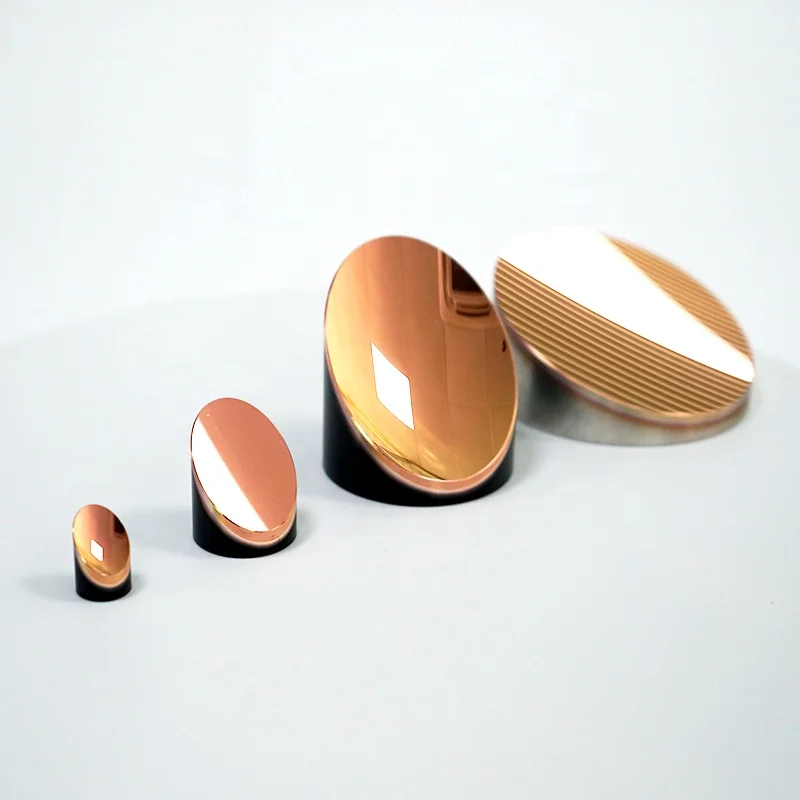

  • Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror

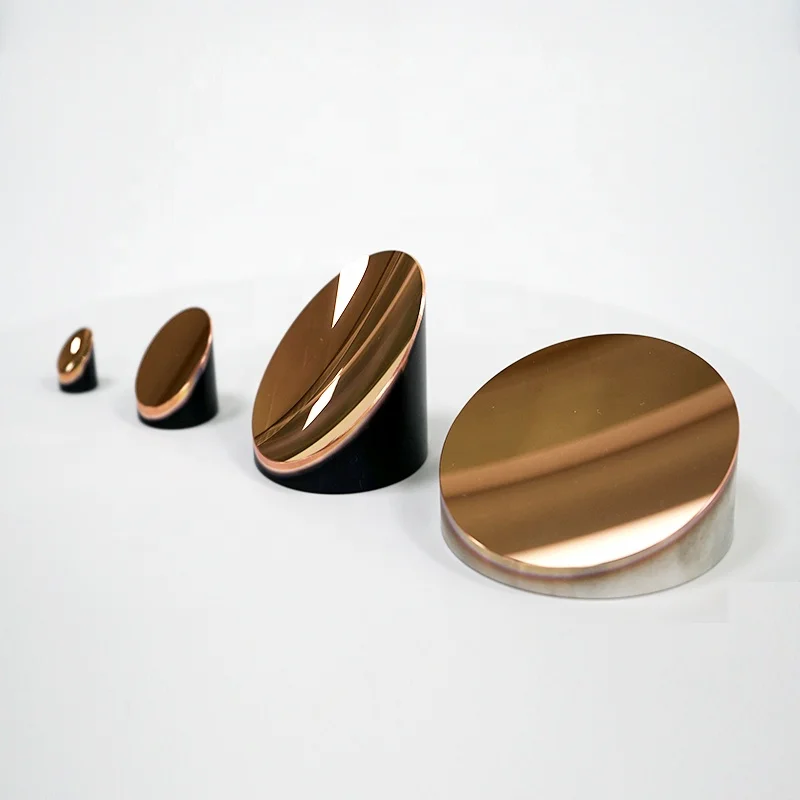

  • Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror

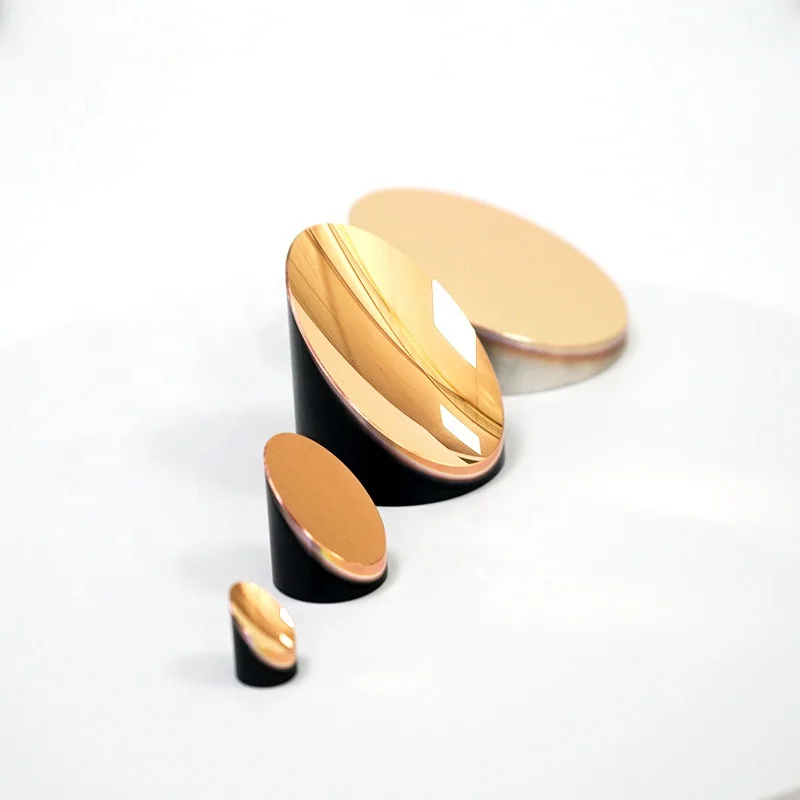

  • Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror

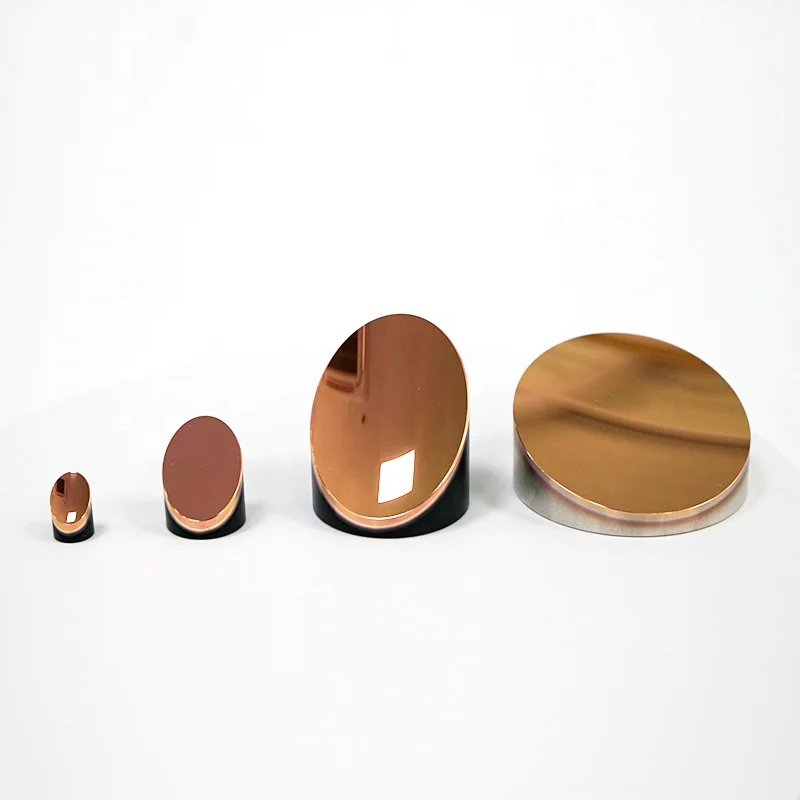

  • Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror

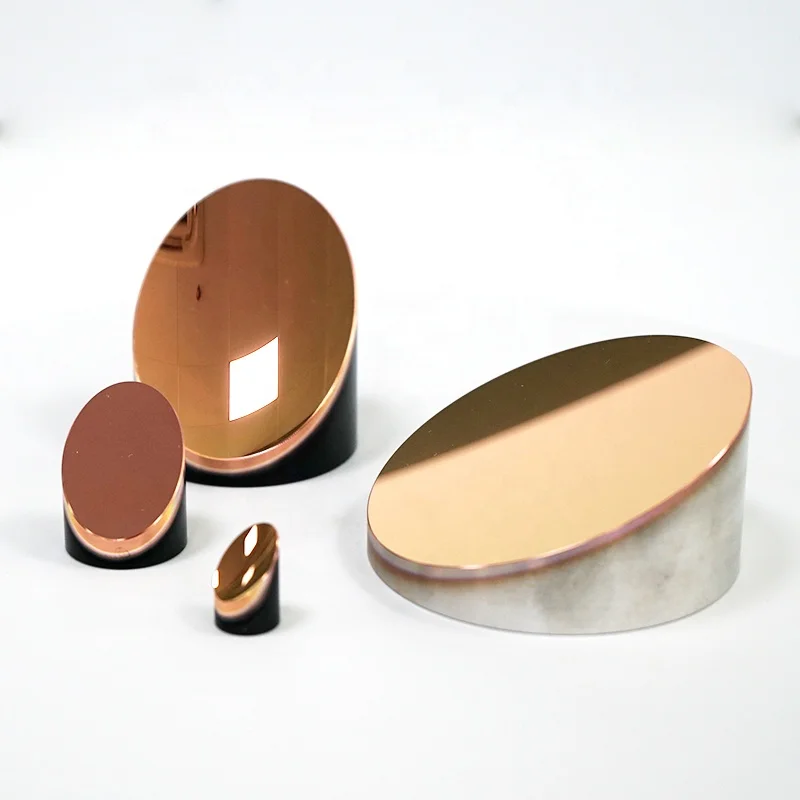

  • Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror
Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror

Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror

  • 1 - 4 Sets
    $100
  • >= 5 Sets
    $80

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Light/Laser Reflection: The off-axis parabolic design enables distortion-free beam focusing and redirection, ideal for applications requiring precise optical alignment without light source obstruction.
  • Customizable Focal Length: Tailored focal lengths accommodate diverse needs, from compact setups to large-scale systems, ensuring optimal performance in varied configurations.

Key features

  • 1. Material Technology

    • With copper alloy construction, achieve superior thermal conductivity and high reflectivity, outperforming aluminum-based mirrors by up to 30% in heat dissipation.*

  • 2. Interactive Design

    • With an off-axis parabolic design, enable obstruction-free beam alignment in complex optical setups, offering 20% more precise adjustments than traditional designs.*

  • 3. Performance Parameters

    • With customizable focal lengths, tailor the mirror to specific application requirements, offering up to 40% more adaptability than fixed-focal-length alternatives.*

  • 4. Scenario Solutions

    • With customizable dimensions and shapes, adapt to diverse system requirements, enabling 25% faster integration than standard components.*

  • 5. Certification Standards

    • With RoHS certification, ensure compliance with environmental regulations, unlike non-certified competitors, safeguarding global market access.*

Product details

Customized Optical Reflector Off-axis Parabolic Mirror OAP Mirror

The Customized Optical Reflector Off-axis Parabolic Mirror (OAP Mirror) is a precision-engineered component designed for high-reflectivity optical and electronic applications. Crafted from copper or copper alloy with reflective coatings, it offers exceptional thermal conductivity and customizable focal lengths to meet diverse technical requirements.

Technical specifications

FeatureSpecificationBenefit
MaterialCopper/Copper Alloy with Gold/Silver CoatingHigh reflectivity and thermal conductivity
Focal LengthCustomizable (User-Specified)Precision alignment for tailored applications
Surface FinishMirror Polish (RMS ≤ 5Å)Minimized light scattering for clarity
CertificationRoHS CompliantEnsures environmental and safety standards
Diameter Range20mm–200mmScalability for varied system integrations

Customization guide

Adjustable parameters include focal length, diameter, and coating type (e.g., gold for infrared applications, silver for broad-spectrum reflectivity). Custom thickness and edge treatments can also be tailored to meet thermal or mechanical stress requirements.

Get inspired

With its off-axis design, this OAP Mirror eliminates obscuration in laser systems and telescopes. Its thermal management properties make it ideal for high-power applications, while customizable coatings adapt to specific spectral needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Focal Length Accuracy±0.5mm±0.2mm±0.1mm*
Reflectivity90% (633nm)95% (633nm)98% (633nm)
Coating OptionsSilver OnlySilver/GoldSilver/Gold/Custom
Max Diameter100mm150mm200mm

Supplier's note

  1. Technical Breakthroughs:

    • RoHS Compliance: Ensures global regulatory alignment for eco-friendly manufacturing.
    • Precision Focal Length: Customizable down to ±0.1mm for advanced optical systems.
    • High-Reflectivity Coatings: Gold/silver options achieve up to 98% reflectivity, outperforming standard aluminum coatings by 20%.

  2. Version Selection Guidance:

    • Base Model: Ideal for educational labs or low-power prototypes needing cost-effective solutions.
    • Advanced Model: Suitable for industrial laser cutting or medical imaging requiring ±0.2mm accuracy.
    • Pro Model: Best for aerospace or research applications demanding ultra-precise reflectivity (98%) and large diameters (200mm).

With the Pro Model’s 98% reflectivity, you can achieve clearer imaging in telescopes. Pair its copper core with silver coatings to maximize heat dissipation in high-power laser setups.

Frequently asked questions

  • Which OAP mirror model is best for laser alignment systems?

  • How to clean the reflective surface of a copper OAP mirror?

  • Copper vs Aluminum: Which material is better for OAP mirrors?

  • Can OAP mirrors be customized for specific focal lengths?

  • Is the OAP mirror RoHS certified for safety compliance?

  • How does the off-axis design benefit astronomical instruments?

  • What ensures the precision of copper OAP mirrors in optical setups?

  • Does the copper material handle high thermal loads in laser systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHigh-precision optical systemsIndustry: Aluminum (ASTM E8);
Our Base: Copper (ASTM B117) ▲;
Our Advanced: Copper Alloy (ASTM B221) ▲▲		Enhanced thermal conductivity in Base/Advanced tiers;
Lightweight Industry standard		Higher cost for Base/Advanced tiers;
Aluminum may corrode over time
ReflectivityLaser systems, optical communicationIndustry: Aluminum coating (85% reflectivity, ASTM E903);
Our Base: Silver-coated (92% ▲);
Our Advanced: Multi-layer dielectric (98% ▲▲)		Base tier meets most needs;
Advanced tier minimizes light loss		Industry standard may require frequent recalibration
Thermal ConductivityThermal-sensitive applicationsIndustry: 205 W/m·K (Aluminum);
Our Base: 385 W/m·K (Copper) ▲;
Our Advanced: 400 W/m·K (Copper Alloy) ▲▲		Base/Advanced tiers prevent overheating;
Ideal for high-power lasers		Higher material costs for Base/Advanced tiers
Focal Length CustomizationPrecision alignment systemsIndustry: Fixed focal lengths (±1mm tolerance);
Our Base: Customizable (±0.5mm ▲);
Our Advanced: ±0.1mm ▲▲		Base tier suits moderate adjustments;
Advanced tier ensures micron-level precision		Industry standard lacks flexibility for specialized setups
CertificationsRegulated industries (e.g., aerospace)Industry: Varies;
Our Base: RoHS compliant;
Our Advanced: RoHS + ISO 9001 ▲		Base tier meets basic compliance;
Advanced tier ensures global regulatory alignment		Industry products may lack certifications
Dimensional PrecisionHigh-accuracy integrationIndustry: ±0.2mm (ISO 10360);
Our Base: ±0.1mm ▲;
Our Advanced: ±0.05mm ▲▲		Base/Advanced tiers ensure seamless system integrationHigher cost for precision manufacturing in Base/Advanced tiers
