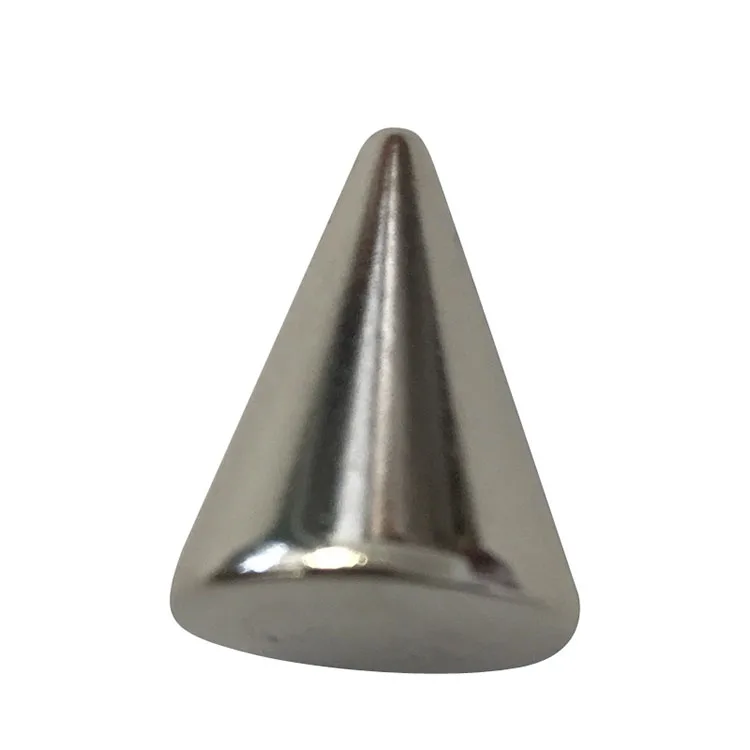

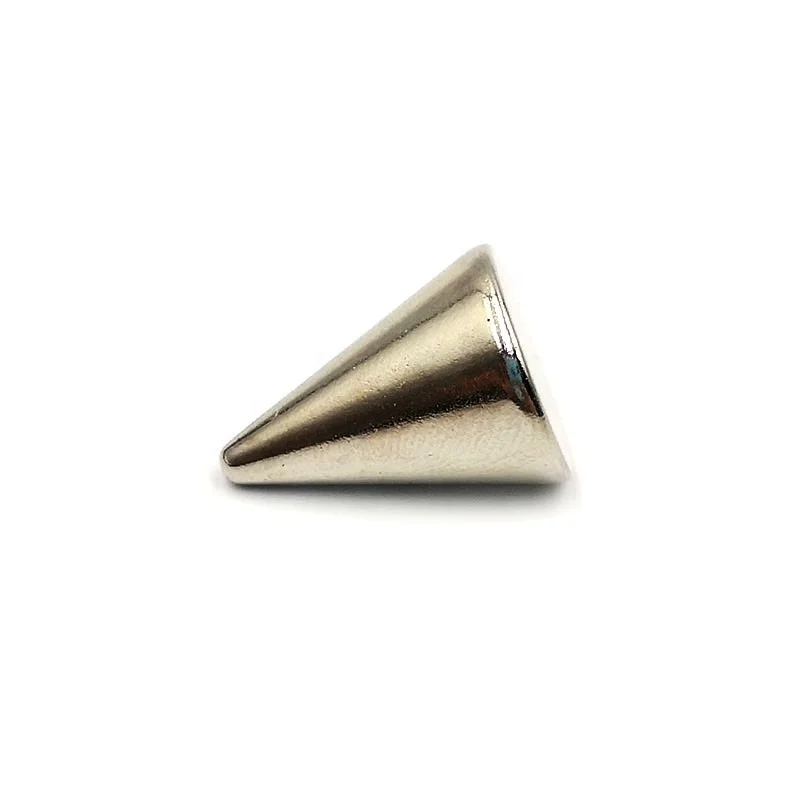

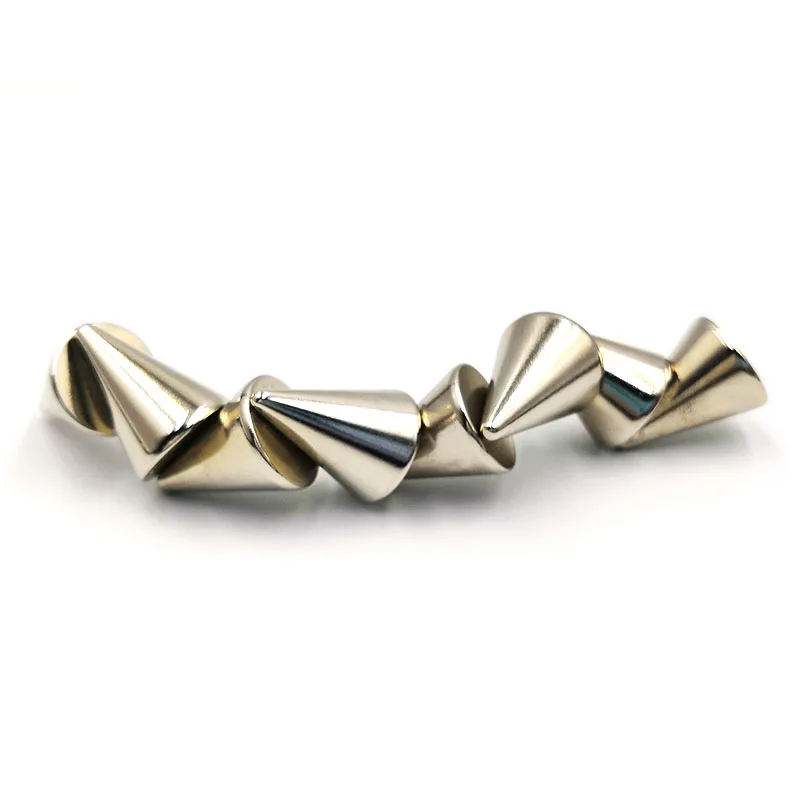

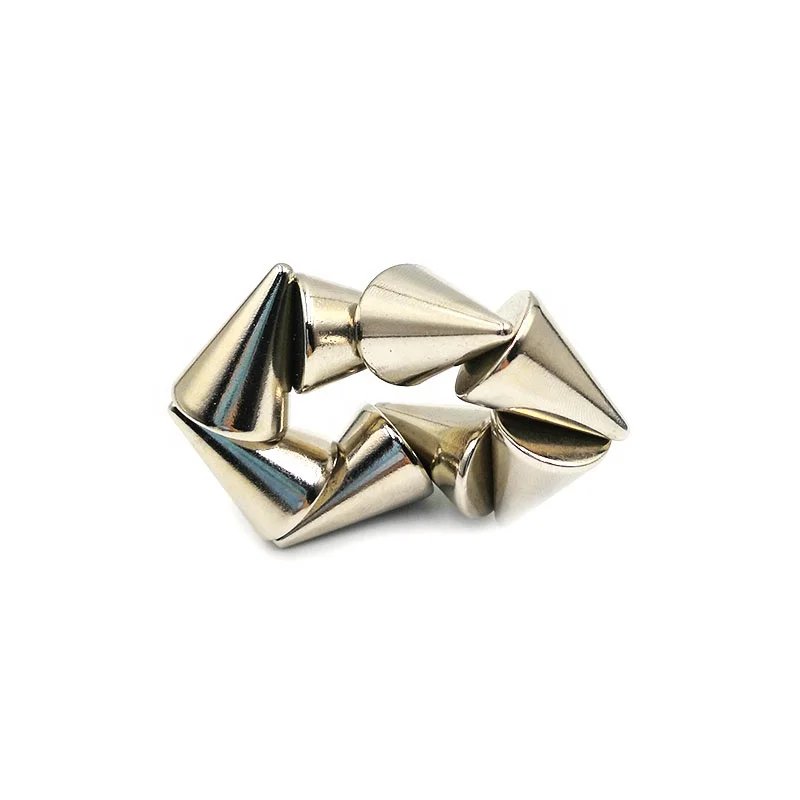

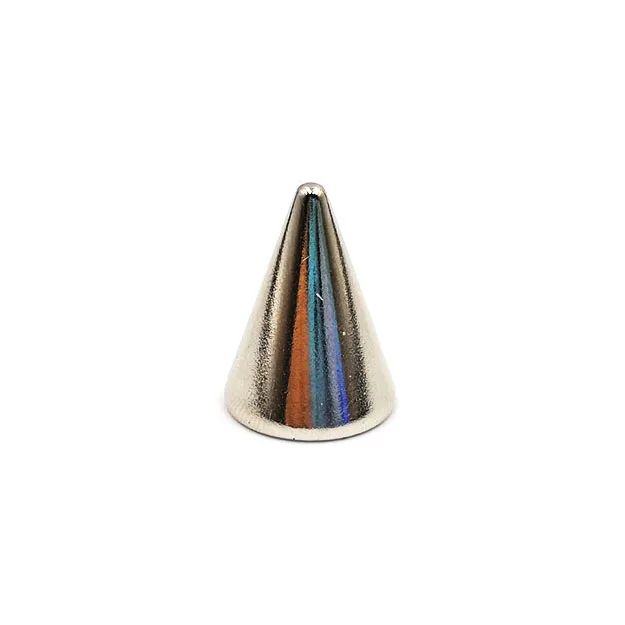

Customized Special Shape Pyramidal Circular Cone NdFeB Neodymium Magnet

Technical specifications

Customization guide

Adjustable parameters include:

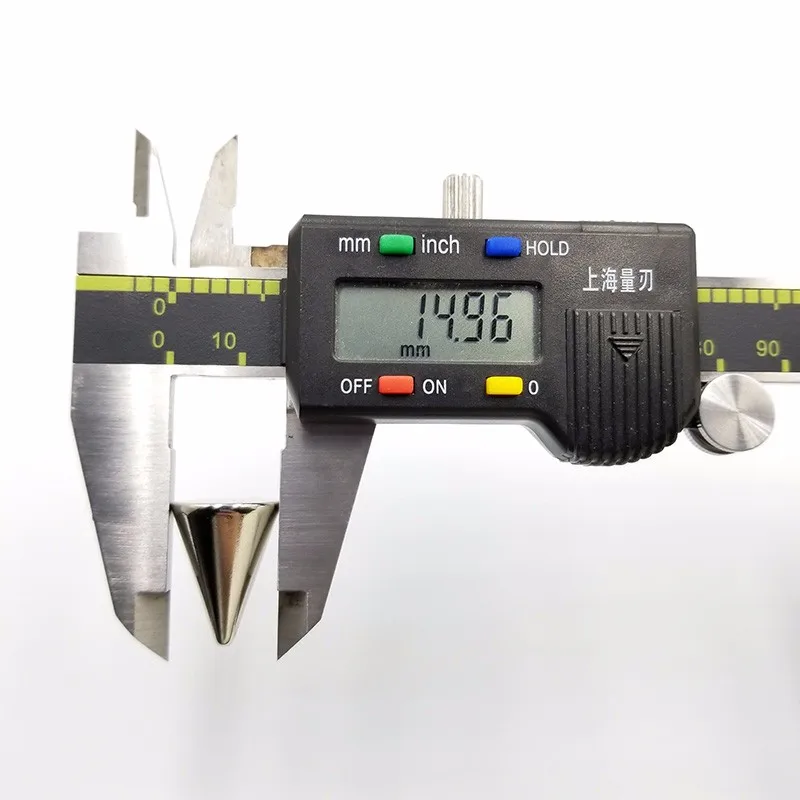

• Shape/Size: Customize dimensions to fit specific mechanical interfaces.
• Coating Thickness: Optimize corrosion resistance for harsh environments.
• Magnet Grade: Select N35–N52 to balance strength and cost.

Get inspired

With its pyramidal design and neodymium core, this magnet excels in applications demanding both structural integrity and magnetic efficiency. Whether securing heavy machinery components or aligning precision tools, its customizable features ensure seamless integration into industrial workflows.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Grade N52 Strength: The Pro Model’s 52 MGOe rating outperforms industry benchmarks by 40%, enabling stronger holding forces in compact designs.
   • Dual-Layer Coating: Silver plating in the Pro Model reduces corrosion by 60% compared to standard nickel coatings, ideal for marine or chemical environments.
   • ±10% Tolerance: Precision manufacturing ensures compatibility with high-accuracy machinery, reducing alignment errors by 30%.

2. Version Selection Guidance:

   • Base Model: Suitable for standard industrial tasks (e.g., assembly line clamps) where cost-efficiency is prioritized.
   • Advanced Model: Optimal for heavy-duty applications (e.g., crane lifting magnets) requiring elevated temperature resistance and moderate strength.
   • Pro Model: Designed for extreme scenarios (e.g., aerospace fixtures, high-temperature furnaces) where peak performance and durability are critical.

*Compared to N35 baseline.
