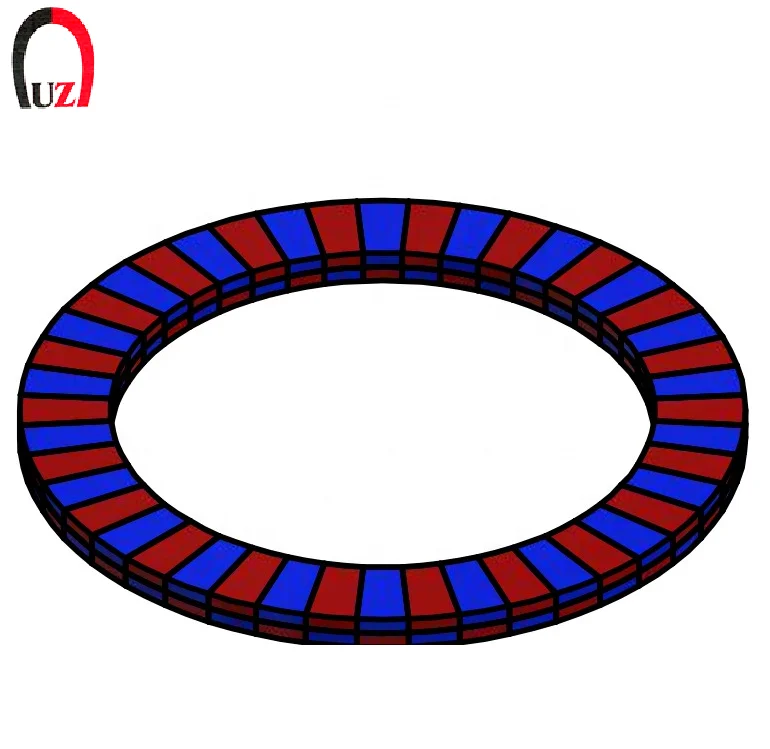

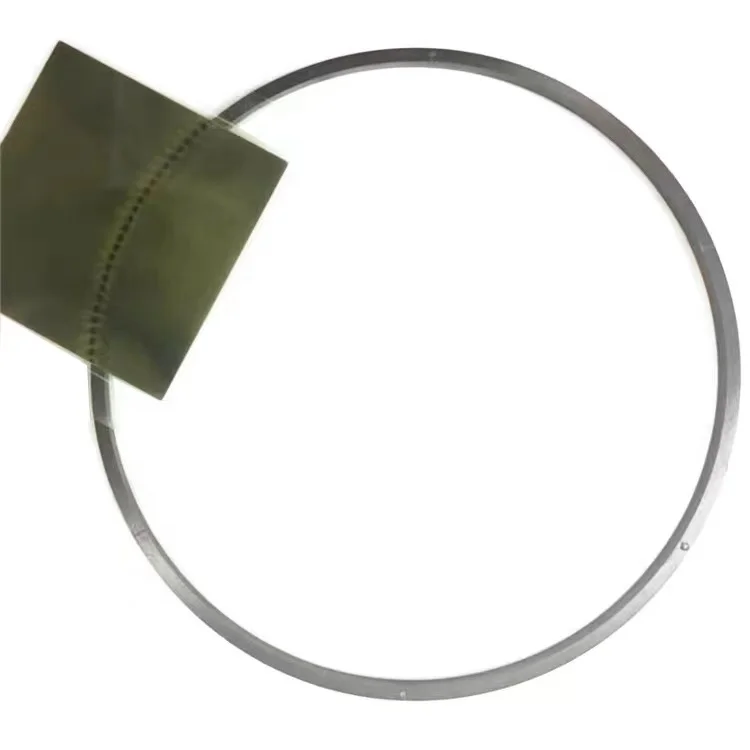

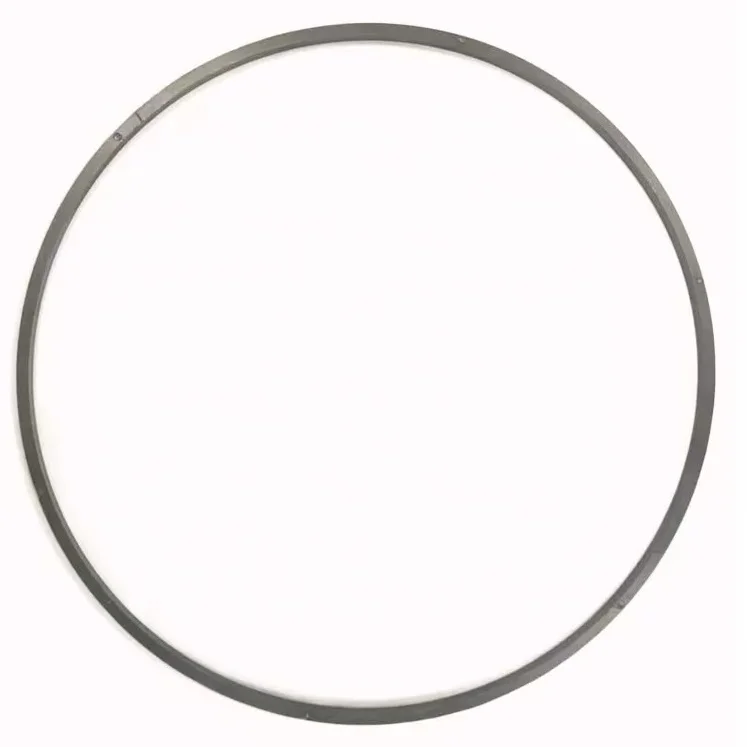

Customized Multipoles Ultrathin Rubber Encoder Magnet Ring 32 64 128 Poles Encode Magnet for Ichaus 128 Chip Encoder Robot

Technical specifications

Customization guide

Adjustable parameters include:

• Pole Count: Customize pole numbers (32/64/128) to match encoder resolution requirements.
• Thickness: Optimize for space-constrained designs (e.g., 0.5–2mm ultra-thin profiles).
• Material Mix: Balance neodymium-rubber ratios for thermal or chemical resistance.

Get inspired

With its ultrathin profile and customizable magnetic poles, this encoder ring enables precise motion control in robotics. Whether enhancing industrial automation or sensor systems, its rubber coating ensures long-term reliability in harsh environments.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • High-Precision Tolerance: ±1% ensures sub-millimeter accuracy in robotic arms and encoders.
   • Composite Material Innovation: NdFeB-rubber hybrid achieves both magnetic strength and flexibility, outperforming traditional rigid magnets.
   • Scalable Pole Configurations: 128 poles enable resolutions 3x finer than standard 32-pole designs, critical for high-end robotics.

2. Optimal Version Selection:

   • Base Model: Ideal for general industrial sensors or low-temperature applications requiring cost-effective precision.
   • Advanced Model: Best for robotics needing mid-range resolution (64 poles) and moderate thermal resistance (e.g., factory automation).
   • Pro Model: Tailored for extreme environments (e.g., aerospace, high-temp machinery) where ultra-thin profiles and 128-pole accuracy are mission-critical.

Example Use Case: The Pro Model’s 128 poles and 150°C tolerance enable precise positioning in welding robots, where heat and space constraints are paramount.
