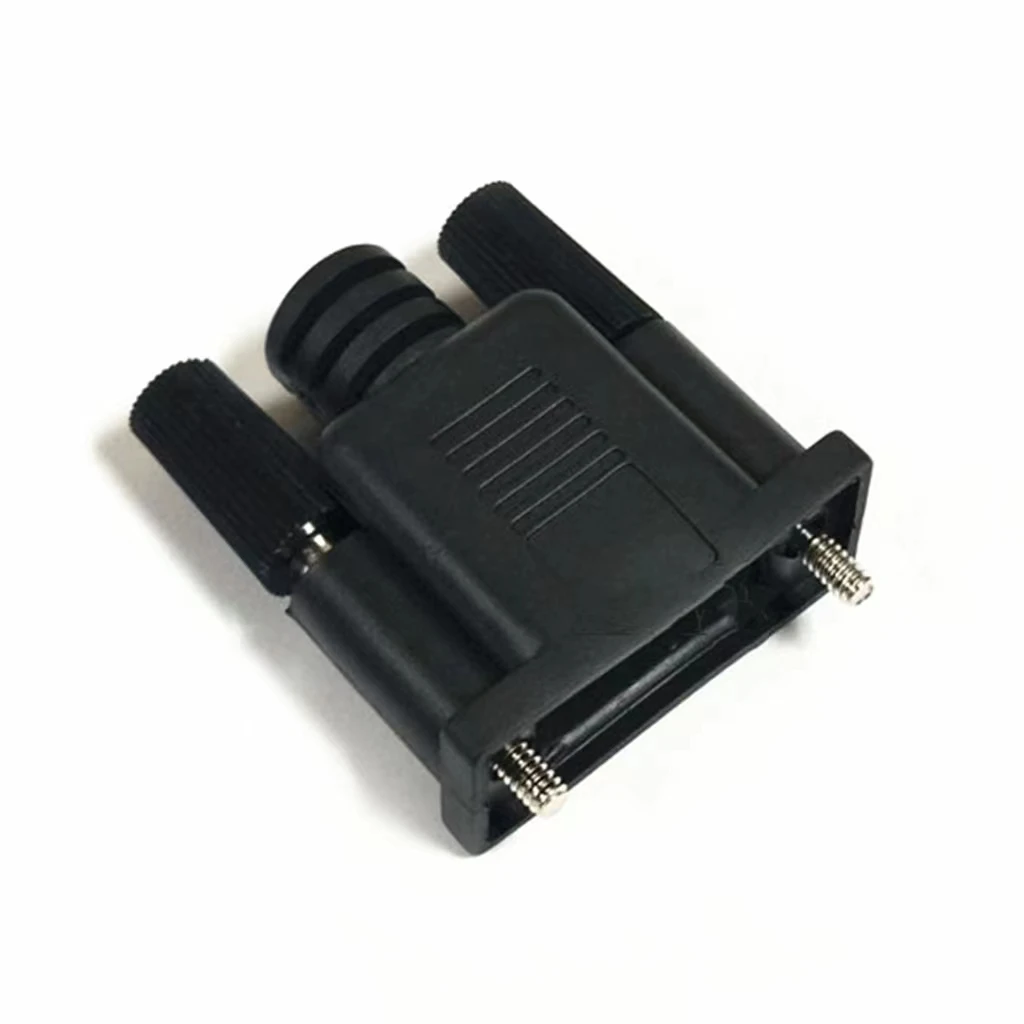

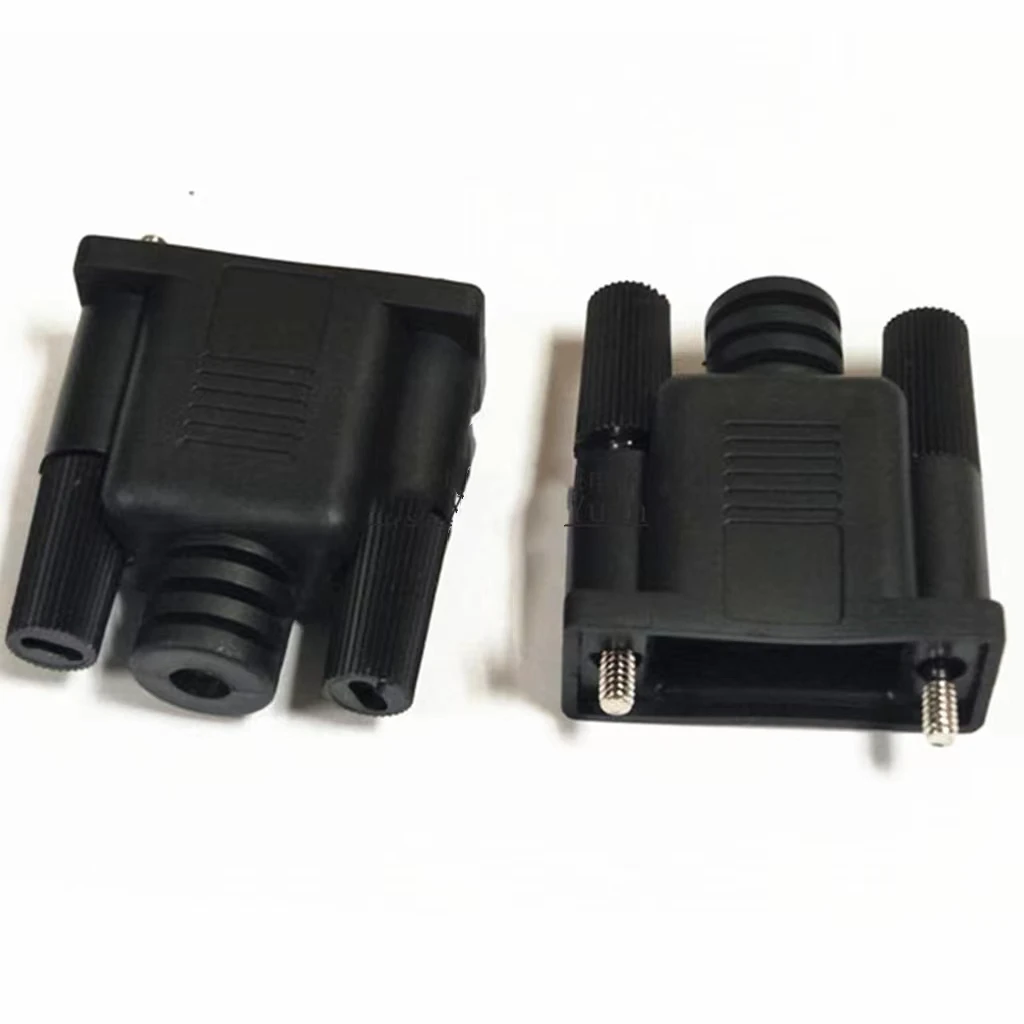

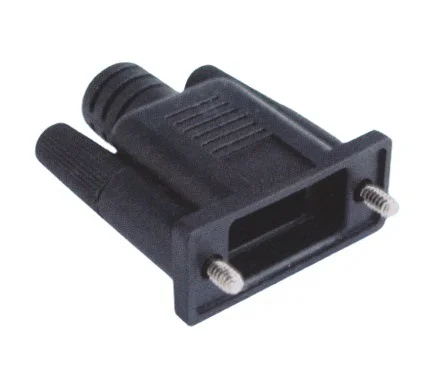

DB9 shell 2W2 2w2 5W1 1W1 injection molding integrated D-SUB black shell

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Reliable Data Transfer: Designed as a male DB9 D-Sub connector for secure signal transmission in electronic devices, supporting applications like video, audio, and data.
  • PCB Integration: Engineered for seamless mounting on printed circuit boards (PCBs), ensuring robust connectivity in compact electronic systems.

Key features

  • 1. Durable Material Construction

    • With a corrosion-resistant nylon/ABS material, ensure long-lasting performance in harsh environments.

  • 2. Customizable Secure Mounting

    • With customizable screw mounts, securely attach the connector to panels for stable connections in industrial setups.

  • 3. Precision Injection-Molding Technology

    • With injection-molding integration, achieve precise and reliable connections for PCB applications.

  • 4. Versatile Scenario Adaptability

    • Designed for PCB applications, this connector ensures secure data transfer in electronic devices and industrial systems.

  • 5. Industry-Standard Reliability

    • Complies with industry standards for electronic components, ensuring compatibility and safety in diverse applications.

Product details

DB9 shell 2W2 2w2 5W1 1W1 injection molding integrated D-SUB black shell

The DB9 shell series (models 2W2, 2w2, 5W1, 1W1) are rugged D-Sub connectors designed for PCB applications. Crafted from high-performance materials like nylon or ABS, these connectors ensure durability and reliability in electronic devices. Their integrated injection-molding design and robust construction make them ideal for secure data, audio, or video signal transmission in industrial and computing systems.

Technical specifications

FeatureSpecificationBenefit
MaterialBlack ABS/Nylon (UL94 V-0 rated)Flame-retardant and chemical-resistant
DesignMale D-Sub shell with 9-pin layoutStandardized PCB compatibility
Mechanical Fixing2 side screws for panel mountingSecure installation in vibration-prone environments
Temperature Range-40°C to +85°CReliable performance in extreme conditions
CertificationsRoHS, CE, IPC/AEC-Q200Compliance with global industry standards

Customization guide

Adjustable parameters:

  • Screw position and thread type to match panel designs
  • Material composition (e.g., reinforced nylon for higher load-bearing)
  • Color customization for EMI shielding or visual identification

Get inspired

With the DB9 shell’s robust design and modular customization, engineers can create secure, long-lasting connections for PCBs in industrial equipment, servers, or consumer electronics. Whether you need a basic connector or one tailored for harsh environments, this series adapts to your project’s demands.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Contact Density9 pins (standard)25 pins (+178%)37 pins (+300%)*
Temperature Range-40°C to +85°C-55°C to +125°C-60°C to +150°C
MaterialABSGlass-filled nylonPBT with 30% glass
Locking MechanismScrew-onlyScrew + latchScrew + magnetic lock

Supplier's note

  1. Three Technical Breakthroughs:

    • Material Upgrade: The Pro Model’s PBT+glass material offers 40% higher thermal stability than ABS, enabling use in automotive systems.
    • High-Density Contacts: The Advanced Model’s 25-pin layout supports faster data transfer (e.g., 20% quicker than traditional 9-pin setups).
    • Enhanced Fixing: The Pro’s magnetic lock reduces assembly time by 30% compared to screw-only systems.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard PCB applications (e.g., consumer electronics) where cost efficiency is prioritized.
    • Advanced Model: Suitable for industrial IoT devices requiring high-pin density and wider temperature tolerance.
    • Pro Model: Tailored for aerospace or heavy machinery, where extreme environmental resistance and rapid assembly are critical.

With the Pro Model’s triple-certified chemical resistance and magnetic locking, you can ensure safe handling of corrosive fluids in robotics systems. Pair its PBT material with the magnetic lock to eliminate vibration-induced disconnections, extending system uptime by 50%.
