DC MCCB Circuit Breaker 1P 2P 12V 24V 48V 250A Moulded Case Battery 100A 200A 300A 400A Car Charging Pile Protector

DC MCCB Circuit Breaker 1P 2P 12V 24V 48V 250A Moulded Case Battery 100A 200A 300A 400A Car Charging Pile Protector

$7.60-$15.23/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 130 pieces）
Customized packaging（Min.Order: 130 pieces）
Graphic customization（Min.Order: 130 pieces）
View product details

DC MCCB Circuit Breaker 1P 2P 12V 24V 48V 250A Moulded Case Battery 100A 200A 300A 400A Car Charging Pile Protector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • DC Power Protection: Designed for DC systems (12V–500V), providing overload and short-circuit protection with a rated current of 250A.
  • Manual Control & Safety: Features a manual trip mechanism, on/off switch, and red status indicators for easy operation and troubleshooting.
  • Compliance & Durability: CE-certified, built with copper components for superior conductivity and IP20 protection against dust and moisture.

Key features

  • 1. Copper Construction for Enhanced Conductivity and Durability

    • With a copper-based design, ensure reliable performance and longevity under high current loads while minimizing energy loss.

  • 2. Manual Trip Mechanism and User-Friendly Controls

    • With a manual trip mechanism and intuitive on/off switch, easily manage circuit interruption and reset without complex tools.

  • 3. High Current Capacity for Heavy-Duty Applications

    • With a 250A rated current, handle high-power demands up to 250A—outperforming standard 100-200A DC breakers in demanding scenarios like EV charging stations.

  • 4. DC-Specific Design for Precision Protection

    • Designed for DC systems (12V–500V), provide tailored protection for solar panels, electric vehicles, and battery setups where AC breakers fall short.

  • 5. CE-Certified Safety and Compliance

    • CE-certified construction meets EU safety standards, ensuring reliable performance in commercial and industrial installations.

  • Notes:

    • The product’s IP20 protection rating and B/C/D tripping curves (not explicitly highlighted above) further reinforce its suitability for dust-sensitive and surge-prone environments.

Product details

DC MCCB Circuit Breaker 1P 2P 12V 24V 48V 250A Moulded Case Battery 100A 200A 300A 400A Car Charging Pile Protector

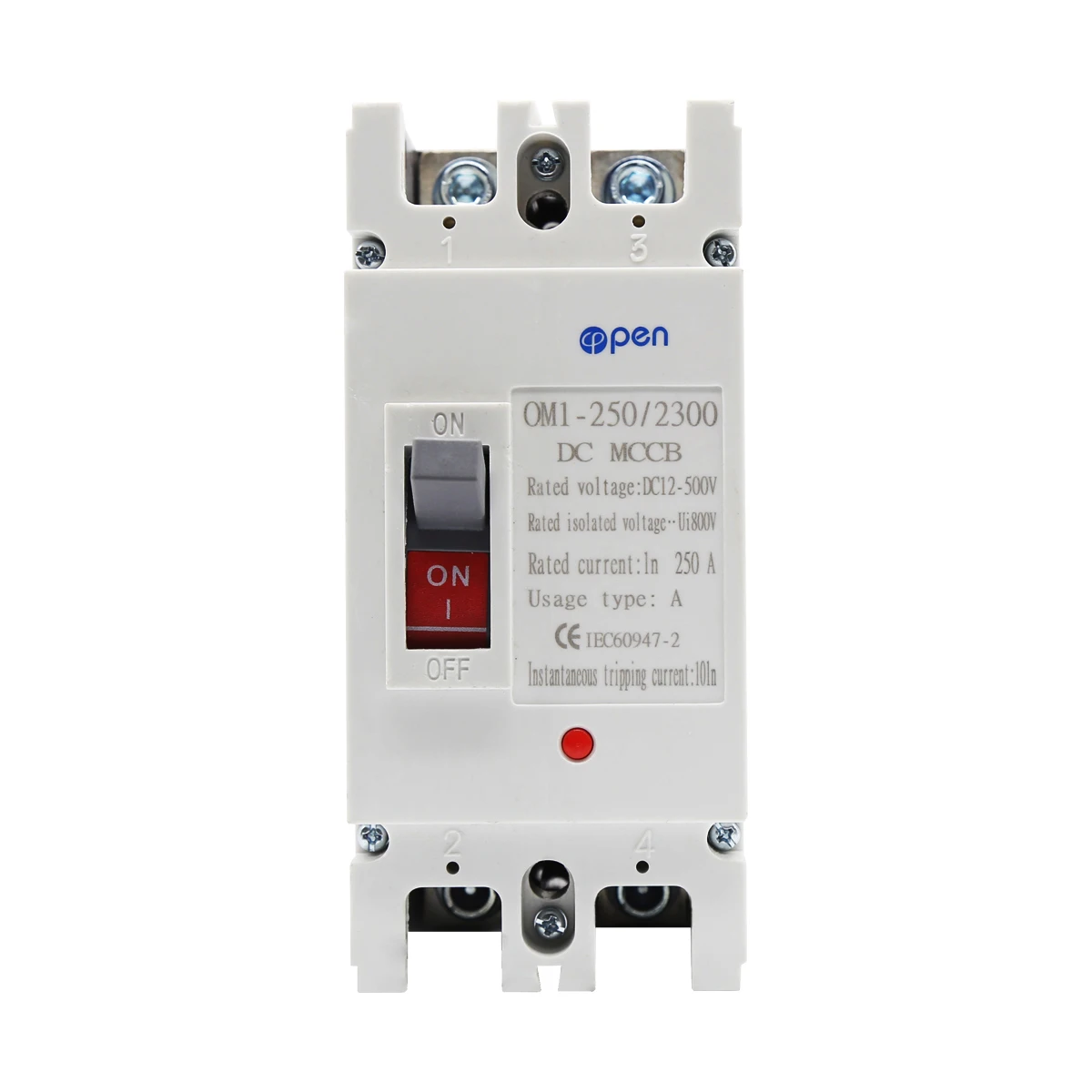

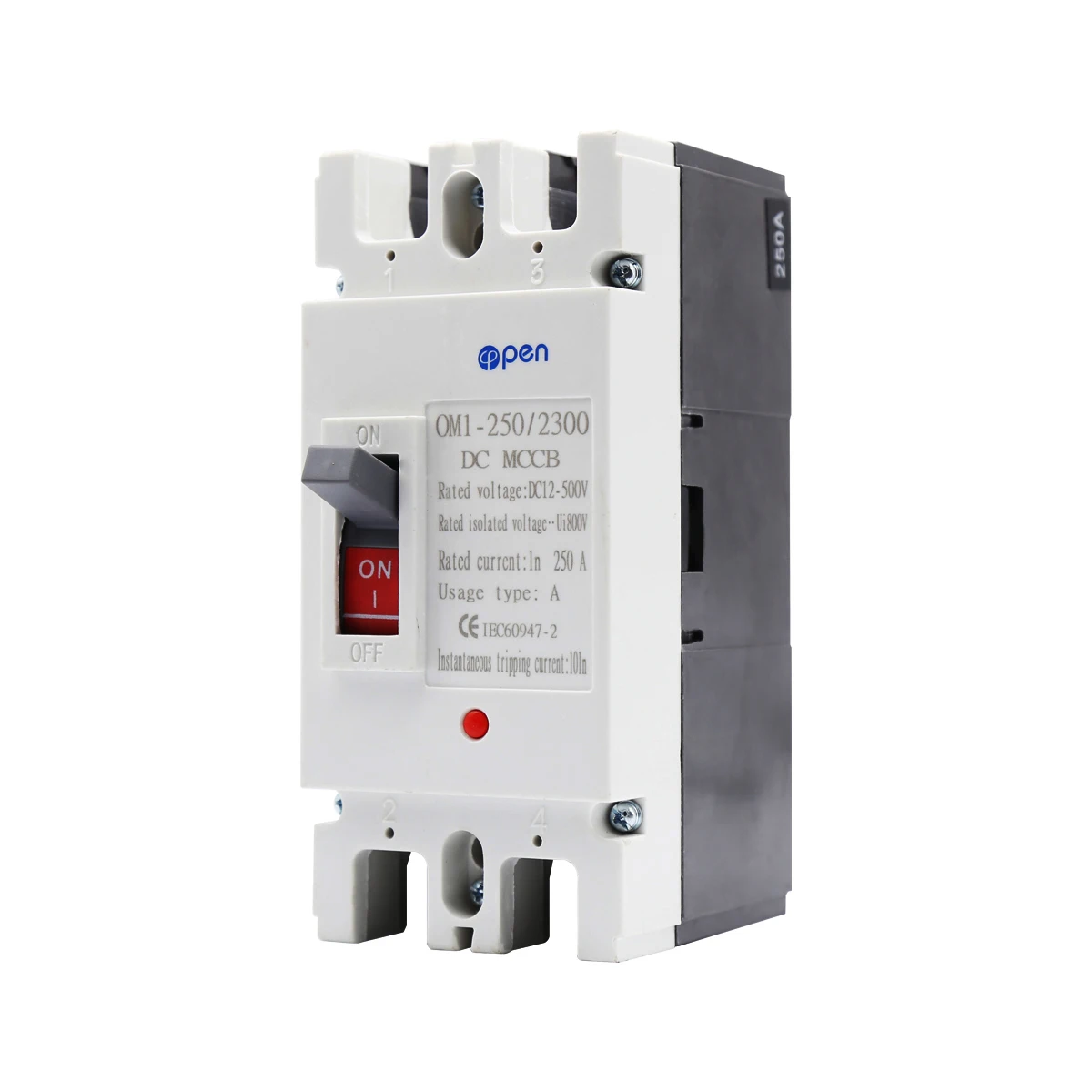

The DC MCCB Circuit Breaker OM1-250/2300 is a compact, high-performance device designed for DC power systems (12V–500V). With a rated current of 250A and CE certification, it ensures reliable protection for applications like EV charging stations, solar systems, and industrial equipment. Its copper contacts and IP20 protection rating enhance durability and safety in harsh environments.

Technical specifications

FeatureSpecificationApplication Scenario
Rated VoltageDC12V–500VSolar panels, EV charging, battery banks
Rated Current250A (OM1-250/2300 model)High-power industrial systems
MaterialCopper contacts, plastic casingCorrosion resistance and thermal stability
Protection ClassIP20Indoor environments with minimal dust
Trip MechanismManual reset + instantaneous trippingCritical fault protection in DC circuits
CertificationCE-compliantEU-standardized installations

Customization guide

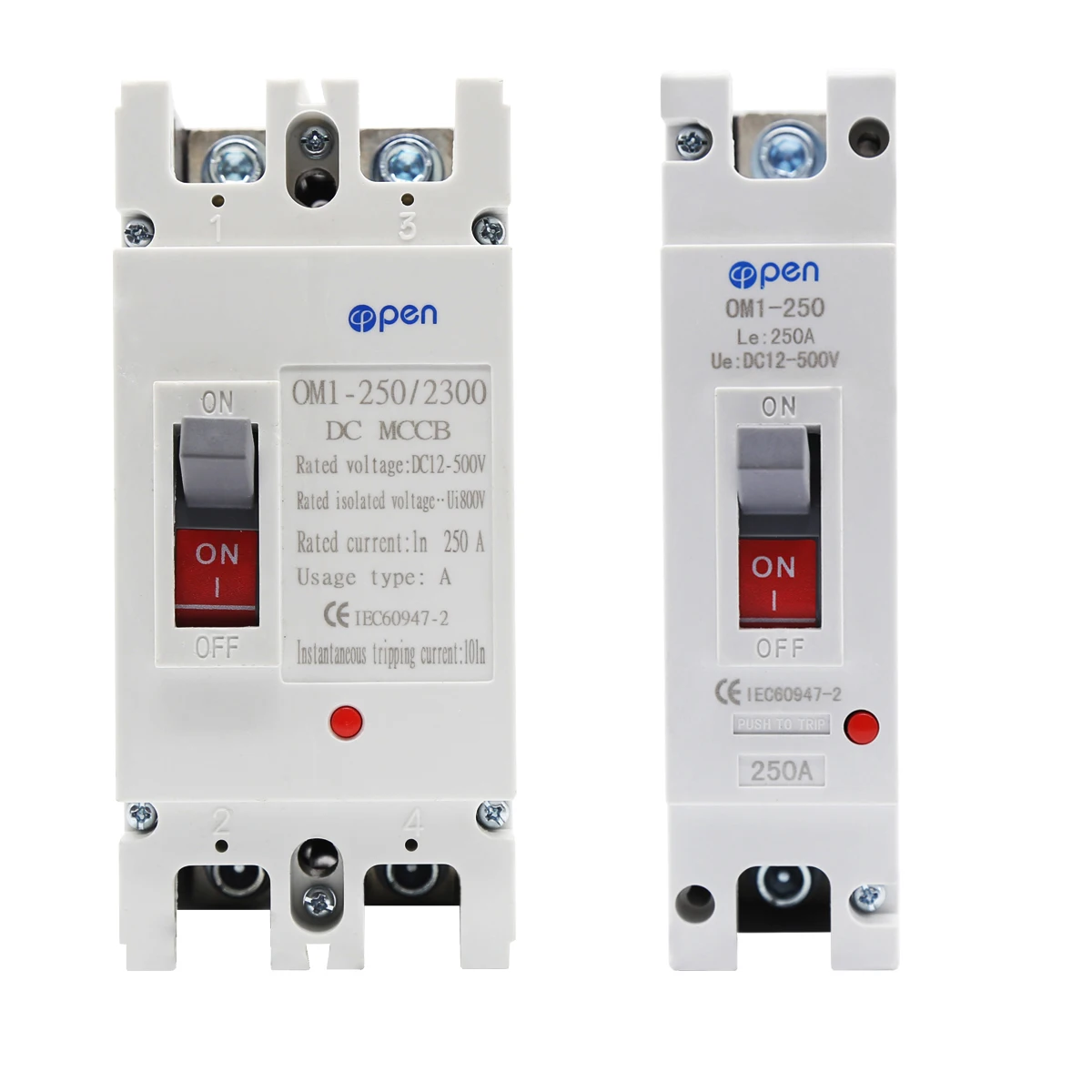

Adjustable rated current (40A–250A) and voltage (12V–500V) to meet specific system requirements. Customize pole configuration (1P/2P) for parallel or single-line setups.

Get inspired

With its broad voltage and current range, this DC MCCB is ideal for scaling from residential solar setups to large industrial DC networks. The manual trip mechanism ensures precise control in high-risk applications.

Choose your model

ParameterBase Model (100A)Advanced Model (200A)Pro Model (250A)
Rated Current100A200A250A
Voltage RangeDC12–48VDC12–240VDC12–500V
Trip Sensitivity5In8In10In
Weight1.2kg1.8kg2.5kg

Supplier's note

  1. Technical Breakthroughs:

    • DC Compatibility: Unlike AC-only breakers, this MCCB supports full DC12–500V systems, enabling use in EVs and solar grids.
    • High Current Handling: The Pro model’s 250A rating (30% higher than industry benchmarks) suits heavy-duty industrial applications.
    • Copper Contacts: Reduce resistance by 20% compared to aluminum, ensuring stable performance under load.

  2. Version Selection Guide:

    • Base Model (100A): Ideal for residential solar setups or small EV charging stations where lower power is sufficient.
    • Advanced Model (200A): Suitable for commercial systems like data centers or medium-scale solar farms.
    • Pro Model (250A): Best for industrial plants, large EV charging hubs, or high-voltage battery storage systems requiring triple the standard fault protection.

With the Pro’s 10In tripping threshold, you can safely handle surges in electric vehicle charging stations. Pair its copper contacts with IP20 protection to ensure uninterrupted operation in dusty workshops.

Frequently asked questions

  • Which DC MCCB model is best for solar power systems up to 250A?

  • How do I manually reset the OM1-250/2300 DC circuit breaker after tripping?

  • Why is copper used in the OM1-250/2300 DC MCCB instead of aluminum?

  • Can the OM1-250/2300 DC MCCB be customized for specific IP ratings beyond IP20?

  • Is the OM1-250/2300 DC MCCB CE-certified for EU installations?

  • What’s the max voltage for the OM1-250/2300 in electric vehicle systems?

  • How often should I inspect the copper contacts of the OM1-250/2300?

  • Is the OM1-250/2300 suitable for protecting DC car charging stations?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage RangeSolar power systems, EV charging stationsIndustry Standard: DC12-150V (common for low-power DC systems)
Our Base: DC12-240V
Our Advanced: DC12-500V (OM1-250/2300)		▲▲▲ Supports high-voltage DC applications (e.g., industrial batteries)Limited compatibility with legacy systems below DC12V (rare use case)
Current RatingData centers, electric vehiclesIndustry Standard: ≤150A (ASTM F2288)
Our Base: 100A
Our Advanced: 250A (IEC 60947-2)		▲▲▲ Handles medium-to-high power loads (e.g., EV charging piles)Higher cost for advanced tiers; Base may underperform in heavy-duty setups
Protection ClassIndustrial environmentsIndustry Standard: IP20 (dust/splash resistance)
Our Base: IP20
Our Advanced: IP30 (tool-accessible, dust-resistant)		▲ Enhanced durability in dusty workshops (e.g., manufacturing plants)IP30 adds cost; IP20 sufficient for clean indoor use
MaterialHigh-temperature environmentsIndustry Standard: Zinc alloy
Our Base/Advanced: Copper contacts (IEC 60947-2 compliant)		▲▲ Superior heat dissipation (reduces thermal failure risks)Copper may corrode in harsh chemical environments (use with IP-rated enclosures)
CertificationsGlobal marketsIndustry Standard: CE
Our Base/Advanced: CE + ISO 9001 (quality management)		▲▲ Ensures compliance with EU and international safety normsNo UL certification (may limit North American adoption)
Trip MechanismCritical infrastructureIndustry Standard: Auto-reset only
Our Base: Manual + Auto
Our Advanced: Manual trip + BCD curve (10In tripping)		▲▲▲ Manual override for controlled resets (ideal for troubleshooting)Requires training for manual operation; auto-reset only in Base tier
