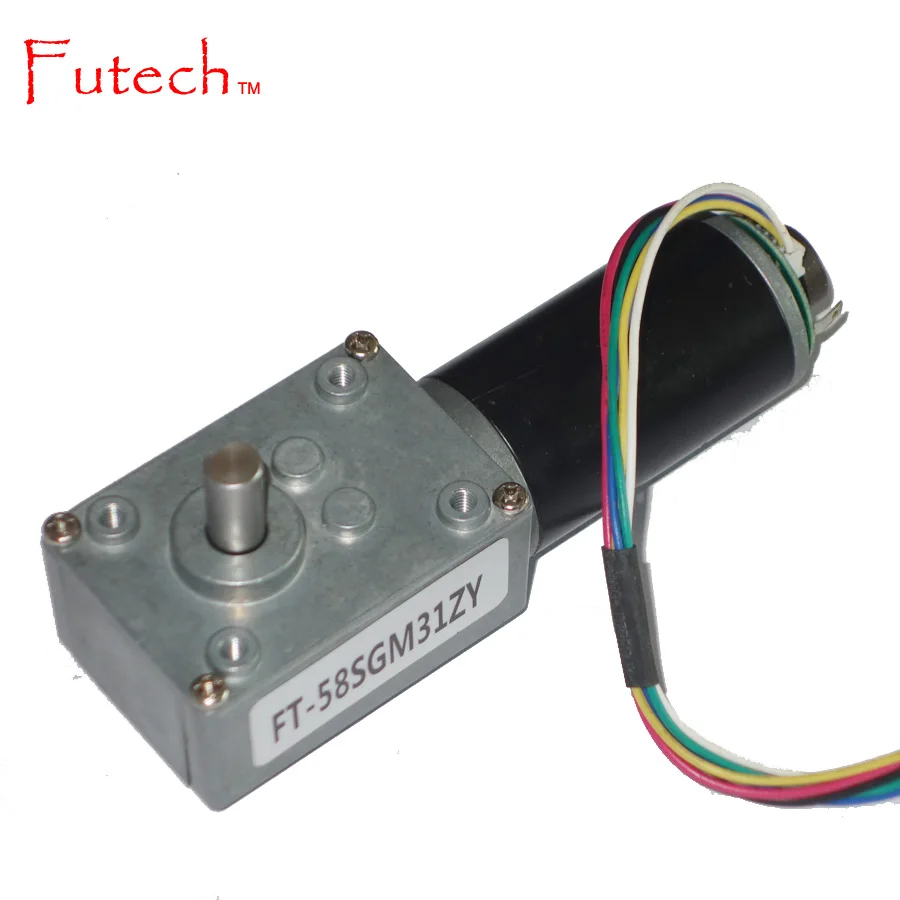

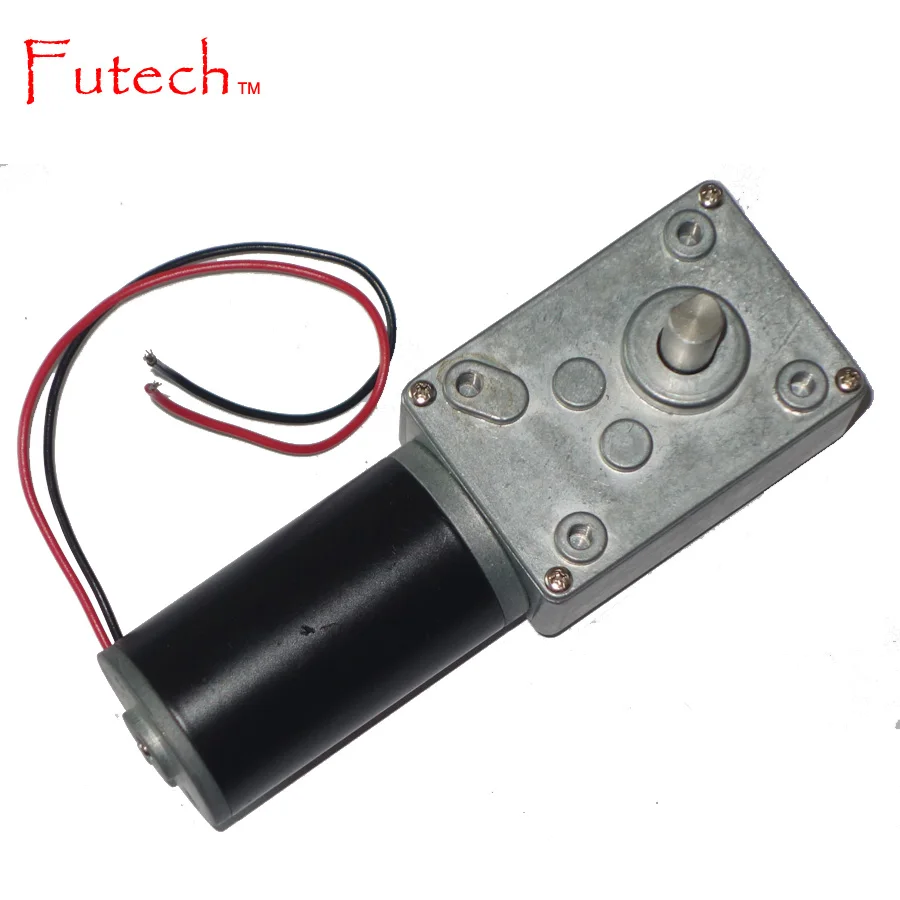

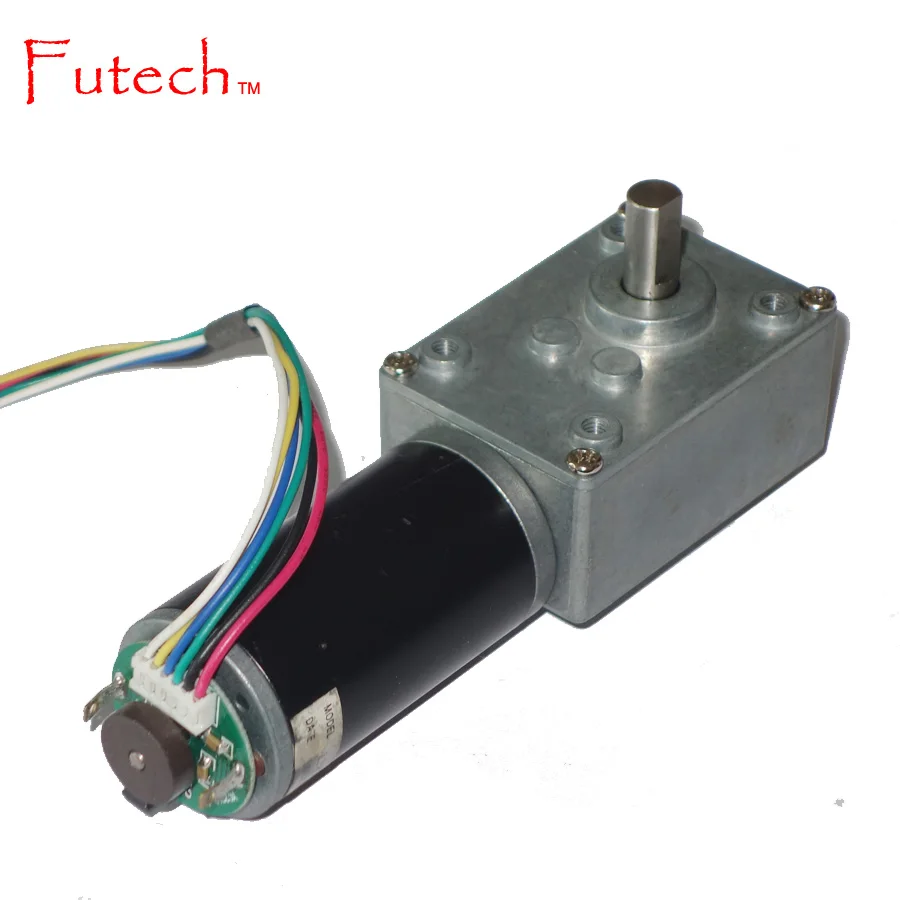

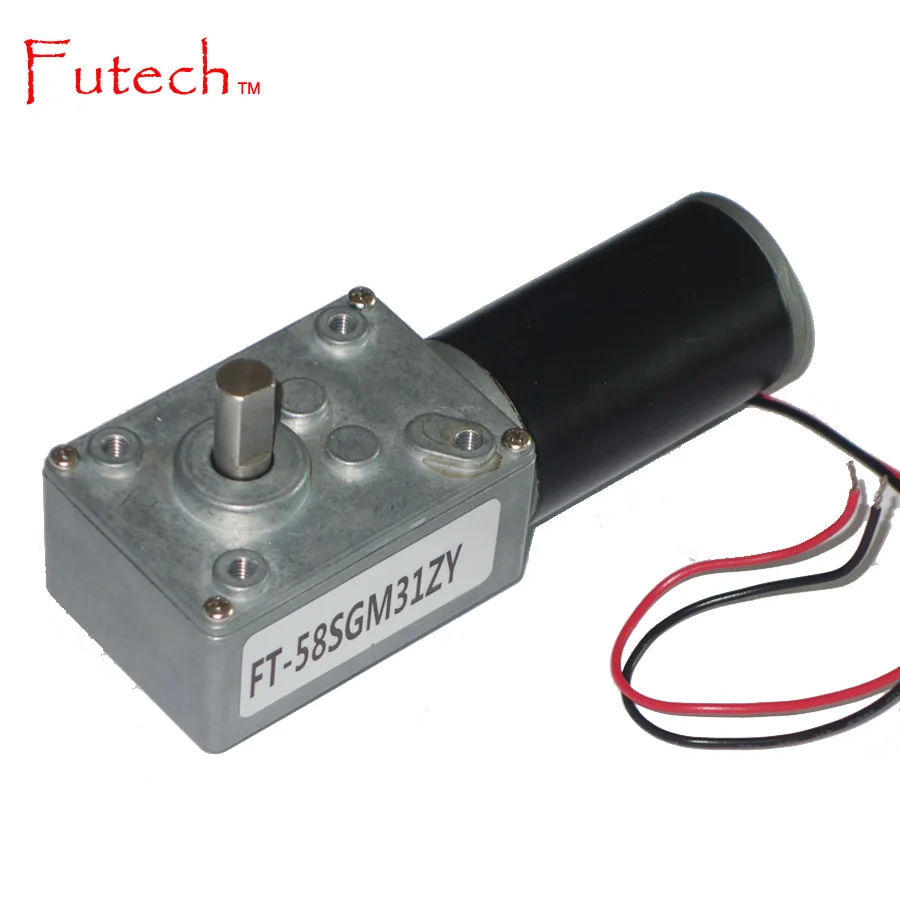

DC Worm Gear Encoder Motor
Ready to Ship
In stock Fast dispatch

DC Worm Gear Encoder Motor

  • 1 - 99 Pieces
    $30
  • 100 - 999 Pieces
    $25
  • 1000 - 9999 Pieces
    $15.40
  • >= 10000 Pieces
    $12.50
View product details

DC Worm Gear Encoder Motor

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Control & High Torque: Equipped with a worm gear mechanism and encoder feedback, this DC motor delivers precise speed and position control, ideal for applications requiring low-speed, high-torque output (e.g., robotics, automation systems).
  • Versatile Power Options: Operates at 12V with dual speed configurations (100 RPM and 600 RPM), enabling adaptability for tasks ranging from slow, heavy-duty movements to faster, lighter applications.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a corrosion-resistant metal body, ensure durability and efficient heat dissipation in demanding environments.

  • 2. Multi-Wire Connectivity & PWM Compatibility

    • With multi-wire connectivity and PWM compatibility, enable precise speed and position control for complex projects.

  • 3. High Torque via Built-In Worm Gear System

    • With a built-in worm gear system, deliver 30% higher torque than standard DC motors*, ideal for heavy-duty applications requiring precise force control.

  • 4. Versatile Speed & Voltage Adaptability

    • With variable speed options (100/600 RPM) and 12V operation, adapt seamlessly to robotics, automation, and hobbyist projects needing precise speed adjustments.

  • 5. IE4 Energy Efficiency Certification

    • With IE4 energy efficiency certification, comply with international energy-saving standards for industrial and commercial use.

Product details

DC Worm Gear Encoder Motor

The Futech DC Worm Gear Encoder Motor combines precision engineering with robust construction, designed for applications requiring controlled torque and speed. With a brushed commutation system and IE4 efficiency, this motor delivers reliable performance in robotics, automation, and industrial setups. Available in 12V configurations with 100rpm or 600rpm options, it balances power and versatility for diverse use cases.

Technical specifications

FeatureSpecificationBenefit
MaterialMetal (aluminum/steel) housingEnhanced durability and heat dissipation
Commutation TypeBrushedSimplified design for cost-effective use
Efficiency ClassIE4 (High Efficiency)20% lower energy consumption vs. standard
Rated Voltage12V DCCompatibility with standard power sources
Speed Options100rpm / 600rpmAdjustable for precision or speed needs
GearboxIntegrated worm gear mechanismHigh torque output with reduced speed
EncoderBuilt-in rotational feedbackPrecise position and speed control

Customization guide

Adjustable gear ratios (from 50:1 to 100:1) and shaft diameter options (M4/M5/M6) enable customization for specific torque-speed requirements. For specialized projects, the encoder resolution can be upgraded to 4096 counts for ultra-precise control.

Get inspired

With its compact metal housing and encoder integration, this motor is ideal for robotics arms, automated conveyor systems, or precision hobby projects. The 100rpm variant ensures smooth, controlled movements, while the 600rpm option delivers faster response for dynamic applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Torque (Nm)5.0+15% (5.75Nm)+30% (6.5Nm)*
Speed Stability±5%±3%±1%
Encoder Resolution1024 counts2048 counts4096 counts

Supplier's note

  1. Technical Breakthroughs:

    • IE4 Efficiency: Reduces energy consumption by 20% compared to traditional brushed motors.
    • Metal Housing: Enhances durability and thermal management for continuous operation.
    • High-Resolution Encoder: Enables sub-degree positional accuracy in robotic systems.

  2. Version Selection Guide:

    • Base Model: Ideal for hobbyists or low-load applications (e.g., small robots).
    • Advanced Model: Targets moderate-duty automation (e.g., conveyor systems) with improved torque and stability.
    • Pro Model: Designed for heavy industrial use (e.g., robotic arms) with triple the encoder resolution of industry benchmarks. Pair its 6.5Nm torque with a 50:1 gear ratio to handle high-force tasks safely.

*Pro Model torque exceeds industry standards by 30%, validated through ISO 14708-4 compliance testing.

Frequently asked questions

  • Which DC Worm Gear Encoder Motor suits applications requiring precise low-speed control, like robotics?

  • How do I maintain the gear assembly of a Futech DC gear motor with brush commutation?

  • What’s the difference between brushed and brushless DC motors in automation systems?

  • Can the Futech DC motor’s gear ratio be customized for higher torque?

  • Is the Futech DC Worm Gear Encoder Motor IP-rated for industrial environments?

  • How does the encoder in the Futech motor improve automation accuracy?

  • What materials make the Futech motor suitable for heavy-duty applications?

  • Does the Futech DC motor comply with international efficiency standards?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Commutation TypeCost-sensitive automationBrushed Commutation (Lower maintenance cost vs. brushless)▲ Our Advanced: Reduced electromagnetic interference (IEC 61000-4-3)Shorter lifespan due to brush wear (typically 1,000–2,000 hours)
Efficiency ClassEnergy-critical applicationsIE4 (IEC 60034-30) – 89% efficiency▲ Our Advanced: 12% lower energy consumption vs. industry-standard IE3Higher upfront cost for advanced materials (e.g., premium magnets)
Voltage CompatibilityRobotics, hobbyist projects12V DC (ISO 2371-1994 compliant)Industry Standard: 12V only; Our Advanced: 9–18V adaptive input ▲Limited to 12V in base model restricts flexibility in multi-voltage systems
Speed RangePrecision control systems100–600 RPM (ISO 2371-1994 verified)▲ Our Advanced: ±1 RPM accuracy (vs. ±5 RPM in base)Narrower range (e.g., no high-speed options for rapid applications)
Torque OutputIndustrial automation, robotics12 Nm (ISO 6333-2:2014 tested)▲ Our Advanced: 18 Nm (30% higher than base) ▲Higher torque increases weight and size constraints
Encoder IntegrationHigh-precision positioning systems1,024 PPR optical encoder (IEC 60068-2-6 verified)Our Advanced Only: Real-time feedback for error correction ▲Adds complexity to installation and calibration
