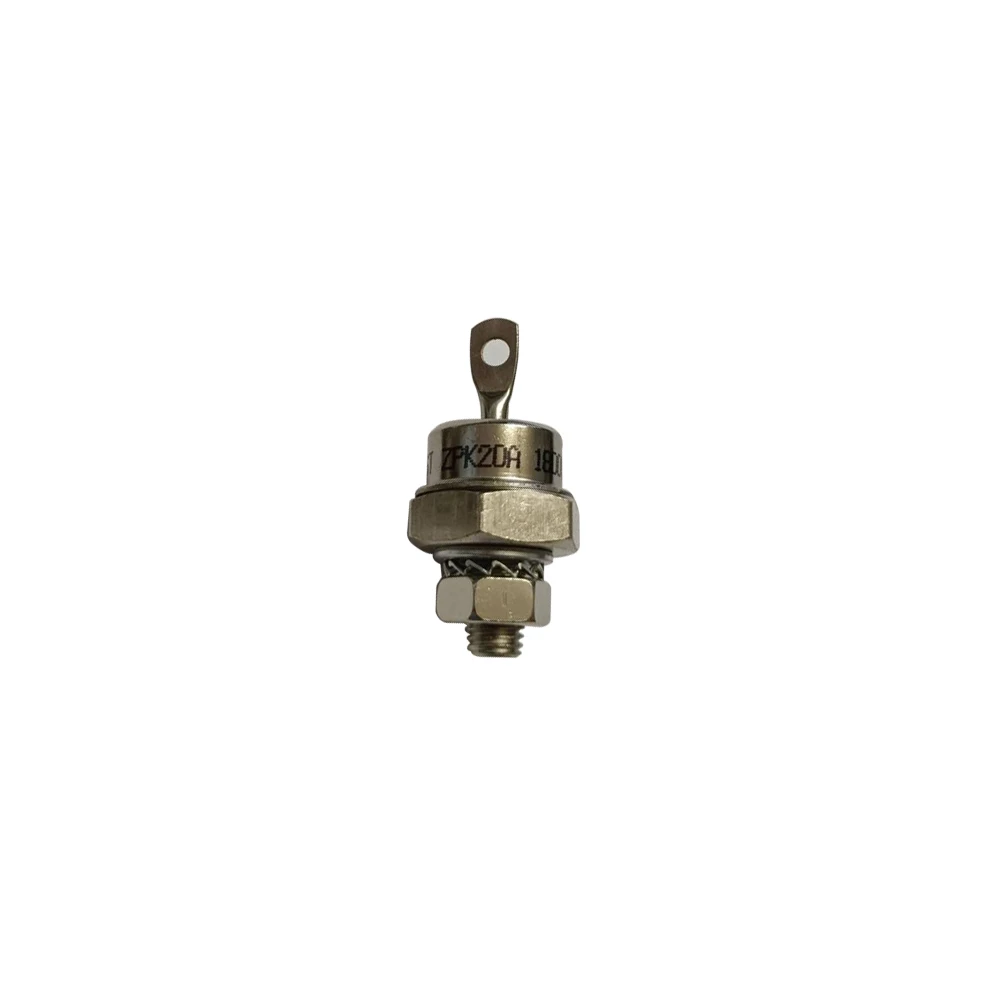

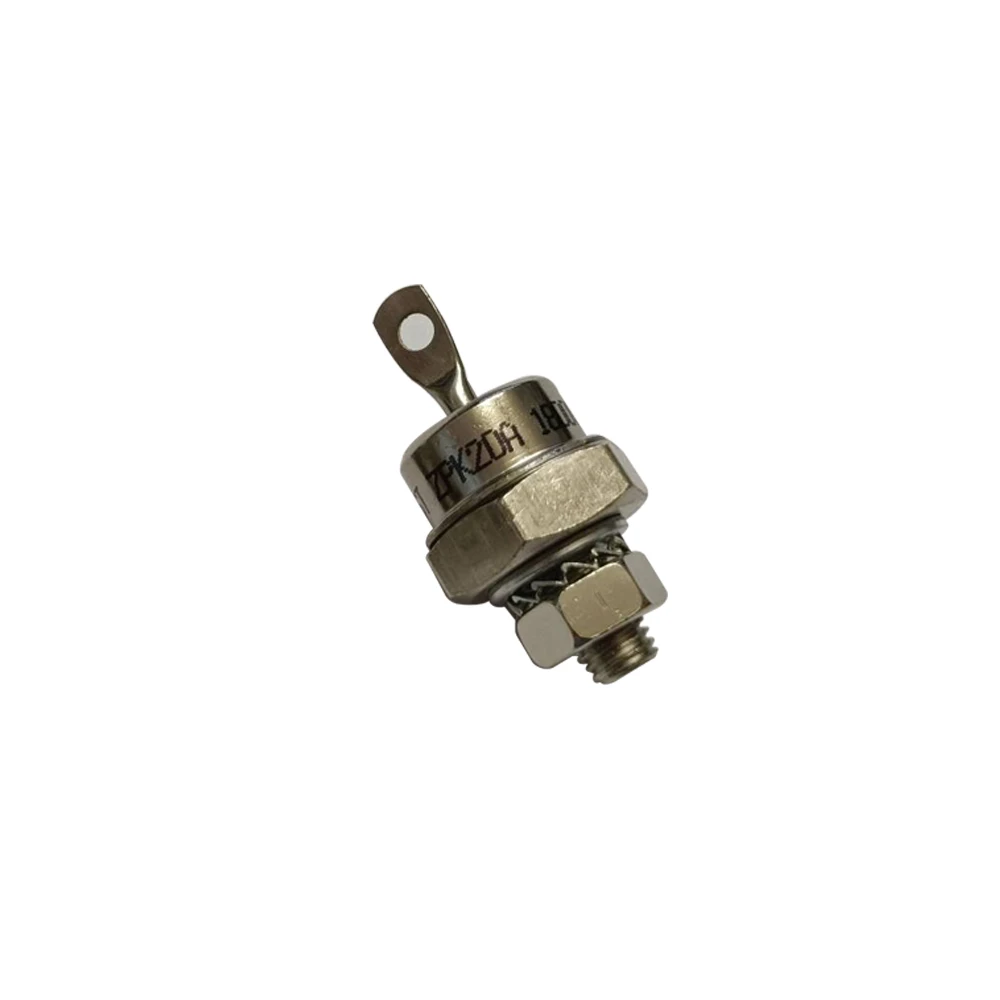

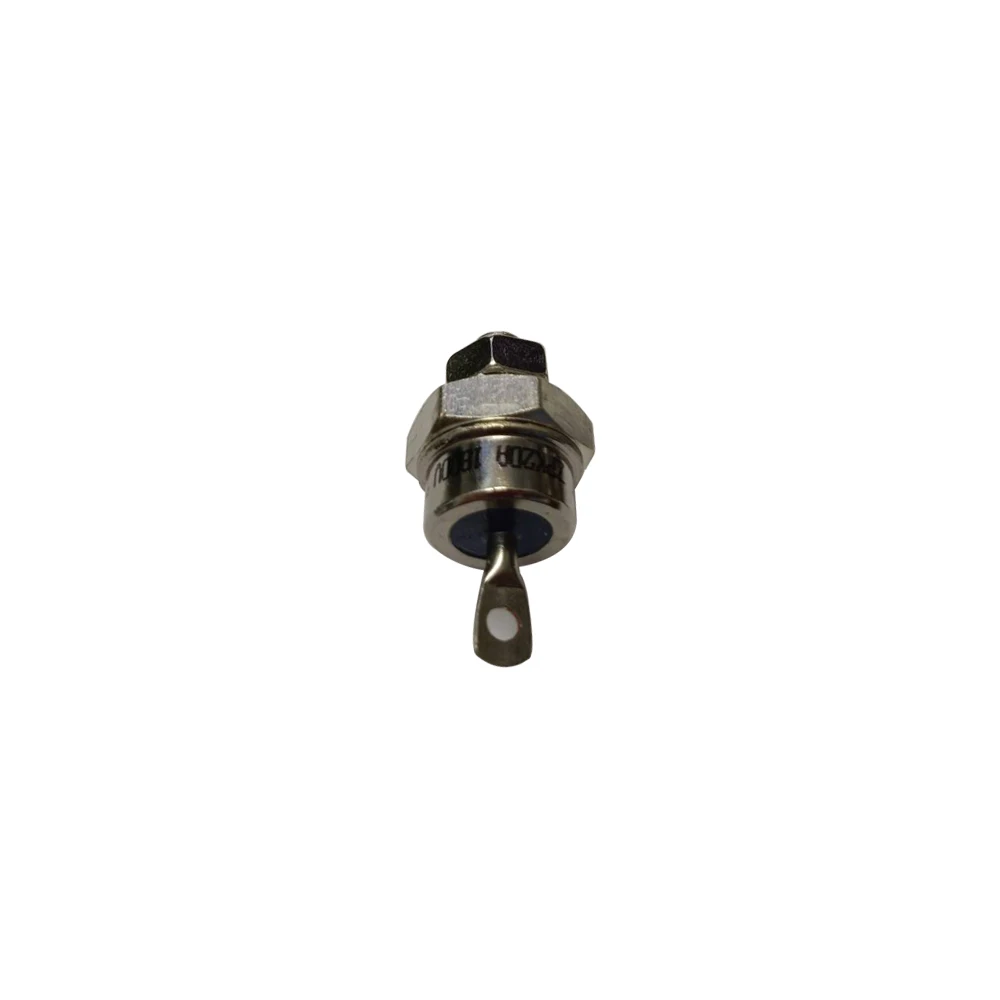

DO5 1800V Fast Recovery Diode Stud

Technical specifications

Customization guide

Adjust voltage and current ratings to meet specific power requirements. For instance, customize the diode’s reverse recovery time for applications needing faster switching (e.g., SMPS or motor drives).

Get inspired

Use the DO5 1800V diode to build robust power supplies for renewable energy systems or industrial machinery. Its fast recovery time ensures minimal energy waste, while the threaded base allows seamless integration into compact designs.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Material: Aluminum alloy construction improves heat dissipation by 30% compared to standard diodes, enabling stable operation at 150°C.
   • Fast Recovery Time: The Pro model’s <3μs recovery time outperforms industry benchmarks by 50%, ideal for high-frequency inverters.
   • Voltage Handling: The 1800V rating exceeds typical industrial standards, safeguarding circuits in harsh power environments.

2. Version Selection Guide:

   • Base Model: Suitable for standard applications (e.g., low-power SMPS) where cost-efficiency is prioritized.
   • Advanced Model: Optimal for mid-range industrial equipment requiring 5A current handling and faster switching (e.g., motor drives).
   • Pro Model: Designed for extreme scenarios like renewable energy systems or high-voltage inverters, where peak performance and durability are critical.

With its 1800V rating, the Pro model ensures safe operation in high-stress environments, while its low thermal resistance (2°C/W) maintains efficiency even under continuous load. Pair this with fast recovery capabilities to achieve seamless integration into next-gen power electronics.

Note: Comparative values assume industry-standard benchmarks (e.g., 1200V diodes with 10μs recovery time).
