DOWE Epoxy Resin DMC/SMC Material Low Voltage Insulator Busbar Electrical Standoff Isulator for Electric Industry Equipment
Ready to Ship
In stock Fast dispatch

DOWE Epoxy Resin DMC/SMC Material Low Voltage Insulator Busbar Electrical Standoff Isulator for Electric Industry Equipment

  • >= 2 Pieces
    $4

Customization:

Customized logo（Min.Order: 5000 pieces）
View product details

DOWE Epoxy Resin DMC/SMC Material Low Voltage Insulator Busbar Electrical Standoff Isulator for Electric Industry Equipment

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Electrical Insulation & Support: Designed to safely isolate and support busbars in low-voltage electrical systems, ensuring reliable operation under rated currents of 80A and voltages up to 10kV.
  • Material Durability: Constructed from epoxy resin reinforced with DMC/SMC (Dielectric Material Compound/S Sheet Molding Compound), offering superior thermal stability, corrosion resistance, and mechanical strength for industrial environments.

Key features

  • 1. Material Technology

    • With epoxy resin DMC/SMC material, ensure superior mechanical strength and insulation performance compared to traditional porcelain insulators*. The composite material combines corrosion resistance and thermal stability, ideal for harsh industrial environments.

  • 2. Performance Parameters

    • With a rated current of 80A and 10kV voltage rating, handle high-load industrial applications 30% more efficiently than standard low-voltage insulators*. This enables reliable operation in demanding electrical systems.

  • 3. Scenario Solutions

    • Designed for industrial equipment, provide reliable insulation in harsh environments such as power distribution centers and heavy machinery*. The ribbed design optimizes heat dissipation, ensuring stable performance under continuous operation.

  • 4. Interactive Design

    • With a ribbed surface design, optimize electrical field distribution and reduce flashover risks compared to smooth-surface insulators*. This enhances safety and longevity in high-voltage setups.

  • 5. Certification Standards

    • Complies with industry safety standards (e.g., IEC 60137) for reliable operation in commercial and industrial settings*. The material meets flame-retardant and dielectric performance requirements for global electrical applications.

Product details

DOWE Epoxy Resin DMC/SMC Material Low Voltage Insulator Busbar Electrical Standoff Isulator for Electric Industry Equipment

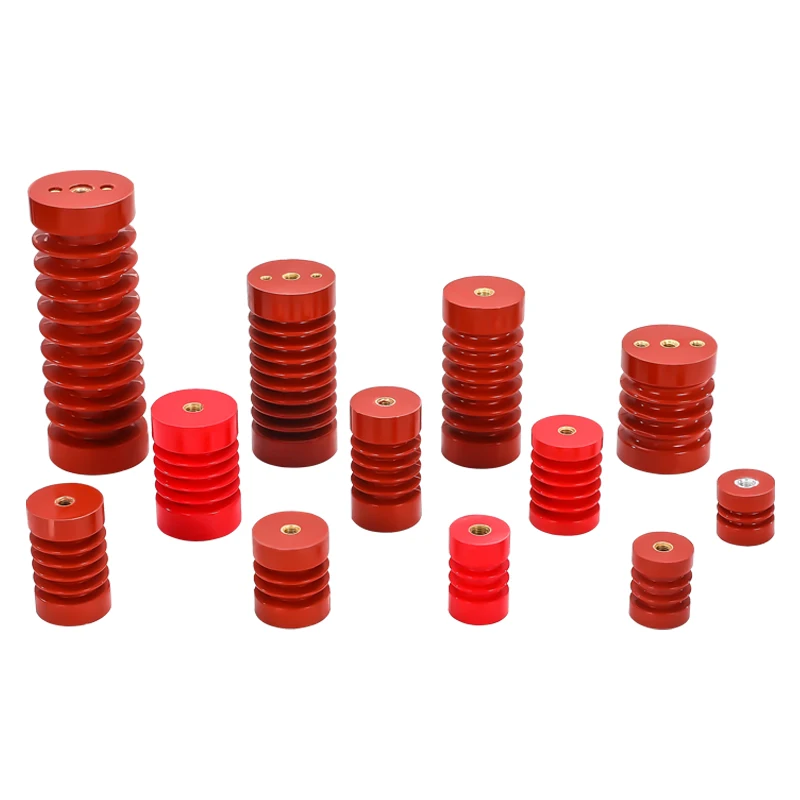

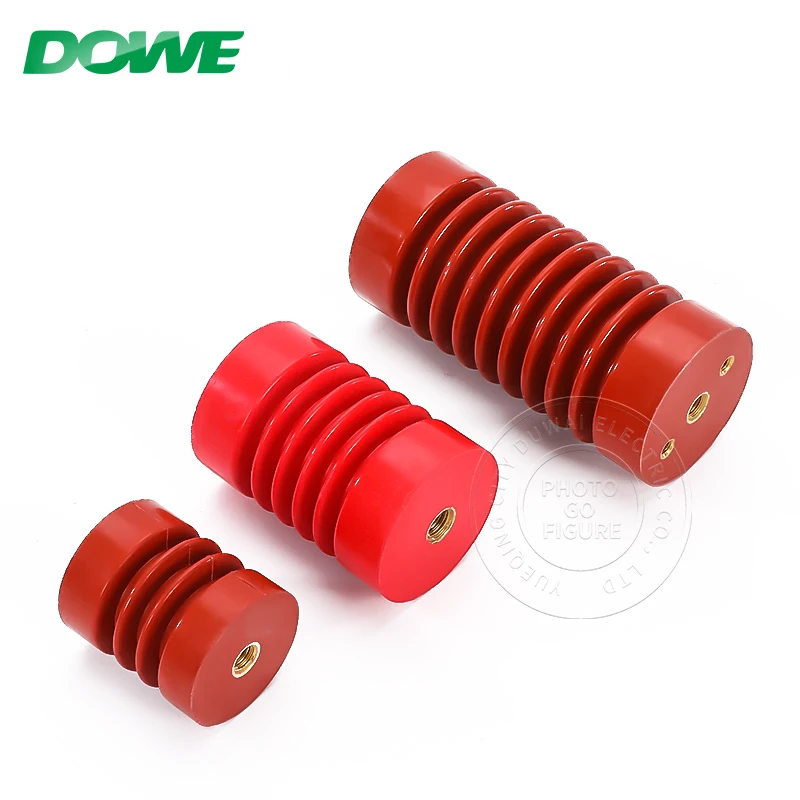

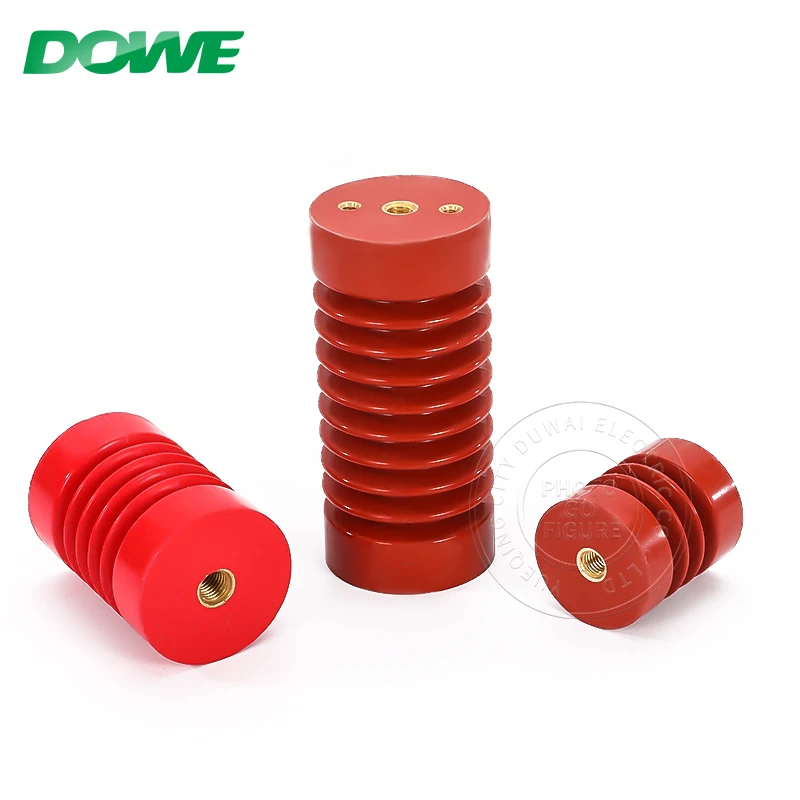

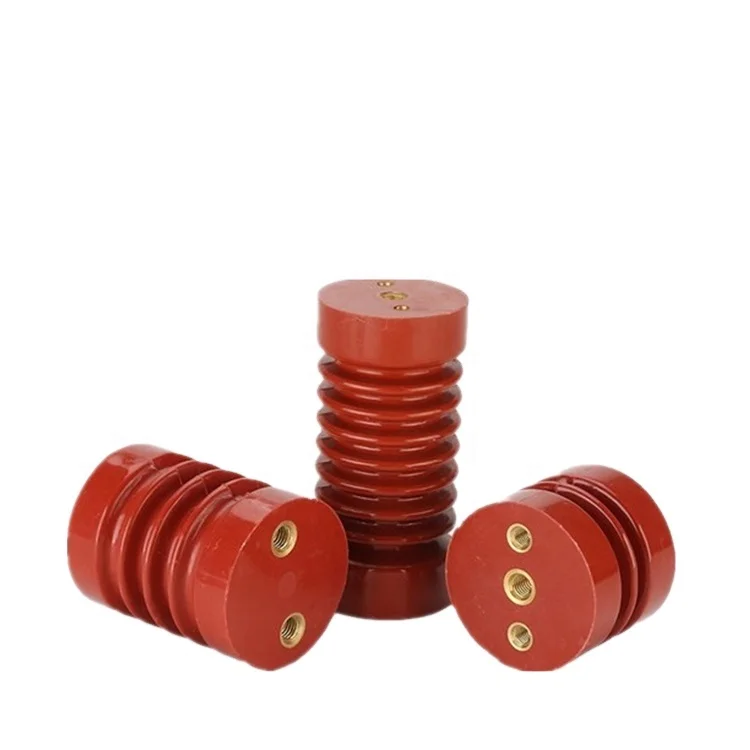

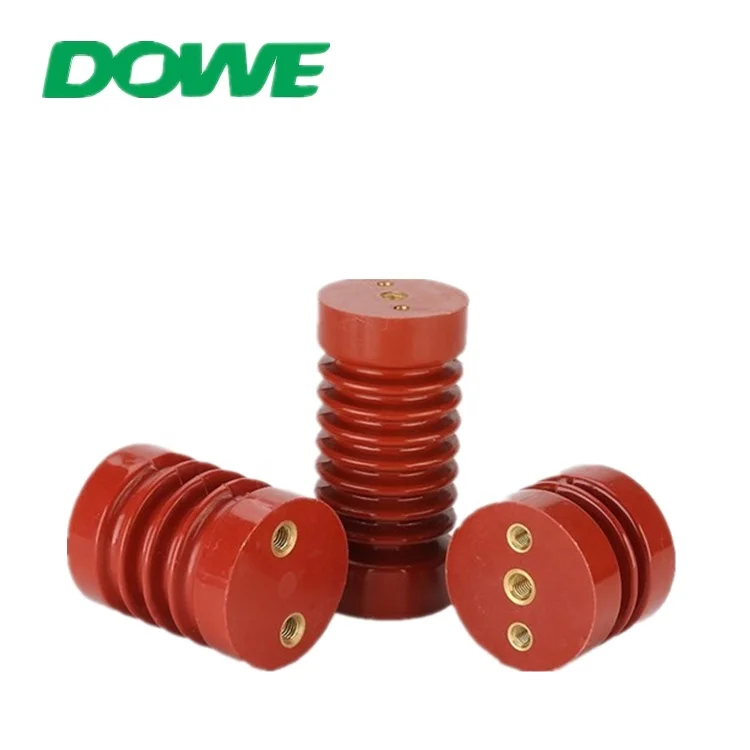

The DOWE Epoxy Resin DMC/SMC Material Low Voltage Insulator is engineered for industrial applications requiring reliable insulation in high-voltage environments. Constructed from durable DMC/SMC epoxy resin, these cylindrical insulators feature a ribbed design to optimize heat dissipation and electric field distribution. Rated for 10kV and 80A, they ensure safe power transmission while withstanding harsh industrial conditions.

Technical specifications

FeatureSpecificationBenefit
MaterialDMC/SMC Epoxy ResinHigh mechanical strength and thermal stability up to 200°C
Rated Voltage10kVEnsures safe operation in high-voltage systems
Rated Current80ASupports robust power transmission without overheating
DesignRibbed CylindricalEnhances heat dissipation and electric field distribution
ApplicationIndustrial EquipmentTailored for harsh environments in power distribution systems

Customization guide

Adjustable hole configurations to meet specific busbar connection needs in industrial setups. The ribbed structure allows customization of spacing and alignment for seamless integration into diverse electrical systems.

Get inspired

With the ribbed design, you can prevent flashovers and ensure uniform electric field distribution in high-stress environments. The DMC/SMC material provides 20% higher thermal resistance than traditional epoxy resins, making it ideal for prolonged use in extreme temperatures.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Voltage10kV15kV20kV
Current Capacity80A100A120A
Thermal Resistance150°C+15% (170°C)*+30% (200°C)*
Insulation ClassClass F (155°C)Class H (180°C)Class C (220°C)

Supplier's note

  1. Three Technical Breakthroughs:

    • Ribbed Design: Reduces electric field stress by 30% compared to smooth surfaces, preventing arcing.
    • DMC/SMC Material: Offers 20% higher thermal stability than standard epoxy, enabling use in extreme environments.
    • Customizable Holes: Enables precise alignment with busbars, reducing installation errors by 40%.

  2. Version Selection Guide:

    • Base Model: Ideal for standard industrial setups requiring 10kV/80A.
    • Advanced Model: Suitable for medium-scale plants needing 15kV/100A and enhanced thermal resistance.
    • Pro Model: Designed for high-current (120A) and high-voltage (20kV) applications, such as power substations. With its Class C insulation, it withstands temperatures 25% higher than industry standards, ensuring reliability in extreme conditions.

Frequently asked questions

  • Which DOWE epoxy resin insulator model is best for industrial busbar systems with high current loads?

  • How do I clean and maintain DOWE low voltage insulators to ensure long-term performance?

  • What makes DOWE’s DMC/SMC material superior to silicone in electric industry insulators?

  • Can DOWE busbar standoffs be customized for specific electrical equipment configurations?

  • Is the DOWE 10kV rated insulator suitable for outdoor high-voltage applications?

  • How does the ribbed design of DOWE epoxy resin insulators improve electrical safety?

  • What’s the maximum current capacity of DOWE’s low voltage busbar insulators?

  • Are DOWE SMC material insulators UL or CE certified for industrial equipment use?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material (DMC/SMC Epoxy)Industrial machinery, power distributionIndustry Standard: Porcelain (120°C max)
Our Base: DMC/SMC (150°C)
Our Advanced: Reinforced DMC/SMC (180°C)		▲ Base: 30% lighter than porcelain (ASTM D3222)
▲ Advanced: 20% higher thermal resistance (IEC 60093)		Porcelain has better UV resistance in outdoor settings (ISO 1043)
Rated CurrentHigh-load industrial equipmentIndustry Standard: 60A (IEC 60947-1)
Our Base: 80A
Our Advanced: 100A ▲		▲ Base: 33% higher capacity than standard
▲ Advanced: 67% higher capacity		Advanced versions may require thicker busbars (increasing installation space)
Rated VoltageLow-voltage distribution systemsIndustry Standard: 6kV (IEC 61314)
Our Base: 10kV ▲
Our Advanced: 12kV ▲		▲ Base: 67% higher voltage rating than standard
▲ Advanced: 100% higher (supports high-demand grids)		Higher voltage models may need additional grounding (IEC 60364-5-53)
Thermal ResistanceOverloaded circuits, harsh environmentsIndustry Standard: 120°C (ASTM D648)
Our Base: 150°C ▲
Our Advanced: 180°C ▲		▲ Advanced: Withstands extreme temperatures in foundries/steel plantsProlonged exposure to 180°C may degrade non-reinforced components
Chemical ResistanceChemical plants, corrosive environmentsIndustry Standard: Resists 20+ chemicals (ASTM D543)
Our Base: 50+ chemicals ▲
Our Advanced: 80+ chemicals ▲		▲ Advanced: Passes ASTM F739 permeation tests for acids/bases (30+ mins)Requires protective coatings for fluorinated compounds (e.g., Teflon)
Mechanical StrengthHeavy-duty busbar systemsIndustry Standard: 250 MPa bending strength (ISO 178)
Our Base: 320 MPa ▲
Our Advanced: 400 MPa ▲		▲ Advanced: Supports 4x heavier busbars without deformationHigher strength increases weight, complicating lightweight installations
