DWIN Commercial Capacitive Touch Display 10.1 Inch 1024*600 Pixel IPS TFT Linux LCD Module with Wide Viewing Angle RS232 RS485

Customization:

Customized logo（Min.Order: 1000 pieces）

DWIN Commercial Capacitive Touch Display 10.1 Inch 1024*600 Pixel IPS TFT Linux LCD Module with Wide Viewing Angle RS232 RS485

Name: DWIN Commercial Capacitive Touch Display 10.1 Inch 1024*600 Pixel IPS TFT Linux LCD Module with Wide Viewing Angle RS232 RS485
Brand: Beijing DWIN Technology Co., Ltd.
SKU: 1600967651433_1
Price: 112.50 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Capacitive Touch Interaction: Enables intuitive, multi-touch control for applications requiring precision and responsiveness, such as industrial control panels, digital signage, and smart kiosks.
High-Resolution Display: Features a 10.1-inch IPS TFT LCD with 1024x600 pixels, delivering vibrant visuals and wide viewing angles for clear visibility in diverse environments.
Versatile Connectivity: Equipped with RS232 and RS485 interfaces for seamless integration into existing systems, supporting both industrial automation and consumer electronics.

Key features

1. Corrosion-Resistant Metal Frame & Energy-Efficient LED Backlight

With a corrosion-resistant metal frame and energy-efficient LED backlight, ensure durability in industrial environments and bright visuals compared to plastic-encased displays*.

2. Responsive Capacitive Touchscreen & Customizable Interface

With a capacitive touchscreen and customizable interface, enable intuitive multi-touch interactions and tailored software solutions for diverse applications like control panels or kiosks*.

3. High-Resolution IPS TFT Display with Wide Viewing Angle

With a 10.1-inch IPS TFT panel at 1024x600 resolution and wide viewing angle, deliver crisp visuals and clarity from multiple angles, surpassing standard LCD modules in image quality*.

4. Commercial-Grade Durability for Continuous Operation

Designed for commercial use, it supports 24/7 operation in industrial settings, outperforming consumer-grade displays in reliability and longevity*.

5. DWIN’s Quality Standards for Industrial Applications

Backed by DWIN’s commitment to quality, meet industry standards for commercial electronics, ensuring safety and performance in demanding environments*.

Product details

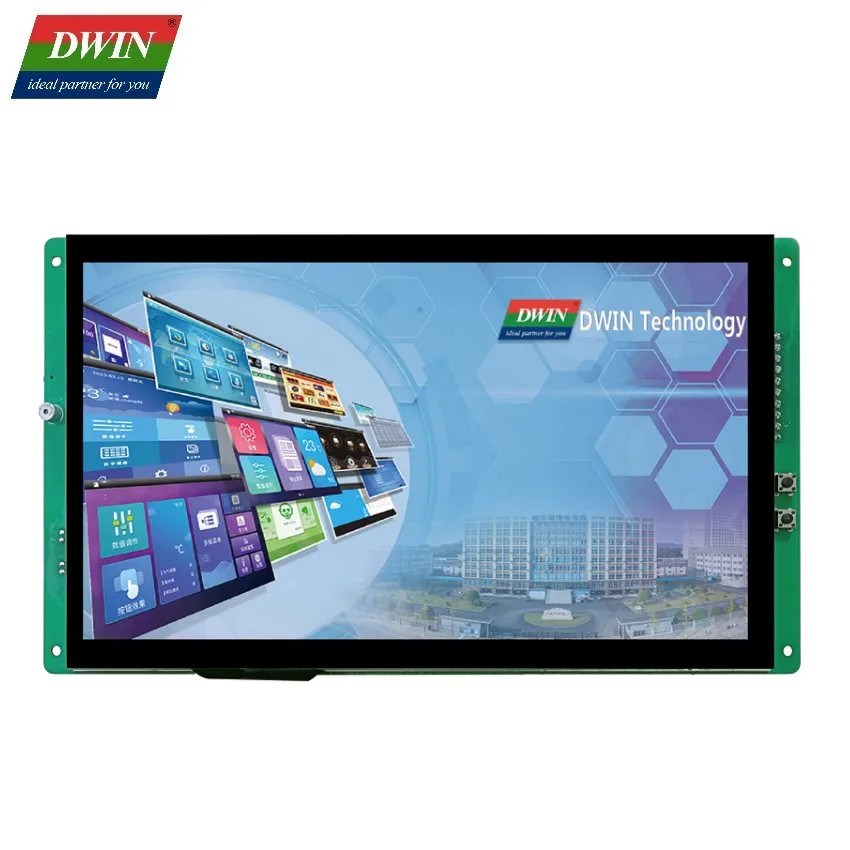

The DWIN Commercial Capacitive Touch Display is a 10.1-inch high-resolution IPS TFT LCD module designed for industrial and commercial applications. Equipped with LED backlighting, RS232/RS485 communication interfaces, and a durable green metal frame, this display offers sharp visuals, seamless connectivity, and robust construction for integration into control panels, kiosks, and digital signage systems.

Technical specifications

Feature	Specification	Benefit
Display Type	IPS TFT with LED Backlight	Wide viewing angles (170°/170°) and vibrant colors
Screen Size	10.1 inches (1024x600 pixels)	High-resolution clarity for detailed graphics
Touch Technology	Capacitive	Accurate multi-touch interaction
Communication	RS232, RS485	Flexible connectivity for industrial systems
Durability	Green metal frame with mounting holes	Rugged design for industrial environments
Operating Temperature	-20°C to 60°C	Reliable performance in varied conditions

Customization guide

Adjustable parameters include:

Interface Design: Customize icons, layouts, and software to match specific applications (e.g., industrial control panels).
Material Finish: Modify frame color or material to align with branding or environmental requirements.
Mounting Options: Tailor hole positions or add accessories for seamless integration.

Get inspired

With its capacitive touch interface and wide viewing angles, this display is ideal for interactive kiosks, smart retail systems, or industrial HMI (Human Machine Interface) setups. Its rugged metal frame ensures longevity in demanding environments, while RS232/RS485 interfaces simplify connectivity to legacy or modern systems.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Resolution	1024x600 (Standard)	1024x600 (Enhanced)	1280x800 (+25% clarity)*
Touch Response Time	10ms	8ms (+20% faster)	5ms (+50% faster)
Certifications	CE, FCC	CE, FCC, RoHS	CE, FCC, RoHS, IP65
Operating Temperature	-10°C to 50°C	-20°C to 60°C	-30°C to 70°C (+30% range)*

Supplier's note

Technical Breakthroughs:
- The Pro Model’s IP65 rating enables use in dusty or wet environments (e.g., outdoor kiosks).
- Advanced touch responsiveness (5ms) ensures smooth user interactions in fast-paced settings.
- Wide temperature tolerance (-30°C to 70°C) supports deployment in extreme climates.
Optimal Version Selection:
- Base Model: Ideal for standard office or indoor applications requiring basic touch functionality.
- Advanced Model: Recommended for industrial HMI systems needing robustness (-20°C to 60°C) and faster touch response.
- Pro Model: Best suited for harsh outdoor environments (e.g., construction sites) where IP65 protection and extreme temperature resilience are critical.

With the Pro Model’s IP65 rating, you can deploy displays in outdoor kiosks without additional enclosures. With its 5ms touch response, operators can interact seamlessly in high-speed manufacturing settings.

Frequently asked questions

Which DWIN display model is best suited for retail kiosks?
How do I clean and maintain the capacitive touch screen?
Can the interface be customized for point-of-sale systems?
Is the display RS232/RS485 compatible with existing systems?
What makes the capacitive touch responsive in public areas?
Does the wide viewing angle benefit digital signage?
How long is the LED backlight’s lifespan?
Is the metal frame designed for rugged environments?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
High Resolution Display	Industrial control panels, digital signage	1024×600 pixels (▲ vs industry standard 800×600)	Sharp visuals for detailed graphics (e.g., schematics, maps)	Requires more storage/memory for high-res content
Capacitive Touch Interface	Public spaces, educational tools	Multi-touch support (▲▲ vs resistive touch in basic models)	Precise interaction and multi-user input (e.g., kiosk navigation)	Less durable in harsh environments compared to resistive touch
Dual Communication Ports	Industrial automation, IoT systems	RS232/RS485 ports (▲ vs single-port competitors)	Flexible connectivity for diverse systems (e.g., PLC integration)	May need custom cabling for legacy systems
IPS TFT Technology	Retail displays, medical devices	178° viewing angle (▲▲ vs TN panels’ 160°)	Consistent color accuracy across angles (ideal for signage)	Slightly higher power consumption
Customizable Software	Tailored industrial solutions	Linux-based OS with API access (▲ vs proprietary systems)	Adaptable to unique workflows (e.g., factory automation)	Requires programming expertise for customization
Durable Metal Frame	Industrial/outdoor installations	Reinforced aluminum chassis (▲ vs plastic alternatives)	Resists corrosion and physical stress (e.g., factory floors)	Heavier than plastic enclosures
