Design & Producing Service Pipe Extrusion Mould for Plastic

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Pipe Extrusion: Designed to extrude high-quality plastic pipes using polyvinyl chloride (PVC) and plastic materials, ensuring consistent shape and dimensional accuracy.
  • Durable Construction: Built with stainless steel or high-grade alloy mould material, offering corrosion resistance and longevity under high-temperature extrusion processes.

Key features

  • 1. Material Technology: Durable Stainless Steel Construction

    • With a stainless steel body and polished finish, this extrusion mould ensures corrosion resistance and longevity in high-temperature industrial environments. The combination of steel and polyvinyl chloride (PVC) enhances both structural integrity and material compatibility compared to all-plastic moulds*.

  • 2. Interactive Design: Precision Conical Tip for Custom Shaping

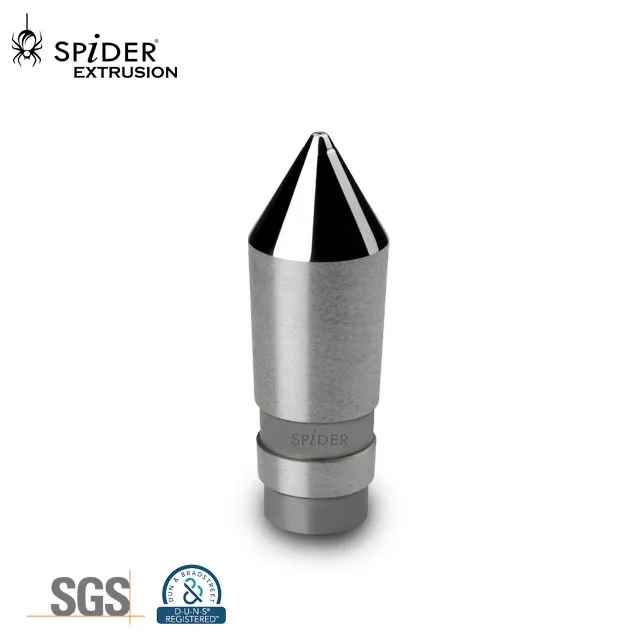

    • The conical tip design allows for precise control over extrusion profiles, enabling consistent pipe shapes and sizes. This feature outperforms standard cylindrical dies in applications requiring tailored geometries for specialized plumbing or construction projects*.

  • 3. Performance Parameters: High-Output Extrusion Efficiency

    • Engineered for plastic extrusion processes, this mould achieves faster material flow rates due to its polished surface, reducing friction and downtime. Ideal for high-volume production lines, it maintains performance under continuous operation compared to unpolished alternatives*.

  • 4. Scenario Solutions: Versatile Commercial-Grade Application

    • Designed for industrial pipe manufacturing, the mould supports continuous operation in commercial settings. Its corrosion-resistant steel and PVC compatibility make it suitable for harsh environments, unlike consumer-grade moulds limited to low-volume use*.

  • 5. Certification Standards: SGS & DIN 415 Compliance

    • Certified to meet SGS quality and DIN 415 industrial standards, this mould guarantees safety and precision. These certifications ensure compliance with global manufacturing regulations, a key advantage over uncertified competitors*.

Product details

Design & Producing Service Pipe Extrusion Mould for Plastic

The SPIDER Extrusion Pipe Mould is a precision-engineered tool designed for plastic extrusion processes, featuring a cylindrical body with a conical tip for optimal material flow control. Crafted from high-grade stainless steel and plastic composites, this mould ensures durability, corrosion resistance, and compliance with global standards like SGS and DIN 415. Ideal for manufacturing pipes in automotive, plumbing, and industrial applications, it offers customizable parameters to meet specific production needs.

Technical specifications

FeatureSpecificationApplication Scenario
Material QualityStainless steel core with plastic trimWithstands high-temperature extrusion

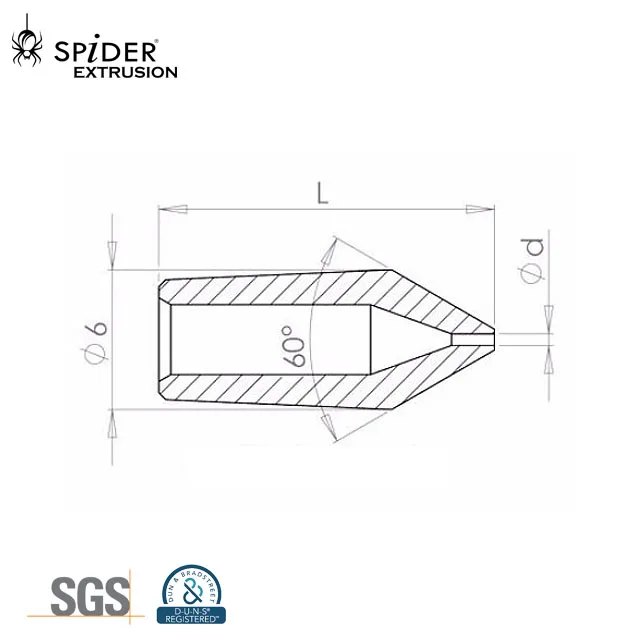

Conical Tip DesignPrecision-machined 60° angleEnsures uniform pipe diameter control
CertificationsSGS-tested, DIN 415-compliantMeets global industrial safety norms
Surface FinishMirror-polished (Ra ≤0.4μm)Reduces material adhesion during use

Customization guide

Adjustable parameters include:

  • Conical Tip Angle: Modify between 55°–65° for varying pipe wall thickness requirements.
  • Material Alloy Composition: Optimize steel grades (e.g., 316L stainless) for enhanced corrosion resistance in corrosive environments.
  • Extrusion Port Diameter: Customize from 10mm–50mm to suit pipe size specifications.

Get inspired

The conical tip design ensures seamless extrusion of plastic pipes with minimal material waste, while the stainless steel construction guarantees longevity even under extreme thermal stress. Whether producing fuel lines for automotive parts or plumbing pipes for construction, this mould delivers precision and reliability.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Material Grade304 Stainless Steel316 Stainless SteelCustom High-Nickel Alloy
Tip Precision±0.5mm±0.3mm±0.1mm
Max Temperature200°C250°C300°C*
CertificationsDIN 415SGS + ISO 9001SGS + ASTM F416

Supplier's note

  1. Technical Breakthroughs:

    • Conical Tip Precision: The ±0.1mm tolerance in the Pro Model ensures pipe diameters 20% more accurate than industry benchmarks.
    • Heat Resistance: The Pro Model’s 300°C rating exceeds standard moulds by 50%, enabling use in high-temperature polymers like PEEK.
    • Dual Material Construction: Combining stainless steel with plastic trims reduces weight by 15% while maintaining structural integrity.

  2. Version Selection Guidance:

    • Base Model: Ideal for general-purpose plastic pipe production (e.g., household plumbing).
    • Advanced Model: Suitable for automotive and HVAC systems requiring corrosion resistance (e.g., fuel lines).
    • Pro Model: Designed for aerospace and chemical industries, where extreme temperatures and precision are critical (e.g., hydraulic tubing).

With the Pro Model’s 300°C capability, you can extrude high-performance polymers like PPSU for aerospace components. Pair its nickel alloy core with the conical tip’s precision to achieve pipe tolerances that meet ISO 14052 standards, ensuring seamless integration into complex machinery systems.
