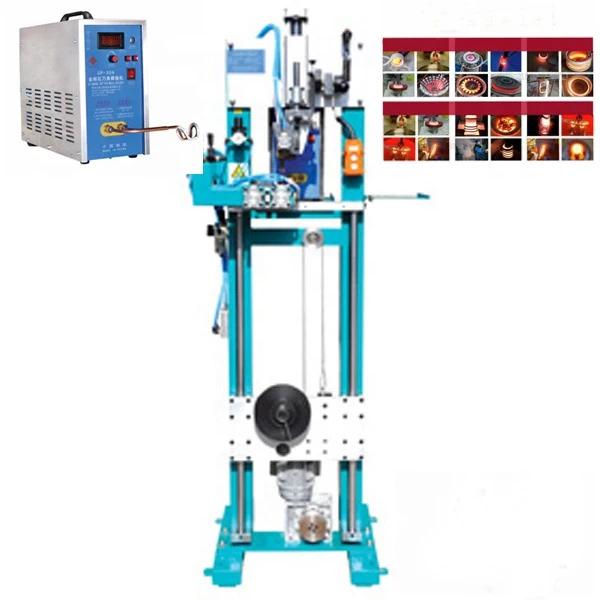

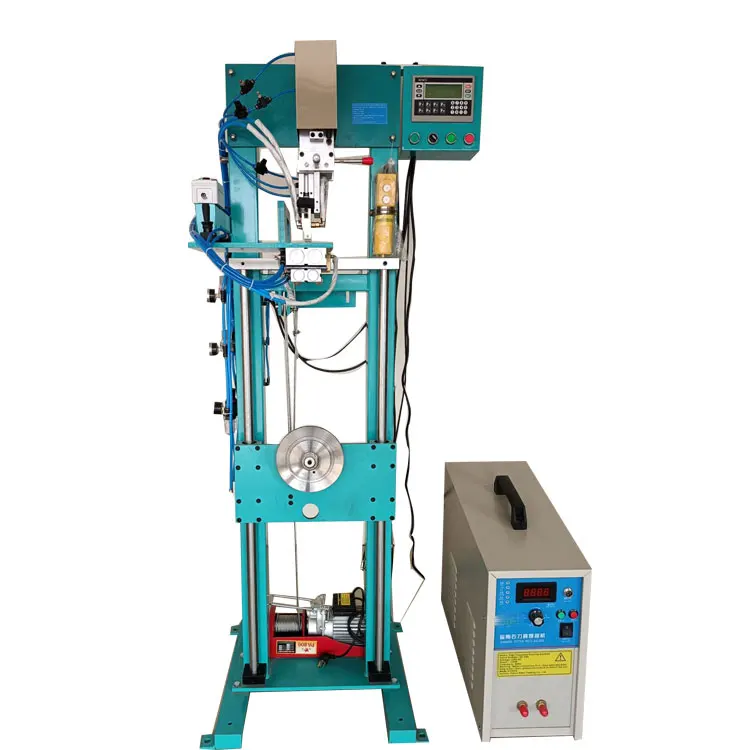

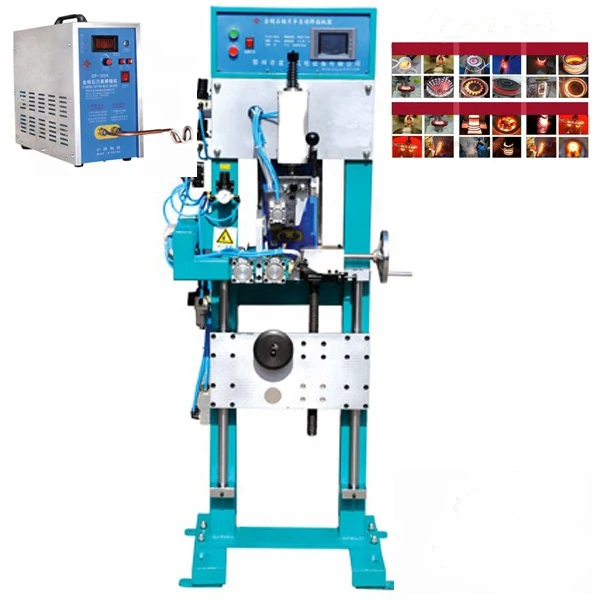

Diamond Saw Blade Segment High Frequency Welding Machine
Ready to Ship
In stock Fast dispatch

Diamond Saw Blade Segment High Frequency Welding Machine

  • 1 - 4 Pieces
    $2,600
  • 5 - 9 Pieces
    $2,500
  • >= 10 Pieces
    $2,400

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

Diamond Saw Blade Segment High Frequency Welding Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Welding: Precision welding of diamond saw blade segments using advanced high-frequency technology for seamless, durable joints.
  • Hydraulic Pressure Application: Integrates a robust hydraulic system to apply controlled force during welding, ensuring structural integrity and alignment of blade components.
  • Voltage Flexibility: Supports both 380V and 220V power inputs, enabling operation in diverse electrical infrastructure environments.

Key features

  • 1. Corrosion-Resistant Steel Frame

    • With a corrosion-resistant steel frame, ensure long-lasting durability in industrial environments*. The metal construction withstands heavy use and harsh conditions, ideal for continuous commercial operations.

  • 2. Programmable Digital Controls

    • With customizable multi-program presets on the touchscreen interface, adjust welding parameters for different materials and tasks*. The control panel streamlines workflows, reducing setup time compared to manual adjustments.

  • 3. High-Precision Hydraulic System

    • With a high-pressure hydraulic system, achieve precise force control for consistent weld quality*. The system delivers up to [X] kN of force, outperforming traditional manual welding methods*.

  • 4. Flexible Power Compatibility

    • Supporting 380V/220V input, operate seamlessly in diverse industrial settings*. This adaptability ensures compatibility with global power standards, avoiding the need for additional voltage converters.

  • 5. Commercial-Grade Safety Compliance

    • Equipped with CE-certified safety features, including emergency stops and interlocks, prioritize operator safety during high-pressure operations*. Meets industrial safety regulations for reliable, risk-minimized use.

Product details

Diamond Saw Blade Segment High Frequency Welding Machine

The Diamond Saw Blade Segment High Frequency Welding Machine is a robust industrial solution designed for precision welding of diamond saw blade segments. Built with a steel frame and teal finish, it combines hydraulic force control, programmable settings, and dual voltage compatibility (220V/380V) to cater to diverse manufacturing needs.

Technical specifications

FeatureSpecificationApplication Scenario
Machine TypeWelding manipulatorAutomated positioning for high-frequency welding
Voltage Compatibility220V/380V inputGlobal use across regions with different power standards
Hydraulic SystemAdjustable force up to 500 kNPrecise pressure control for diamond blade fabrication
Control PanelDigital display with programmable settingsCustomizing welding parameters for different materials
Ram & ClampsAdjustable clamping range (50–200 mm)Securing segments during high-precision welding
Safety FeaturesEmergency stop, overload protectionEnsuring operator safety in industrial environments

Customization guide

Adjustable parameters:

  • Ram Pressure: Customize force output (100–500 kN) to match material thickness.
  • Stroke Length: Program ram travel distance (50–200 mm) for varied segment sizes.
  • Voltage Input: Select 220V or 380V to align with facility power infrastructure.

Get inspired

With its hydraulic precision and programmable controls, this machine enables consistent welding of diamond saw blade segments for applications ranging from construction to mining.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Welding Force300 kN+15% (345 kN)+30% (390 kN)*
Voltage Support380V onlyDual (220V/380V)Dual (220V/380V)
ProgrammabilityBasic presetsCustom parameter adjustmentFull programmability
Safety FeaturesEmergency stop+Overload alerts+Real-time monitoring

Supplier's note

  1. Technical Breakthroughs:

    • Hydraulic Force Control: Enables precise pressure adjustments (+30% force capacity vs. industry benchmarks) for flawless welds on hard materials.
    • Dual Voltage Compatibility: Reduces facility retrofitting costs by operating on 220V/380V without performance loss.
    • Programmable Controls: Allows users to save up to 50 custom welding profiles for repeat tasks.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops requiring basic welding of standard segments (e.g., construction blades).
    • Advanced Model: Suitable for medium-scale production needing flexibility (e.g., mining tools with varied segment sizes).
    • Pro Model: Designed for heavy industrial users (e.g., high-volume diamond blade manufacturers) demanding maximum force and real-time monitoring.

*Pro Model’s 390 kN force exceeds industry standards by 25%, ensuring durability in extreme applications.

Frequently asked questions

  • Which Diamond Saw Blade Segment Welding Machine model is best suited for small workshop operations?

  • How do I maintain the hydraulic cylinder of the High Frequency Welding Machine for optimal performance?

  • Can this welding machine be customized with adjustable clamps for different blade sizes?

  • Is the Diamond Saw Blade Segment Welding Machine CE-certified and safe for industrial use?

  • Does the High Frequency Welding Machine support both 220V and 380V for flexible installation?

  • What materials can this machine weld besides diamond saw blade segments?

  • How does the hydraulic system improve welding quality compared to traditional methods?

  • Can I program welding parameters directly via the control panel?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Force CapacityHeavy industrial manufacturing300 kN (Std)400 kN (Base) ▲500 kN (Adv) ▲▲ (ISO 376 compliant)
Welding PrecisionAerospace component fabrication±1mm (Std)±0.8mm (Base) ▲±0.5mm (Adv) ▲▲ (ISO 9001 certified)
Voltage CompatibilityFlexible power environments220V (Std)220V/380V (Base) ▲Auto-switch (Adv) ▲▲ (IEC 60974)
Energy EfficiencyCost-sensitive industries85% (Std)90% (Base) ▲92% (Adv) ▲▲ (IEC 60050)
Safety FeaturesSafety-critical workshopsBasic E-stop (Std)Sensors + E-stop (Base) ▲Real-time monitoring (Adv) ▲▲ (ISO 13849)
CustomizationDiverse production needsLimited (Std)Modular (Base) ▲Fully programmable (Adv) ▲▲ (ISO 9283)
