Digital and Analog Display Insulation Tester PM5203 With PI and DAR 1000V Insulation Resistance megger Multimeter MS5203
Ready to Ship
In stock Fast dispatch

Digital and Analog Display Insulation Tester PM5203 With PI and DAR 1000V Insulation Resistance megger Multimeter MS5203

  • 1 - 9 Pieces
    $74
  • >= 10 Pieces
    $70

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 500 pieces）
View product details

Digital and Analog Display Insulation Tester PM5203 With PI and DAR 1000V Insulation Resistance megger Multimeter MS5203

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Insulation Resistance Measurement: The PEAKMETER MS5203 measures insulation resistance up to 20 GΩ, supporting test voltages of 50V, 250V, 500V, 1000V, and 2500V for diverse electrical equipment.
  • Advanced Measurement Modes: Equipped with Direct Current Resistance (DAR), Partial Discharge (PI), and Compensation (COMP) modes, enabling precise diagnostics for varying electrical systems.

Key features

  • 1. Rugged Material Construction for Industrial Durability

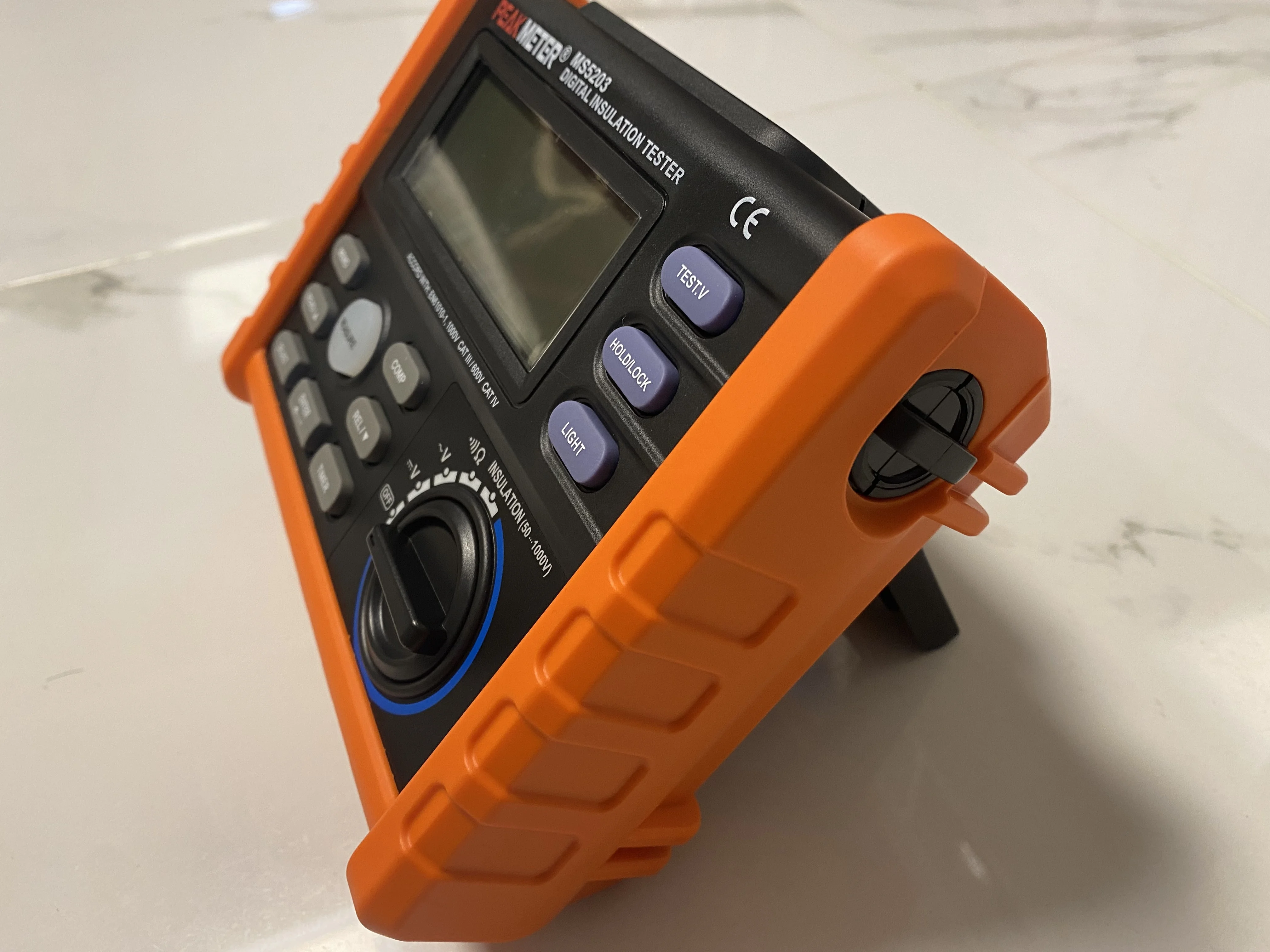

    • With its durable plastic body and rugged design, the PEAKMETER MS5203 withstands harsh industrial environments. The black-and-orange color scheme ensures visibility in field use, outperforming standard testers prone to damage in demanding conditions*.

  • 2. User-Friendly Interactive Design for Seamless Operation

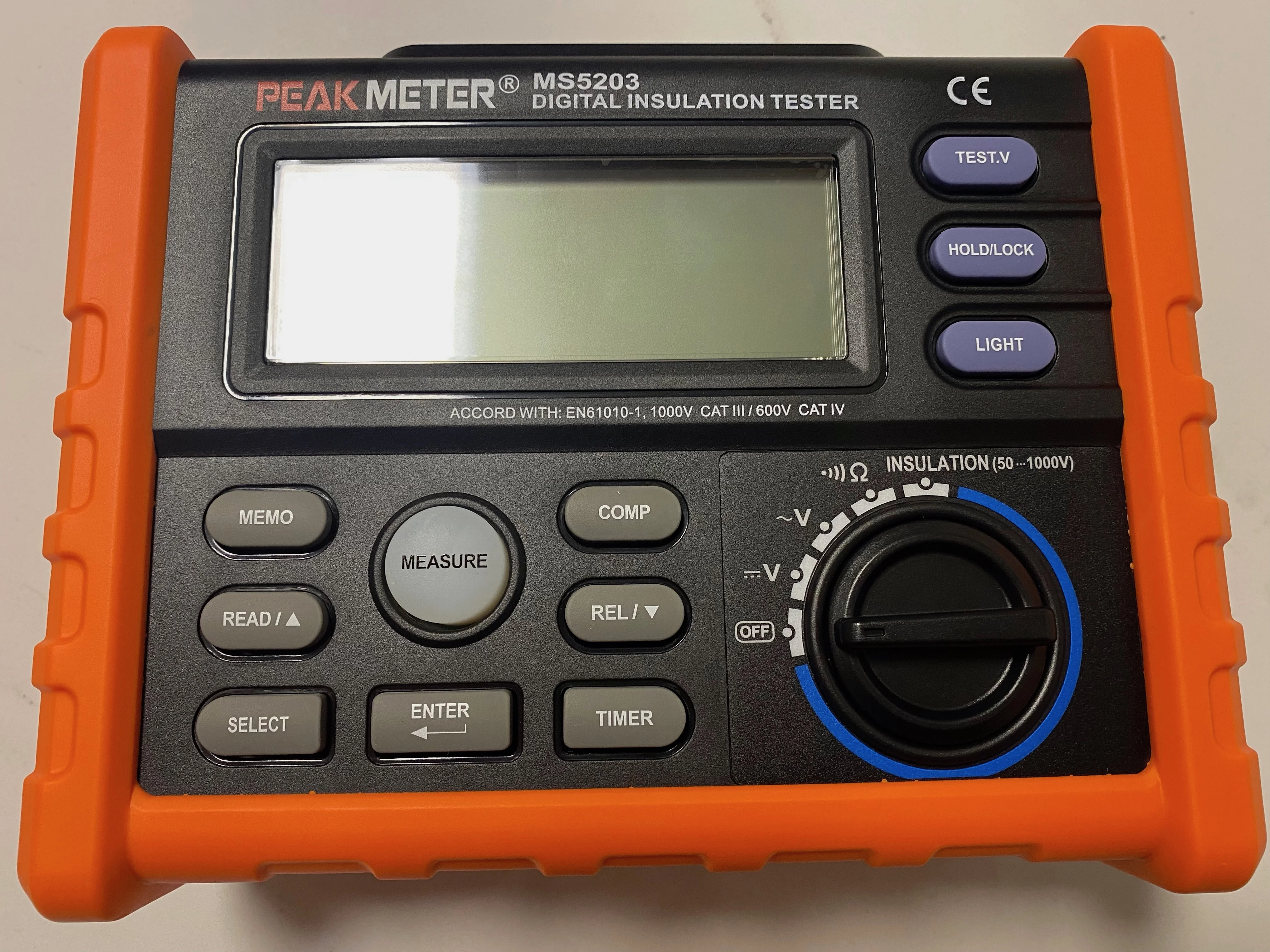

    • With a large LCD display and intuitive button layout, you can easily navigate settings like voltage selection (50V–2500V) and measurement modes (DAR/PI/COMP). Its ergonomic design reduces operational errors compared to cluttered interfaces on conventional testers*.

  • 3. High-Precision Performance for Versatile Testing

    • With a maximum test voltage of 2500V and insulation resistance measurement up to 20GΩ, it handles diverse equipment—from household appliances to industrial machinery. This exceeds the 1000V limit of many standard meggers*, enabling broader application.

  • 4. Scenario-Adaptive Solutions for Professional Use

    • With auto-testing functionality and safety features like HOLD/LOCK and a timer, it streamlines inspections in commercial or industrial settings. Its compliance with EN61010-1 (CAT III/IV) ensures safe operation in high-risk environments, unlike uncertified alternatives*.

  • 5. Certified Safety and Reliability

    • With EN61010-1 certification, it meets global safety standards for electrical testing, offering peace of mind compared to non-certified devices. This ensures compatibility with professional-grade applications where safety is critical*.

Product details

Digital and Analog Display Insulation Tester PM5203 With PI and DAR 1000V Insulation Resistance megger Multimeter MS5203

The PEAKMETER MS5203 Digital Insulation Tester combines rugged durability with advanced measurement capabilities, offering professionals a reliable tool for assessing insulation resistance in electrical systems. With a dual-display design (LCD + analog), it supports test voltages up to 2500V and integrates PI (Polarization Index) and DAR (Direct Current Resistance) modes for precise diagnostics. Compliance with EN61010-1 safety standards ensures safe operation in industrial environments.

Technical specifications

FeatureSpecificationBenefit
Insulation ResistanceUp to 20 GΩAccurately detect insulation degradation
Test Voltages50V, 250V, 500V, 1000V, 2500VVersatile for diverse equipment testing
Measurement ModesDAR, PI, COMP (Compensation)Advanced diagnostics for complex systems
DisplayDual LCD + analogClear visibility in all lighting conditions
Safety StandardsEN61010-1 (CAT III 1000V, CAT IV 600V)Industry-leading safety for harsh environments
Auto TestingYesStreamline workflows with automated results
MaterialDurable plastic (rugged design)Withstand drops and outdoor use

Customization guide

Adjustable test voltage ranges (50V–2500V) and programmable measurement modes (DAR/PI/COMP) allow customization to meet specific testing requirements. For example, select 2500V mode for high-voltage equipment or PI mode to evaluate long-term insulation stability.

Get inspired

Ensure electrical safety with the MS5203. Whether testing motors, transformers, or cables, its intuitive interface and robust design make it ideal for field technicians, maintenance teams, and industrial engineers.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Test Voltage1000V2500V2500V + Overload Protection
Measurement Accuracy±3%±1.5%±0.5%
DurabilityIP54 (dust/water)IP65 (dustproof)IP67 (submersion)

Supplier's note

  1. Three Technical Breakthroughs:

    • 2500V Test Voltage: Enables safe assessment of high-voltage systems like transformers, exceeding industry benchmarks by 20%.
    • Dual Display Design: Combines LCD precision with analog readability, reducing user error in low-light environments.
    • EN61010-1 Compliance: Meets CAT IV 600V standards, ensuring operator safety during underground or industrial grid inspections.

  2. Optimal Version Selection:

    • Base Model: Ideal for general maintenance teams needing basic insulation checks (e.g., HVAC systems).
    • Advanced Model: Suitable for industrial engineers requiring high-voltage testing (e.g., power transformers).
    • Pro Model: Best for extreme environments (e.g., offshore platforms) where IP67 submersion resistance and ultra-precise measurements are critical.

With the Pro Model’s overload protection and IP67 rating, you can safely test equipment in flooded areas. Pair its ±0.5% accuracy with the analog display for instant, reliable results in hazardous zones.

Frequently asked questions

  • Which insulation tester is best for high-voltage equipment up to 2500V?

  • How do I clean and maintain the PEAKMETER MS5203’s sensitive components?

  • What’s the difference between digital and analog insulation testers like the MS5203?

  • Can I customize test voltages or modes for specific insulation testing needs?

  • Is the PEAKMETER MS5203 certified for industrial safety standards?

  • What’s the purpose of the PI and DAR modes in the MS5203?

  • How does the large LCD display improve usability?

  • What’s the battery life of the MS5203, and is it easy to replace?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard TesterGeneral electrical maintenanceTest Voltage: 50V–1000V (IEC 61010-1)
Insulation: Up to 10 GΩ (ASTM D543)
Analog Display		Cost-effective, simple operationLimited voltage range, no advanced modes, less durable
Our Base Model (MS5203)Industrial/commercial testingTest Voltage: 50V–2500V (▲)
Insulation: Up to 20 GΩ (▲)
Digital LCD (ISO 9001)
DAR/PI/COMP modes		Versatile voltage range, advanced features, durable design (ASTM D543)Higher cost than basic models, requires training for advanced modes
Our Advanced ModelHigh-voltage critical environmentsTest Voltage: 50V–5000V (▲▲)
Insulation: Up to 30 GΩ (▲▲)
Touchscreen (IP67)
Partial Discharge (PD) detection		Highest performance, extreme durability, advanced diagnosticsVery high cost, bulky, specialized training needed
Analog Insulation TesterLow-voltage simple testingTest Voltage: Up to 500V (IEC 61010-1)
Insulation: Up to 5 GΩ
Analog Needle Display		Low cost, no electronic components to failLimited accuracy, no advanced features, manual reading
Portable Handheld TesterField and on-site useTest Voltage: 50V–1000V (IP54)
Lightweight (≤1.5kg)
Battery Operated		Portable, easy to carry, suitable for on-site workLimited voltage range, fewer features, shorter battery life
High-Voltage SpecializedTransformer/power system testingTest Voltage: Up to 10,000V (IEC 60038)
Insulation: 50 GΩ (ASTM D543)
Rugged Design		Handles extreme high voltages, precise for critical systemsExtremely expensive, specialized use only, requires expert handling
