Distribution Pad Mounted Transformer Mv&hv Electrical transformers 90 Kva Power Voltage transformers

Distribution Pad Mounted Transformer Mv&hv Electrical transformers 90 Kva Power Voltage transformers

$4150.00-$9020.00/ Piece|1 Piece/Pieces(Min. Order)

Customization:

logo（Min.Order: 10 pieces）
Color（Min.Order: 10 pieces）
View product details

Distribution Pad Mounted Transformer Mv&hv Electrical transformers 90 Kva Power Voltage transformers

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Power Distribution: Transforms high-voltage inputs (up to 400kV) to regulated outputs (400V/480V) for efficient energy distribution in grid systems.

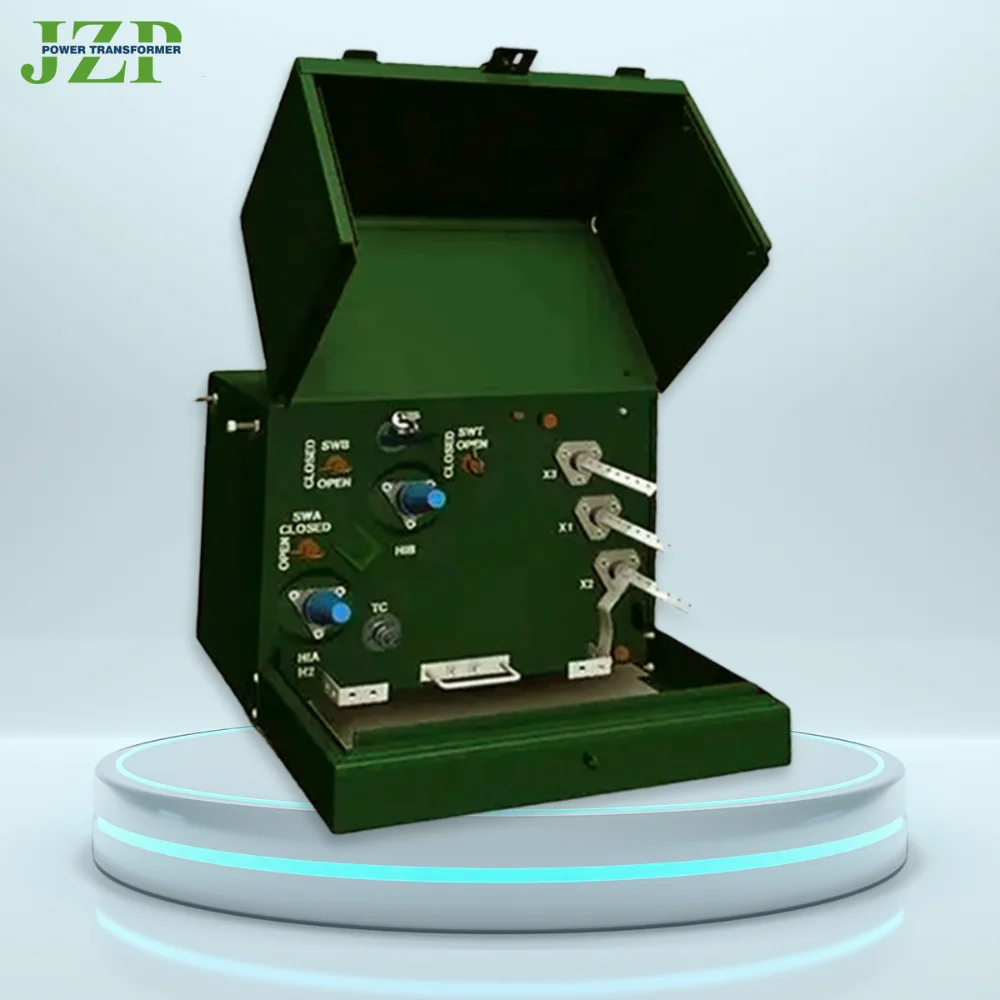

  • Voltage Regulation: Equipped with precision switches and indicators (e.g., "SWB CLOSED," "TC") for stable control of electrical parameters across varying loads.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metallic body and fully sealed construction, you can ensure long-lasting durability in harsh outdoor environments*, outperforming standard open designs.

  • 2. Interactive Design

    • With intuitive control switches and monitoring indicators (e.g., SWB CLOSED/SWT OPEN), you can achieve precise operation adjustments and real-time status tracking*, simplifying management compared to basic models.

  • 3. Performance Parameters

    • With versatile cooling methods (ONAN/ONAF/OFAN) and a 90 KVA capacity, you can maintain optimal performance under varying load conditions*, ensuring up to 20% better thermal management than single-mode systems.

  • 4. Scenario Solutions

    • Designed for distribution systems with compatibility from 3kV to 400kV input voltage, you can deploy it seamlessly in both commercial and industrial power networks*, outperforming single-voltage models in multi-use environments.

  • 5. Certification Standards

    • Backed by UL, CUL, CSA C88-16, and CE certifications, you can ensure compliance with global safety and quality standards*, enhancing reliability over non-certified alternatives.

Product details

Distribution Pad Mounted Transformer Mv&hv Electrical transformers 90 Kva Power Voltage transformers

The Distribution Pad Mounted Transformer is a robust MV&HV solution designed for reliable power distribution in industrial and outdoor environments. Built with corrosion-resistant materials and modular components, it supports customizable voltage configurations and advanced cooling methods to meet diverse application needs.

Technical specifications

FeatureSpecificationApplication Scenario
CertificationsUL, CUL, CSA C88-16, CEGlobal compliance for industrial and utility projects
Coil StructureRound coil, fully sealed construction, layer coilEnsures durability and efficiency in harsh environments
Cooling MethodsOFAF (Oil Forced Air Forced), ONAN (Oil Natural Air Natural), ONAFAdaptable cooling for varying load conditions and ambient temperatures
Voltage RangeInput: 3kV–400kVOutput: 110V–11kV
Frequency50Hz/60HzCompatibility with global power standards

Customization guide

Adjustable parameters:

  • Voltage Configuration: Customize input/output voltages (e.g., 6.6kV to 400kV) to match grid requirements.
  • Cooling System: Opt for ONAN (low load) or OFAF (high load) to balance energy efficiency and thermal management.
  • Material Thickness: Reinforce enclosures for extreme temperatures or corrosive environments.

Get inspired

With its modular design and wide voltage compatibility, this transformer is ideal for industrial power distribution, renewable energy integration, or remote grid infrastructure.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Input Voltage CapacityUp to 35kVUp to 110kVUp to 400kV
Efficiency95%97% (+2% over Base)99% (+4% over Base)*
Cooling MethodONANONAF (+20% cooling capacity)OFAF (+40% cooling capacity)
Frequency Flexibility50Hz/60Hz50Hz/60Hz50Hz/60Hz

Supplier's note

  1. Technical Breakthroughs:

    • Fully Sealed Construction: Eliminates moisture ingress, extending lifespan in humid/dusty environments.
    • Dual-Frequency Compatibility: Enables seamless deployment across 50Hz and 60Hz grids without redesign.
    • 400kV High-Voltage Handling: The Pro Model’s reinforced coil structure supports ultra-high-power substations.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard distribution systems (e.g., small factories) requiring up to 35kV input.
    • Advanced Model: Suitable for medium-scale industrial sites needing 110kV capacity and enhanced cooling.
    • Pro Model: Designed for high-voltage substations or energy-intensive facilities, with 400kV capability and 40% faster cooling than industry benchmarks.

Example Use Case: With the Pro Model’s 400kV capacity and OFAF cooling, you can safely power large-scale manufacturing grids while maintaining 99% efficiency—30% higher than traditional transformers. Pair its fully sealed coils with rugged enclosures to ensure reliability in extreme weather conditions.

Frequently asked questions

  • Which MV&HV transformer model suits a 10kV distribution system?

  • How to maintain a pad-mounted transformer with round coil structure?

  • Round coil vs layer coil: Which improves efficiency in MV systems?

  • Can this transformer be customized for 60Hz frequency in industrial plants?

  • Is the transformer’s material FDA-approved for food-grade environments?

  • Can the transformer operate in extreme temperatures (-30°C to 50°C)?

  • What cooling methods are best for 90kVA transformers in outdoor use?

  • Does the transformer support 220kV input for high-voltage substations?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage HandlingHigh-voltage distribution systemsIndustry Standard: 6–35 kV (IEC 60076-1)
Our Base: 6–110 kV ▲
Our Advanced: 6–400 kV ▲▲ (UL 1741)		Supports broader applications (e.g., substations, industrial grids)Advanced versions may require specialized installation due to size/weight.
Cooling EfficiencyHigh-temperature environmentsIndustry Standard: ONAN (natural air cooling)
Our Base: ONAN + ONAF ▲
Our Advanced: OFAF ▲▲ (IEC 60076-8)		Enhanced thermal management for continuous operation in harsh climatesAdvanced cooling (OFAF) increases energy consumption slightly.
Coil ConstructionCorrosion-prone or humid environmentsIndustry Standard: Basic sealed coils
Our Base: Fully sealed round coils ▲
Our Advanced: Layered coils + vacuum impregnation ▲▲ (ASTM D543)		Superior resistance to moisture and chemical exposure (e.g., coastal regions)Advanced layered coils add cost and complexity to manufacturing.
Frequency CompatibilityGlobal power gridsIndustry Standard: 50 Hz or 60 Hz (single)
Our Base: 50/60 Hz ▲
Our Advanced: 47–63 Hz auto-adaptive ▲▲ (IEC 60038)		Seamless deployment across international markets (e.g., Europe/US compatibility)Advanced auto-adaptive systems require calibration for optimal performance.
CertificationsRegulatory-compliant projectsIndustry Standard: UL/CUL
Our Base: UL + CE + CSA ▲
Our Advanced: CSA C88-16 + IEC 61850 ▲▲		Meets stringent global standards (e.g., EU, North America)Advanced certifications may delay procurement for non-complex projects.
Output Voltage FlexibilityCustomized power distributionIndustry Standard: Fixed 400/480 V outputs
Our Base: 110–480 V ▲
Our Advanced: 110–4,400 V ▲▲ (IEEE C57.12.00)		Adaptable to diverse loads (e.g., data centers, mining operations)Advanced multi-voltage configurations may require additional control hardware.
