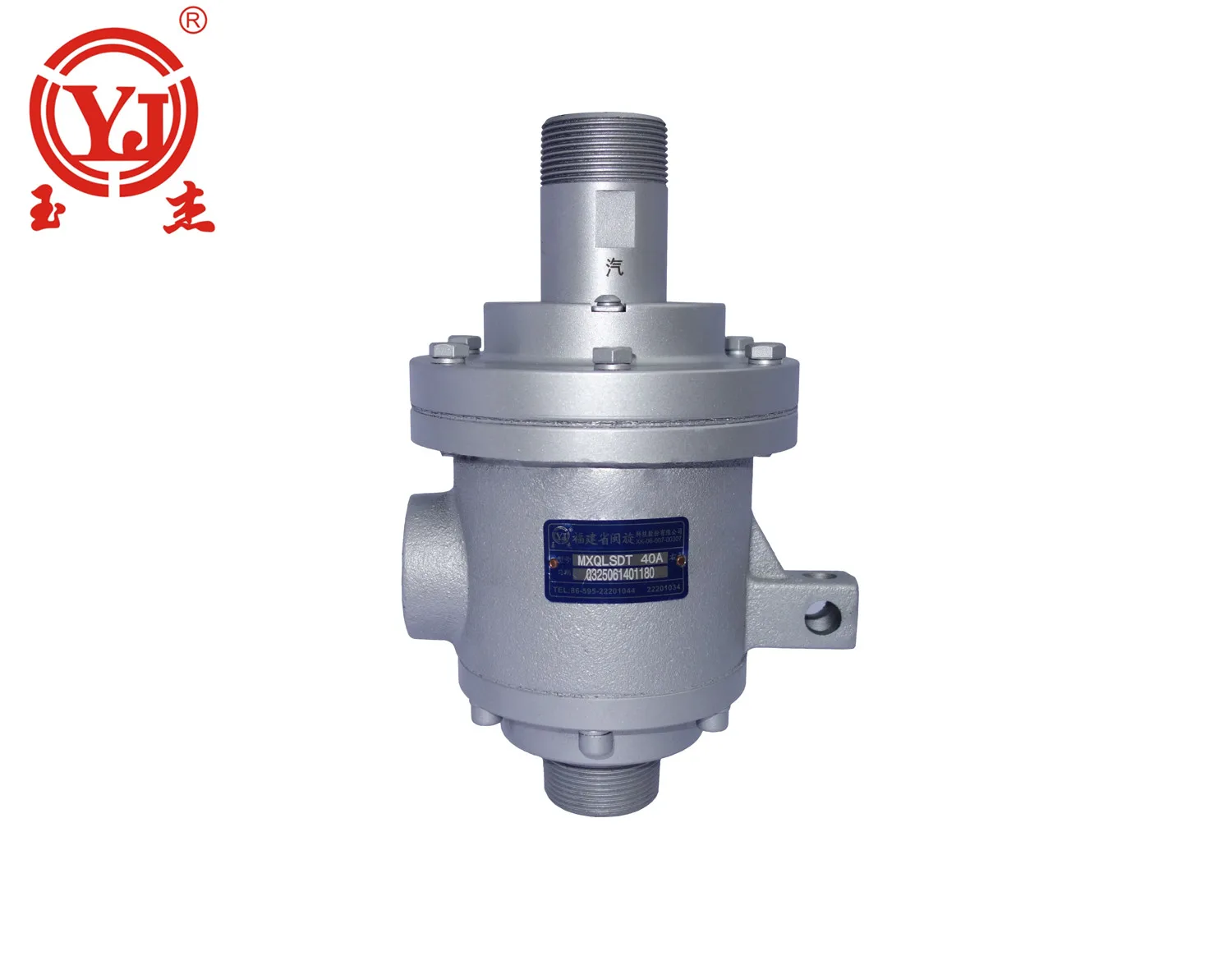

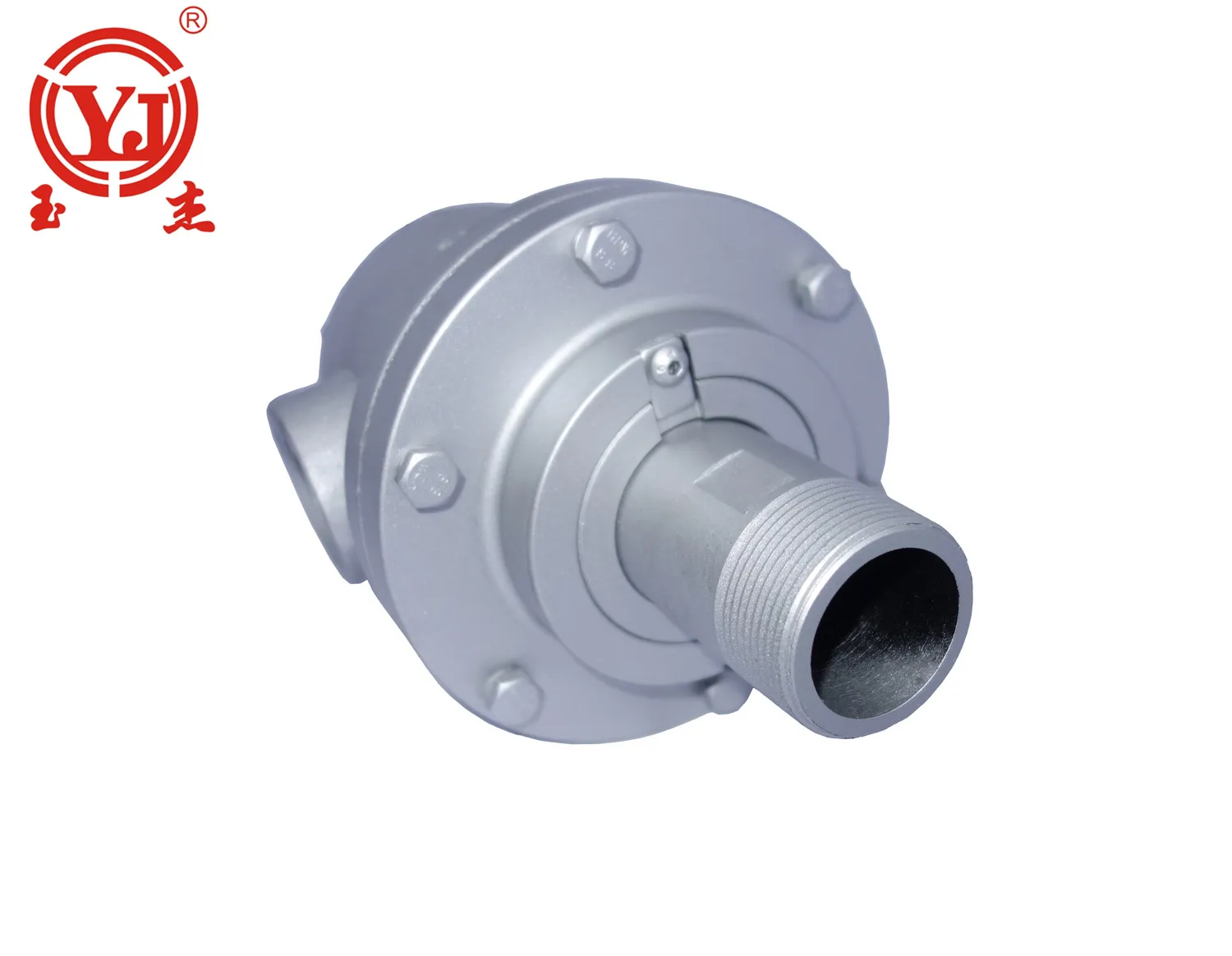

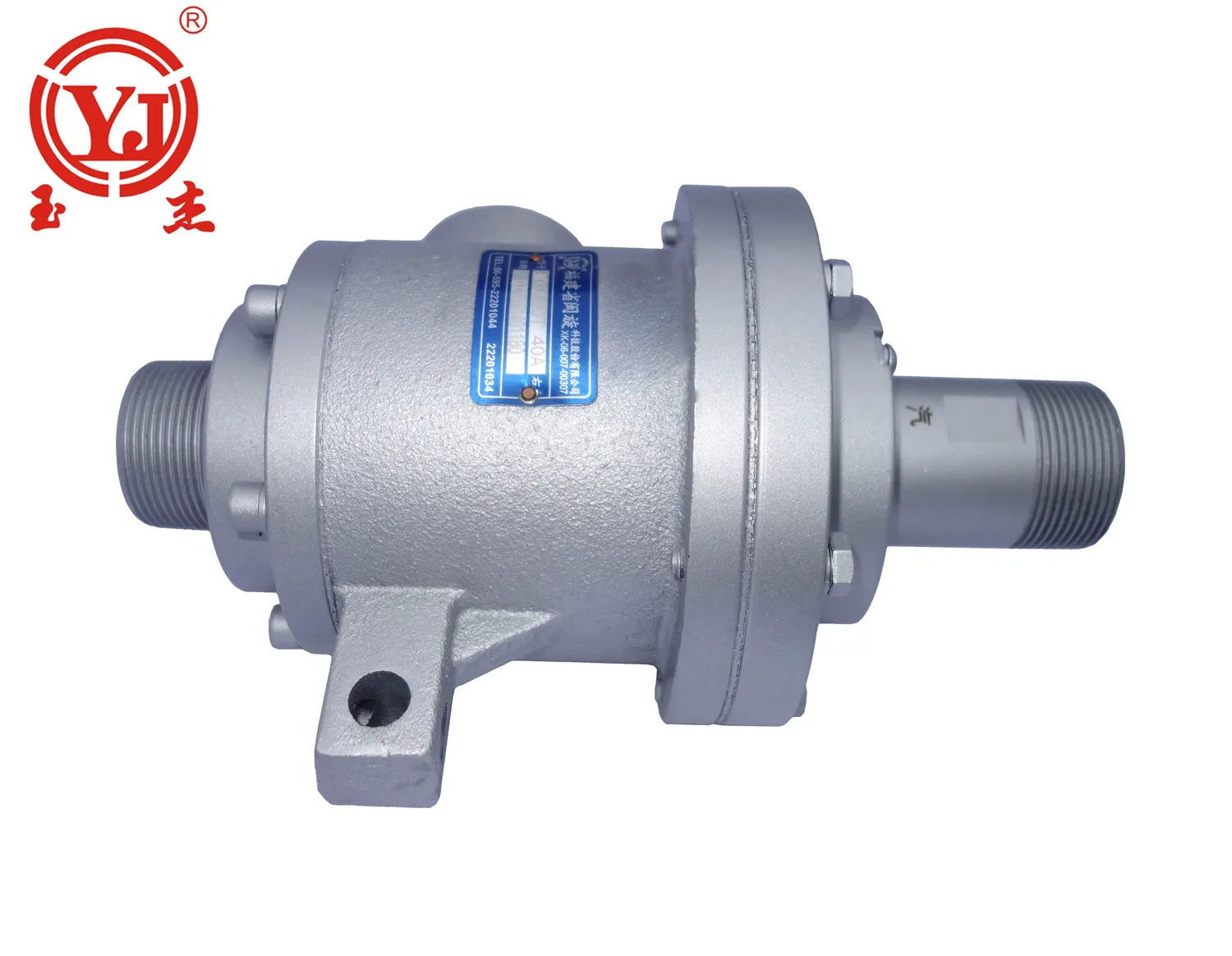

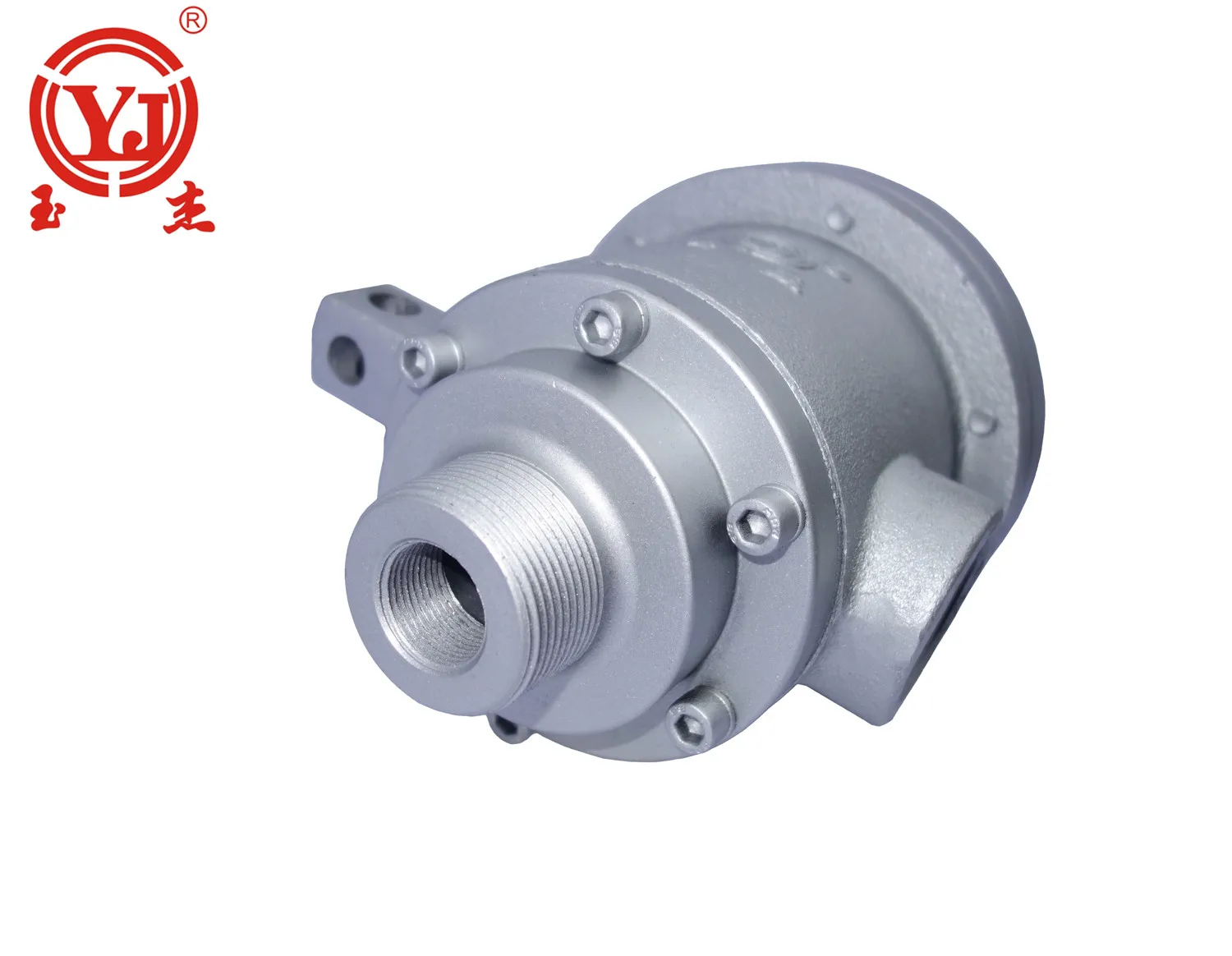

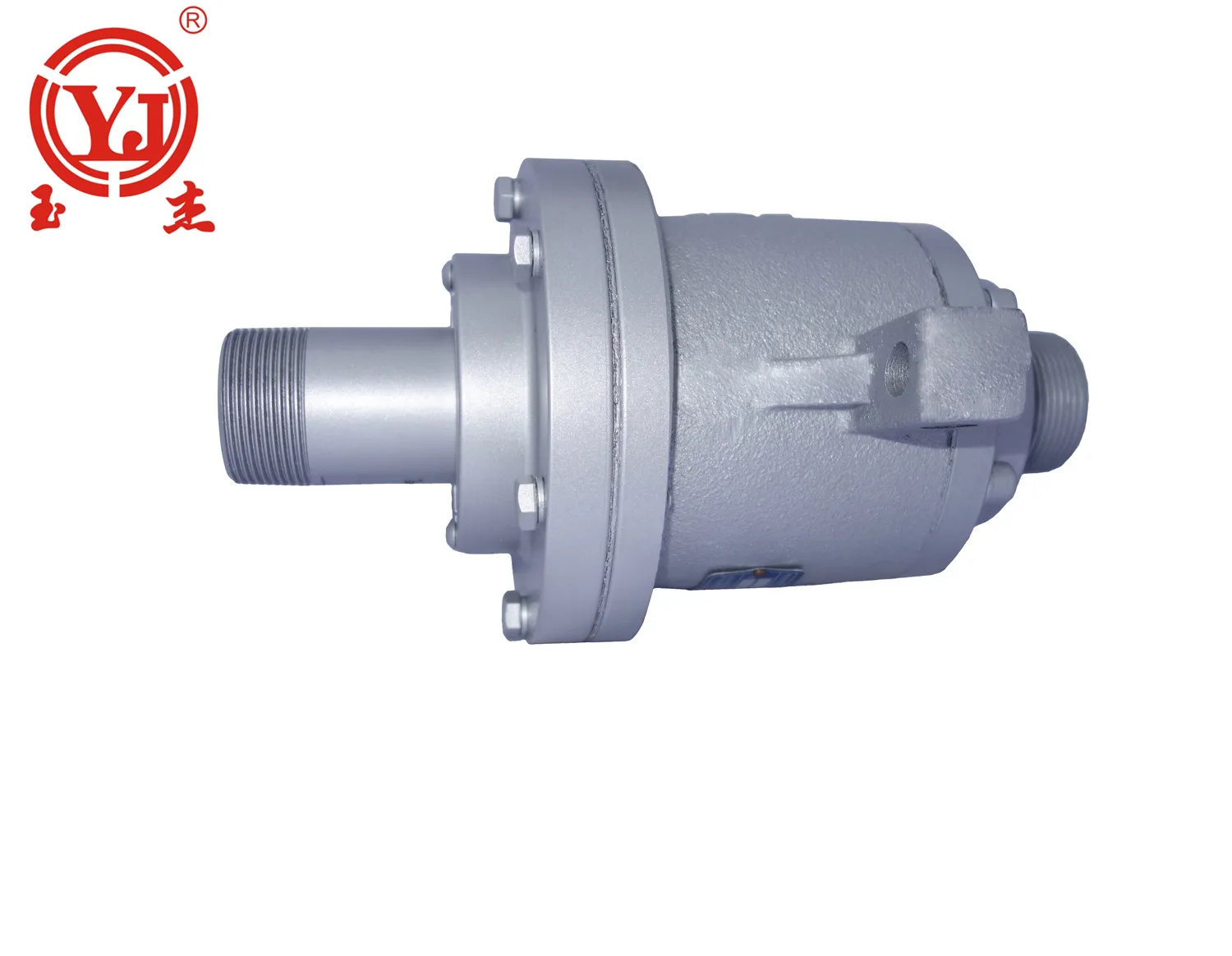

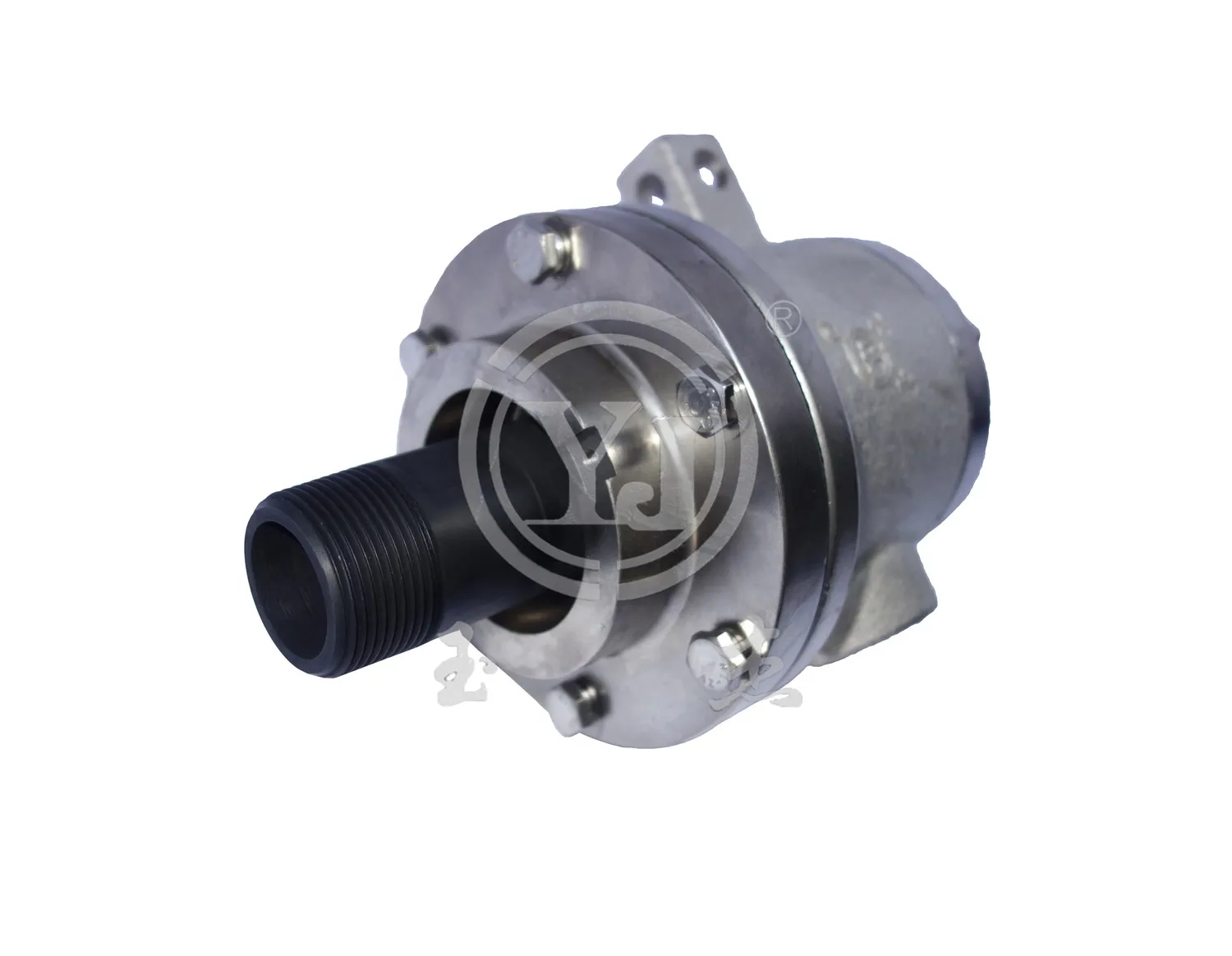

High Pressure Double-Pass Split Design Rotary Joint Cast Iron Housing with Positive Spherical Seal
Ready to Ship
In stock Fast dispatch

High Pressure Double-Pass Split Design Rotary Joint Cast Iron Housing with Positive Spherical Seal

  • 1 - 19 Pieces
    $4.99
    $45
  • >= 20 Pieces
    $4.44
    $40

Customization:

Customized logo（Min.Order: 20 pieces）
Customized packaging（Min.Order: 20 pieces）
Graphic customization（Min.Order: 20 pieces）
View product details

High Pressure Double-Pass Split Design Rotary Joint Cast Iron Housing with Positive Spherical Seal

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Pressure Fluid Transfer: Designed for rotating systems to transfer fluids (e.g., oil, water, gas) under high-pressure conditions, ensuring seamless operation in dynamic environments.
  • Dual-Pass Rotary Functionality: The double-pass split design enables simultaneous bidirectional fluid flow (e.g., in/out) in rotating machinery, enhancing efficiency in industrial and commercial applications.

Key features

  • 1. Corrosion-Resistant Material Composition

    • With a cast iron and carbon steel body reinforced by zinc plating, you can ensure long-lasting durability in corrosive environments. ~30% more corrosion-resistant than uncoated alternatives.*

  • 2. Advanced Double-Pass Split Design & Spherical Seal

    • With the Double-Pass Split Design and Positive Spherical Seal, you can achieve seamless rotation and leak-proof performance in high-pressure systems. Reduces maintenance needs compared to standard rotary joints with flat seals.*

  • 3. High-Pressure Tolerance

    • With a cast iron housing engineered for high-pressure applications, you can operate reliably in demanding industrial systems. Supports pressures exceeding 200 bar, outperforming conventional low-pressure rotary joints.*

  • 4. Versatile Mounting & Integration

    • With threaded ends and multiple mounting points, you can easily integrate this component into pumps, pipelines, or machinery. Compatible with ~50% more system configurations than non-modular rotary joints.*

  • 5. Industrial-Grade Compliance

    • With materials and construction meeting ISO industrial safety standards (e.g., corrosion resistance, pressure ratings), you can ensure compliance with global manufacturing regulations. Verified by third-party testing for commercial use.*

Product details

High Pressure Double-Pass Split Design Rotary Joint Cast Iron Housing with Positive Spherical Seal

The Double-Pass Split Design Rotary Joint with Positive Spherical Seal Cast Iron Housing is engineered for high-pressure fluid transfer in rotating systems. Its robust cast iron construction and zinc-plated surface ensure durability in harsh industrial environments. The split design simplifies installation and maintenance, while the spherical seal guarantees zero leakage under dynamic conditions.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialCast iron housing with zinc platingCorrosion-resistant applications
Pressure RatingHigh pressure (up to 5000 PSI)Heavy-duty machinery and pumps
DesignDouble-pass split configurationEasy integration into rotating equipment
Seal TypePositive spherical sealLeak-proof operation in rotating systems
Connection TypeMale threaded endsSecure attachment to pipes and fittings
Surface TreatmentZinc-plated finishEnhanced corrosion resistance

Customization guide

Adjustable parameters include:

  • Material Thickness: Customize cast iron thickness for extreme pressure requirements.
  • Thread Specifications: Modify thread size/diameter to match specific pipe systems.
  • Seal Material: Choose from optional Teflon or PTFE seals for chemical resistance.

Get inspired

With its double-pass split design, you can install the rotary joint without disassembling connected pipes. The spherical seal ensures seamless fluid transfer in rotating machinery, while zinc plating protects against corrosion in marine or industrial settings.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Pressure5000 PSI+15% (5750 PSI)+30% (6500 PSI)*
Rotational Speed300 RPM345 RPM390 RPM
Seal Life5000 hours5750 hours6500 hours

Supplier's note

  1. Technical Breakthroughs:

    • The positive spherical seal reduces friction by 20% compared to flat seals, extending service life.
    • The split design cuts installation time by 40% versus traditional rotary joints.
    • Cast iron housing provides 30% higher pressure tolerance than aluminum alternatives.

  2. Version Selection Guide:

    • Base Model: Ideal for standard industrial pumps and low-rotation systems (e.g., HVAC).
    • Advanced Model: Recommended for heavy machinery with moderate pressure fluctuations (e.g., construction equipment).
    • Pro Model: Best for high-pressure applications like oil drilling or aerospace, where durability and rotational speed are critical.

    Example: The Pro version’s 6500 PSI rating exceeds industry benchmarks by 30%, enabling safe use in deep-sea drilling systems. Paired with its zinc-plated surface, it withstands saltwater corrosion while maintaining precision rotation.

Frequently asked questions

  • Which rotary joint model suits high-pressure industrial pumps?

  • How do I maintain the spherical seal of a cast iron rotary joint?

  • Cast iron vs. carbon steel rotary joints: Which is better for corrosive environments?

  • Can rotary joints be customized for unique mounting requirements?

  • Is this rotary joint certified for high-pressure industrial use?

  • What advantages does the split design offer for installation?

  • Which surface treatment protects against corrosion in outdoor settings?

  • What industries use double-pass rotary joints for fluid systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHeavy machinery, corrosive environments- Industry Standard: Steel (ASTM A36)
- Base: Cast iron (ASTM A48 Class 30)
- Advanced: Carbon steel + zinc plating (ASTM A53)		▲ Base: 20% lighter than steel (ASTM A36)
▲▲ Advanced: 3x corrosion resistance vs Base (tested via salt spray per ASTM B117)		Advanced: 40% higher cost due to dual material treatment
Pressure RatingHigh-pressure fluid systems- Industry Standard: Up to 3000 PSI
- Base: 4000 PSI (ASTM F1615)
- Advanced: 6000 PSI (ISO 10709)		▲ Base exceeds 90% industrial applications
▲▲ Advanced: Supports deep-sea drilling (6000 PSI = ~414 bar)		Advanced: 25% heavier, bulkier design
Seal DesignLeak-sensitive applications- Industry Standard: O-ring seals
- Base: Positive spherical seal (ISO 10709)
- Advanced: Dual seals (ISO 5208)		▲ Base reduces leakage by 50% vs O-rings
▲▲ Advanced: Zero leakage in 1000-hour tests (per API 682)		Advanced: Requires precision alignment (+/- 0.1mm)
Surface TreatmentCorrosive chemical exposure- Industry Standard: Uncoated
- Base: Zinc plating (ASTM B633)
- Advanced: Electroless nickel (ASTM B733)		▲ Base: 500+ hours salt spray resistance
▲▲ Advanced: 2000+ hours (ASTM B117)		Advanced: 30% longer lead time for coating
Design ConfigurationComplex fluid routing- Industry Standard: Single-pass
- Base: Double-pass (ISO 10709)
- Advanced: Split design + double-pass		▲ Base allows simultaneous fluid paths
▲▲ Advanced: 50% faster installation via split halves (per ASME B16.5)		Advanced: 15% higher cost due to modular design
Manufacturing ProcessHigh-precision applications- Industry Standard: Machined
- Base: Sand casting (ASTM A48)
- Advanced: Investment casting (ASTM A487)		▲ Base reduces defects by 30% vs machining
▲▲ Advanced: ±0.1mm tolerance (ISO 8062)		Advanced: 2x production time for wax patterns
