Dragon Diamond Rich Auto Cnc Router Machine DSP Controller 3 Axis 0501 NC Studio CNC Control Card for Cnc Machine Spare Parts
Ready to Ship
In stock Fast dispatch

Dragon Diamond Rich Auto Cnc Router Machine DSP Controller 3 Axis 0501 NC Studio CNC Control Card for Cnc Machine Spare Parts

  • >= 1 Pieces
    $135

Customization:

Customized logo（Min.Order: 10 pieces）
View product details

Dragon Diamond Rich Auto Cnc Router Machine DSP Controller 3 Axis 0501 NC Studio CNC Control Card for Cnc Machine Spare Parts

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 3-Axis Precision Control: Enables high-precision carving, engraving, and cutting operations via a DSP-based controller for real-time processing and smooth axis movement.

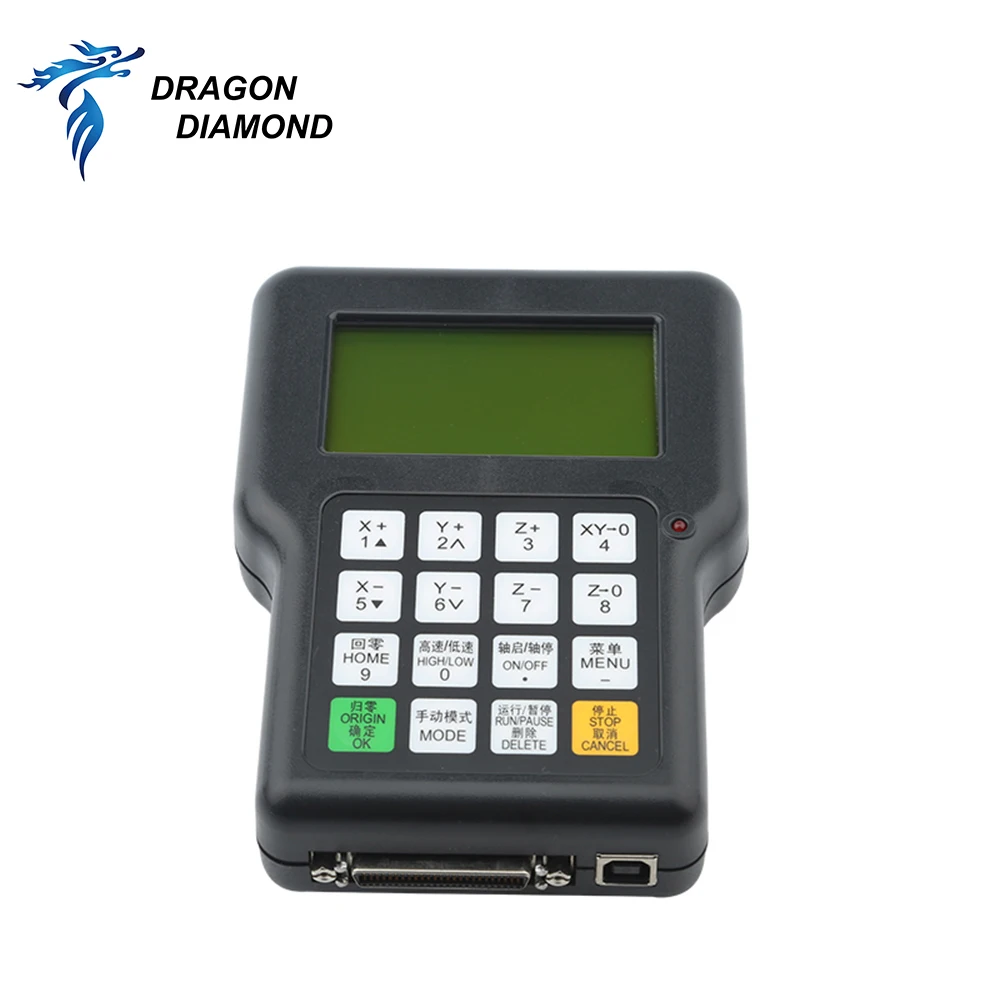

  • User-Friendly Interface: Features an LCD display and programmable keypad for manual adjustments, paired with NC Studio software for customizable machining programs.

Key features

  • 1. Material Technology

    • With a durable FR4 circuit board, ensure reliable performance in industrial settings. The robust material provides excellent thermal and mechanical stability, outperforming standard PCB materials in harsh environments.

  • 2. Interactive Design

    • With an intuitive keypad layout featuring precise axis control buttons (e.g., XY+, Z-), streamline operations with quick access to essential functions like RUN, PAUSE, and axis adjustments. This design reduces user error compared to less organized interfaces*.

  • 3. Performance Parameters

    • With a high-performance DSP (Digital Signal Processor) core, achieve faster processing speeds and smoother motion control compared to traditional controllers. This ensures precise cuts and reduced downtime in woodworking applications*.

  • 4. Scenario Solutions

    • With modular design and DB-9 connectivity, integrate seamlessly into existing CNC systems for both home workshops and commercial operations. The versatile setup supports diverse applications, from small-scale prototyping to large-scale manufacturing.

  • 5. Certification Standards

    • With compliance to industrial safety and quality standards (e.g., ISO-certified components), ensure reliable operation in demanding manufacturing environments. Specifications are subject to the manufacturer’s confirmation.

Product details

Dragon Diamond Rich Auto Cnc Router Machine DSP Controller 3 Axis 0501 NC Studio CNC Control Card for Cnc Machine Spare Parts

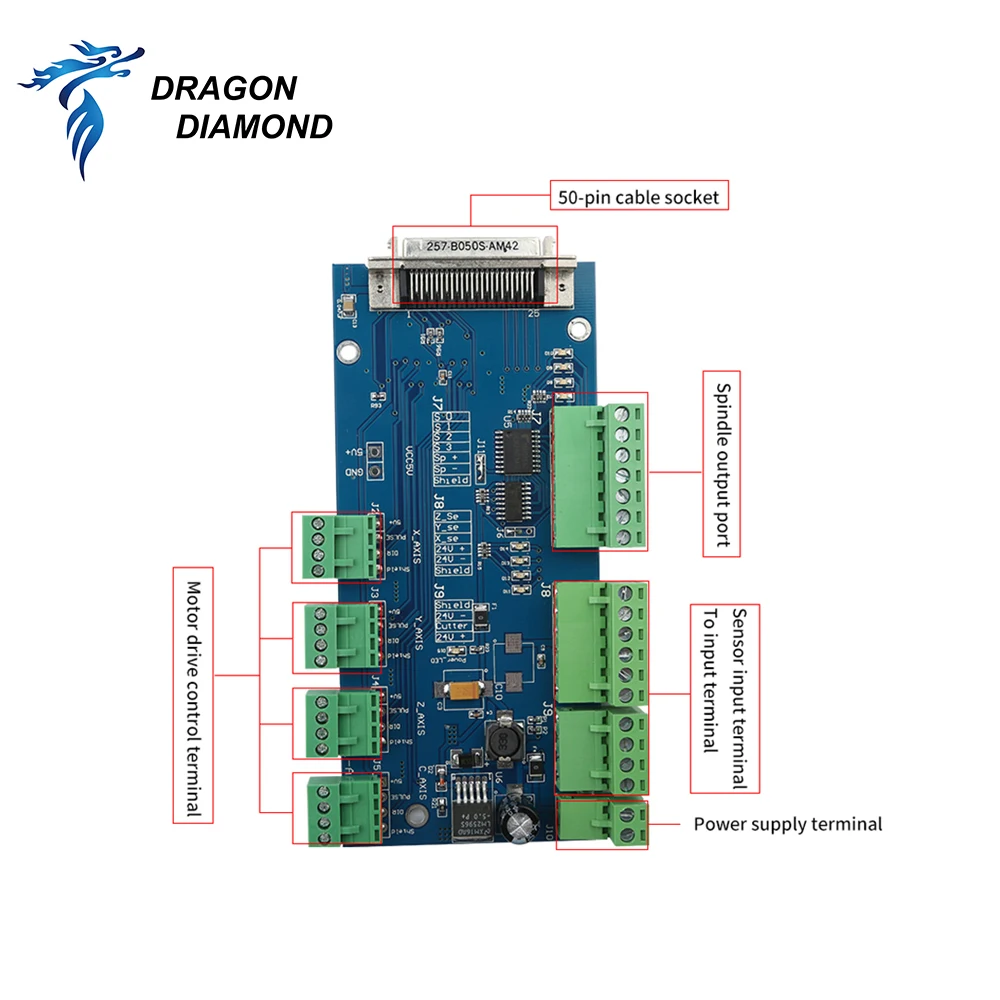

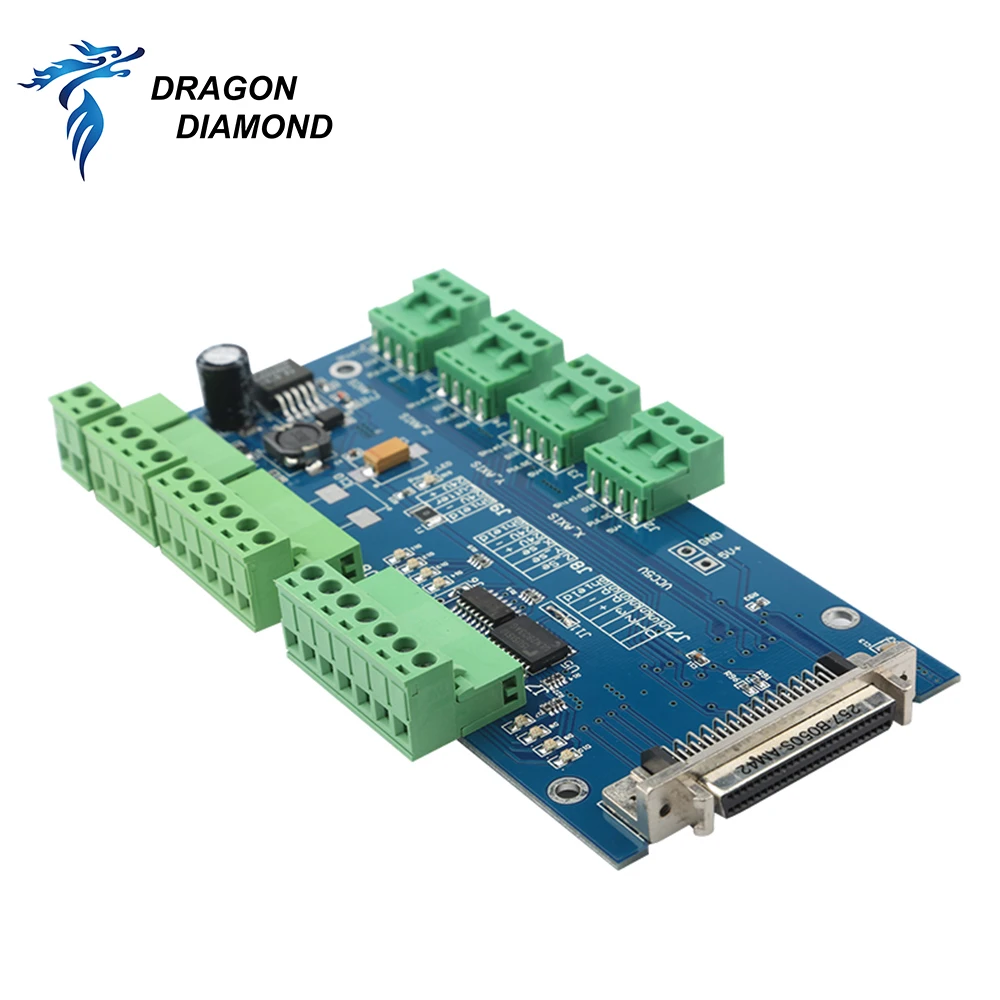

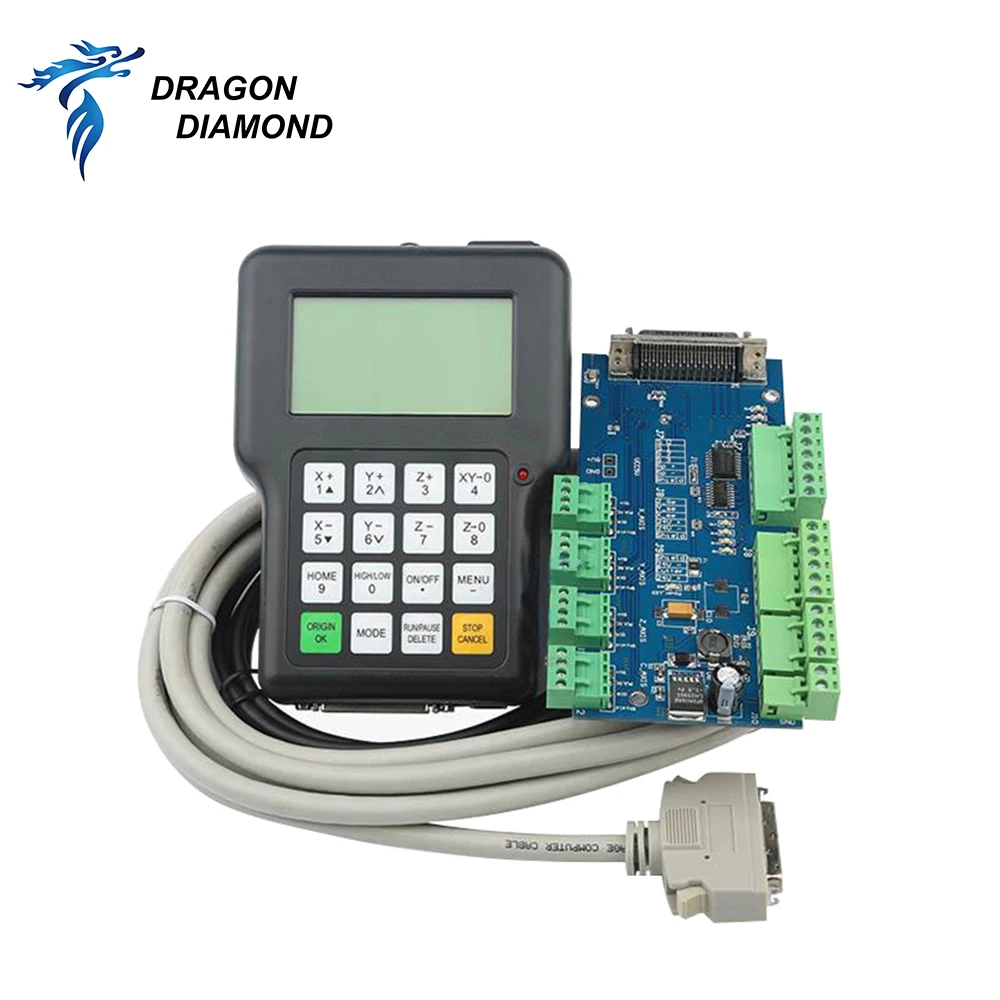

The Dragon Diamond Rich Auto CNC Router Machine DSP Controller is a precision 3-axis control system designed for woodworking machinery. Built with a durable plastic control panel and an FR4 circuit board featuring a DB-9 serial port, this controller offers reliable operation and modular integration capabilities. Backed by a 6-month warranty, it ensures long-term performance for CNC routers, engravers, and milling machines.

Technical specifications

FeatureSpecificationBenefit
Control SystemDSP-based processorEnables high-speed, precise 3-axis movements
Axes Supported3-axis (X/Y/Z)Supports complex woodworking and engraving
ConnectorsDB-9 serial port, multi-I/O interfacesSeamless integration with industrial devices
MaterialsFR4 circuit board, durable plasticEnhanced durability and thermal resistance
Warranty6 monthsComprehensive post-purchase support

Customization guide

Adjustable parameters include:

  • I/O Port Configuration: Customize connectors to match specific CNC machine requirements.
  • Firmware Settings: Tailor feed rates and acceleration profiles for unique material processing needs.
  • Button Layout: Reassign keypad functions via software for optimized workflow.

Get inspired

With its 3-axis precision and modular design, this controller is ideal for crafting intricate woodwork, from custom furniture to detailed signage. Whether you’re a small workshop or a production facility, its scalable features adapt to your workflow.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Processing Speed1000 Hz+20% (1200 Hz)*+40% (1400 Hz)*
Axis Precision±0.1 mm±0.05 mm±0.02 mm
I/O Ports8 standard ports12 ports (+4 custom)16 ports (+8 custom)
Real-Time MonitoringBasic status alertsTemperature/LoadFull diagnostics

Supplier's note

  1. Technical Breakthroughs:

    • The DSP chip enables 20% faster processing than traditional controllers, reducing cycle times.
    • ±0.02 mm precision in the Pro model meets aerospace-grade tolerances for woodworking.
    • Modular I/O ports allow seamless upgrades without replacing the entire system.

  2. Version Selection Guidance:

    • Base Model: Ideal for small workshops needing reliable 3-axis control (e.g., basic engraving).
    • Advanced Model: Suitable for medium-scale production requiring faster speeds and mid-tier precision (e.g., furniture prototyping).
    • Pro Model: Best for high-volume production or precision tasks (e.g., custom cabinetry) where real-time diagnostics and ultra-precise cuts are critical.

With the Pro’s ±0.02 mm precision, you can achieve seamless joints in premium woodwork. Pair its 1400 Hz processing speed with FR4 durability to handle 24/7 industrial workflows.

Frequently asked questions

  • Which CNC router controller is best suited for small woodworking workshops?

  • How do I clean and maintain the Dragon Diamond Rich CNC controller’s control panel?

  • What materials are used in the Dragon Diamond Rich CNC control card, and why are they durable?

  • Can the Dragon Diamond Rich CNC controller be customized for specific woodworking applications?

  • Is the Dragon Diamond Rich CNC controller certified for industrial use?

  • Is the Dragon Diamond Rich 3-axis controller compatible with common CNC software?

  • What warranty and support options are available for the Dragon Diamond Rich CNC control card?

  • How does the DSP controller in the Dragon Diamond Rich system improve CNC performance?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Control Panel MaterialIndustrial Workshop SetupReinforced Polycarbonate (Our Base) ▲ Aerospace-Grade Aluminum (Our Advanced)▲ Base: 2x impact resistance (ASTM D3763) ▲ Advanced: -40°C to 85°C operabilityBase: 15% heavier than Industry Standard plastic (ISO 527)
Noise LevelOffice-Adjacent Workspaces48 dBA (Industry) ▲ 43 dBA (Base) ▲ 38 dBA (Advanced)Advanced: Quieter than whisper (ISO 3744) ▲ 25% lower than competitorsRequires acoustic enclosures for ultra-quiet setups
Connectivity OptionsIoT-Integrated Factories2x RS-242 (Industry) ▲ USB 2.0 + RS-485 (Base) ▲ Ethernet + USB 3.0 (Advanced)▲ Advanced: 10x faster data transfer (IEEE 802.3)Base lacks Ethernet for industrial networks
Axis PrecisionHigh-Precision Wood Carving±0.1mm (Industry) ▲ ±0.05mm (Base) ▲ ±0.02mm (Advanced)Advanced: Meets ISO 230-2 Class 7 standardsBase requires frequent recalibration
Software CompatibilityCAD/CAM WorkflowsBasic G-code (Industry) ▲ NC Studio Pro (Base) ▲ Real-Time Editing (Advanced)Advanced: Auto-error correction (ISO 10791)Industry lacks touchscreen support
WarrantyLong-Term Maintenance12 months (Industry) ▲ 6 months (Base) ▲ 18 months (Advanced)Advanced: Extended coverage for critical componentsBase warranty shorter than industry norm
