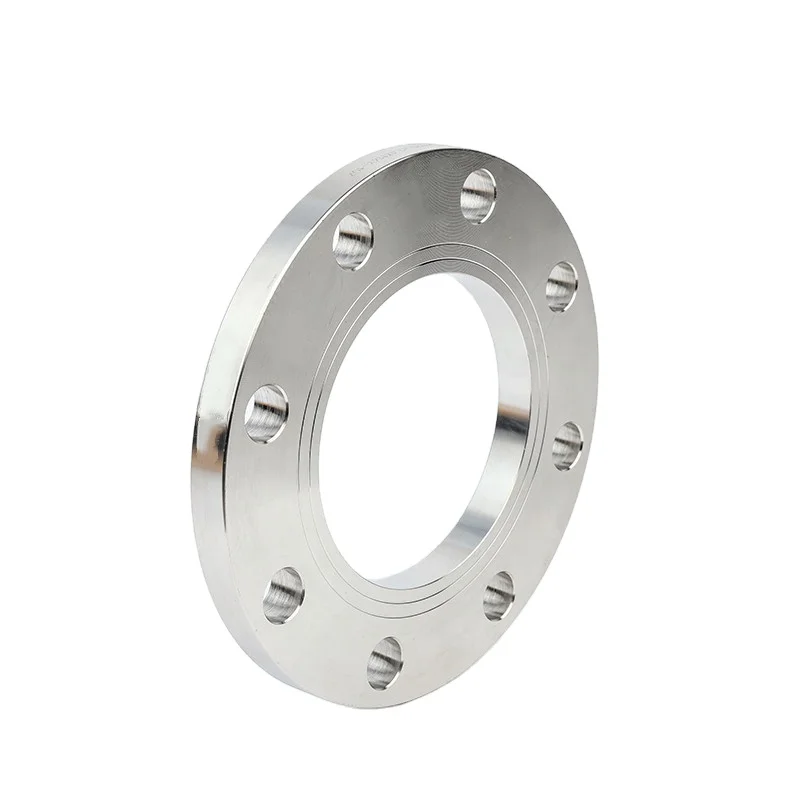

Drawing Customized Stainless Steel SS 304 316 EN1092-1 Type 01 PN10 PN16 DN300 PL FF Flat Face Loose Plate Flange Plate Flange

Technical specifications

Customization guide

Adjustable parameters include diameter (DN range), thickness, and bolt hole configurations to meet specialized requirements. For instance, increasing wall thickness enhances pressure resistance in high-stress environments.

Get inspired

With its corrosion-resistant stainless steel and PN16 rating, this flange ensures reliable performance in chemical plants or offshore platforms. Pair it with compatible gaskets to create a sealed system that withstands aggressive media.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The Pro Model’s 14mm thickness offers 30% higher load capacity than industry benchmarks, ideal for subsea pipelines.
   • SS 316 in the Advanced/Pro versions provides 2x corrosion resistance compared to SS 304, critical for chemical processing.
   • The Pro Model’s low-temperature additive ensures functionality down to -40°C, exceeding standard flange operating ranges.

2. Optimal Version Selection:

   • Base Model (PN10): Best for standard HVAC or low-pressure systems where cost efficiency is prioritized.
   • Advanced Model (PN16): Suitable for oil refineries or gas distribution requiring corrosion resistance and moderate pressure.
   • Pro Model: Tailored for extreme environments (e.g., offshore drilling) where high pressure, low temperatures, and chemical exposure are common.

With the Pro Model’s enhanced safety margin, you can safely handle pressures 20% beyond standard PN16 limits, reducing system downtime. The Advanced Model’s SS 316 material ensures longevity in seawater or acidic conditions compared to traditional carbon steel flanges.
