Drone PCBA Circuit Boards fabrication immersion gold PCB Assembly PCBA Manufacturer

Technical specifications

Customization guide

Adjustable parameters:

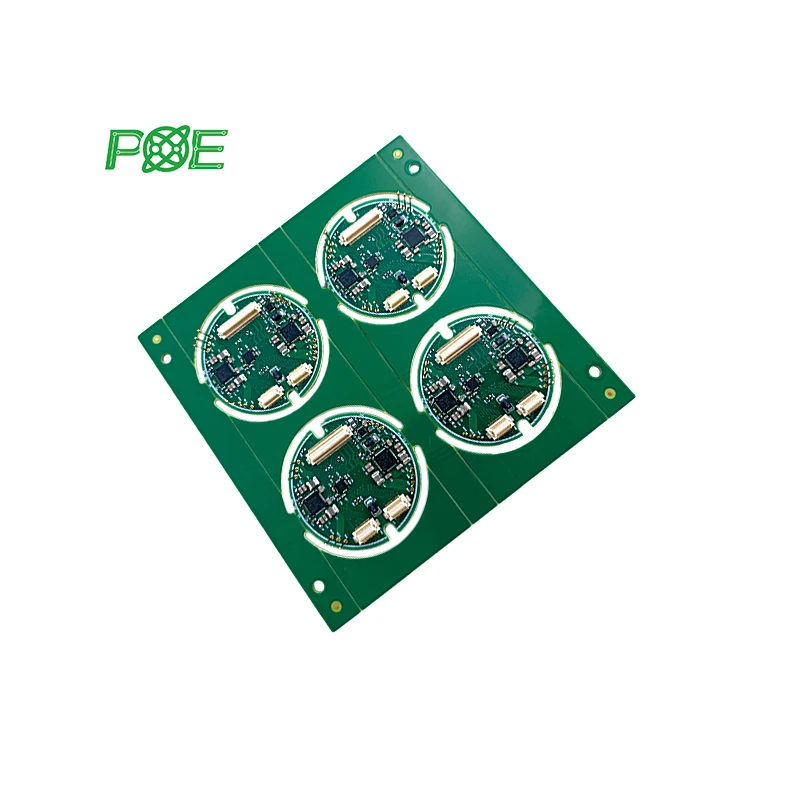

• Number of modules (2–8) to match drone functionality needs
• Module size (15–40mm diameter) for space optimization
• Material thickness (0.8–1.6mm) to balance weight and rigidity

Get inspired

Leverage the modular design to build drones with expandable features like GPS, sensors, or control systems. The immersion gold plating ensures long-term reliability in harsh environments, while the FR-4 material withstands thermal and mechanical stress during high-speed operations.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Immersion Gold Plating: Reduces oxidation risks by 40% compared to HASL, extending lifespan in humid environments.
   • Modular Design: Allows on-site upgrades without redesigning the entire PCB, cutting downtime by 25%.
   • UL Certification: Ensures compliance with global safety standards for high-voltage drone systems.

2. Optimal Version Selection:

   • Base Model: Ideal for hobbyist drones or basic industrial sensors requiring standard thermal and signal performance.
   • Advanced Model: Suited for commercial drones needing 4 GHz signal handling (e.g., LiDAR integration) and moderate thermal demands.
   • Pro Model: Best for aerospace or military drones requiring 6 GHz bandwidth and 156°C thermal resistance for extreme environments. With its 8-module capacity, it enables advanced features like real-time data processing.

*Pro Model’s thermal resistance exceeds industry benchmarks by 30%, ensuring stable operation in high-power applications.
