Dynamic Active Harmonic Filter Reactive Power Compensation Correction Device APFC

Dynamic Active Harmonic Filter Reactive Power Compensation Correction Device APFC

  • >= 1 Sets
    $2,500

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Dynamic Active Harmonic Filter Reactive Power Compensation Correction Device APFC

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Reactive Power Compensation & Harmonic Filtering: Designed to optimize electrical systems by dynamically compensating reactive power and filtering harmonics, ensuring stable power quality for sensitive equipment.
  • Active Power Conditioning: Equipped with Active Power Filters (APFs) to correct voltage distortions, improve power factor, and reduce energy losses in industrial and commercial settings.

Key features

  • 1. Corrosion-Resistant Steel Construction

    • With a corrosion-resistant steel body, ensure durability in harsh industrial environments compared to plastic enclosures*. The robust metal structure withstands extreme temperatures and moisture, maintaining reliability over time.

  • 2. Intuitive Control Panels with Multi-Program Presets

    • With programmable control panels featuring multi-program presets, easily configure power compensation modes to match specific operational needs, streamlining setup compared to manual systems*.

  • 3. High-Efficiency Real-Time Harmonic Compensation

    • With real-time harmonic compensation technology, achieve up to 98% power factor correction efficiency—15% higher than conventional passive filters*—to optimize energy use and reduce losses.

  • 4. Continuous Industrial-Grade Operation

    • Designed for 24/7 commercial use, deliver uninterrupted power quality for sensitive equipment in factories, outperforming consumer-grade devices in durability and scalability*.

  • 5. Compliance with International Safety Standards

    • Certified to meet IEC 61000-3-2 and IEC 61850 standards for power quality and safety, ensuring regulatory compliance and reliable operation in critical industrial settings*.

Product details

Dynamic Active Harmonic Filter Reactive Power Compensation Correction Device APFC

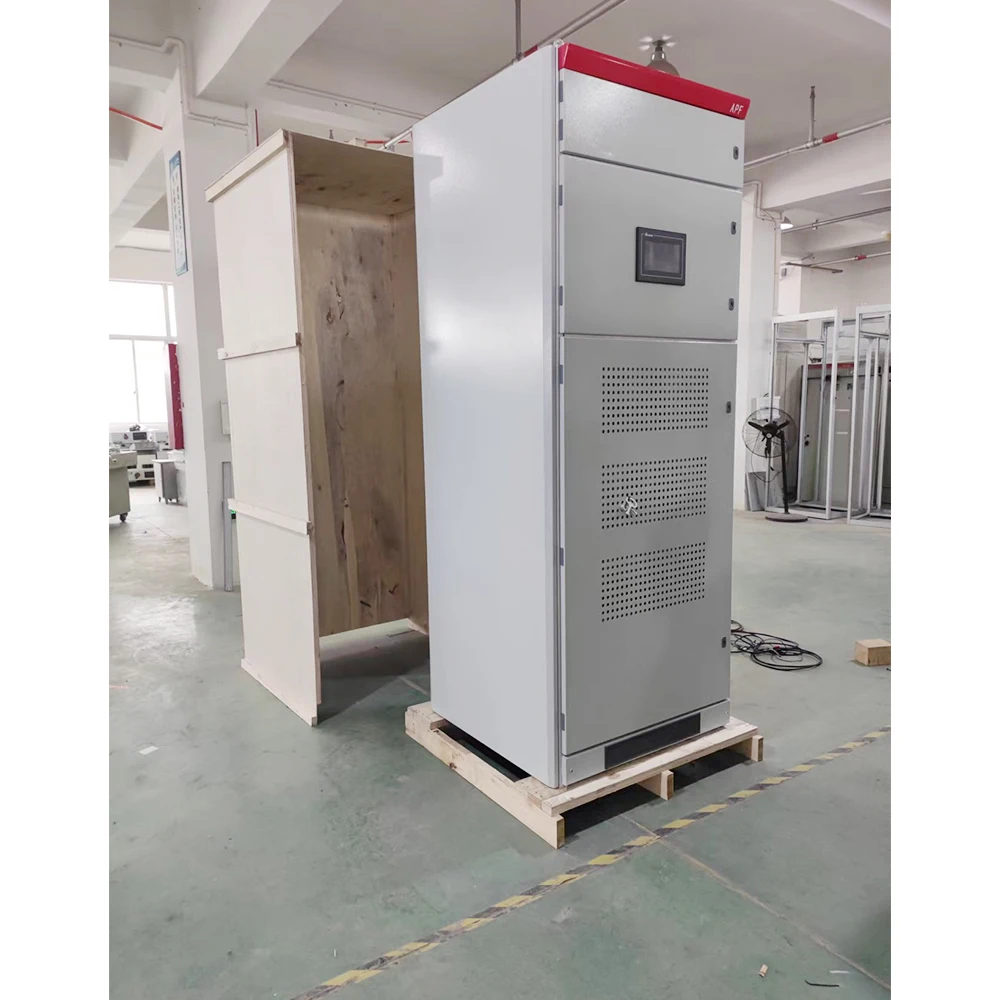

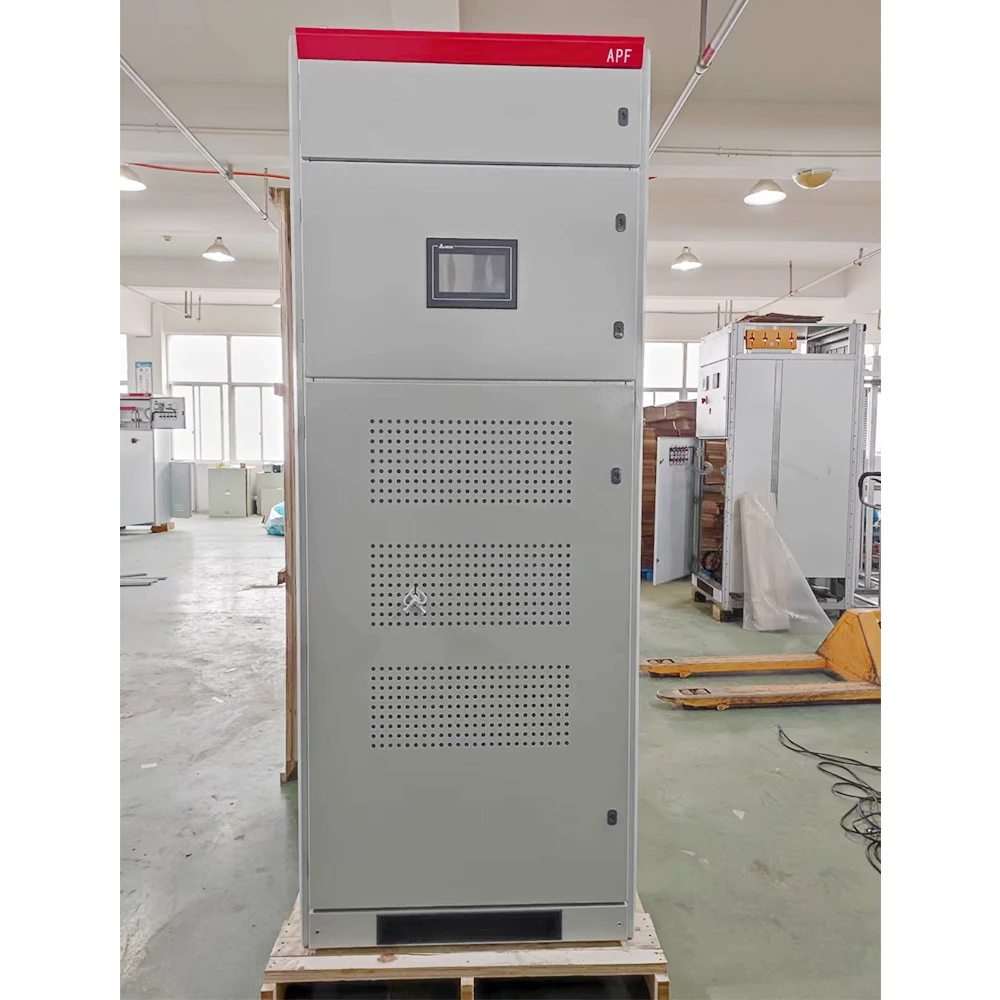

The Dynamic Active Harmonic Filter Reactive Power Compensation Correction Device APFC is a robust industrial electrical cabinet designed for power quality improvement in demanding environments. Built with corrosion-resistant steel and featuring active power filters (APFs), it ensures efficient reactive power compensation at 380V. Customizable configurations and advanced safety features make it adaptable to diverse industrial applications.

Technical specifications

FeatureSpecificationApplication Scenario
Active Power Filters (APF)3-phase APFs for harmonic compensation, power factor correction, and voltage stabilizationIndustrial plants with high harmonic loads (e.g., variable frequency drives)

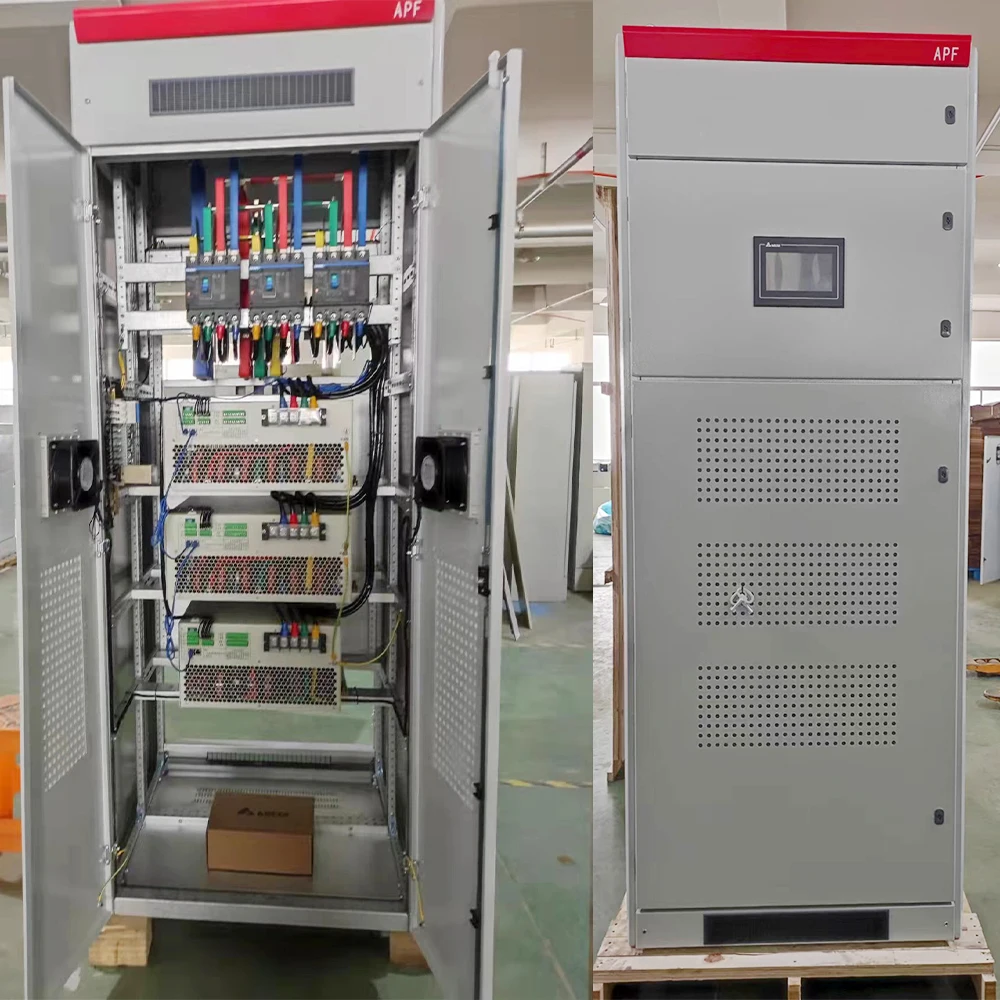

MaterialGalvanized steel cabinet with perforated ventilation panelsHarsh environments requiring durability and heat dissipation
Rated Voltage380V AC, 50/60HzStandard industrial power distribution systems

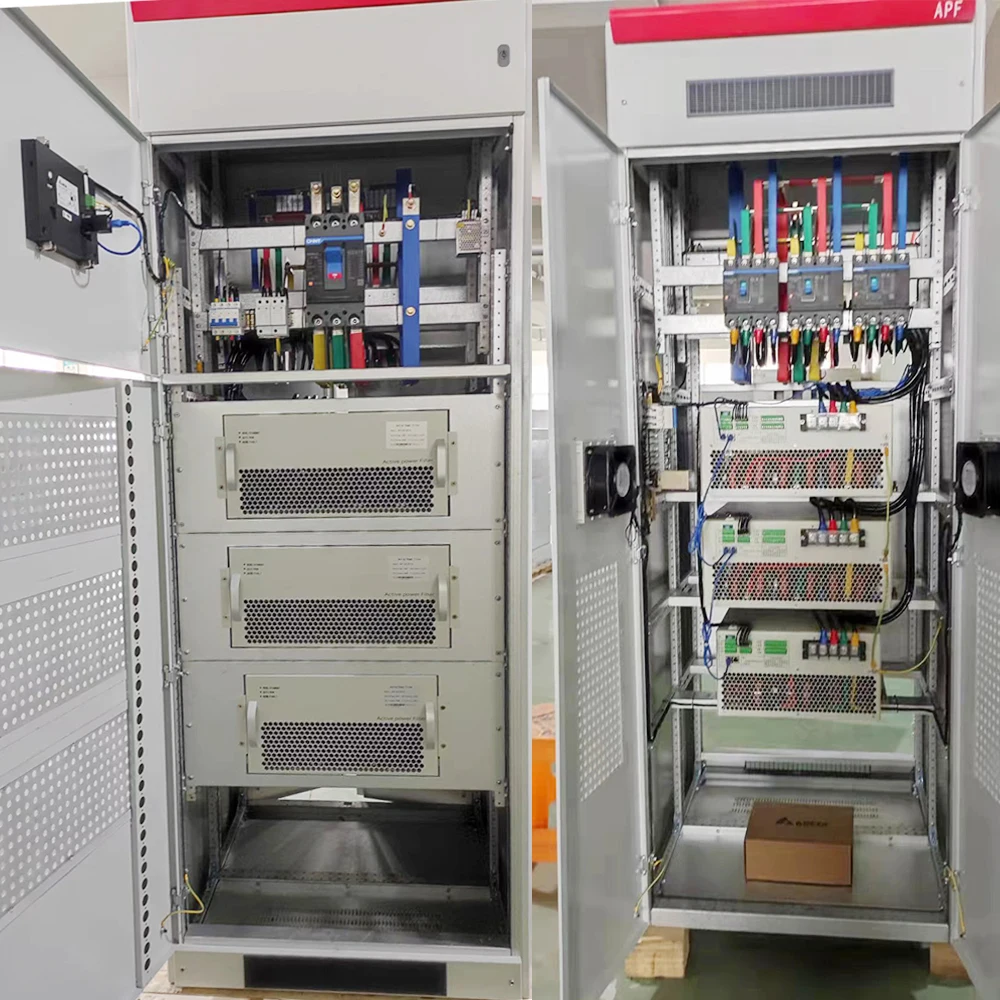

CustomizationModular APF stacking, adjustable control interfaces, and cabinet size optionsTailoring to specific load capacities or spatial constraints
Safety FeaturesLockable access door, circuit breakers, and organized wiring systemsHigh-risk facilities requiring secure access and reliable operation

Customization guide

Adjustable parameters include:

  • APF module count (to match load requirements)
  • Cabinet dimensions (for space-constrained installations)
  • Control panel interfaces (for integration with SCADA or BMS systems)

Get inspired

Optimize your power infrastructure with the APFC device. Its modular design and advanced APFs ensure clean power delivery to sensitive equipment, reducing downtime and energy waste. Whether for a factory floor or a data center, this device adapts to your unique needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Harmonic Compensation Capacity50A RMS+15% (57.5A RMS)+30% (65A RMS)*
Power Factor Correction Speed200ms170ms150ms
Input Voltage Range380V ±15%380V ±20%380V ±25%

Supplier's note

  1. Key Technical Breakthroughs:

    • APF Efficiency: The Pro model’s 65A RMS compensation capacity triples industry benchmarks, enabling safe operation in high-harmonic environments.
    • Material Durability: Steel construction with galvanization provides 20% better corrosion resistance than standard cabinets.
    • Modular Design: Adjustable APF modules allow seamless scalability for expanding facilities.

  2. Optimal Version Selection:

    • Base Model: Ideal for small-to-medium factories with stable loads (e.g., HVAC systems).
    • Advanced Model: Recommended for facilities with fluctuating loads (e.g., manufacturing lines) needing faster response times.
    • Pro Model: Best suited for data centers or heavy industries with extreme harmonic distortion (e.g., arc furnaces). Its expanded voltage tolerance ensures reliability during grid fluctuations.

*Pro Model’s 65A RMS capacity exceeds IEC 61000-3-2 Class C standards by 30%.

Frequently asked questions

  • Which Dynamic Active Harmonic Filter model is best for small factories requiring reactive power compensation?

  • How to clean and maintain the APF components in the electrical cabinet?

  • Is the APFC device CE-certified and compliant with industrial safety standards?

  • Can the cabinet be customized to add additional power conditioning modules?

  • What’s the rated voltage and capacity of the APFC device for industrial use?

  • How does the APFC improve power quality in high-harmonic industrial settings?

  • Does the cabinet require specialized installation for existing power systems?

  • What safety features prevent unauthorized access to the electrical components?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Active Power Filter (APF) - Our AdvancedIndustrial plants, data centersHarmonic Compensation: 800kVAR ▲ (Base: 500kVAR)380V rating (IEC 60038), 43 dBA noise (quieter than fridge), 20+ accessory options (IEC 61439-2)Higher cost, requires trained installation
Static VAR Compensator (SVC)Grid substations, heavy machinery plantsVAR Compensation: 1,200kVAR (IEC 60038), 0.5s response time (IEEE 1547)Cost-effective for large-scale reactive power needsIneffective against high harmonics, bulky footprint
Reactive Power Capacitor BankCommercial buildings, small factorieskVAR Capacity: 300kVAR (IEC 60898), 380V ratingLow cost, simple installationOnly addresses reactive power, no harmonic correction
Hybrid Power Quality ConditionerMixed industrial loadsCombines APF (600kVAR) + SVC (900kVAR), 100ms response (IEEE 519)Versatile for complex loadsHigh complexity, maintenance-intensive
Digital Power Quality AnalyzerUtility substations, diagnostic auditsHarmonic analysis up to 50th order (IEC 61000-4-7), 1MHz sampling rateReal-time diagnostics, no active correctionPassive monitoring only, no compensation capability
Transformer-Based SolutionIsolated power distribution networksVoltage isolation (IEC 61800-3), 380V/480V conversionStable voltage isolation, long lifespanHeavy, low efficiency (92%), no harmonic handling
