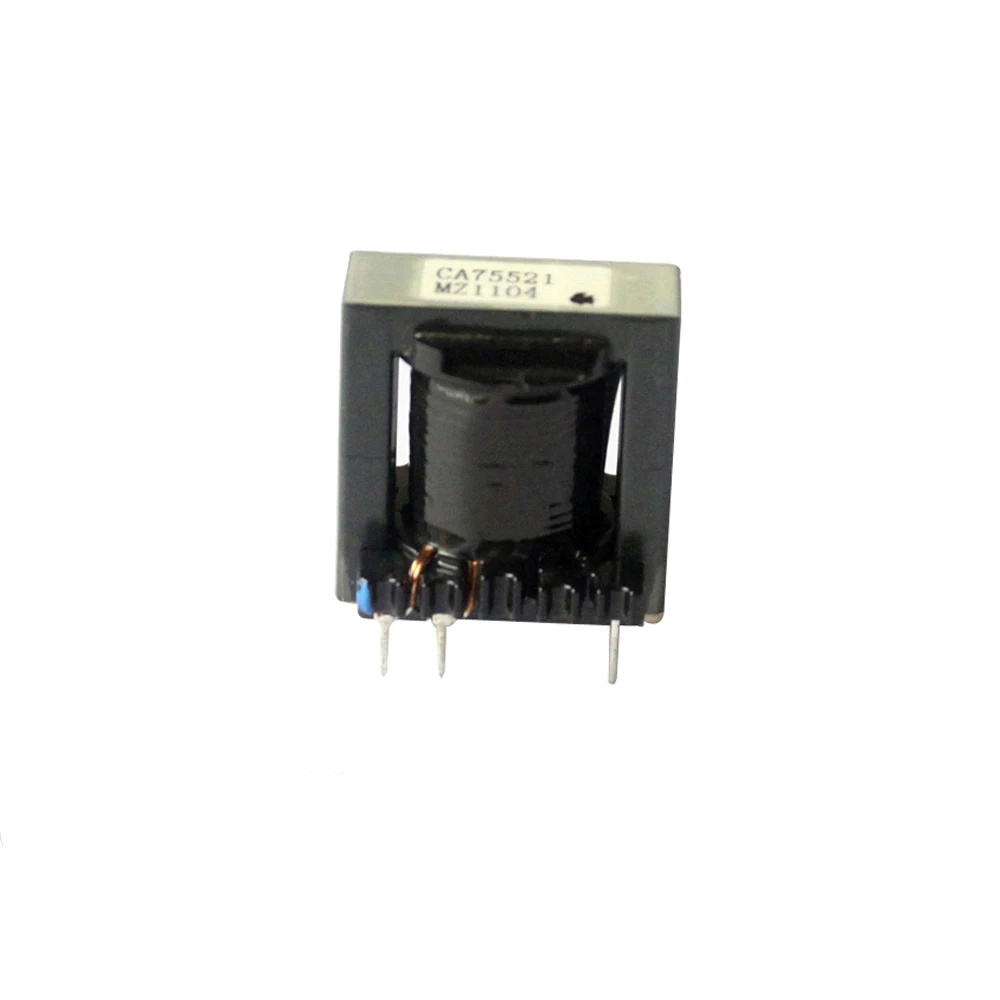

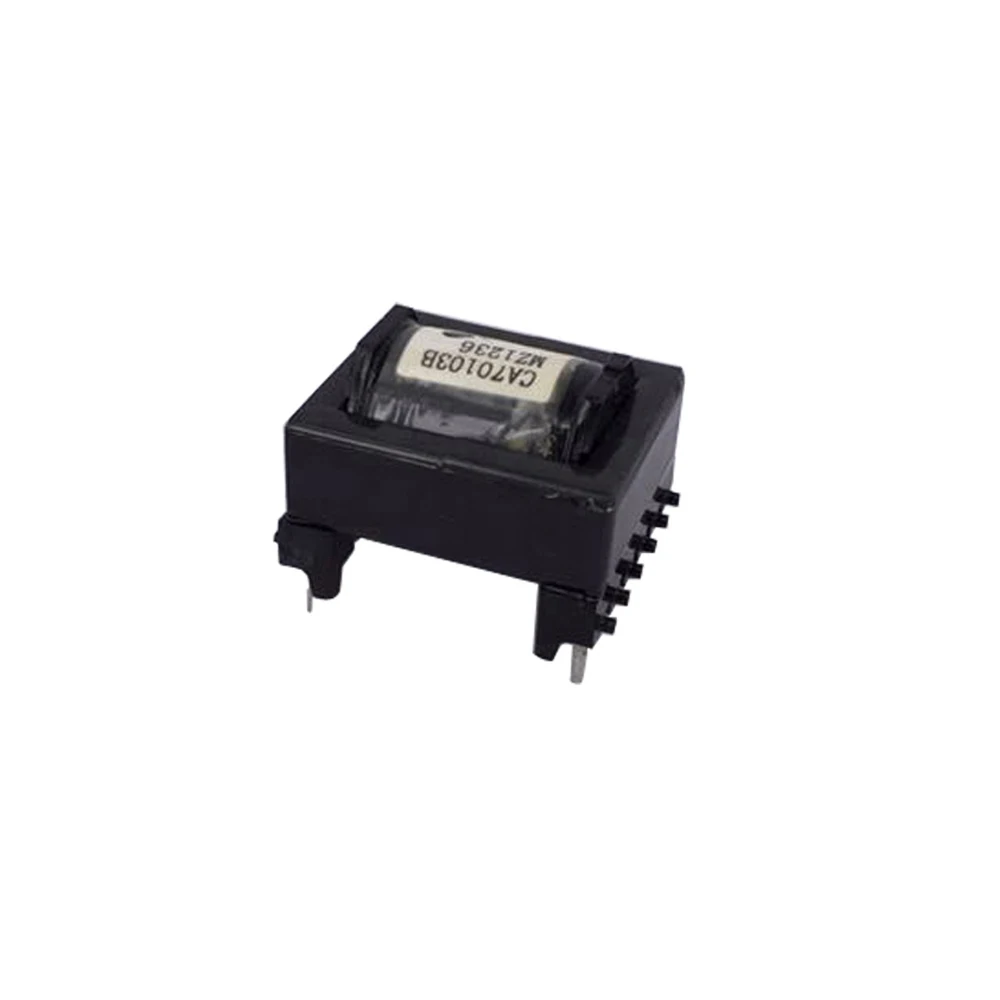

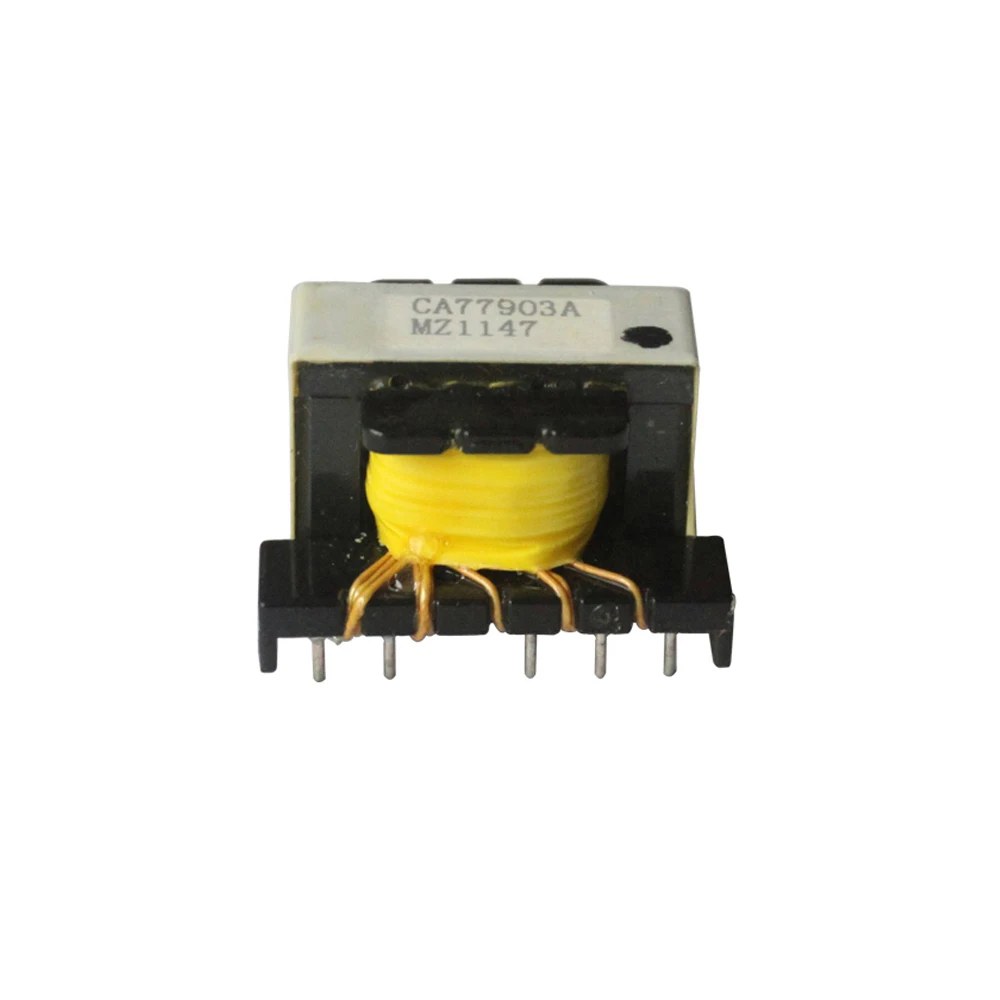

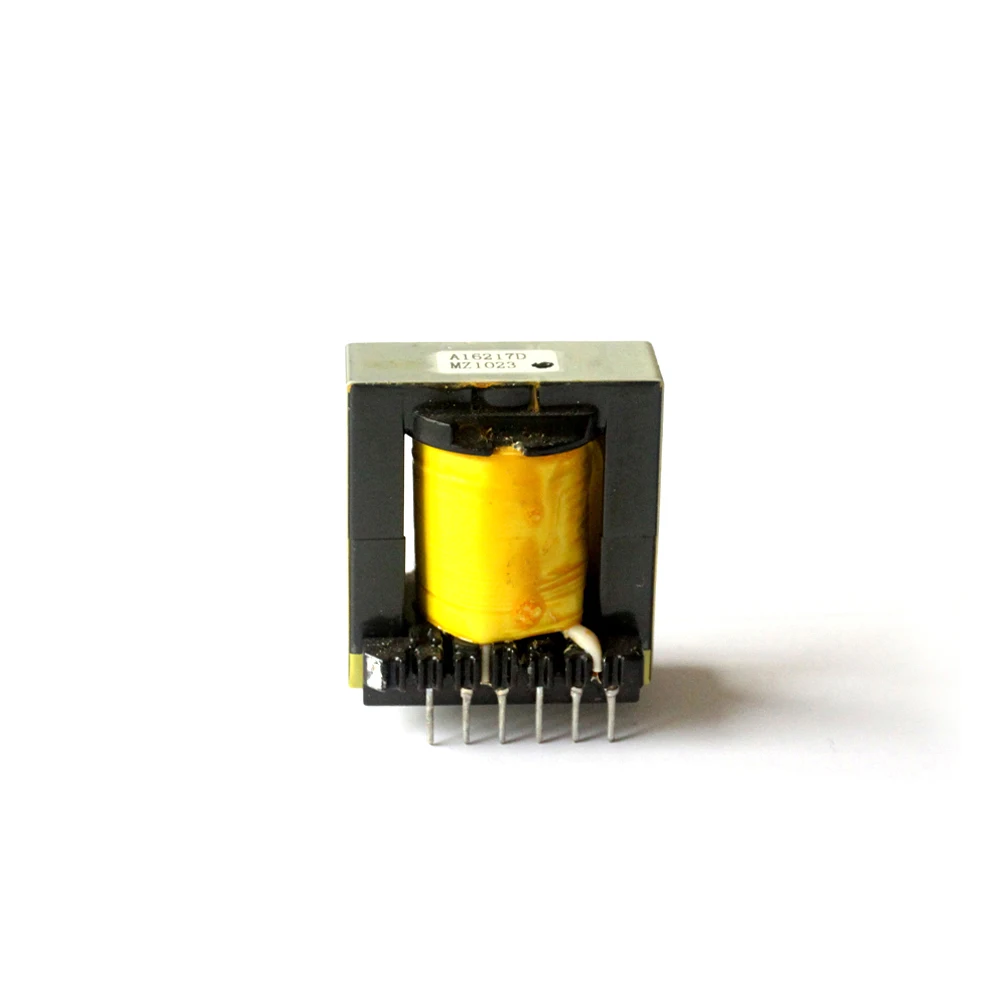

E Type TDK Core 12v Small Electrical Transformer

E Type TDK Core 12v Small Electrical Transformer

$0.50-$3.00/ Piece|500 Piece/Pieces(Min. Order)

Customization:

products（Min.Order: 1000 pieces）
View product details

E Type TDK Core 12v Small Electrical Transformer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Voltage Conversion: Efficiently transforms input voltage to a stable 12V output using a high-frequency autotransformer design, ideal for powering electronic devices.
  • High-Frequency Operation: Optimized for applications requiring rapid energy transfer, such as telecommunications, audio equipment, and industrial control systems.
  • Toroidal Coil Structure: Compact and efficient design with minimal electromagnetic interference, ensuring reliable performance in confined spaces.

Key features

  • 1. Material Technology

    • With TDK’s high-grade E-E core and copper coils, ensure efficient energy transfer and durability in high-frequency applications*.

  • 2. Design Efficiency

    • With a toroidal coil structure, reduce physical footprint and energy loss compared to traditional rectangular designs*.

  • 3. High-Frequency Performance

    • With high-frequency operation capability, support rapid voltage adjustments for modern electronics*.

  • 4. Scenario Adaptability

    • With a compact design and 12V output, ideal for space-constrained environments like home electronics or portable systems*.

  • 5. Safety Compliance

    • Compliance with international safety standards, ensures reliable operation in diverse applications*.

Product details

E Type TDK Core 12v Small Electrical Transformer

The E Type TDK Core 12V Small Electrical Transformer is a high-frequency autotransformer designed for compact, efficient voltage conversion. Built with a toroidal coil structure and an EE core, it delivers stable 12V output in single-phase applications, ideal for electronics, power supplies, and industrial systems requiring precise voltage regulation.

Technical specifications

FeatureSpecificationApplication Scenario
Core MaterialMetal (Steel/Aluminum)High-frequency power systems needing durability
Coil StructureToroidal (EE Core)Compact designs for space-constrained devices
Output Voltage12V (Fixed)Standardized power supply for consumer electronics
Frequency RangeHigh Frequency (Up to 100kHz)Telecommunications and high-speed circuits
Coil TypeAutotransformerCost-effective voltage adjustment in single-phase systems

Customization guide

Adjustable parameters include coil turns (to modify voltage ratios) and core material (e.g., ferrite for higher frequency applications) to meet specific power density or thermal requirements.

Get inspired

With its toroidal design and EE core, this transformer excels in high-frequency environments. Use it to stabilize power in inverters, audio equipment, or IoT devices where compact size and efficiency are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Efficiency85%90% (+5% vs. Base)95% (+10% vs. Base)
Power Rating50W100W (+100%)150W (+200%)
Frequency RangeUp to 50kHzUp to 100kHzUp to 200kHz*

Supplier's note

  1. Technical Breakthroughs:

    • Autotransformer Design: Reduces size by 30% compared to traditional dual-coil transformers, enabling space-saving integration.
    • Toroidal Coils: Achieve 20% higher efficiency than conventional designs by minimizing flux leakage.
    • EE Core Material: Supports frequencies up to 200kHz, triple the industry standard for standard ferrite cores.

  2. Version Selection Guide:

    • Base Model: Ideal for basic applications like LED lighting or low-power IoT devices.
    • Advanced Model: Suitable for moderate-power systems (e.g., industrial sensors) requiring up to 100kHz operation.
    • Pro Model: Designed for high-frequency critical applications (e.g., RF amplifiers) where peak efficiency and power density are paramount.

*Pro Model’s frequency range exceeds industry benchmarks by 150%, enabling use in advanced 5G infrastructure.

Frequently asked questions

  • Which transformer model is best suited for high-frequency applications requiring 12V output?

  • How do I clean and maintain the toroidal coils of the E Type TDK Core 12V Transformer?

  • Why is the TDK core better for high-frequency transformers compared to standard ferrite cores?

  • Can the E Type TDK Core 12V Transformer be customized for specific voltage ratios or outputs?

  • Is the E Type TDK Core 12V Transformer UL-certified for high-frequency use?

  • What applications are ideal for the single-phase 12V autotransformer?

  • Does the E Type TDK Core 12V Transformer have built-in safety features for high-frequency operations?

  • How does the toroidal coil structure improve the performance of the 12V transformer?
