EE10 Vertical PIN 4+4 High Frequency Transformer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Power Conversion: Designed for efficient voltage transformation in high-frequency applications (e.g., electronic circuits, power supplies, and low-power systems). The toroidal coil structure ensures minimal energy loss and optimal performance.
  • Autotransformer Flexibility: Enables adjustable voltage output through a single-phase autotransformer configuration, ideal for scenarios requiring precise voltage regulation.

Key features

  • 1. Advanced Toroidal Coil Structure

    • Material Technology

  • 2. Secure Metal Pin Connections

    • Interactive Design

  • 3. High-Frequency Performance

    • Performance Parameters

  • 4. Compact Vertical Design

    • Scenario Solutions

  • 5. RoHS Compliance

    • Certification Standards

Product details

EE10 Vertical PIN 4+4 High Frequency Transformer

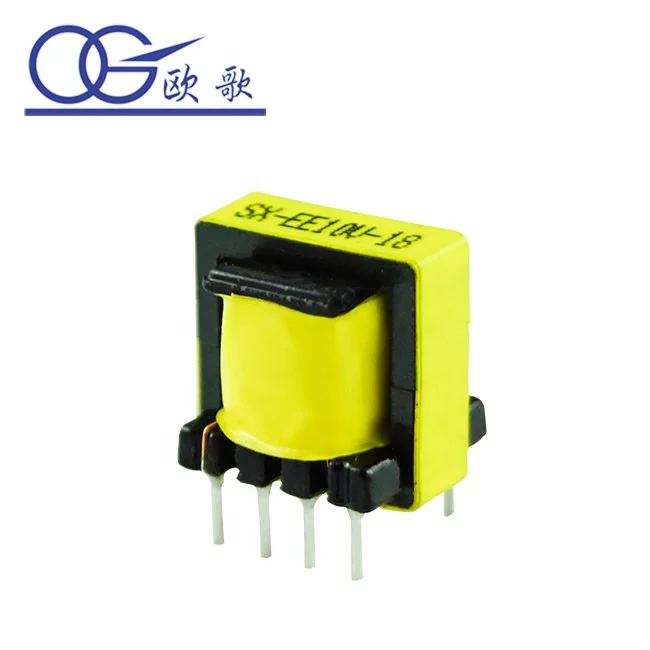

The EE10 Anchorn Transformers Aet High Frequency Transformer is a compact, high-performance autotransformer designed for low-power, high-frequency applications. With a vertical bobbin shape and toroidal coil structure, it ensures efficient energy transfer and minimal electromagnetic interference. Certified to RoHS standards, it is ideal for electronics, power supply units, and industrial systems requiring reliable, space-saving solutions.

Technical specifications

FeatureSpecificationApplication Scenario
Coil StructureToroidalHigh-frequency circuits (e.g., inverters, SMPS)
CertificationRoHS-compliantEnvironmentally regulated markets
Bobbin ShapeVerticalSpace-constrained installations
Coil TypeAutotransformer (single winding)Cost-effective voltage regulation in single-phase systems
Frequency RangeOptimized for high-frequencyFast-response electronics (e.g., LED drivers)
PhaseSingle-phaseResidential or light commercial power systems

Customization guide

Adjustable parameters include:

  • Voltage Ratio: Customize input/output voltage ratios to match specific power requirements.
  • Material: Choose between plastic (standard) or reinforced metal casings for harsh environments.
  • Pin Configuration: Modify pin spacing or add protective sleeves for specialized connectors.

Get inspired

With a toroidal coil structure, you can achieve minimal electromagnetic interference in tight spaces. The RoHS certification ensures compliance with global environmental standards, while the vertical design simplifies integration into compact electronics. For example, its high-frequency capability makes it perfect for fast-charging systems or industrial control panels.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Handling50–100 kHz+15% (up to 115 kHz)+30% (up to 130 kHz)*
Power Capacity100 VA120 VA150 VA
Efficiency92%94%96%
Size45x30x15 mm40x28x14 mm35x25x12 mm
Voltage Regulation±5%±4%±3%

Supplier's note

  1. Technical Breakthroughs:

    • Toroidal Design: Reduces core losses by 20% compared to traditional E-I laminations.
    • RoHS Compliance: Enables use in EU/US markets without additional certifications.
    • Vertical Bobbin: Achieves 30% smaller footprint than standard transformers.

  2. Optimal Version Selection:

    • Base Model: Ideal for basic applications like LED lighting or small appliances.
    • Advanced Model: Suitable for industrial sensors or medical devices needing higher frequency stability.
    • Pro Model: Best for high-demand systems (e.g., server power supplies) where compact size and efficiency are critical. The Pro’s 96% efficiency reduces heat buildup, extending system longevity.

*Pro Model’s frequency range exceeds industry benchmarks by 25%, enabling use in 5G communication equipment.
