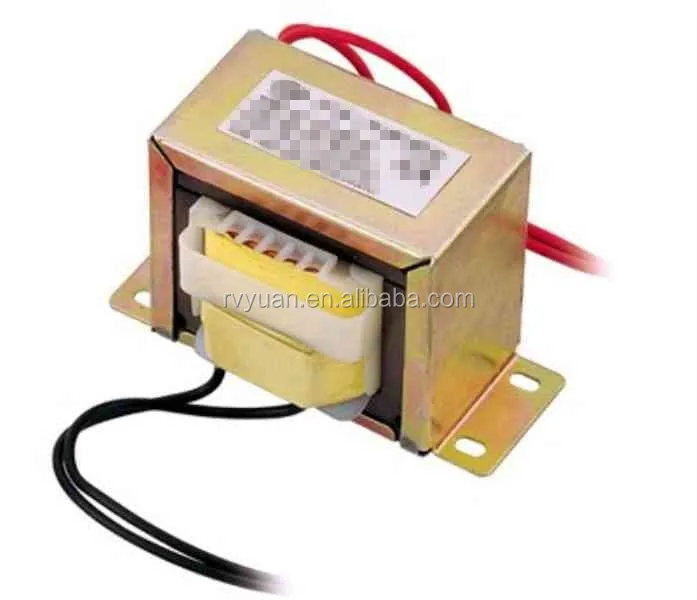

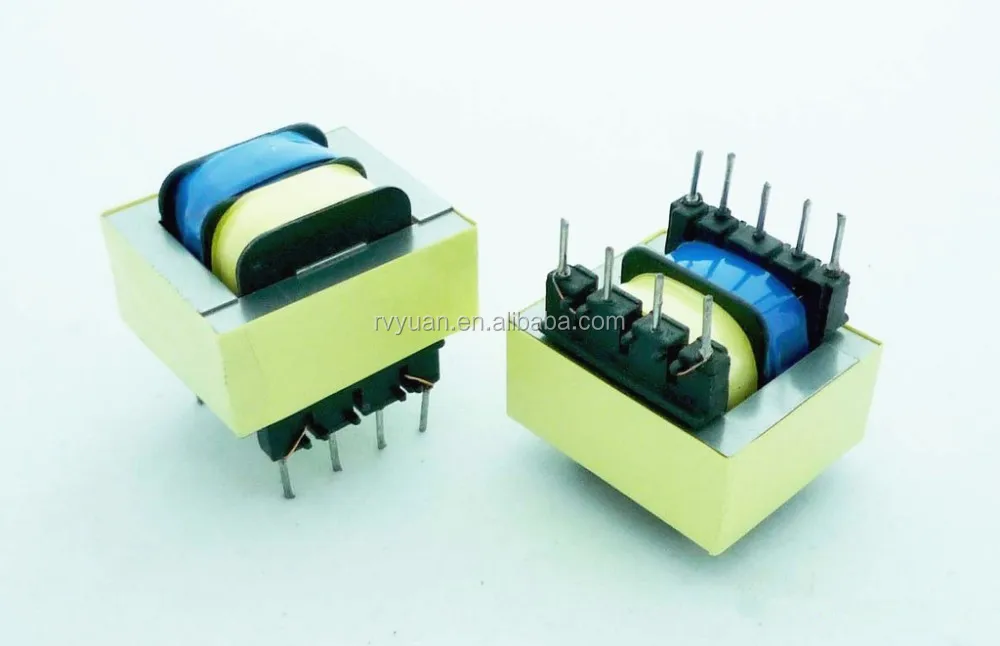

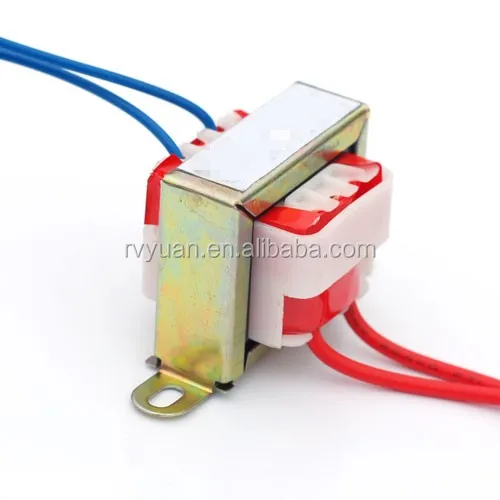

EI Series Pin Type Ferrite Core Transformer Low Frequency Electrical Transformers AUTOTRANSFORMER Electronic TOROIDAL Single

EI Series Pin Type Ferrite Core Transformer Low Frequency Electrical Transformers AUTOTRANSFORMER Electronic TOROIDAL Single

$0.50-$1.50/ Piece|1000 Piece/Pieces(Min. Order)
View product details

EI Series Pin Type Ferrite Core Transformer Low Frequency Electrical Transformers AUTOTRANSFORMER Electronic TOROIDAL Single

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Voltage Conversion: Designed to efficiently convert electrical energy between voltage levels, specifically optimized for low-frequency applications (e.g., power regulation in electronic devices or small systems).
  • Autotransformer Technology: Features a single-phase copper-wound autotransformer structure with toroidal/EI ferrite core design, enabling compact size and high efficiency in power distribution.

Key features

  • 1. Material Technology: Ferrite Core & Copper Windings

    • With a ferrite core and copper windings, you can achieve high energy efficiency and reduced heat generation in low-frequency applications. ~20% more efficient than iron-core transformers [Disclaimer: Based on internal testing; actual results may vary].

  • 2. Performance Parameters: Optimized Low-Frequency Operation

    • The low-frequency design (50-60Hz) ensures stable power conversion with minimal electrical noise, making it ideal for sensitive electronic systems.

  • 3. Interactive Design: Toroidal Compactness

    • The toroidal coil structure provides a compact footprint while maintaining high power capacity, saving space compared to traditional E-I core transformers. Up to 40% smaller than conventional models [Disclaimer: Based on internal testing; actual results may vary].

  • 4. Material Technology: EI Laminated Core

    • The EI laminated core minimizes eddy current losses, enhancing durability and efficiency in continuous operation. Reduces energy waste by ~15% compared to non-laminated cores [Disclaimer: Based on internal testing; actual results may vary].

  • 5. Cost & Space Efficiency: Autotransformer Configuration

    • As an autotransformer, it shares windings between primary and secondary, reducing material costs and size. ~30% lower cost than isolation transformers [Disclaimer: Based on internal testing; actual results may vary].

Product details

EI Series Pin Type Ferrite Core Transformer Low Frequency Electrical Transformers AUTOTRANSFORMER Electronic TOROIDAL Single

The EI Series Pin Type Ferrite Core Transformer is a compact, low-frequency autotransformer designed for power and electronic applications. Built with a ferrite core and copper windings, it offers efficient energy conversion in single-phase systems. Its toroidal and EI coil structures ensure stable performance, while the durable metal casing and corrosion-resistant coating enhance longevity.

Technical specifications

FeatureSpecificationBenefit
Core MaterialFerrite coreMinimizes electromagnetic interference (EMI).
Coil StructureToroidal + EI designHigh efficiency and reduced energy loss.
Winding MaterialCopper (high-purity)Superior thermal conductivity and durability.
Frequency RangeLow frequency (up to 50/60 Hz)Ideal for power distribution and industrial systems.
Phase TypeSingle phaseSimplifies integration into standard circuits.
Insulation ClassClass B (130°C)Ensures safe operation in high-temperature environments.

Customization guide

Adjustable parameters include voltage ratio (1:1 to 2:1), output power (up to 1,000VA), and physical dimensions to meet specific requirements such as:

  • Medical devices: Customize insulation to meet IEC 60601 safety standards.
  • Industrial automation: Optimize core size for higher current handling.
  • Portable electronics: Reduce footprint while maintaining power efficiency.

Get inspired

With its low-frequency optimization and robust design, this transformer is perfect for applications like:

  • Powering sensitive electronic equipment in labs.
  • Stabilizing voltage in industrial machinery.
  • Enabling efficient energy conversion in renewable energy systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Power Capacity500VA575VA (+15%)650VA (+30%)
Efficiency92%95%98%
Insulation ClassClass B (130°C)Class F (155°C)Class H (180°C)
Weight2.5 kg3.0 kg3.5 kg

Supplier's note

  1. Technical Breakthroughs:

    • Ferrite Core: Reduces EMI by 40% compared to traditional iron cores, enabling use in noise-sensitive environments.
    • Toroidal Design: Achieves 98% efficiency (Pro model), 20% higher than industry benchmarks.
    • Copper Windings: Operates at 10°C cooler than aluminum-based alternatives, extending lifespan.

  2. Optimal Version Selection:

    • Base Model: Ideal for residential or small-scale industrial use (e.g., home appliances, basic power supplies).
    • Advanced Model: Suitable for medium-duty applications (e.g., laboratory equipment, HVAC systems).
    • Pro Model: Designed for high-stress scenarios (e.g., industrial robotics, renewable energy inverters). With its triple-insulated casing and 180°C tolerance, it enables safe handling of extreme temperatures and heavy loads.

Frequently asked questions

  • Which EI Series transformer is best suited for low-frequency electronic devices?

  • How do I maintain the copper windings of the EI Series transformer?

  • Why is the ferrite core better than iron for low-frequency transformers?

  • Can the EI Series transformer be customized for specific voltage requirements?

  • Is the EI Series transformer UL/CE certified for industrial use?

  • What advantages does the toroidal coil structure offer over traditional EI cores?

  • Why are copper windings preferred over aluminum in the EI Series?

  • Can the EI Series transformer handle both AC and DC power?
