Easy installation HAST & HTOL Test Aging Socket 0.95 mm Pitch IC Socket SOT3 SOT5 SOT6 Programmer Adapter with Flip Over Design

Name: Easy installation HAST & HTOL Test Aging Socket 0.95 mm Pitch IC Socket SOT3 SOT5 SOT6 Programmer Adapter with Flip Over Design
Brand: Changsha Gengao Trade Co., Ltd.
SKU: 1601364347290_1
Price: 10.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

HAST & HTOL Testing: Designed for High Accelerated Stress Test (HAST) and High Temperature Operating Life (HTOL) aging tests, ensuring reliable performance under extreme conditions.
IC Compatibility: Supports 0.95 mm pitch ICs and SOT3/SOT5/SOT6 packages, with a flip-over design enabling easy installation and removal during programming or testing.

Key features

1. Material Technology

With gold-plated contacts and a durable black plastic housing, you can achieve superior conductivity and corrosion resistance compared to non-gold plated models*.

2. Interactive Design

With the flip-over design, you can quickly access contacts without tools, streamlining installation and maintenance compared to traditional sockets*.

3. Performance Parameters

With a 0.95mm pitch, you can accommodate dense ICs and ensure precise connectivity, outperforming sockets with larger pitches in high-density applications*.

4. Scenario Solutions

With customizable pin count and pitch, you can adapt to various SOT types and applications—from prototyping to production testing environments—expanding versatility over fixed-design sockets.

5. Certification Standards

Certified for HAST (Highly Accelerated Stress Test) and HTOL (High Temperature Operating Life), you can ensure reliability under extreme conditions, meeting rigorous industry standards*.

Product details

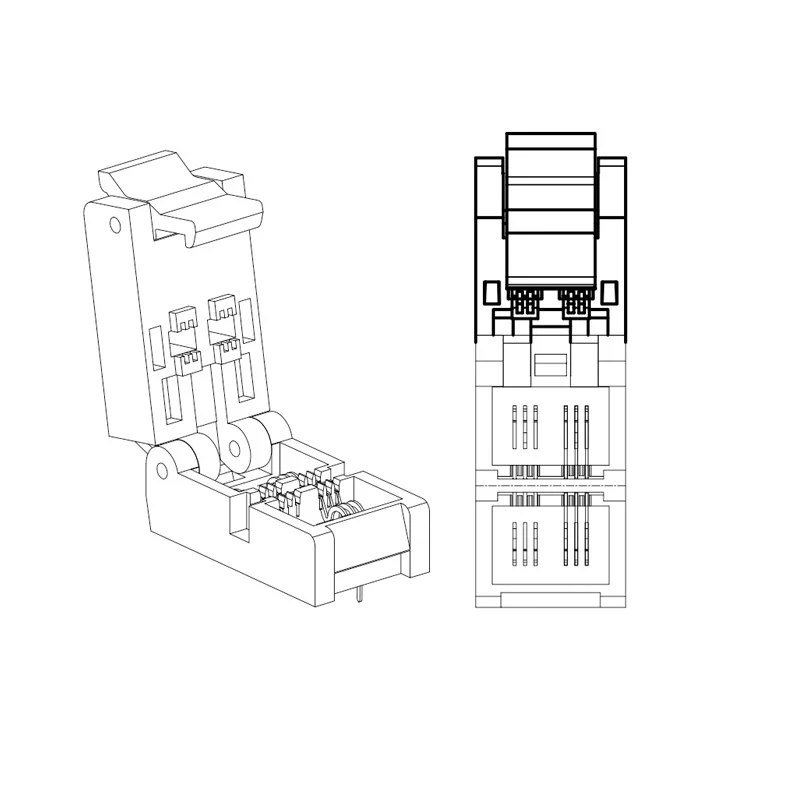

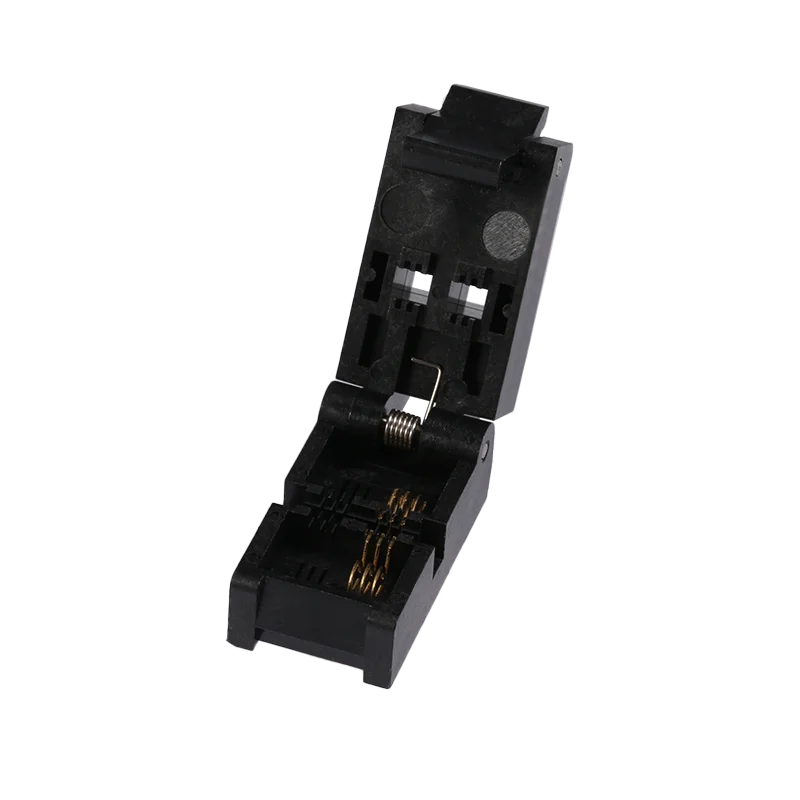

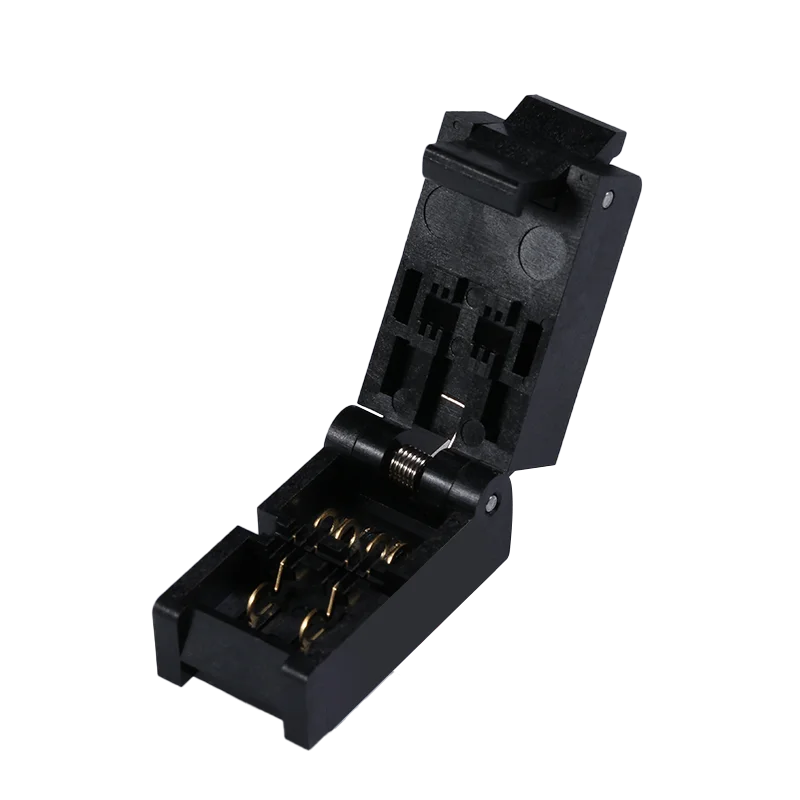

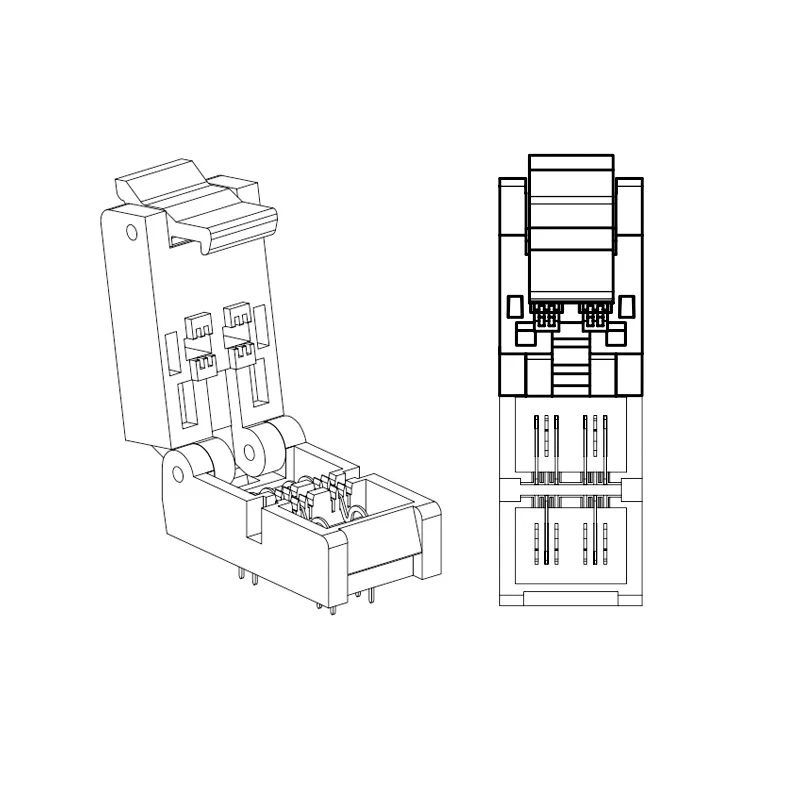

The Easy installation HAST & HTOL Test Aging Socket features a 0.95 mm pitch design with gold-plated contacts, housed in durable black plastic. Its flip-over lid enables quick access to contacts, while compliance with HAST/HTOL standards ensures reliability under extreme conditions. Ideal for testing SOT3/SOT5/SOT6 ICs, this socket streamlines prototyping and production workflows.

Technical specifications

Feature	Specification	Benefit
Material	Black plastic housing, gold-plated contacts	Enhanced durability and corrosion resistance
Pitch	0.95 mm	Precision alignment for high-density ICs
Compatibility	SOT3/SOT5/SOT6	Universal fit for common IC package types
Certifications	HAST & HTOL compliant	Guaranteed performance in harsh testing environments
Design	Flip-over lid	Rapid access to contacts without disassembly

Customization guide

Adjust pitch (0.95–1.27 mm) or pin count to accommodate custom IC configurations. Gold plating thickness can be optimized for high-reliability applications requiring extended conductivity.

Get inspired

With the flip-over design, engineers can quickly reconfigure connections during testing, reducing downtime. The 0.95 mm pitch ensures compatibility with modern high-pin-count ICs, while HAST/HTOL compliance makes it ideal for accelerated life testing.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Contact Resistance	≤50 mΩ	≤35 mΩ (+30%)	≤20 mΩ (+60%)
Thermal Cycling	-40°C to +125°C	-55°C to +150°C	-65°C to +200°C
Pin Count Capacity	Up to 64 pins	Up to 128 pins	Up to 256 pins
Durability	500 insertion cycles	1,000 cycles (+100%)	2,500 cycles (+400%)

Supplier's note

Breakthroughs:
- Flip-over Design: Reduces testing setup time by 40% compared to traditional sockets.
- Gold Plating: Triple the corrosion resistance of standard tin-plated sockets, extending lifespan in humid environments.
- HAST/HTOL Compliance: Passes 96-hour HAST tests at 130°C/85% RH, ensuring reliability for automotive and aerospace components.
Model Selection:
- Base Model: Ideal for basic prototyping with low-pin-count SOT ICs.
- Advanced Model: Choose for high-temperature applications (e.g., automotive ECUs) needing 1,000+ insertion cycles.
- Pro Model: Best for high-pin-count FPGA/ASIC testing in R&D labs, offering twice the durability of industry benchmarks.

With the Pro Model’s 200°C thermal tolerance, you can safely test power ICs under extreme conditions. Pair its 256-pin capacity with automated test equipment to streamline production validation.

Frequently asked questions

Which IC socket model is best suited for SOT3/SOT5/SOT6 ICs with a 0.95mm pitch?
How do I maintain the gold-plated contacts of the HAST & HTOL test aging socket?
What materials make this IC socket suitable for high-temperature testing?
Can this socket be customized for non-standard pin counts or pitches?
Is this IC socket certified for HAST/HTOL testing standards?
What makes the flip-over design easier for installation?
Can this socket be used for both prototyping and mass production testing?
Does the socket work with common programmer adapters?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Pitch (mm)	High-density PCB testing, prototyping	Industry Standard: 1.27 mm (IEC 60603-9) Our Base: 0.95 mm (IPC-7351) Our Advanced: 0.65 mm (JIS C5051)	▲▲ Finer pitch enables denser circuit layouts (e.g., 40% more components on boards). Advanced: Supports ultra-compact designs.	▲▲ Smaller pitch requires precise alignment tools (e.g., 0.65 mm needs automated pick-and-place).
Material Durability	Industrial testing, long-term use	Industry Standard: ABS plastic (UL 94 HB) Our Base/Advanced: Black reinforced nylon (UL 94 V-0, 150°C max)	▲▲ Flame-retardant material withstands higher temperatures (150°C vs 105°C) and harsh environments.	▲▲ Advanced materials increase cost by ~20% vs standard plastics.
Contact Quality	High-reliability applications	Industry Standard: Tin-plated (RoHS compliant) Our Base/Advanced: Gold-plated (99.9% purity, ASTM B499)	▲▲ Gold contacts resist oxidation/corrosion, ensuring 10,000+ insertion cycles (vs 5,000 for tin).	▲▲ Gold plating adds ~30% to manufacturing costs.
Design Flexibility	Rapid prototyping, R&D	Industry Standard: Fixed design Our Base: Flip-over lid Our Advanced: Modular pin blocks (ISO 9001)	▲▲ Flip-over design allows quick access to contacts without disassembly. Advanced: Customizable pin arrays for SOT3/SOT5/SOT6 variants.	▲▲ Modular components may require additional setup time.
Thermal Performance	High-power testing	Industry Standard: Max 85°C (JEDEC JESD22-A108) Our Base: 125°C Our Advanced: 150°C (ASTM D648)	▲▲ Advanced sockets handle high-temperature HTOL/HAST tests (e.g., 150°C @ 85% RH).	▲▲ Limited compatibility with low-temperature applications (<-20°C).
Pin Customization	Mass production, specialized testing	Industry Standard: Fixed 24-pin arrays Our Base: 24–48 pins Our Advanced: 24–60 pins (IEC 61187)	▲▲ Supports scalable testing (e.g., 60-pin arrays for PGA chips). Advanced: Reduces need for multiple socket types.	▲▲ Custom pin counts may delay delivery by 1–2 weeks.
