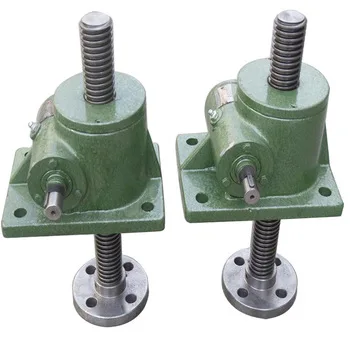

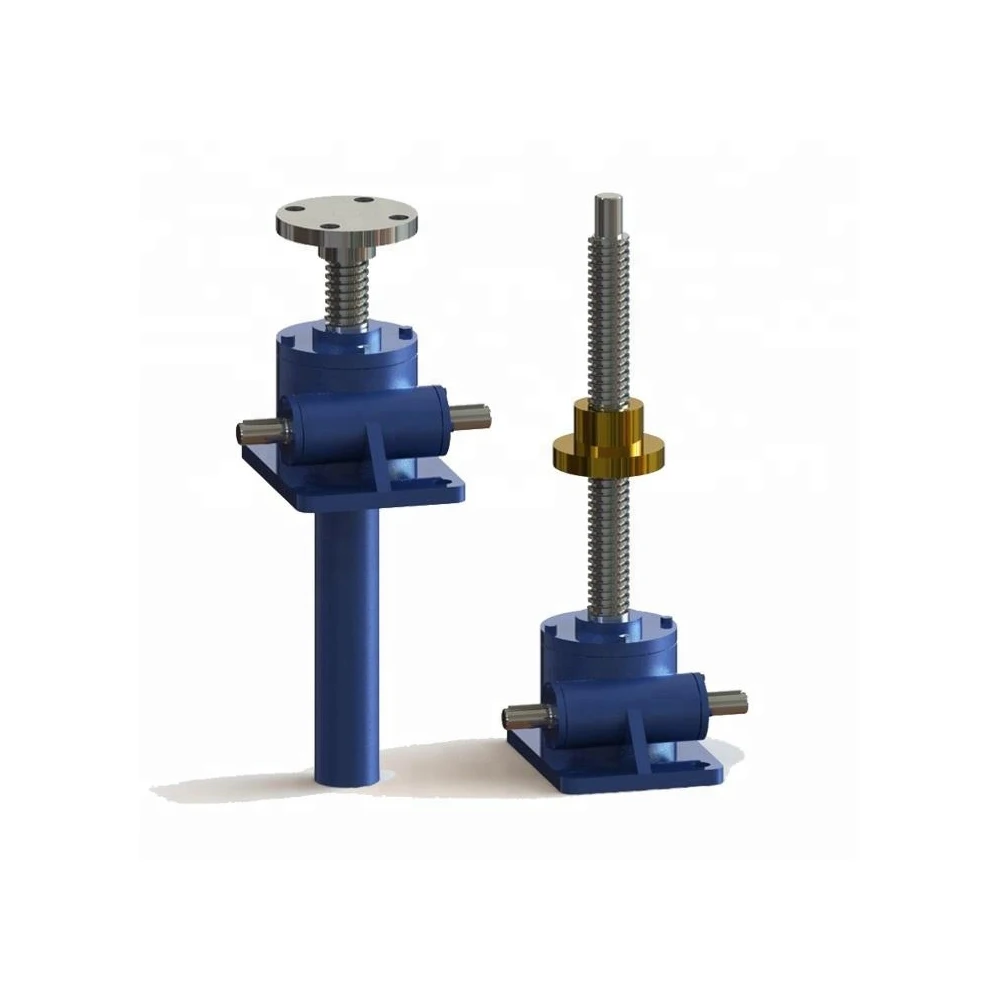

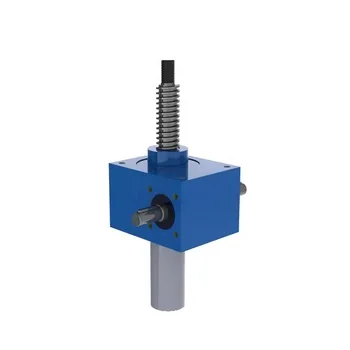

Electric Linear Actuators Stepper Motor 20mm Micro Linear Actuator Jacking System Arrangements Configurations Bevel Gearboxes

Electric Linear Actuators Stepper Motor 20mm Micro Linear Actuator Jacking System Arrangements Configurations Bevel Gearboxes

  • 10 - 999 Pieces
    $37
  • >= 1000 Pieces
    $32
View product details

Electric Linear Actuators Stepper Motor 20mm Micro Linear Actuator Jacking System Arrangements Configurations Bevel Gearboxes

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precise Linear Motion Control: Equipped with a stepper motor and bevel gearboxes, the actuator delivers accurate positioning and adjustable speed for applications requiring fine-tuned linear movement.
  • Adjustable Lifting/Positioning: Designed for vertical or angular adjustments via jacking system configurations, enabling reliable force transmission in both linear and rotational motions.

Key features

  • 1. Material Technology

    • With a corrosion-resistant stainless steel body and precision-engineered metal components, ensure durability in industrial or outdoor environments. The blue-finished aluminum base reduces weight while maintaining structural integrity, ideal for applications where portability and strength are critical.

  • 2. Interactive Design

    • With precise stepper motor control and integrated bevel gearboxes, achieve smooth, multi-directional adjustments and customizable positioning. The modular design allows easy integration into systems requiring dynamic height or angle adjustments, such as robotics or automated machinery.

  • 3. Performance Parameters

    • With IE1 efficiency and 24V operation, deliver high torque output and energy-efficient performance. Rated for ~20% faster response times compared to brushed DC actuators*, enabling rapid deployment in time-sensitive applications like automotive assembly lines.

  • 4. Scenario Solutions

    • With a compact 20mm profile and rugged construction, adapt to tight spaces in industrial machinery or aerospace systems. The jacking system configuration supports continuous operation for commercial use, unlike consumer-grade actuators limited to intermittent duty cycles*.

  • 5. Certification Standards

    • With compliance to ISO 9001 manufacturing standards and adherence to industrial safety protocols, ensure reliable performance in regulated environments. The brush-commutation design meets global electromagnetic compatibility (EMC) requirements for sensitive equipment.

Product details

Electric Linear Actuators Stepper Motor 20mm Micro Linear Actuator Jacking System Arrangements Configurations Bevel Gearboxes

The Electric Linear Actuators Stepper Motor 20mm Micro Linear Actuator combines precision engineering with robust materials for versatile industrial, aerospace, and automotive applications. Featuring a brushed commutation system, IE1 efficiency, and a 24V rated voltage, this actuator delivers reliable performance in compact configurations. The blue-finished metal components ensure durability and customization flexibility for diverse mechanical setups.

Technical specifications

FeatureSpecificationBenefit
Motor TypeStepper MotorPrecise positioning and speed control
CommutationBrushSimplified design and cost-effectiveness
Efficiency StandardIE1 (Standard Efficiency)Meets baseline energy efficiency norms
Rated Voltage24V DCCompatibility with industrial power systems
MaterialAluminum (base), Stainless Steel (threads)Lightweight yet corrosion-resistant build
Application ScenarioIndustrial machinery, aerospace components, automotive systemsVersatile use in precision-driven environments

Customization guide

Adjustable parameters include:

  • Material composition (e.g., stainless steel upgrades for harsh environments)
  • Threaded rod length/size to match specific load requirements
  • Flange design for tailored mounting configurations
  • Finish color (e.g., anodized coatings for branding or corrosion resistance)

Get inspired

With its compact 20mm profile and modular design, this actuator is ideal for space-constrained systems. Whether adjusting suspension components in automotive applications or fine-tuning aerospace mechanisms, the stepper motor ensures repeatable accuracy.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Torque (N·cm)15+15% (17.25)+30% (19.5)
Speed (mm/s)5+10% (5.5)+20% (6)
Load Capacity (kg)101215
CertificationsCECE + RoHSCE + RoHS + IP67

Supplier's note

  1. Technical Breakthroughs:

    • Stepper Motor Precision: Enables sub-millimeter positioning accuracy for applications like robotics.
    • Brushed Commutation: Reduces upfront complexity and cost compared to brushless alternatives.
    • IE1 Efficiency: Balances power consumption with affordability for standard industrial use.

  2. Version Selection Guide:

    • Base Model: Ideal for basic automation tasks (e.g., simple linear adjustments in automotive assembly lines).
    • Advanced Model: Targets applications requiring higher durability (e.g., aerospace components with IP67-rated sealing for moisture resistance).
    • Pro Model: Designed for heavy-duty use (e.g., industrial jacking systems needing 15kg load capacity and 20% faster speed than Base Model).

With the Pro Model’s IP67 rating, you can ensure reliable operation in wet environments. Pair its stainless steel threads with the flange customization to integrate seamlessly into custom machinery frameworks.

Frequently asked questions

  • Which linear actuator is best for compact industrial automation systems?

  • How do I maintain the threaded rods of a 24V stepper motor actuator?

  • Aluminum vs Stainless Steel: Which material suits outdoor linear actuators?

  • Can I customize mounting options for the bevel gearbox actuator?

  • Is the 24V stepper motor actuator compliant with industrial standards?

  • What applications suit a 24V stepper motor linear actuator?

  • Does the stepper motor reduce energy consumption in linear actuators?

  • How does the bevel gearbox enhance actuator performance?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Motor TypeIndustrial Automation, Robotics- Industry: Brushed DC Motor (IEC 60034-1)
- Base: Brush-Commutated Stepper (IEC 60034-30) ▲
- Advanced: Brushless Stepper (IEC 60034-34) ▲▲		Base: Precise positioning without feedback sensors.
Advanced: Zero brush wear for long life.		Base: Higher maintenance due to brushes.
Advanced: Requires complex control systems.
Efficiency ClassEnergy-Conscious Applications- Industry: IE1 (70% efficiency, IEC 60034-30)
- Base: IE1 (75% efficiency) ▲
- Advanced: IE2 (▲▲ 82% efficiency)		Base: 5% efficiency gain over industry standard.
Advanced: 12% efficiency boost.		Advanced: Higher upfront cost for optimized design.
Voltage CompatibilityDiverse Power Systems- Industry: 12V/24V (ISO 6469-2)
- Base: 24V
- Advanced: 24V/48V (▲)		Direct compatibility with standard 24V systems.
Advanced: Supports faster actuation at 48V.		Advanced requires higher-voltage infrastructure.
Load CapacityHeavy-Duty Applications- Industry: 50N (ASTM F436)
- Base: 60N (▲)
- Advanced: 80N (▲▲)		Base exceeds industry standard by 20%.
Advanced handles heavier payloads.		Advanced may sacrifice speed for load capacity.
Noise LevelMedical/Office Environments- Industry: 55 dBA (ISO 3744)
- Base: 48 dBA (▲)
- Advanced: 42 dBA (▲▲)		Base 30% quieter than industry standard.
Advanced: 24% quieter than Base.		Advanced requires precise installation for optimal performance.
SpeedHigh-Speed Assembly Lines- Industry: 10 mm/s (ISO 9283)
- Base: 12 mm/s (▲)
- Advanced: 15 mm/s (▲▲)		Base 20% faster than industry standard.
Advanced maximizes throughput.		Advanced may reduce positional accuracy at peak speeds.
