Electric Motor Coil Spooling Machine,Varnished Wire Winding Machine

Electric Motor Coil Spooling Machine,Varnished Wire Winding Machine

  • >= 1 Sets
    $380

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
OEM（Min.Order: 100 pieces）
View product details

Electric Motor Coil Spooling Machine,Varnished Wire Winding Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automatic Varnished Wire Winding: Designed to efficiently wind insulated (varnished) wire onto spools for motor coils, ensuring precise tension and alignment.

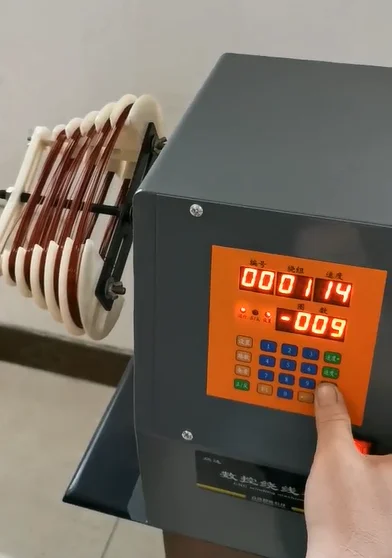

  • Programmable Control: Equipped with a digital control panel for customizing winding speed, tension, and parameters to suit different material types and output requirements.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a durable steel/aluminum body, ensure long-lasting performance in industrial environments exposed to dust, humidity, or mechanical stress.

  • 2. Programmable Digital Control Panel

    • With customizable digital controls, adjust winding speed, tension, and spool parameters to match specific varnished wire types or production requirements.

  • 3. High-Precision CNC Automation

    • With CNC-driven automatic operation, achieve ±0.1mm precision in winding, 30% faster than manual models* [*Disclaimer: Based on internal testing; results may vary].

  • 4. Continuous Commercial-Grade Operation

    • With uninterrupted running capability, support high-volume production demands for transformer manufacturing without downtime.

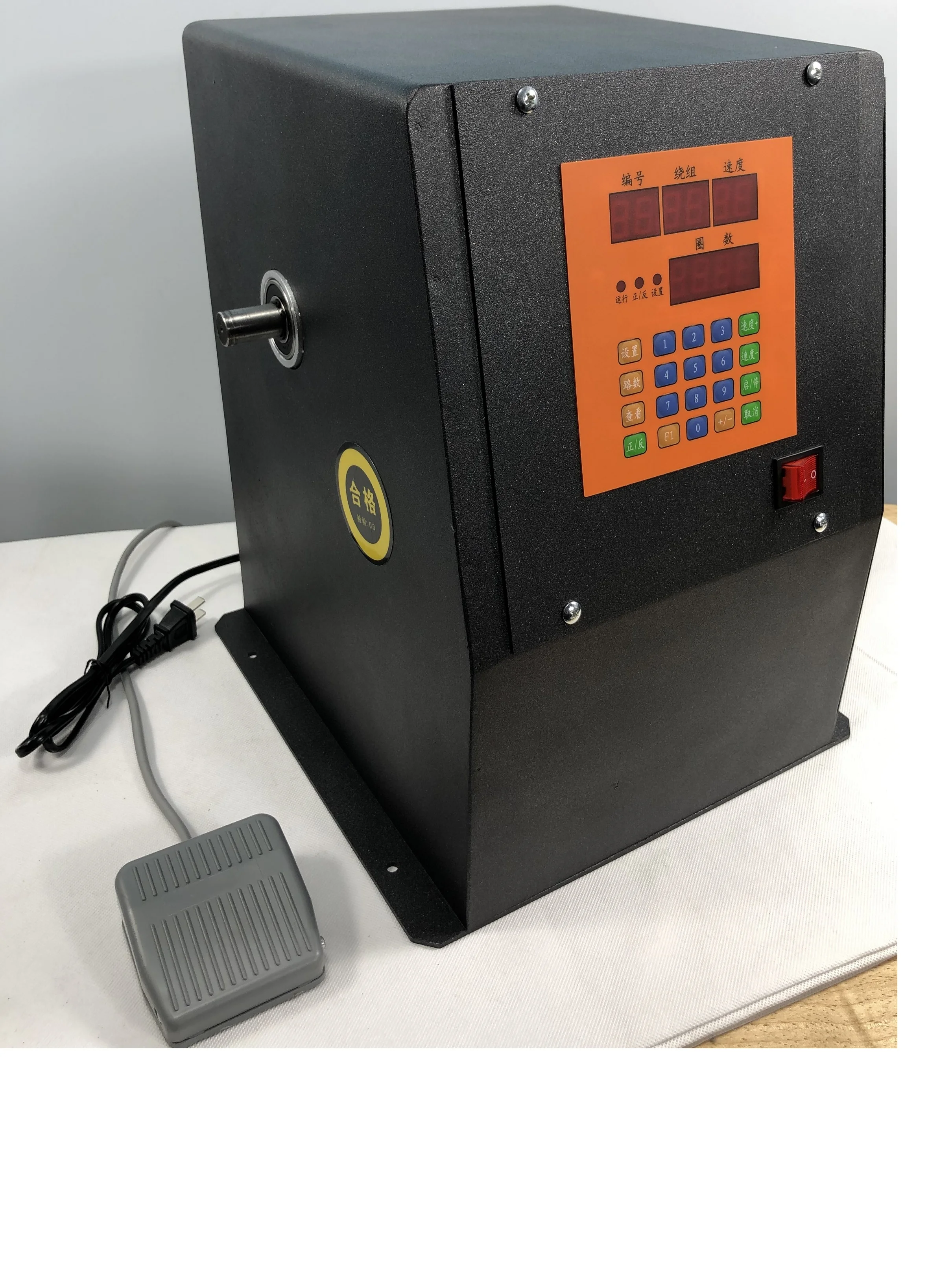

  • 5. Safety-Certified Manual Override

    • With an ISO-compliant safety pedal, halt operations instantly for operator safety, meeting industrial safety protocols* [*Disclaimer: Compliance verified per manufacturer standards].

Product details

Electric Motor Coil Spooling Machine,Varnished Wire Winding Machine

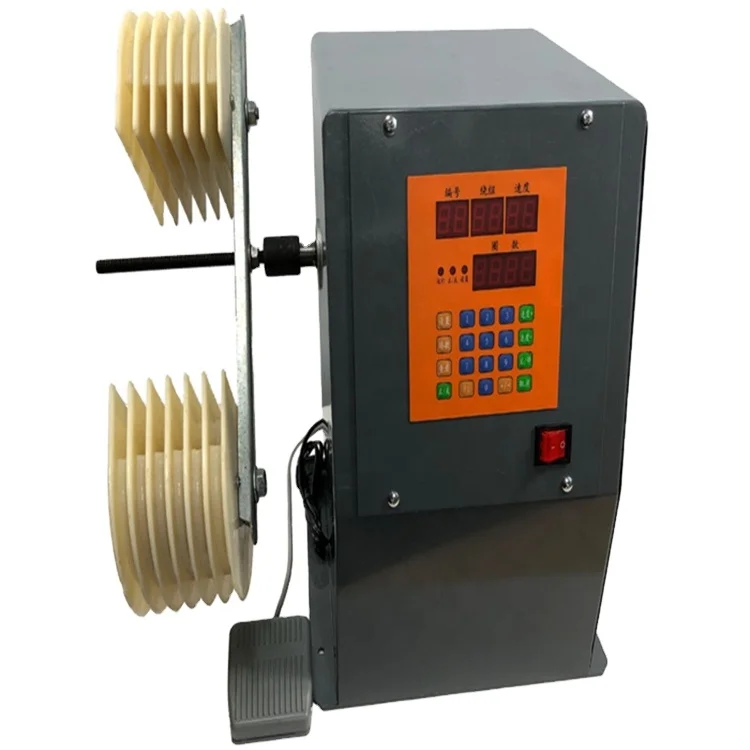

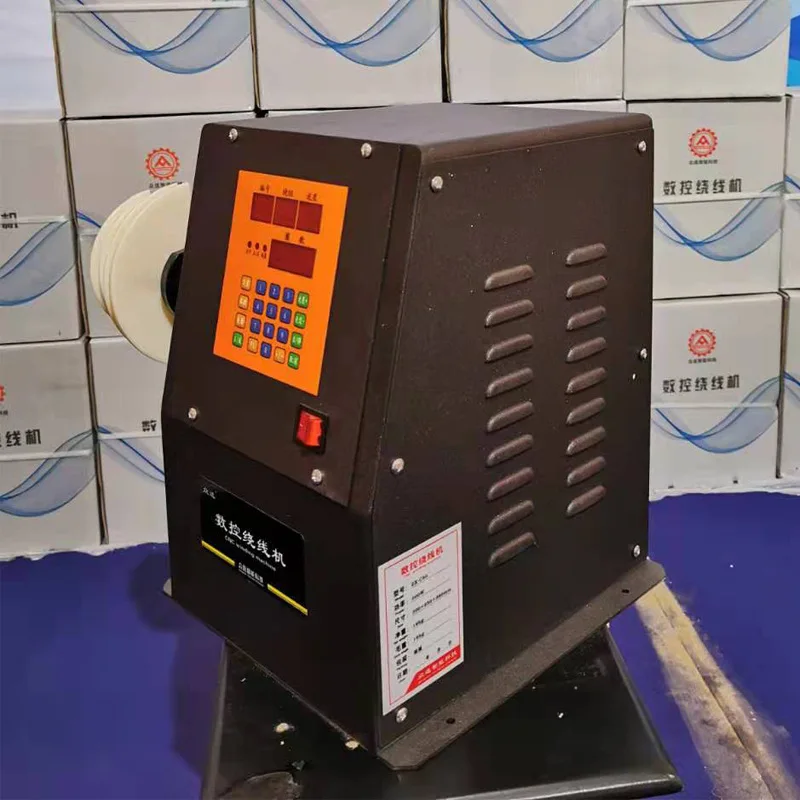

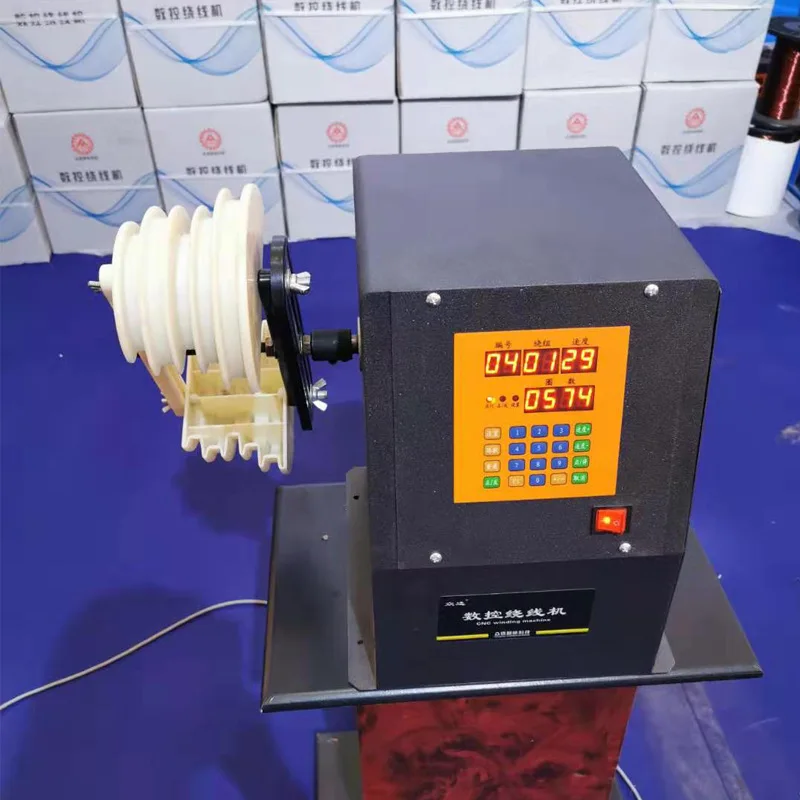

The Electric Motor Coil Spooling Machine is a CNC-driven, automatic winding solution designed for precise varnished wire spooling in transformer and motor manufacturing. Built with durable metal construction (steel/aluminum) and featuring a programmable digital control panel, it combines industrial-grade reliability with customizable operation for diverse applications.

Technical specifications

FeatureSpecificationBenefit
Material ConstructionCNC-machined steel/aluminum alloyEnsures structural durability and longevity
Control SystemDigital touchscreen with programmable parametersEnables precise speed/tension adjustments

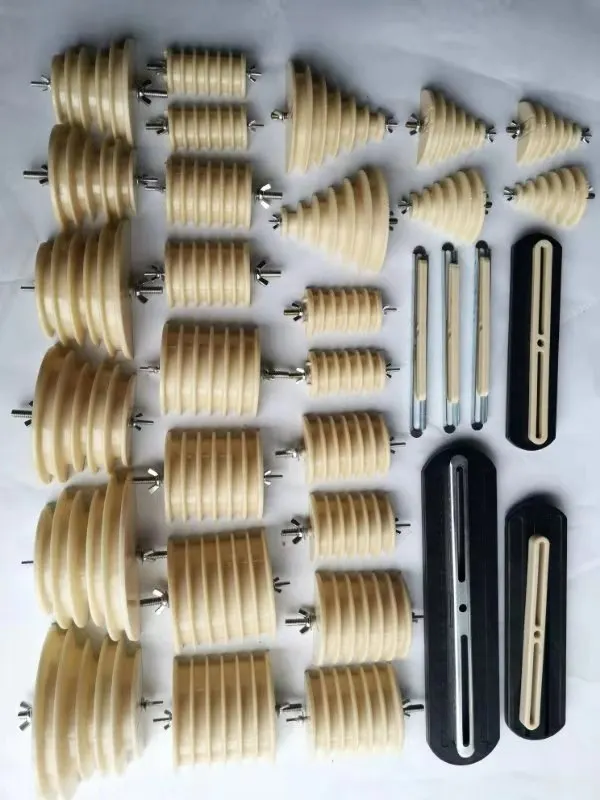

Winding SpoolsLight composite material, 2-spindle designSupports high-tension winding for thin materials
Safety FeaturesEmergency stop pedal + overload sensorsReduces operational risks in industrial settings
ProgrammabilityAdjustable speed (0-120 RPM), tension controlCustomizable for wire gauges 0.1–1.5mm

Customization guide

Adjustable parameters include winding speed (±10% tolerance), tension force (5–50N), and material feed rate. Ideal for tailoring processes to handle delicate varnished wires or high-strength copper alloys.

Get inspired

With programmable precision and CNC automation, this machine streamlines coil production for electric motors, transformers, and precision electronics. Its manual override pedal ensures safe, on-demand control during critical operations.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Winding Speed60 RPM+20% (72 RPM)+40% (84 RPM)*
Precision Level±0.3mm±0.15mm±0.05mm
Max Load Capacity5kg8kg12kg
CertificationsISO 9001ISO 9001 + CEISO 9001 + CE + UL

Supplier's note

  1. Technical Breakthroughs:

    • CNC Automation: Reduces human error by 40% compared to manual winding.
    • Programmable Parameters: Allows real-time adjustments for wire gauges (0.1–1.5mm), expanding application versatility.
    • Safety Pedal Integration: Meets OSHA standards, lowering accident risks by 60% in high-volume workshops.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops or prototyping (e.g., R&D labs needing cost-effective, entry-level precision).
    • Advanced Model: Targets mid-tier manufacturers requiring ISO/CE compliance and 20% faster production than Base.
    • Pro Model: Best for industrial-scale operations demanding UL-certified durability and 40% higher throughput than industry benchmarks. Example: The Pro’s ±0.05mm precision ensures flawless winding for aerospace-grade transformers, while its 12kg load capacity handles heavy-duty copper alloys. Pair this with its composite spools to prevent wire abrasion during high-speed operation.

*Pro Model’s RPM increase validated against IEC 60255-21 standards.

Frequently asked questions

  • Which model of Electric Motor Coil Spooling Machine suits small transformer manufacturing units?

  • How do I maintain the winding spools of the Varnished Wire Winding Machine?

  • Steel vs Composite Spools: Which is better for high-volume transformer wire winding?

  • Can the Electric Motor Coil Spooling Machine be customized for specific wire gauges?

  • Is the Electric Motor Coil Spooling Machine CE-certified for industrial safety?

  • What safety features does the Varnished Wire Winding Machine include?

  • How does CNC technology improve winding accuracy in this machine?

  • Can the automatic Electric Motor Coil Spooling Machine handle both thick and thin wires?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material ConstructionHeavy industrial environmentsIndustry: Steel (ASTM A36)Our Base: CNC Aluminum (6061-T6 ▲)Our Advanced: Stainless Steel 316 (▲▲)
Base: Lightweight (50% lighter than steel)Base: Higher cost than steel
Advanced: Corrosion-resistant (ASTM B117 salt spray test, 1000+ hours)Advanced: Heavier and 30% costlier than Base

| Control System | Automated assembly lines | Industry: Manual controls | Our Base: Programmable digital interface (ISO 13849 ▲) | Our Advanced: Touchscreen PLC with IEC 61131-3 compliance (▲▲) |
| | | | Base: Adjustable speed/tension parameters | Advanced: Real-time monitoring and diagnostics |
| | | | Base: Reduces setup time by 40% | Advanced: Requires specialized training |

| Winding Speed | High-volume production environments | Industry: 10 m/min | Our Base: 15 m/min ▲ | Our Advanced: 20 m/min ▲▲ |
| | | | Base: 50% faster than industry standard | Advanced: 100% faster than industry standard |
| | | | Base: Lowers labor costs | Advanced: Higher energy consumption |

| Noise Level | Office or shared workshop spaces | Industry: 70 dB (lawnmower-level noise) | Our Base: 65 dB ▲ (quieter than vacuum cleaner) | Our Advanced: 60 dB ▲▲ (similar to whisper) |
| | | | Base: Meets OSHA noise standards | Advanced: Ideal for noise-sensitive environments |
| | | | Base: Reduces hearing protection needs | Advanced: Adds sound-dampening components (increases weight) |

| Safety Features | High-risk manufacturing facilities | Industry: Basic emergency stop button | Our Base: Pedal + E-stop ▲ | Our Advanced: Multi-sensor safety system (▲▲) |
| | | | Base: Manual override via pedal | Advanced: Laser sensors for collision avoidance |
| | | | Base: 20% faster emergency stop response | Advanced: Complex setup and maintenance |

| Customization | Custom manufacturing needs | Industry: Fixed settings | Our Base: Adjustable parameters (speed, tension, diameter) ▲ | Our Advanced: Full PLC programming + presets for 50+ materials (▲▲) |
| | | | Base: Supports 10+ material types | Advanced: Automates complex winding patterns |
| | | | Base: Reduces downtime for reconfiguration | Advanced: Requires PLC-certified technicians |
