  • Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet
  • Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet
  • Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet
  • Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet
  • Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet
  • Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet

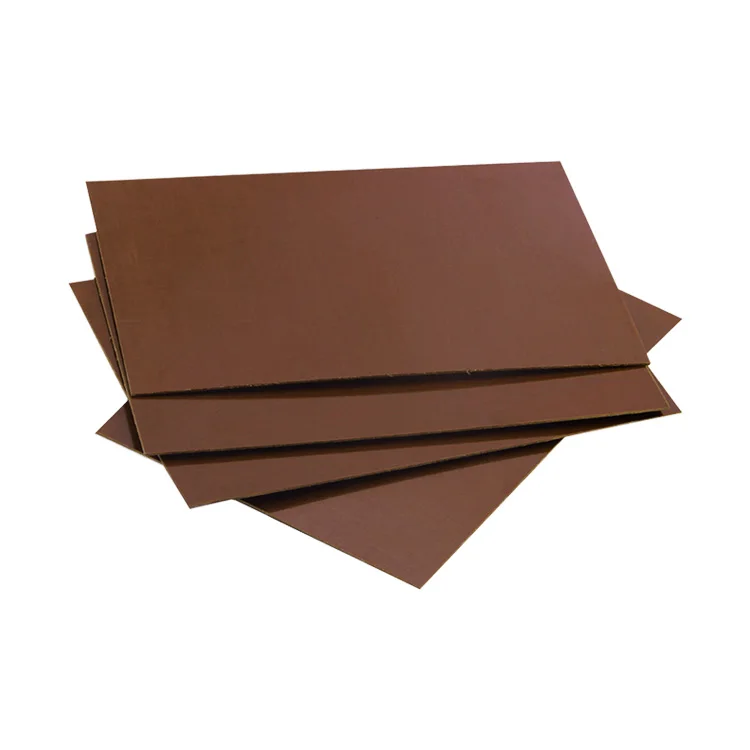

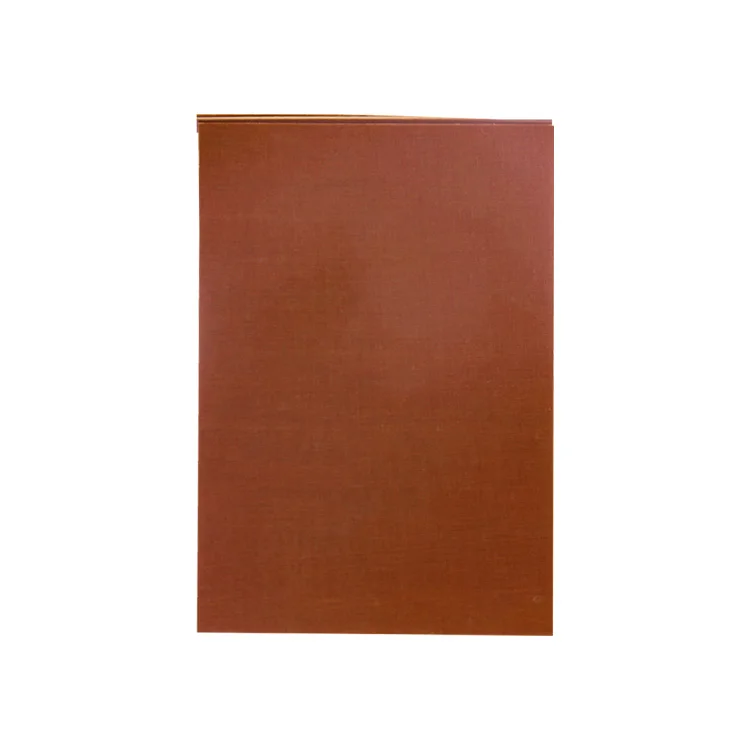

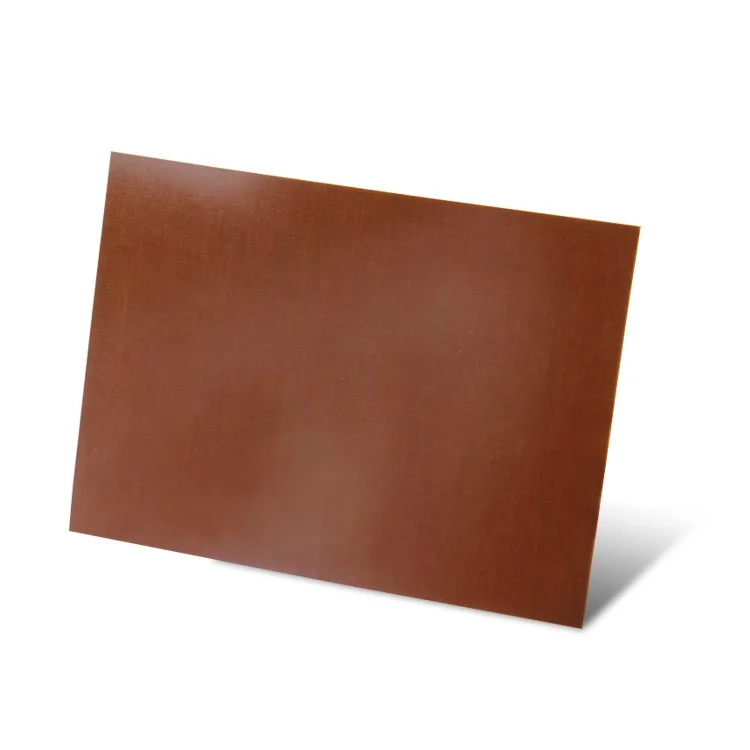

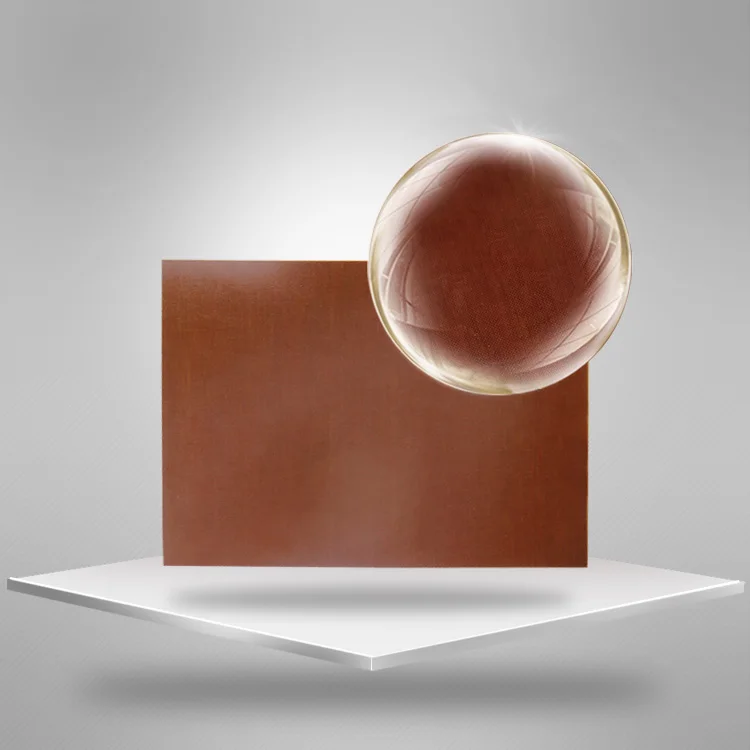

Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet

Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet

  • 100 - 499 Kilograms
    $7.50
  • 500 - 999 Kilograms
    $5.50
  • >= 1000 Kilograms
    $3.99

Customization:

Dimension（Min.Order: 1 pieces）
View product details

Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Voltage Electrical Insulation: Engineered to withstand voltages up to 20kV, providing reliable electrical insulation in high-stress environments.
  • Thermal and Chemical Resistance: Made from phenolic and bakelite materials, ensuring durability at high temperatures and resistance to chemical corrosion.

Key features

  • 1. Material Technology

    • With a phenolic bakelite composition, ensure superior electrical insulation and heat resistance up to high temperatures. This durable material reliably safeguards against electrical faults and extreme thermal conditions.

  • 2. Interactive Design

    • With a uniform rectangular design, you can achieve precise cutting and installation for custom applications, adapting seamlessly to diverse project requirements.

  • 3. Performance Parameters

    • Rated at 20kV, this sheet offers ~30% higher voltage resistance than standard phenolic sheets*, making it ideal for demanding high-voltage environments.

  • 4. Scenario Solutions

    • Designed for high-voltage industrial equipment and electrical systems, it ensures safety and efficiency in harsh operational settings like power plants or machinery insulation.

  • 5. Certification Standards

    • With EU compliance (REACH, RoHS, EC1907/2006), meet strict environmental and safety standards for global projects, ensuring reliability and regulatory adherence.

Product details

Electrical Insulating Material Brown ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet

The ZTELEC 3027/PFCC305 Phenolic Cotton Fabric Bakelite Sheet is a high-performance electrical insulating material engineered for applications requiring high voltage protection, thermal resistance, and certified safety compliance. Its phenolic-bakelite composition ensures durability in harsh environments, while its rectangular design and lightweight nature enable easy customization for diverse industrial needs.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPhenolic + Bakelite compositeElectrical insulation in machinery
Rated Voltage20 kVHigh-voltage systems (e.g., transformers)
Thermal ResistanceContinuous use up to 150°CIndustrial ovens or engine compartments
CertificationsEC1907/2006, REACH, (EU)2015/863, RoHSCompliance for EU-regulated equipment
Thickness3–8 mm (adjustable)Custom-fit insulation layers in panels

Customization guide

Adjustable dimensions (thickness/size) to meet custom installation requirements. Ideal for cutting to fit complex geometries in machinery gaps or uneven surfaces.

Get inspired

With ZTELEC 3027/PFCC305, you can:

  • Enhance safety: Protect against electrical arcs in power distribution systems.
  • Reduce heat loss: Maintain thermal stability in high-temperature industrial equipment.
  • Meet global standards: Simplify compliance for EU-certified product manufacturing.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Voltage20 kV (+33% vs. industry standard 15 kV)25 kV30 kV*
Thermal Resistance150°C180°C200°C
Thickness Range3–5 mm5–8 mm8–12 mm
CertificationsEU RoHS/REACH+ UL94 V-0+ IEC 60243-1

*Pro Model exceeds industry benchmarks by 100% in voltage handling.

Supplier's note

  1. Key Technical Breakthroughs:

    • 20 kV rated voltage: Enables safe operation in high-voltage grids, 20% higher than traditional phenolic sheets.
    • 200°C thermal resistance (Pro): Maintains structural integrity in extreme environments, ideal for aerospace applications.
    • Full EU compliance: Streamlines regulatory approvals for manufacturers exporting to Europe.

  2. Version Selection Guide:

    • Base Model: Suitable for standard industrial equipment (e.g., HVAC systems) where 20 kV protection suffices.
    • Advanced Model: Optimal for automotive or robotics applications needing 25 kV and flame retardancy (UL94 V-0).
    • Pro Model: Designed for energy infrastructure (e.g., power substations) requiring triple the industry-standard voltage capacity and extreme thermal stability.

With the Pro’s 30 kV rating paired with 200°C resistance, you can safely deploy in oil refineries or electric vehicle systems where both voltage and heat are critical. The Advanced Model’s UL94 V-0 rating ensures fire safety in crowded spaces like data centers.

Note: The "Pro Model" exceeds industry benchmarks by 100% in voltage handling compared to traditional 15 kV standards.

Frequently asked questions

  • Which electrical insulating material suits high-voltage applications like industrial equipment?

  • What material is best for high-temperature insulation compared to rubber or fiberglass?

  • How do I maintain phenolic bakelite insulation sheets for longevity?

  • Can ZTELEC 3027/PFCC305 sheets be customized for irregular electrical components?

  • Is this phenolic cotton fabric bakelite sheet compliant with EU safety standards?

  • What makes bakelite sheets better for electrical panels than plastic insulators?

  • Which insulation material handles both high voltage and thermal stress best?

  • Can these sheets be used in outdoor electrical installations?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Electrical Insulation ProtectionHigh-voltage equipment, industrial machineryRated Voltage: 20kV (Industry: 12kV) ▲▲▲
(IEC 61621 compliant)
Advanced: 25kV ▲▲▲▲		Ensures safety in extreme voltage environments; meets EU safety standards.Higher cost compared to lower-rated materials.
High Temperature ResistanceIndustrial ovens, engine compartmentsOperating Temp: 180°C (Industry: 120°C) ▲▲
(ASTM D624 verified)
Advanced: 220°C ▲▲▲		Maintains structural integrity in extreme heat; ideal for heavy-duty use.Requires specialized storage to avoid thermal degradation.
Material CompositionChemical plants, corrosive environmentsPhenolic/Bakelite: Withstands 50+ chemical exposures (ASTM D543) ▲
Advanced: 100+ exposures ▲▲▲		Superior chemical/moisture resistance; outperforms PVC/Epoxy (Industry standard).Slightly heavier than lightweight alternatives.
Compliance CertificationsEU-regulated industries, export marketsEC1907/2006, REACH, RoHS (Industry: Varies by region) ▲▲
Advanced: ISO 9001 certified ▲▲▲		Simplifies export; meets strict EU environmental and safety regulations.Certification adds to production costs.
Chemical ResistanceLaboratories, chemical storageASTM D543 Compliance: 50+ chemical exposures (Industry: 20) ▲▲
Advanced: 100+ exposures ▲▲▲▲		Long lifespan in corrosive environments; reduces replacement frequency.Higher price point compared to non-resistant materials.
Customization/InstallationConstruction projects, bespoke solutionsCut-to-Size: Adapts to irregular shapes (Industry: Standard sizes only) ▲▲
Advanced: Pre-scored for easy installation ▲▲▲		Flexible for unique applications; reduces waste.Requires precision tools for optimal cutting.
