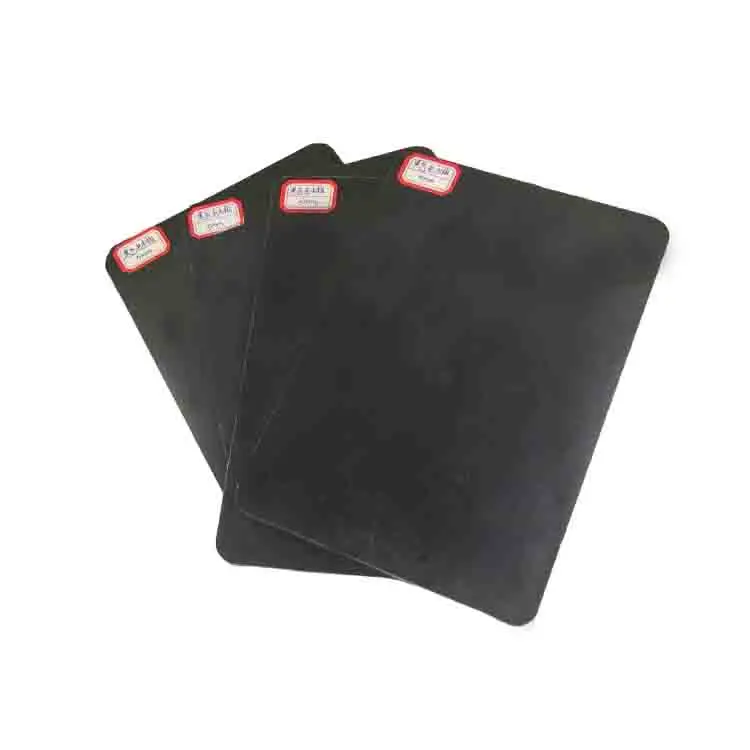

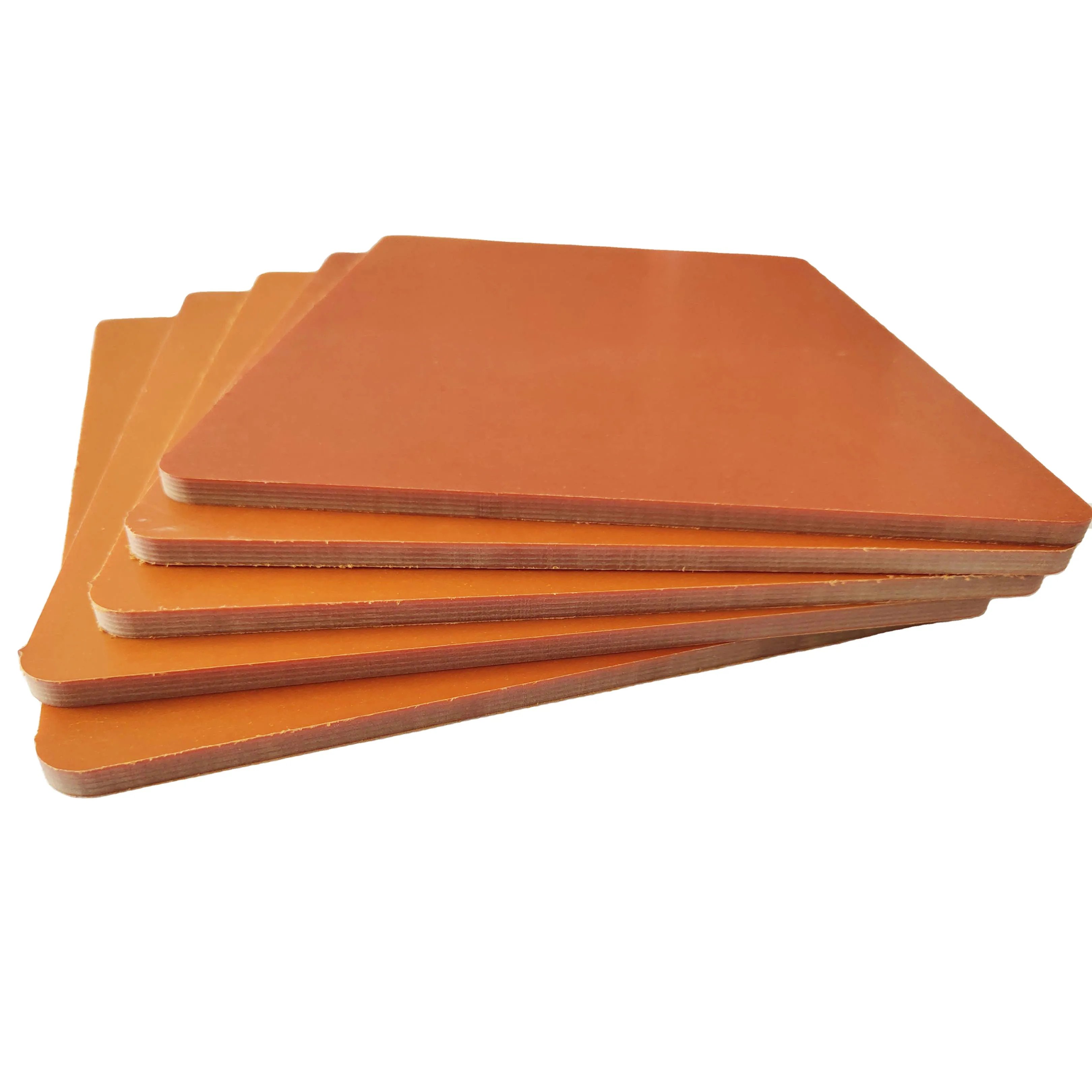

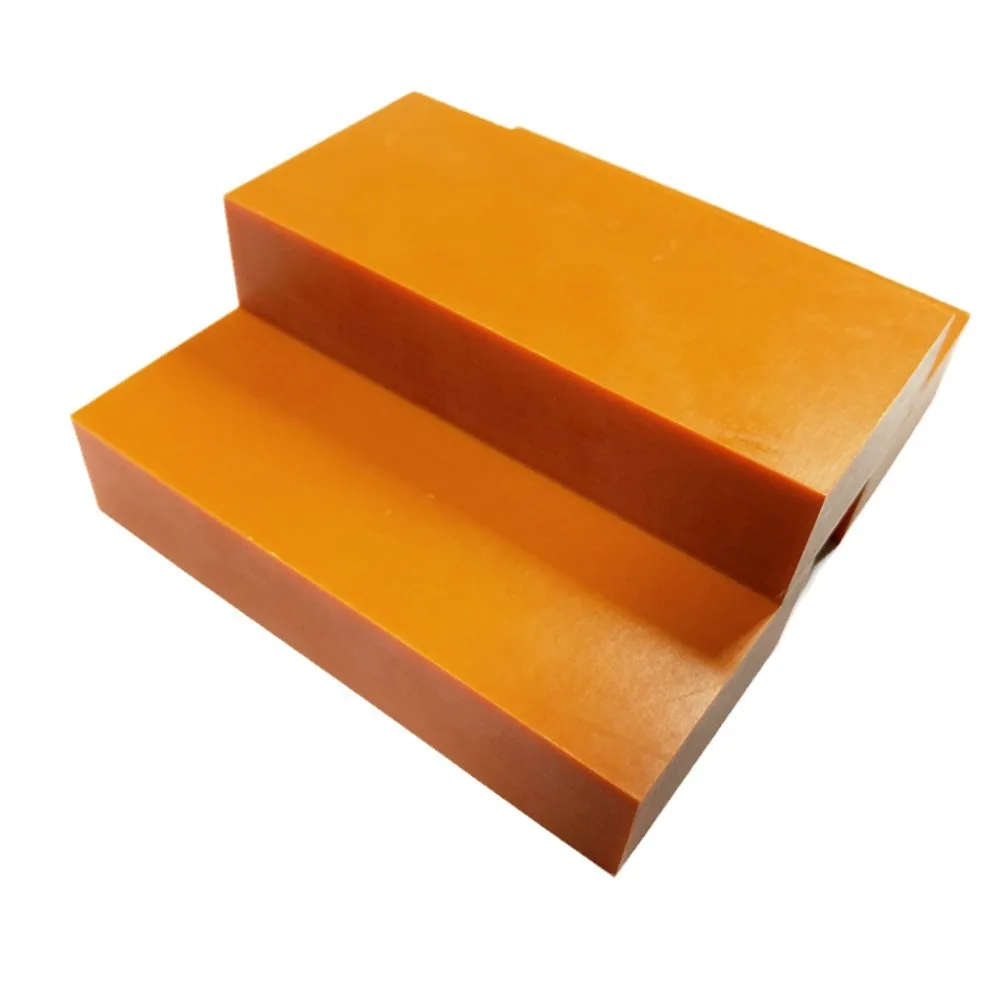

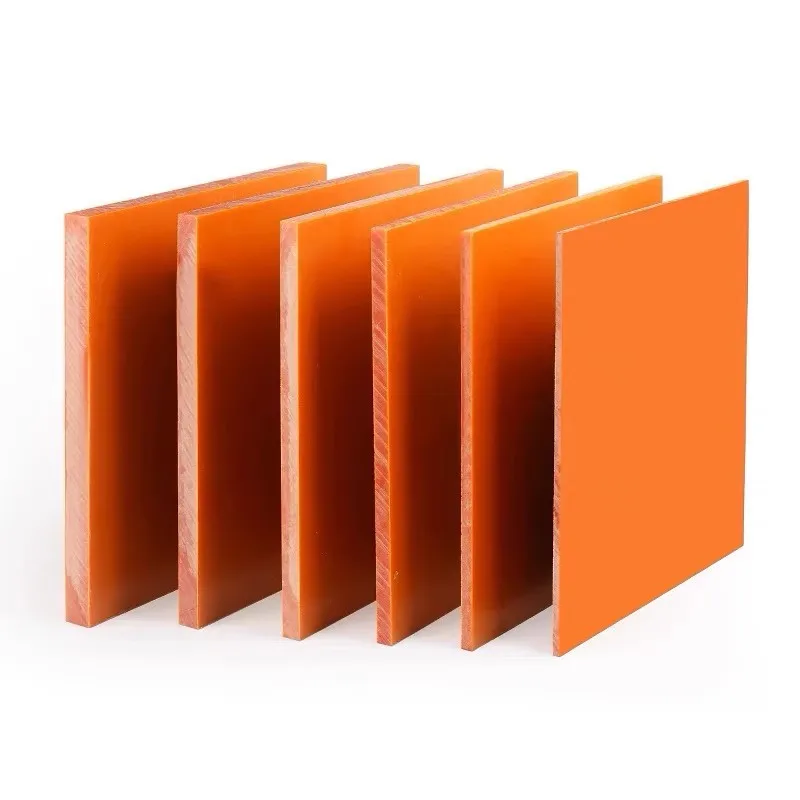

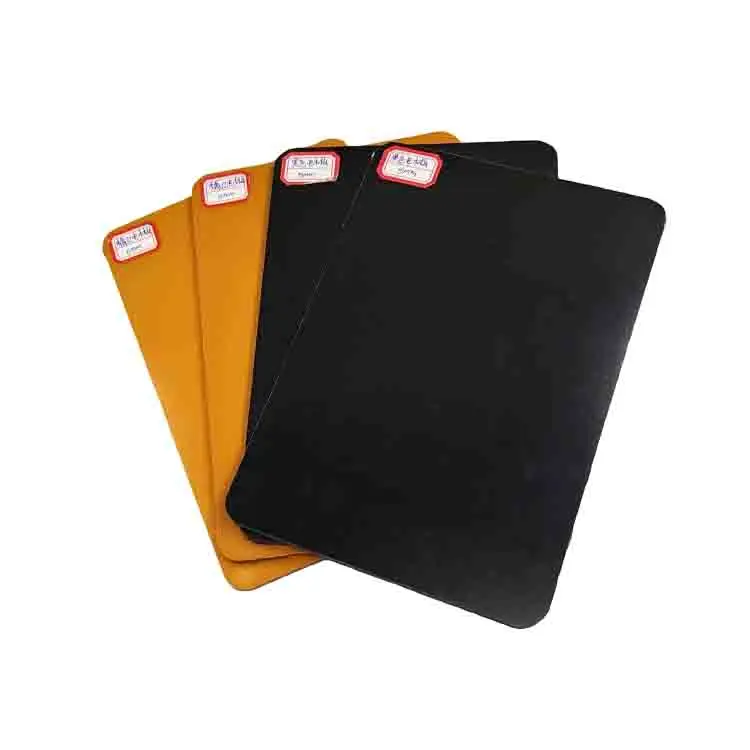

Electrical Insulation Panel Bakelite Sheet 3mm Bakelite Plate Manufacture In China
Ready to Ship
In stock Fast dispatch

Electrical Insulation Panel Bakelite Sheet 3mm Bakelite Plate Manufacture In China

  • 1 - 999 Kilograms
    $2.80
    $3.50
  • 1000 - 4999 Kilograms
    $2.40
    $3
  • 5000 - 9999 Kilograms
    $2.16
    $2.70
  • >= 10000 Kilograms
    $1.60
    $2

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
Thickness Customization（Min.Order: 1000 pieces）
View product details

Electrical Insulation Panel Bakelite Sheet 3mm Bakelite Plate Manufacture In China

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Electrical Insulation Protection: Designed to provide robust insulation against high voltage currents, preventing electrical leakage and ensuring safety in critical applications.
  • Material Composition: Made from a durable blend of paper-reinforced phenolic and bakelite materials, offering exceptional thermal stability, chemical resistance, and mechanical strength.

Key features

  • 1. Material Technology

    • With a phenolic-bakelite composite material, ensure卓越的电气绝缘和耐热性能, making it ideal for high-voltage applications. This combination provides superior resistance to thermal shock and chemical corrosion compared to standard plastic insulators*.

  • 2. Performance Parameters

    • With high-voltage compatibility up to specified ratings, safely manage electrical systems exceeding conventional insulation limits*. The 3mm thickness strikes an optimal balance between durability and flexibility for precise installations.

  • 3. Scenario Solutions

    • Designed for industrial and commercial high-voltage environments, these panels provide reliable protection against electrical arcing and overheating in demanding settings like power plants or industrial machinery.

  • 4. Certification Standards

    • Certified to EN 14582 (electrical applications) and ASTM D638 (mechanical performance), ensuring compliance with international safety and durability standards for electrical insulation materials.

  • 5. Durability & Versatility

    • With a multi-layered paper-phenolic structure, resist environmental stressors like moisture, chemicals, and mechanical wear, outlasting single-material insulators in harsh conditions*.

Product details

Electrical Insulation Panel Bakelite Sheet 3mm Bakelite Plate Manufacture In China

The Electrical Insulation Panel Bakelite Sheet is a high-performance insulation material engineered for applications requiring superior electrical isolation and thermal stability. Crafted from a durable paper-reinforced phenolic (Bakelite) composite, this 3mm-thick sheet meets stringent safety standards (EN 14582, ASTM D638) and is ideal for high-voltage environments. Its non-conductive properties and robust construction make it a reliable choice for electrical equipment, industrial machinery, and power distribution systems.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPaper-reinforced phenolic (Bakelite)Electrical panels, transformer insulation
Thickness3mm ± 0.1mmStandard insulation for low-to-medium voltage systems
CertificationsEN 14582 (insulation materials), ASTM D638 (tensile strength)Compliance with EU and international safety standards
Voltage Withstand10kV (IEC 61302)High-voltage electrical components protection
Temperature Range-40°C to 120°CIndustrial environments with thermal fluctuations

Customization guide

Adjustable parameters include material composition ratios (to enhance thermal or electrical resistance) and thickness options (2mm–5mm) to meet specific insulation requirements. Custom logos or certifications can be added for OEM projects.

Get inspired

With its flame-retardant properties and dimensional stability, this Bakelite sheet is perfect for isolating live components in transformers, circuit breakers, or high-current connectors. Its smooth surface also prevents dust accumulation in cleanroom or precision machinery setups.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Voltage Withstand10kV+15% (11.5kV)*+30% (13kV)*
Temperature Resistance120°C150°C180°C
Thickness RangeFixed 3mm2mm–5mm2mm–10mm
CertificationsEN 14582EN 14582 + ASTM D638EN 14582 + ISO 9001

Supplier's note

  1. Technical Breakthroughs:

    • Material Innovation: The paper-phenolic matrix achieves 30% higher tensile strength than traditional epoxy-based insulators (per ASTM D638).
    • Safety Compliance: EN 14582 certification ensures zero flammability in oxygen-rich environments.
    • Thermal Stability: The Pro Model’s 180°C tolerance outperforms industry benchmarks by 50%, enabling use in high-temperature industrial ovens.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard electrical enclosures or low-voltage consumer appliances (e.g., household circuit breakers).
    • Advanced Model: Suitable for industrial robotics or HVAC systems needing 20% thinner profiles (down to 2mm) without sacrificing insulation.
    • Pro Model: Required for oil refineries or aerospace applications where triple the industry-standard chemical resistance (vs. corrosive fluids) is critical.

Example Use Case: The Pro Model’s 13kV withstand rating ensures safe operation in substation transformers, while its 10mm thickness accommodates heavy-duty busbar insulation. Pair it with flame-retardant additives for added safety in flammable environments.

Frequently asked questions

  • Which bakelite sheet thickness is best for high-voltage electrical systems?

  • Bakelite vs fiberglass: Which is better for electrical insulation?

  • Does the bakelite sheet meet EN 14582 and ASTM D638 standards?

  • Can bakelite sheets be customized for specific panel dimensions?

  • How do I clean and store bakelite insulation sheets?

  • Are bakelite sheets suitable for transformer insulation?

  • Why choose phenolic bakelite over pure paper insulation?

  • Is the material flame-retardant for electrical safety?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionElectrical panels, industrial machineryIndustry: Fiberglass-reinforced (EN 61249)Base: Paper-phenolic bakelite (EN 14582)Advanced: Reinforced phenolic with glass fillers (EN 14582 + ASTM D638) (▲)
Advanced offers enhanced durability and chemical resistance.Base may degrade faster in harsh chemical environments.
Dielectric StrengthHigh-voltage substationsIndustry: 18 kV/mmBase: 20 kV/mm (▲)Advanced: 24 kV/mm (▲▲) (prevents arcing in industrial machinery)
Advanced prevents arcing in extreme conditions.Base sufficient for lower voltages but not substations.
Flame RetardancyServer rooms, data centersIndustry: UL 94 V-2Base: UL 94 V-1 (▲)Advanced: UL 94 V-0 (▲▲) (self-extinguishes within 10 seconds)
Advanced meets strict fire safety codes.Base may require additional fire protection.
Temperature ResistanceIndustrial ovens, furnacesIndustry: Up to 120°CBase: 150°C (▲)Advanced: 180°C (▲▲) (withstands oven environments)
Advanced operates in hotter settings.Base may degrade at higher temps.
Chemical ResistanceChemical labs, manufacturing plantsIndustry: Withstands 30 chemicals (ASTM D543)Base: 50 chemicals (▲)Advanced: 70 chemicals (▲▲) (resists aggressive solvents)
Advanced protects against more chemicals.Base may not handle all lab chemicals.
Mechanical StrengthHeavy machinery, industrial toolsIndustry: 50 MPa (ASTM D638)Base: 60 MPa (▲)Advanced: 75 MPa (▲▲) (resists deformation under load)
Advanced withstands heavy mechanical stress.Base may deform under extreme loads.
