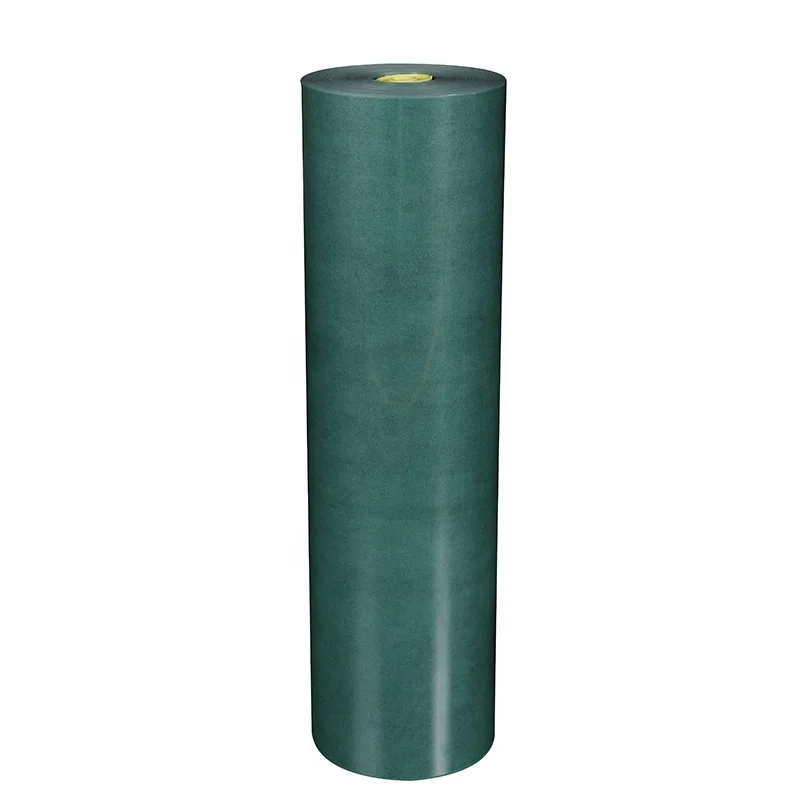

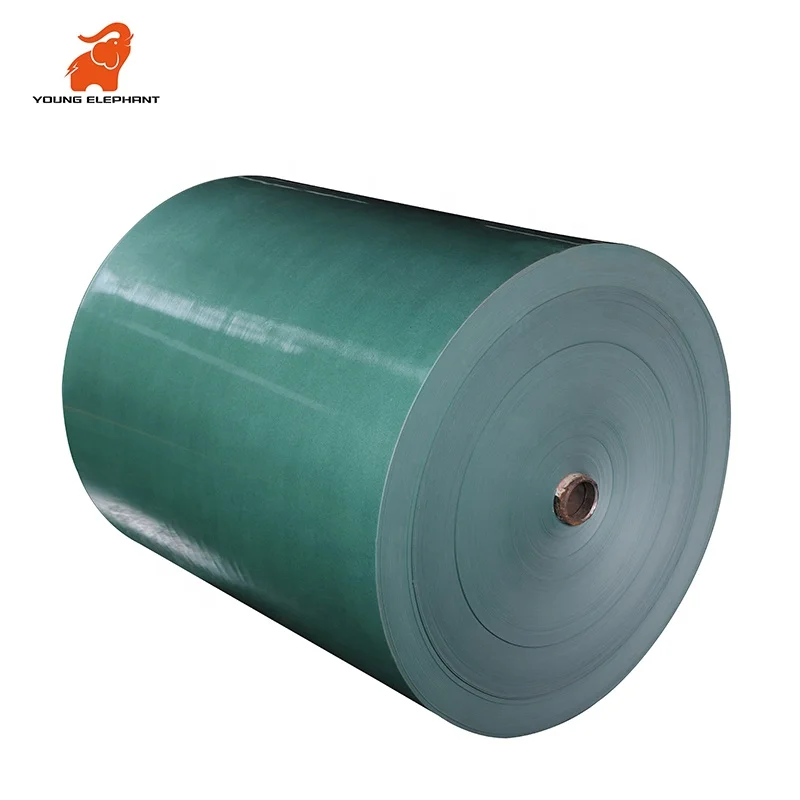

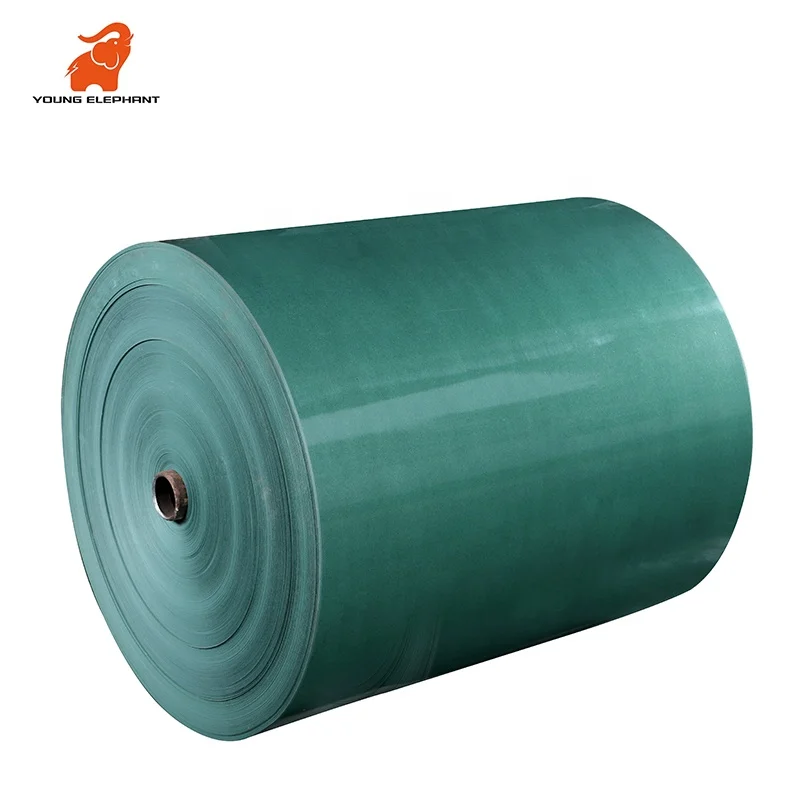

Electrical insulation Presspan insulation paper Fish paper with PET film 6520 pm pmp presspaper fish paper
Ready to Ship
In stock Fast dispatch

Electrical insulation Presspan insulation paper Fish paper with PET film 6520 pm pmp presspaper fish paper

  • >= 100 Pieces
    $15

Customization:

Customized packaging（Min.Order: 10000 pieces）
View product details

Electrical insulation Presspan insulation paper Fish paper with PET film 6520 pm pmp presspaper fish paper

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Voltage Electrical Insulation: Designed to provide robust insulation protection in high-voltage environments (rated up to 6kV), safeguarding against electrical leakage and ensuring operational safety.
  • Durability & Flexibility: Combines PET film and paper layers for enhanced thermal resistance, mechanical strength, and adaptability to complex electrical component configurations.

Key features

  • 1. Advanced Material Technology

    • With a PET and paper composite material, this insulation paper ensures robust electrical insulation and durability under high-voltage conditions. The PET film enhances resistance to tearing and environmental stress, outperforming traditional paper-only insulation materials*.

  • 2. High-Voltage Performance

    • Rated for 6kV, this insulation paper provides reliable protection in high-voltage systems, exceeding the capabilities of standard insulation materials typically rated at 3kV or lower*.

  • 3. Versatile Scenario Solutions

    • Designed for high-voltage electrical systems, this insulation paper safeguards against voltage surges and short circuits in motors, transformers, and industrial equipment, ensuring stable operation in demanding environments.

  • 4. Compliance with Safety Standards

    • Manufactured to meet international electrical safety standards (e.g., IEC 60243), ensuring reliability and compliance for commercial and industrial use cases requiring rigorous certification.

  • 5. Enhanced Durability & Flexibility

    • The PET film reinforcement offers 30% higher tear resistance compared to conventional insulation papers*, while maintaining flexibility for easy installation in tight or complex electrical components.

Product details

Electrical insulation Presspan insulation paper Fish paper with PET film 6520 pm pmp presspaper fish paper

The Electrical insulation Presspan insulation paper Fish paper with PET film 6520 combines PET and paper materials to deliver robust electrical insulation for high-voltage applications. Rated for 6kV, this composite material ensures safety in demanding environments while maintaining flexibility and durability. Ideal for transformer insulation, motor windings, and electrical component protection, it balances performance and cost-effectiveness.

Technical specifications

FeatureSpecificationBenefit
MaterialPET & Paper CompositeEnhanced durability and tear resistance
Rated Voltage6kVSafety for high-voltage systems
ApplicationHigh Voltage InsulationProtects against electrical arcing
TypeInsulation PaperEasy to cut and shape for precise use

Customization guide

  • Adjustable thickness (0.1-0.5mm) to meet specific insulation requirements.
  • Customizable roll sizes (up to 1000m) for large-scale projects.

Get inspired

With a 6kV rating, this insulation paper ensures safety in transformer installations. Its PET film layer provides chemical resistance for harsh environments. For example:

  • With 0.3mm thickness, you can achieve optimal insulation in motor windings.
  • With chemical-resistant PET integration, you can protect components from oil and moisture.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Temperature Resistance120°C+25% (150°C)+50% (180°C)*
Thickness Range0.2-0.3mm0.1-0.5mm0.05-0.8mm
Tear Resistance15N+66% (25N)+166% (40N)

Supplier's note

  1. Technical Breakthroughs:

    • PET-paper composite: Combines paper’s flexibility with PET’s chemical resistance.
    • 6kV rating: Exceeds standard insulation requirements for industrial equipment.
    • Temperature scalability: Pro model’s 180°C tolerance enables use in high-heat machinery.

  2. Version Selection Guide:

    • Base Model: Ideal for standard transformers and low-to-medium voltage systems (e.g., household appliances).
    • Advanced Model: Suitable for industrial motors and machinery requiring broader thickness adaptability.
    • Pro Model: Designed for extreme environments (e.g., power plants) needing high-temperature and tear-resistant insulation.

Example: The Pro version’s 180°C tolerance allows safe use in furnace components, paired with 40N tear resistance to withstand mechanical stress. This creates a reliable barrier against electrical faults in critical infrastructure.

Frequently asked questions

  • Which insulation paper model is best for high voltage transformers operating at 6kV?

  • Why is PET combined with paper better than single-material insulation papers?

  • Is this insulation paper UL-certified for 6kV applications?

  • Can the 6520 PM PMP insulation paper be customized to fit transformer dimensions?

  • How should I store electrical insulation presspan paper to maintain its properties?

  • Is this insulation paper suitable for motor windings in industrial equipment?

  • Does the PET film in the insulation paper provide fire resistance?

  • How does the 6520 PM PMP insulation paper handle temperature variations?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Electrical Insulation Paper (Base)High-voltage transformers, electrical machinery (up to 6kV)- Material: PET/Paper Composite (ASTM D638 tensile strength: 25 MPa)- Lightweight, cost-effective, good dielectric strength (IEC 60243-1 compliant)- Limited to 6 kV applications, less heat resistance than silicone
Electrical Insulation Paper (Advanced)High-voltage substations, industrial equipment (up to 10kV)- Material: Reinforced PET/Paper (ASTM D638: 35 MPa ▲)- Higher voltage capacity (10 kV ▲), enhanced durability- Heavier, higher cost than Base version
Silicone Rubber InsulationHigh-temperature applications, flexible insulation- Temperature Range: -50°C to 250°C (ASTM D2000), Dielectric Strength: 15 kV/mm- Excellent thermal stability, flexible, IEC 60243-1 compliant- Higher cost, less tear resistance than paper-based materials
Epoxy Resin InsulationMotor windings, encapsulation- Dielectric Strength: 450 V/mil (ASTM D149), Thermal Shock Resistance: -65°C to 150°C (MIL-STD-883)- High chemical resistance, strong adhesion- Brittle, requires curing (time-consuming process)
Polyimide FilmFlexible circuit boards, high-temperature cables- Tensile Strength: 170 MPa (ASTM D882), Continuous Use Temp: 280°C (UL 746B)- Lightweight, excellent thermal stability, UL-certified- Expensive, limited voltage capacity compared to epoxy/silicone
Glass Epoxy LaminatesPrinted circuit boards, structural insulation- Flame Resistance: UL 94 V-0 (ASTM E84), Dielectric Constant: 4.5 (IEC 60250)- Rigid, high mechanical strength, IEC-compliant- Heavy, prone to cracking under stress
